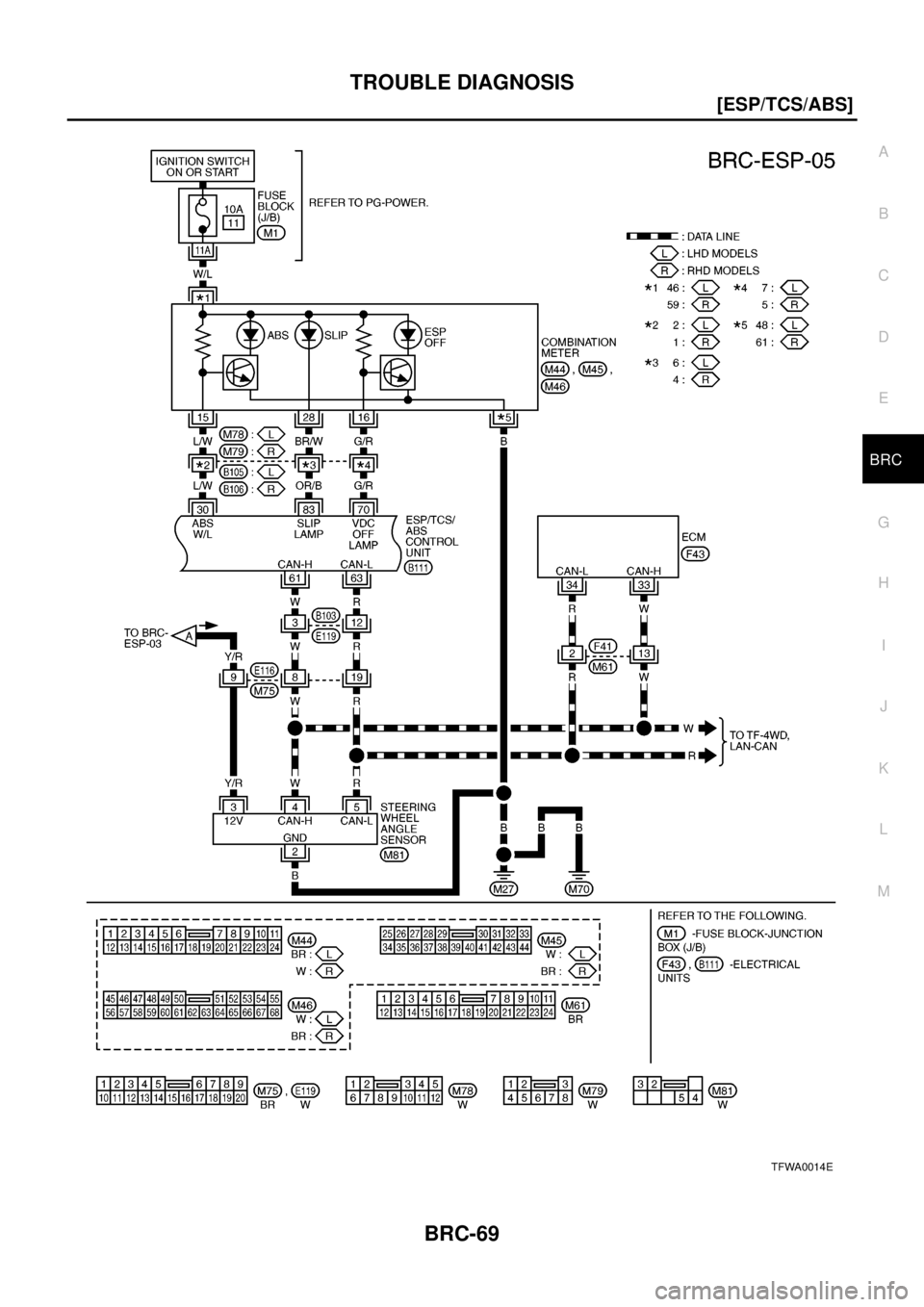

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
BRC-69
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
TFWA0014E

Page 938 of 3066

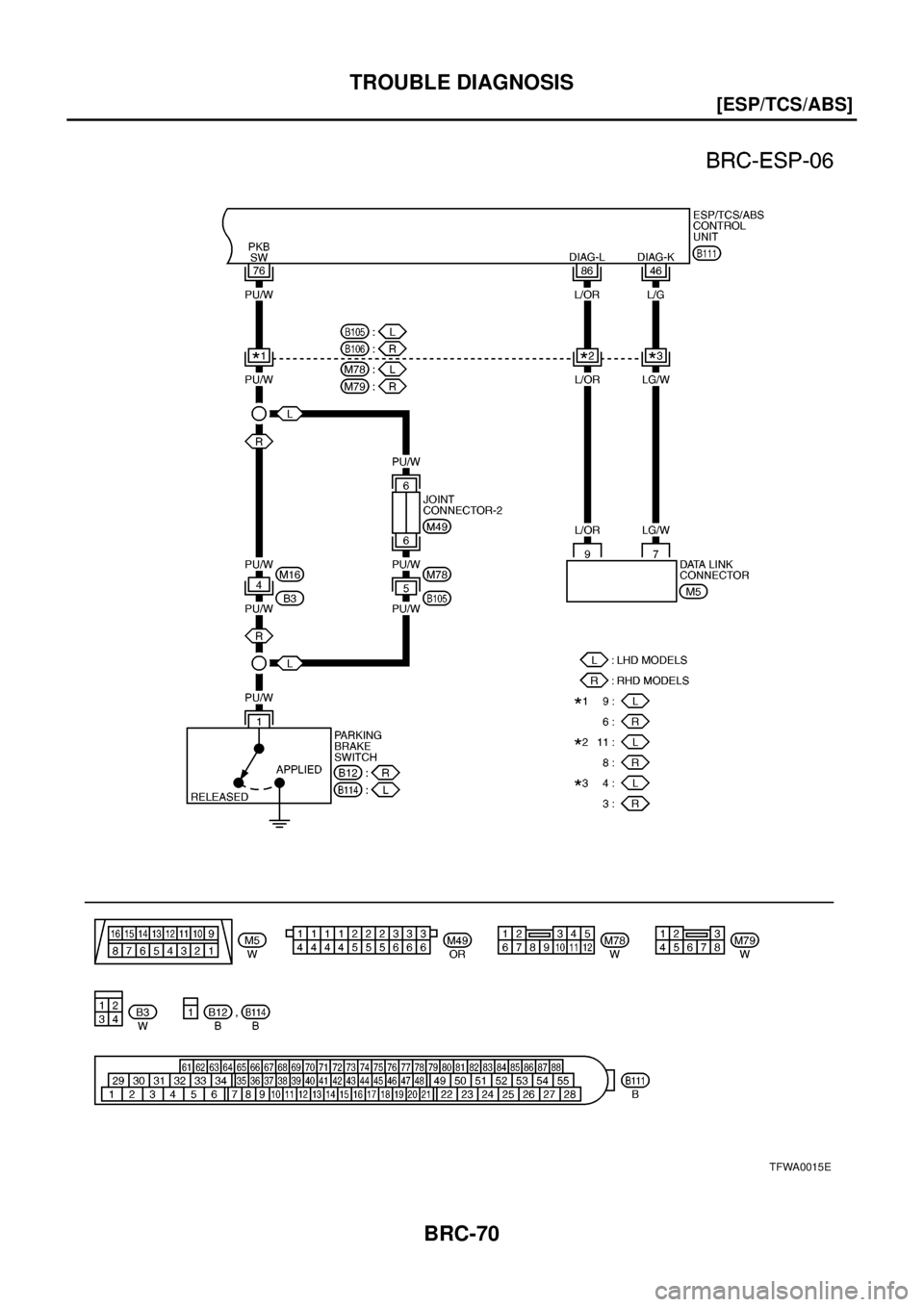

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-70
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWA0015E

Page 939 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
BRC-71
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Control Unit Input/Output Signal StandardEFS001A6
STANDARDS USING A CIRCUIT TESTER AND OSCILLOSCOPE
CAUTION:
Connect the connectors fo

Page 940 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-72
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
3
Body
groundFront LH wheel outlet
solenoid valve
Solenoid valve activated
(In “active test” mode of CON-
SULT-II) or actuator relay inac-
tive (in fail-safe

Page 941 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
BRC-73
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
44
Body
groundESP OFF switchESP OFF switch is pressed. Approx. 10V
ESP OFF switch
and circuit
ESP OFF switch is released. Approx. 12V

Page 942 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-74
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
(Note 1): When the standard value is checked using a circuit tester for voltage measurement, the connector terminals should not extend
forcefully.
(Note 2): Chec

BRC-74
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
(Note 1): When the standard value is checked using a circuit tester for voltage measurement, the connector terminals should not extend
forcefully.
(Note 2): Check the pressure of the tire in normal condition.
(Note 3): ON/OFF timing of the ABS warning lamp
ON: When the ignition switch is turned ON (before engine start) or a malfunction is detected.
OFF: 2 seconds after the engine started (the system is in normal condition).
(Note 4): ESP OFF indicator lamp ON/OFF timing
ON: When the ignition switch is turned ON (before engine start) or a malfunction is detected, if the ESP OFF switch is ON.
OFF: 2 seconds after the engine started (the system is in normal condition) and ESP OFF switch is OFF.67
Body
groundPressure sensorIgnition switch ON Approx. 0V
Pressure sensor
and circuit 68When ignition switch ON and
brake pedal released.Approx. 0.6V
69 Ignition switch ON Approx. 0V
18 Side G sensor Ignition switch ON Approx. 2.5VYaw rate /Side G
sensor and circuit
34
Yaw rate/Side G sensorIgnition switch ON Battery voltage (Approx. 12V)
Yaw rate /Side G
sensor and circuit 77 Ignition switch ON
78 Ignition switch ON Approx. 2.5V
79
Ya w r a t e s e n s o rIgnition switch ON
Ya w r a t e s e n s o r
and circuit
80 Ignition switch ON Approx. 0V
30 ABS warning lampABS warning lamp turns on
(Note 3)Approx. 0V
ABS warning lamp
and circuit
ABS warning lamp turns off
(note 3)Battery voltage (Approx. 12V)
70 ESP OFF indicator lampESP OFF indicator lamp turns
on (Note 4)Approx. 0V
ESP OFF warning
lamp and circuit
ESP OFF indicator lamp turns
off (note 4)Battery voltage (Approx. 12V)
83 SLIP indicator lampWhen SLIP indicator lamp is ON
(Note 5)Approx. 0V
SLIP indicator
lamp and circuit
SLIP indicator lamp turns off
(note 5)Battery voltage (Approx. 12V)
40 Brake fluid level warning
switchBrake fluid is not enough Battery voltage (Approx. 12V) Brake fluid level
warningswitchand
circuit
Brake fluid is enough Approx. 0V
76Body
groundParking brake signalApply the parking brake. Battery voltage (Approx. 12V)
Parking brake
switch and circuit
Release the parking brake. Approx. 0V Measure-
ment termi-
nalMeasuring point Standard value (Note 1)(Reference) Check
items for malfunc-
tion
+–
SFIA0150E
SFIA0151E

Page 943 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
BRC-75
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(Note 5): ON/OFF timing of the SLIP indicator lamp
ON: When the ignition switch is turned ON (before engine start) or a malfunction is

TROUBLE DIAGNOSIS
BRC-75
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(Note 5): ON/OFF timing of the SLIP indicator lamp
ON: When the ignition switch is turned ON (before engine start) or a malfunction is detected.
OFF: 2 seconds after the engine started (the system is in normal condition) and the ESP/TCS function is inactive.
Flashing: ESP/TCS function is active during driving.
STANDARDS WITH CONSULT-II
CAUTION:
The displayed item is the data calculated by the control unit, so it may indicate a normal value even if
an output circuit (harness) is open or shorted.
Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSORWheel speed (Note 1)Vehicle stopped 0 [km/h (MPH)]
Wheel speed sensor cir-
cuit
During drivingAlmost in accor-
dance with the
speedometer dis-
play (within±10%)
ACCEL POS SIGOpen/close condition
of throttle valve (linked
with accelerator pedal)Accelerator pedal not
depressed (ignition switch is
ON)0%Control unit communica-
tion circuit between the
ESP/TCS/ABS control
unit and ECM Accelerator pedal depressed
(ignition switch is ON)0 – 100%
ENG RPMWith the engine run-
ningWith the engine stopped 0rpm
Engine speed signal cir-
cuit
Engine runningAlmost in accor-
dance with
tachometer display
STR ANGLE SIGSteering angle
detected by steering
angle sensorStraight-ahead condition Approx. 0 deg
Steering angle sensor
and circuit
Steering – 720 to 720deg
YAW R AT E S E NYaw rate detected by
yaw rate sensorVehicle stopped Approx. 0 d/s
Yaw rate sensor and cir-
cuit
During driving – 70 to 70d/s
SIDE G-SENSORTransverse accelera-
tion detected by side G
sensorVehicle stopped
Approx. 0 m/s
2
Side G sensor and circuit
During driving
–24.3to24.1m/s2
PRESS SENSORBrake fluid pressure
detected by pressure
sensorWith the ignition switch
turned ON and brake pedal
released.Approx. 0 bar
Pressure sensor and cir-
cuit
With the ignition switch
turned ON and brake pedal
depressed.– 40 to 300bar
BATTERY VOLTBattery voltage sup-
pliedtotheESP/TCS/
ABS control unitIgnition switch ON 10 – 16VESP/TCS/ABS control
unit power supply circuit
and ground circuit
MOTOR RELAYMotor relay
ON/OFF conditionABS not activated. OFF
Motor relay and circuit
ABS activated. ON
ACTUATOR RLYActuator relay
ON/OFF conditionIgnition ON and Vehicle
stopped.OFF
Actuator relay and circuit
Engine running and Vehicle
stopped.ON
STOP LAMP SWOperating status of
brake pedalDepress brake pedal. ON
Stop lamp switch circuit
Release the brake pedal. OFF
PARK BRAKE SW Parking brake statusParking brake activated ON
Parking brake switch cir-
cuit
Parking brake not activated OFF

Page 944 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-76
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
OFF SWESP OFF SW
ON/OFF conditionESP OFF switch ON
(When ESP OFF indicator
lamp is ON.)ON
ESP OFF switch circuit
ESP OFF switch OFF
(When ESP OFF indicator
lamp

BRC-76
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
OFF SWESP OFF SW
ON/OFF conditionESP OFF switch ON
(When ESP OFF indicator
lamp is ON.)ON
ESP OFF switch circuit
ESP OFF switch OFF
(When ESP OFF indicator
lamp is OFF.)OFF
ABS WARN LAMPABS warning lamp sta-
tus (Note 2)When ABS warning lamp is
ON.ON
ABS warning lamp circuit
When ABS warning lamp is
OFF.OFF
OFF LAMPESP OFF indicator
lamp status (Note 3)When ESP OFF indicator
lamp is ON.ON
ESP OFF indicator lamp
circuit
When ESP OFF indicator
lamp is OFF.OFF
SLIP LAMPSLIP indicator lamp
status (Note 4)When SLIP indicator lamp is
ONON
SLIP indicator lamp cir-
cuit
When SLIP indicator lamp is
OFFOFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL
RR RH IN SOL
RR RH OUT SOLSolenoid valve opera-
tionActuator (solenoid valve) is
active (²Active Test²with
CONSULT-II) or actuator relay
is inactive (in fail-safe mode).ON
Solenoid valve and cir-
cuit
When the actuator (solenoid
valve) is not active and actua-
tor relay is active (ignition
switch ON).OFF
USV [FR-PL]
UISV [FL-RR]
HSV [FR-RL]
HSV [FL-RR]ESP switch-over sole-
noid valve statusWhen the actuator (switch-
over solenoid valve) is active
(²Active test²with CONSULT-
II) or the actuator relay is inac-
tive (when fail-safe mode).ON
Switch-over solenoid
valve and circuit
When the actuator (switch-
over solenoid valve) is inactive
or the actuator relay is active
(ignition switch ON).OFF
V/R OUTPUTActuator relay acti-
vated
(ON/OFF)When the actuator relay is
active (the engine is running).ON
Actuator relay and circuit When the actuator relay is not
active (before the engine get
started and in the fail-safe
mode).OFF
M/R OUTPUTActuator motor and
motor relay status (ON/
OFF)When the actuator motor and
motor relay are active (²Active
test²with CONSULT-II).ON
Actuator motor, motor
relay, and circuit
When the actuator motor and
motor relay are inactive.OFF Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
