TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-103
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionEBS00B1J
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MI.
The SP value will be displayed for the following three items:
lB/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
lA/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)
lMAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionEBS00B1K
lVehicle driven distance: More than 5,000 km (3,017 miles)
lBarometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2, 14.25 - 15.12 psi)
lAtmospheric temperature: 20 - 30°C(68-86°F)
lEngine coolant temperature: 75 - 95°C (167 - 203°F)
lTransmission: Warmed-up*1
lElectrical load: Not applied*2
lEngine speed: Idle
*1: For A/T models with CONSULT-II, after the engine is warmed up to normal operating temperature, drive
vehicle until “FLUID TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60°C (140°F).
For A/T models without CONSUT-II and M/T models, after the engine is warmed up to normal operating tem-
perature, drive vehicle for 5 minutes.
*2: Rear window defogger switch, air conditioner switch, lighting switch are “OFF”. Steering wheel is straight
ahead.
Inspection ProcedureEBS00B1L
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. PerformEC-412, "
Basic Inspection".
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-
B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go toEC-104, "
Diagnostic Procedure".
SEF601Z
Page 1218 of 3066
EC-104
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

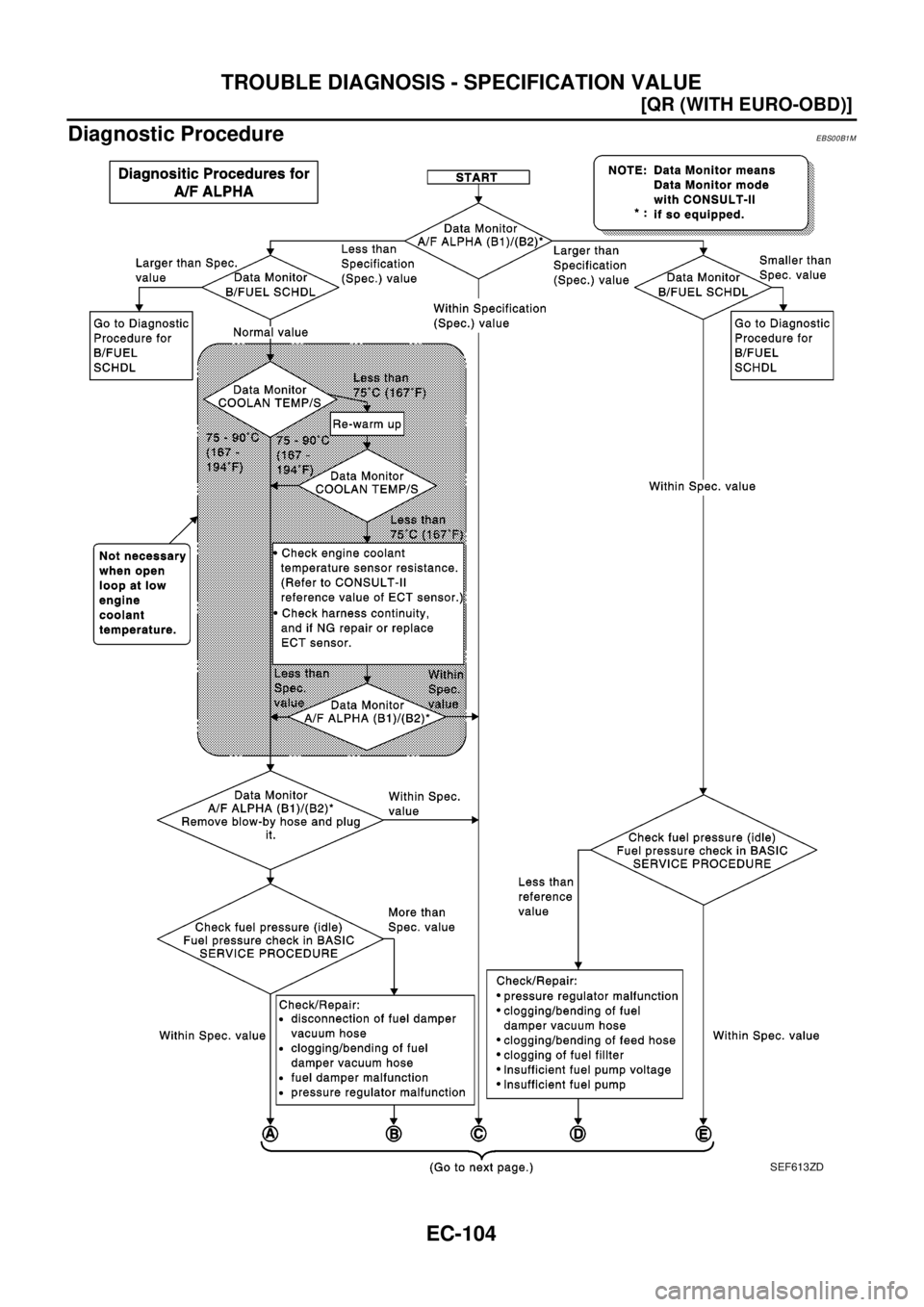

Diagnostic Procedure
EBS00B1M
SEF613ZD
Page 1219 of 3066
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-105
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

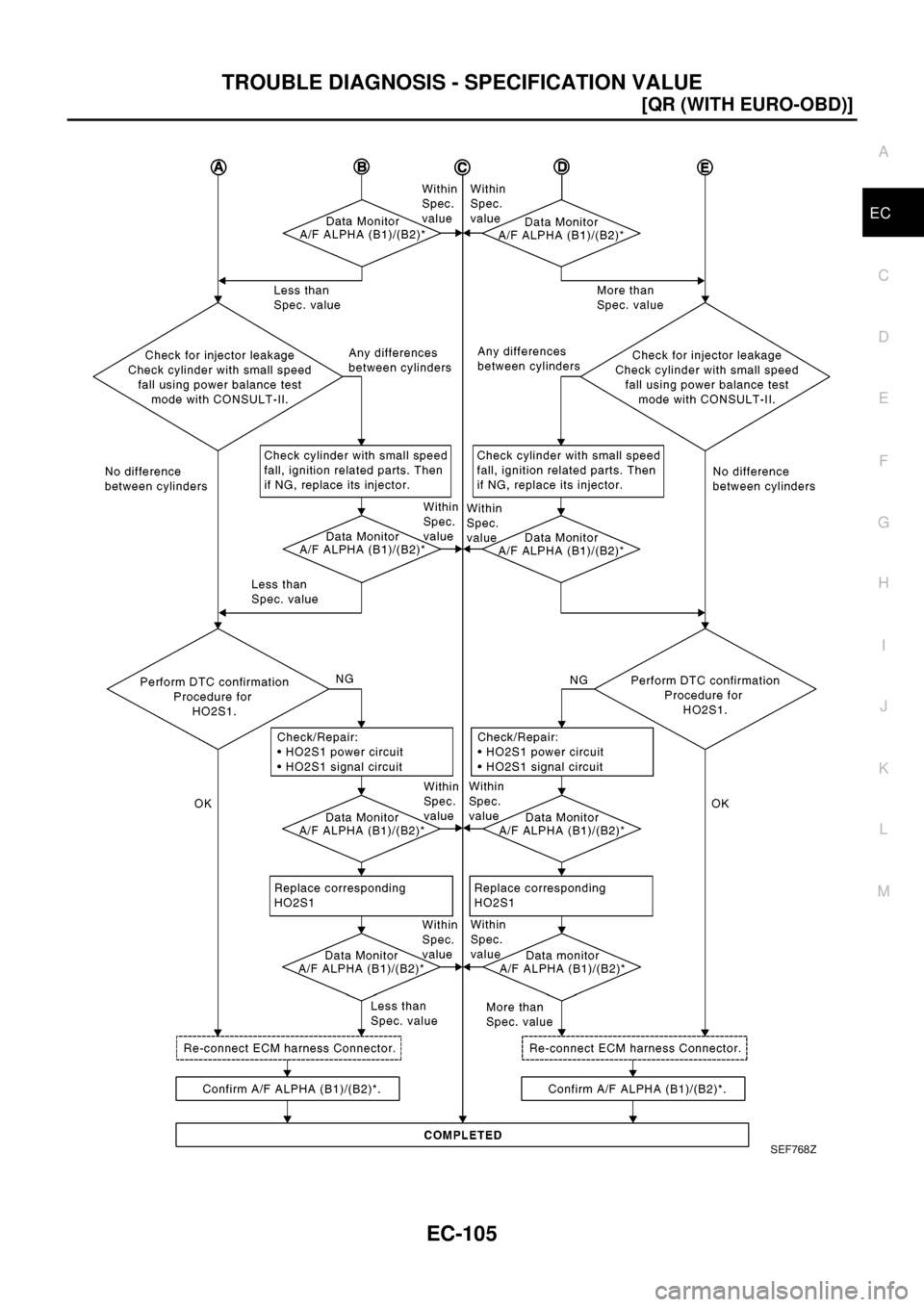

SEF768Z
Page 1220 of 3066
EC-106
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

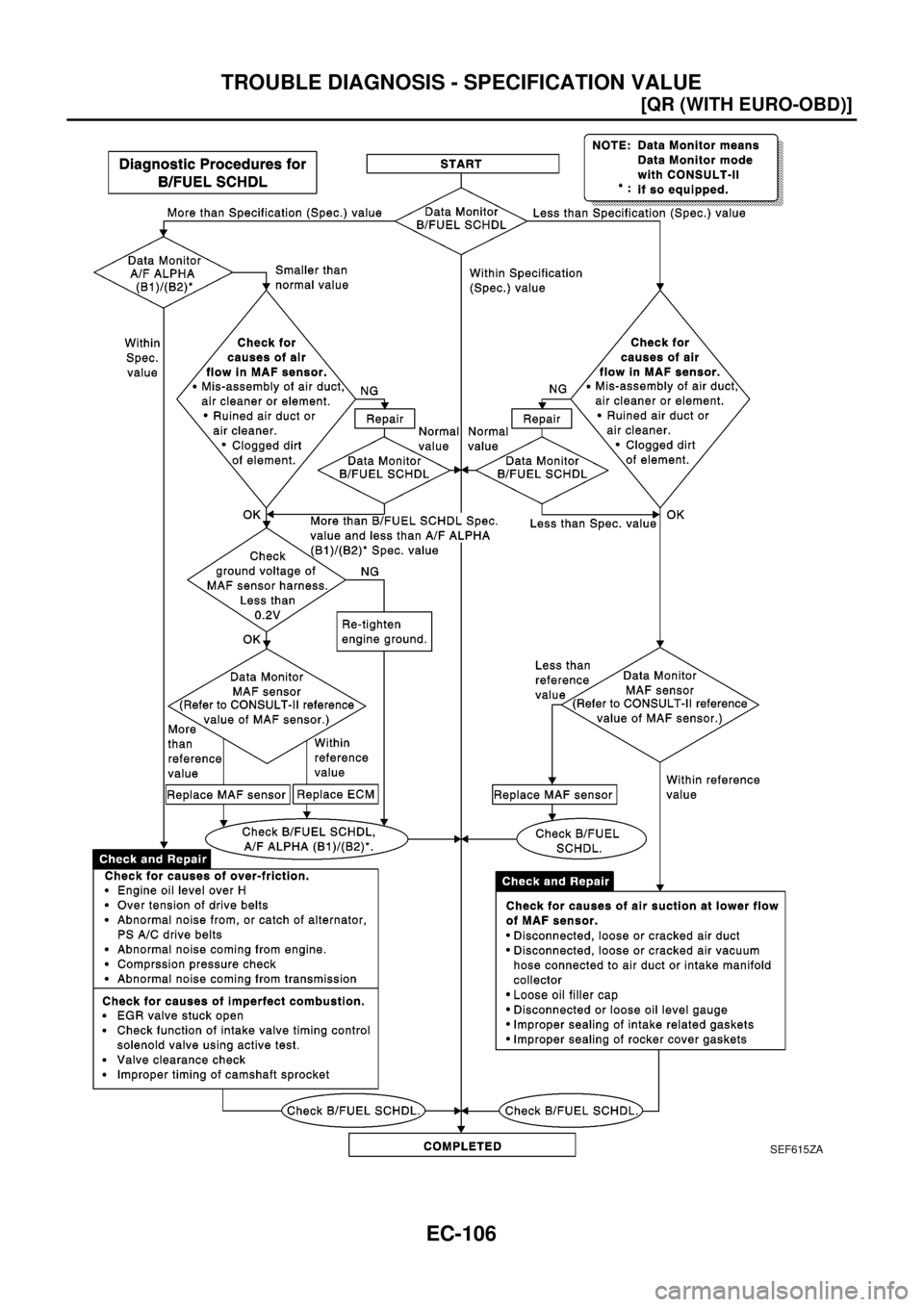

SEF615ZA
Page 1221 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-107
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS00B1N
Intermittent incidents (I/I) NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-107
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS00B1N
Intermittent incidents (I/I)](/manual-img/5/57402/w960_57402-1220.png)
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-107
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS00B1N
Intermittent incidents (I/I) may occur. In many cases, the problem resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific problem area.
Common I/I Report Situations
Diagnostic ProcedureEBS00B1O
1.INSPECTION START
Erase (1st trip) DTCs. Refer toEC-402, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-
TION".
>> GO TO 2.
2.CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer toGI-24, "
How to Perform Efficient Diagnosis for an Electrical Incident", "CIRCUIT INSPECTION",
"Ground Inspection".
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3.SEARCH FOR ELECTRICAL INCIDENT
PerformGI-24, "
How to Perform Efficient Diagnosis for an Electrical Incident", "INCIDENT SIMULATION
TESTS".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0” or “[1t]”.
III The symptom described by the customer does not recur.
IV (1st trip) DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for PXXXX does not indicate the problem area.
Page 1222 of 3066
EC-108
[QR (WITH EURO-OBD)]
POWER SUPPLY CIRCUIT FOR ECM
POWER SUPPLY CIRCUIT FOR ECM
PFP:24110

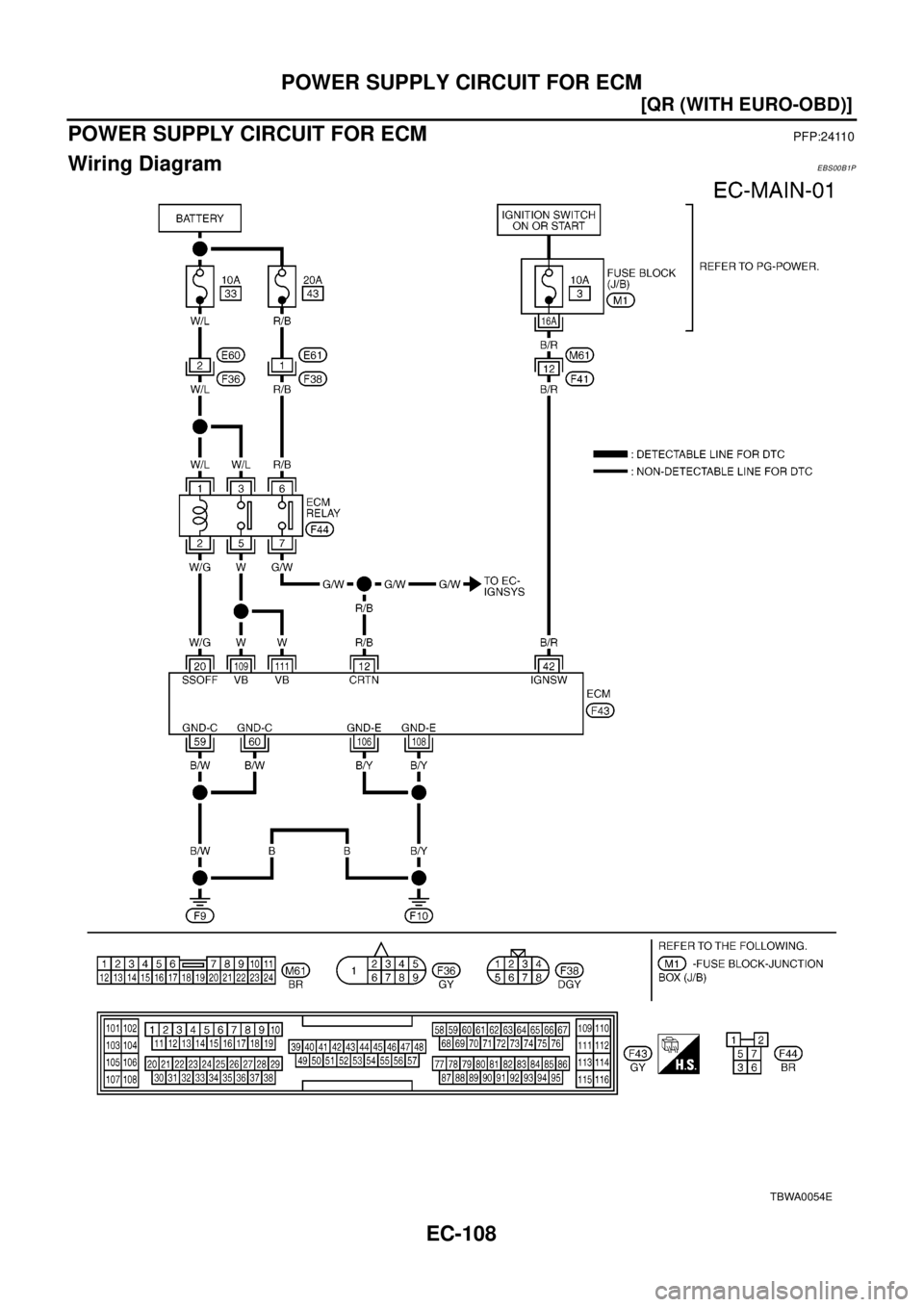

Wiring DiagramEBS00B1P
TBWA0054E
Page 1223 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY CIRCUIT FOR ECM
EC-109
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00B1Q
Specification data are reference values and are measured between each termi NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY CIRCUIT FOR ECM
EC-109
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00B1Q
Specification data are reference values and are measured between each termi](/manual-img/5/57402/w960_57402-1222.png)
POWER SUPPLY CIRCUIT FOR ECM
EC-109
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00B1Q
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00B1R
1.INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Yes >>GOTO8.
No >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch “OFF” and then “ON”.
2. Check voltage between ECM terminal 42 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
12 R/BCounter current
return[Ignition switch "ON"]BATTERY VOLTAGE
(11 - 14V)
20 W/GECM relay
(Self shut-off)[Engineisrunning]
[Ignition switch “OFF”]
lFor 3 seconds after turning ignition switch “OFF”0-1.0V
[Ignition switch “OFF”]
l3 seconds passed after turning ignition switch
“OFF”BATTERY VOLTAGE
(11 - 14V)
42 B/R Ignition switch[Ignition switch “OFF”]0V
[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
59
60
106
108B
B
B/Y
B/YECM ground[Engineisrunning]
lIdle speedEngine ground
109
111W
WPower supply for
ECM[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
PBIB0535E
Page 1224 of 3066
EC-110
[QR (WITH EURO-OBD)]
POWER SUPPLY CIRCUIT FOR ECM
3.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors M61, F41
lFuse block (J/B) connector M1
l10A fuse
lHarness for open or short between ECM and fuse
>> Repair harness or connectors.
4.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 59, 60, 106, 108 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to power in harness or connectors.
5.CHECK POWER SUPPLY-II
1. Disconnect ECM relay.
2. Check voltage between ECM relay terminals 1, 6 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.Continuity should exist.
PBIB0493E
SEF420X
