Page 1697 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S1 EC-583 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00B8M 1.CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2.

Page 1698 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-584 [QR (WITHOUT EURO-OBD)] HO2S1 3.CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT 1. Disconnect HO2S1 harness connector. 2. Check harness continuity between HO2S1 terminal 3 and ground. Refer to Wi

Page 1699 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S1 EC-585 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”. 4. Hold engine speed at 2,000 rpm under no load during the follow- ing steps. 5. To

Page 1700 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-586 [QR (WITHOUT EURO-OBD)] HO2S1 Removal and Installation EBS00B8O HEATED OXYGEN SENSOR 1 Refer toEM-22, "EXHAUST MANIFOLD AND THREE WAY CATALYST".

Page 1701 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S2 EC-587 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC HO2S2PFP:226A0 Component DescriptionEBS00B8P The heated oxygen sensor 2, after three way catalyst, monitors the oxygen level in the exhau

Page 1702 of 3066

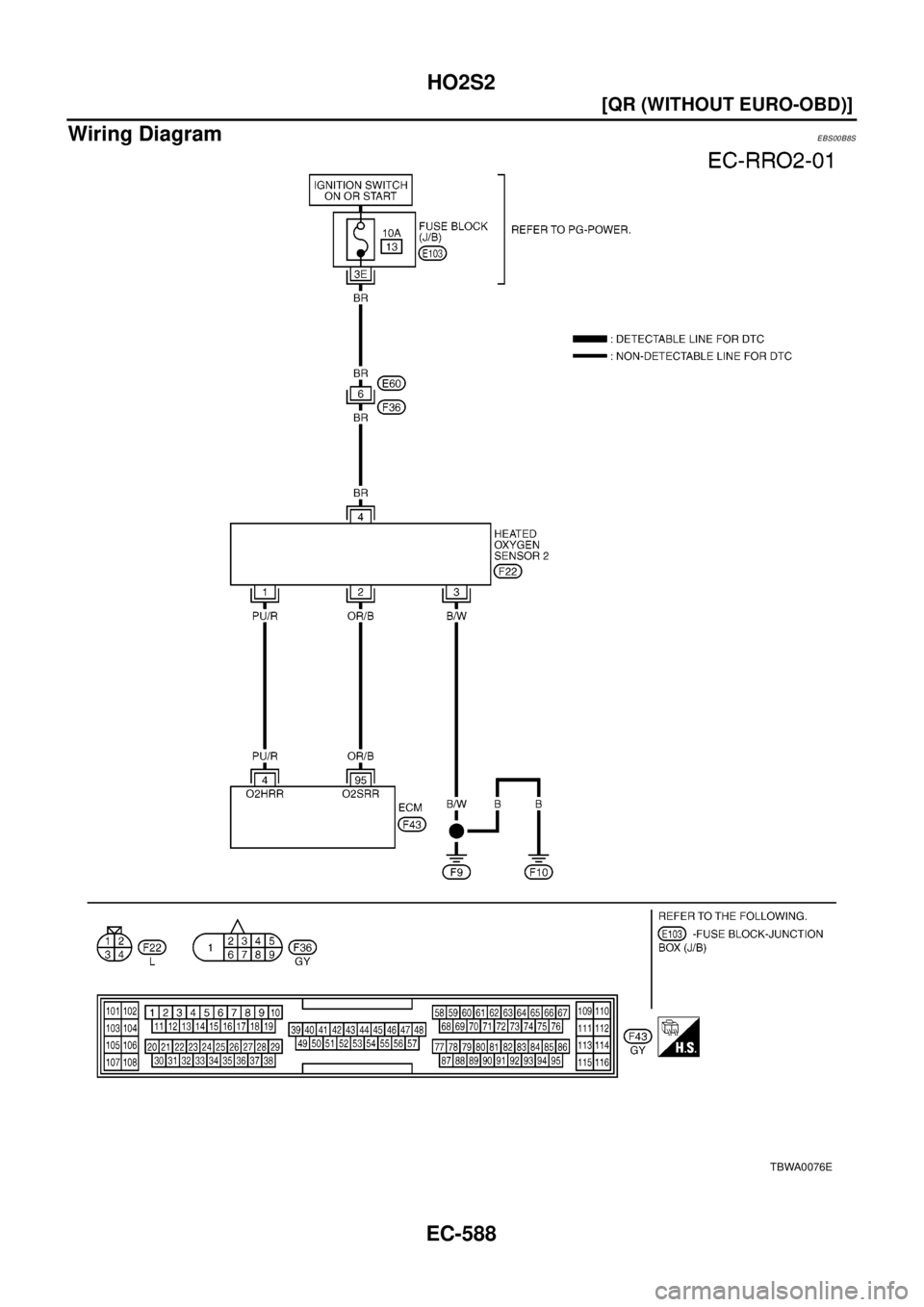

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-588 [QR (WITHOUT EURO-OBD)] HO2S2 Wiring Diagram EBS00B8S TBWA0076E

Page 1703 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S2 EC-589 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00B8T 1.CHECK OVERALL FUNCTION-I 1. Start engine and drive the vehicle at over 70 km/h (43 MPH) for 2 consecutive

Page 1704 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-590 [QR (WITHOUT EURO-OBD)] HO2S2 4.CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch “OFF”. 2. Disconnect heated oxygen sensor 2 harness connector. 3. Check harness continu
