Page 2817 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SUNROOF
RF-5
C
D
E
F
G
H
J
K
L
MA
B
RF
Terminal and Reference Value for Sunroof SwitchEIS000MN
Wind Deflector InspectionEIS000MO
1. Open glass lid.
2. Visually confirm that the mounting condition is c

Page 2818 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RF-6
SUNROOF
Fitting Adjustment
EIS000MR

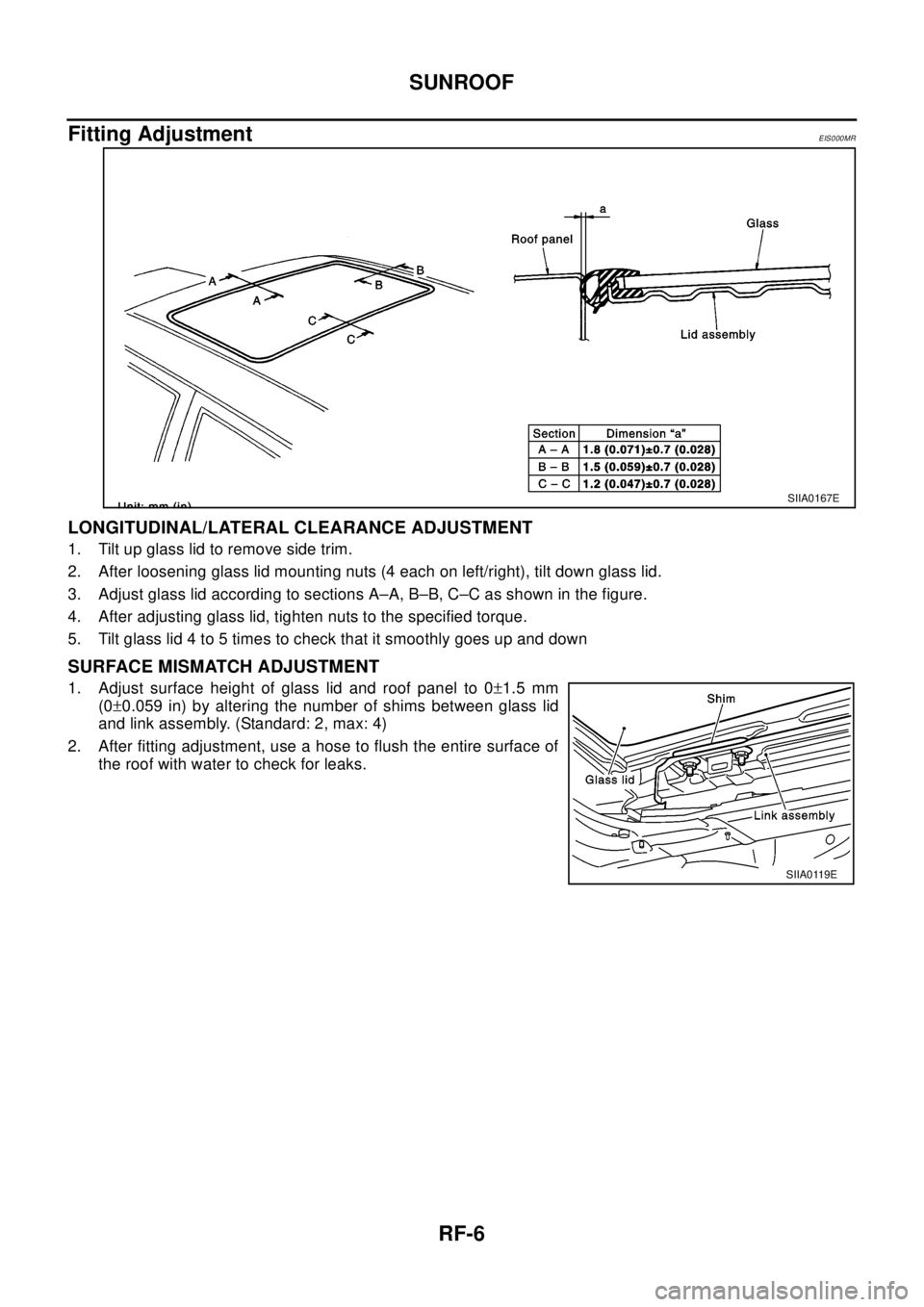

LONGITUDINAL/LATERAL CLEARANCE ADJUSTMENT
1. Tilt up glass lid to remove side trim.
2. After loosening glass lid mounting nuts (4 each on left/right), tilt dow

Page 2819 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SUNROOF
RF-7
C
D
E
F
G
H
J
K
L
MA
B
RF

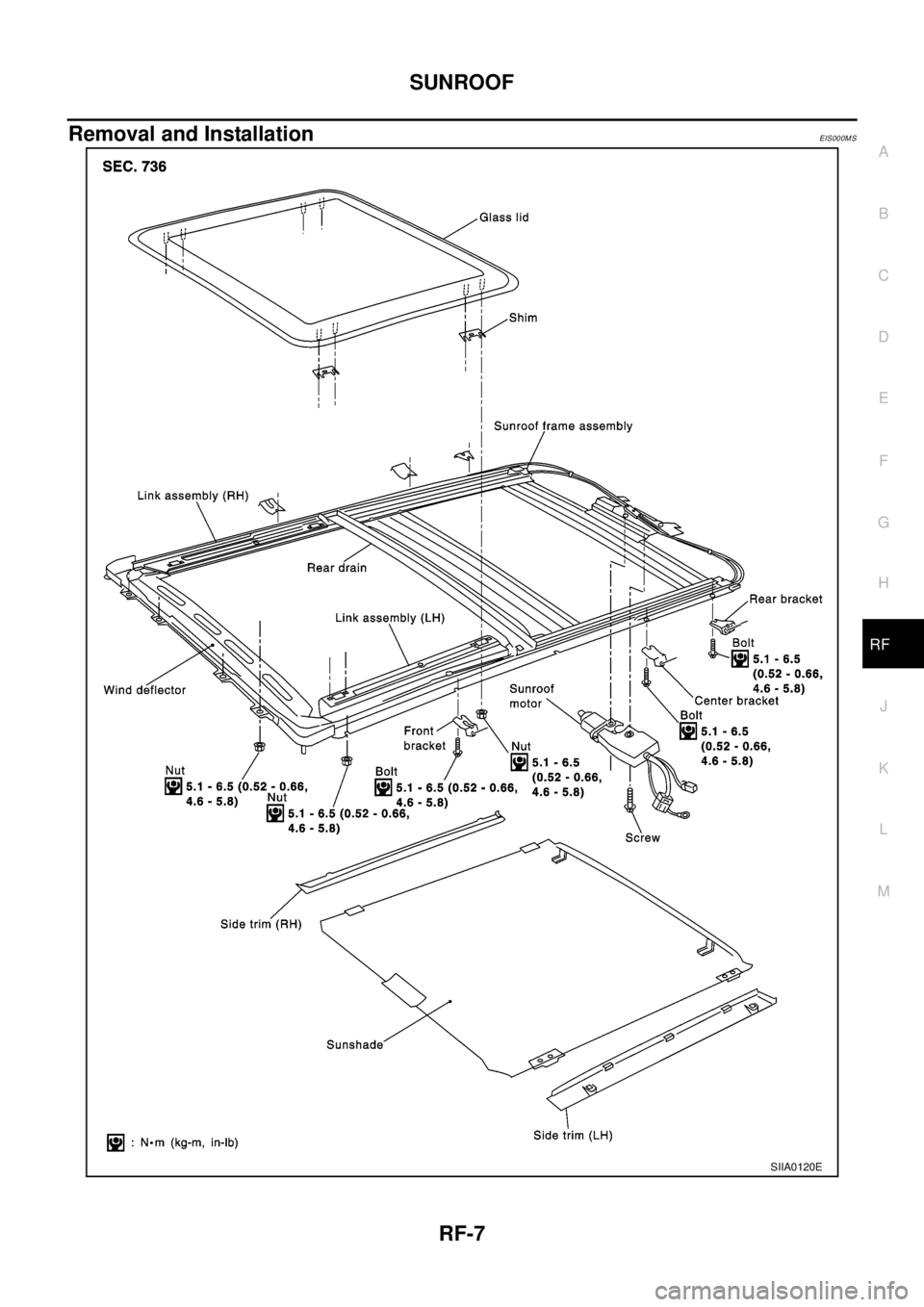

Removal and InstallationEIS000MS
SIIA0120E

Page 2820 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RF-8
SUNROOF
SUNROOF UNIT
Removal
CAUTION:
lRemoval and installation of sunroof unit require 2 workers.
lWhen taking sunroof unit out, use shop cloths to protect seats and trim from damage.
lAfter ins

Page 2821 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SUNROOF
RF-9
C
D
E
F
G
H
J
K
L
MA
B
RF
Installation
1. After bringing sunroof unit into the passenger compartment,
tighten mounting nuts on the side rails (2 each on left/right) Start
from the one at

Page 2822 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RF-10
SUNROOF
5. As shown in the figure, slide shade slider to remove it from the
aluminum rail.
6. Swivel shade toward the left, and remove RH shade from the
aluminum rail.
7. Slide shade forward, an

Page 2823 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RFD-1
REAR FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RFD
REAR FINAL DRIVE
PRECAUTIONS .......................................................... 2
Caution .................

RFD-1
REAR FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RFD
REAR FINAL DRIVE
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
Precautions for Brake System .................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 5
OIL .............................................................................. 6
Inspection ................................................................. 6
FLUID LEAKAGE AND OIL LEVEL ...................... 6
REAR FINAL DRIVE SYSTEM ................................... 7
Sectional View .......................................................... 7
FRONT OIL SEAL ...................................................... 8
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
SIDE OIL SEAL .......................................................... 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9
REAR COVER GASKET .......................................... 10
Replacement .......................................................... 10
REAR FINAL DRIVE ASSEMBLY .............................11
Removal and Installation .........................................11
REMOVAL ............................................................11
INSTALLATION ....................................................11Electronically Controlled Coupling Breather Hose... 12
Rear Final Drive Breather Hose ............................. 13
Components ........................................................... 14
Inspection Before Disassembly .............................. 15
OVERALL PRELOAD TORQUE ......................... 15
HYPOID GEAR BACKLASH ............................... 15
DRIVE GEAR BACK RUNOUT ........................... 16
COMPANION FLANGE RUNOUT ....................... 16
TOOTH CONTACT .............................................. 17
Disassembly and Assembly .................................... 19
DISASSEMBLY ................................................... 19
ASSEMBLY ......................................................... 22
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 28
General Specification ............................................. 28
Ring Gear Vibration ................................................ 28
Side Gear Clearance Adjustment ........................... 28
THRUST WASHER FOR ADJUSTMENT OF
SIDE GEAR BACK CLEARANCE ....................... 28
Drive Pinion Gear Preload Adjustment ................... 28
DRIVE PINION GEAR PRELOAD ADJUSTING
SHIM ................................................................... 28
Side Bearing Preload Adjustment ........................... 28
ADJUSTING SHIM FOR SIDE BEARING PRE-
LOAD ................................................................... 29
Overall Preload ....................................................... 29

Page 2824 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RFD-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS00056
lBefore starting diagnosis of the vehicle, understand symptoms well. Perform correct and systematic oper-
ations.
lCheck for the correct install

RFD-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS00056
lBefore starting diagnosis of the vehicle, understand symptoms well. Perform correct and systematic oper-
ations.
lCheck for the correct installation status prior to removal or disassembly. When mating marks are required,
be sure they do not interfere with the function of the parts they are applied to.
lCarry out an overhaul in a clean work place. Using a dust proof room is recommended.
lBefore disassembly, using steam or white gasoline, completely remove sand and mud from the exterior of
the unit, preventing them from entering into the unit during disassembly or assembly.
lCheck appearance of the disassembled parts for damage, deformation, and abnormal wear. If a malfunc-
tion is detected, replace it with a new one.
lNormally replace lock pins, oil seals, and bearings with new ones every time they are removed.
lIn principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, observe it.
lClean and flush the parts sufficiently and blow them dry.
lBe careful not to damage the sliding surfaces and mating surfaces.
lWhen applying sealant, remove the old sealant from the mounting surface; then remove any moisture, oil,
and foreign materials from the application and mounting surfaces.
lAlways use shop paper for cleaning the inside of components.
lAvoid using cotton gloves or a shop cloth to prevent entering of lint.
lDuring assembly, observe the specified tightening torque, and apply new differential oil, Vaseline, or Nis-
san MP Special Grease No. 2, as specified for each vehicle, when necessary.
lDo not reuse drained oil. Discard waste oil after oil changes or part treatment in accordance with local
laws and regulations.
Precautions for Brake SystemEDS000HX
lWhen installing rubber parts, final tightening must be carried out
under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.
lAfter installing removed suspension parts, check wheel align-
ment and adjust if necessary.
lUse flare nut wrench when removing or installing brake tubes.
lAlways torque brake lines when installing.
SBR686C
