5.JUDGEMENT PROCEDURE STEP 4

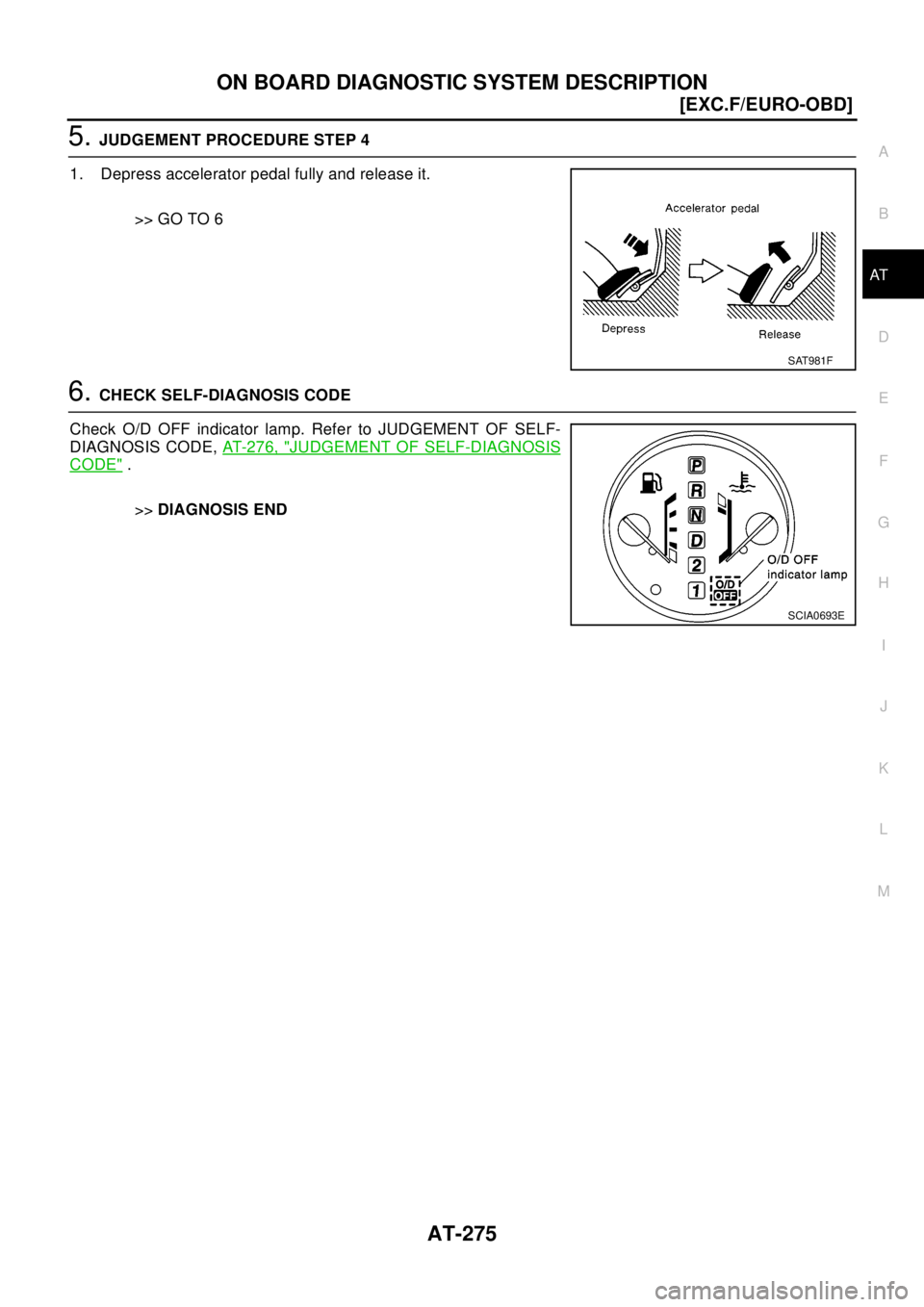

1. Depress accelerator pedal fully and release it.
>> GO TO 6
6.CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp. Refer to JUDGEMENT OF SELF-
DIAGNOSIS CODE,AT- 2 7 6 , "
JUDGEMENT OF SELF-DIAGNOSIS
CODE".
>>DIAGNOSIS END
