Page 1961 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ROOF SPOILER EI-21 C D E F G H J K L MA B EI ROOF SPOILERPFP:96030 Removal and InstallationEIS000N7 REMOVAL 1. Remove headlining. Refer toEI-29, "Removal and Installation". 2. Remove covers (left and

Page 1962 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-22 LICENSE LAMP FINISHER LICENSE LAMP FINISHER PFP:84810 Removal and InstallationEIS001NV REMOVAL 1. Remove back door finisher. Refer toEI-25, "Removal and Installation" 2. Remove license plate lam

Page 1963 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DOOR FINISHER EI-23 C D E F G H J K L MA B EI DOOR FINISHERPFP:80900 Removal and InstallationEIS000N9 FRONT AND REAR 1. Insert a screwdriver, wrapped with a shop cloth, into door trim cutout on the in

Page 1964 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-24 DOOR FINISHER 2. Insert a screwdriver, wrapped with a cloth, into the cutout on the front edge of power window switch finisher. Unfasten the metal clip on the front side. 3. Insert the screwdriv

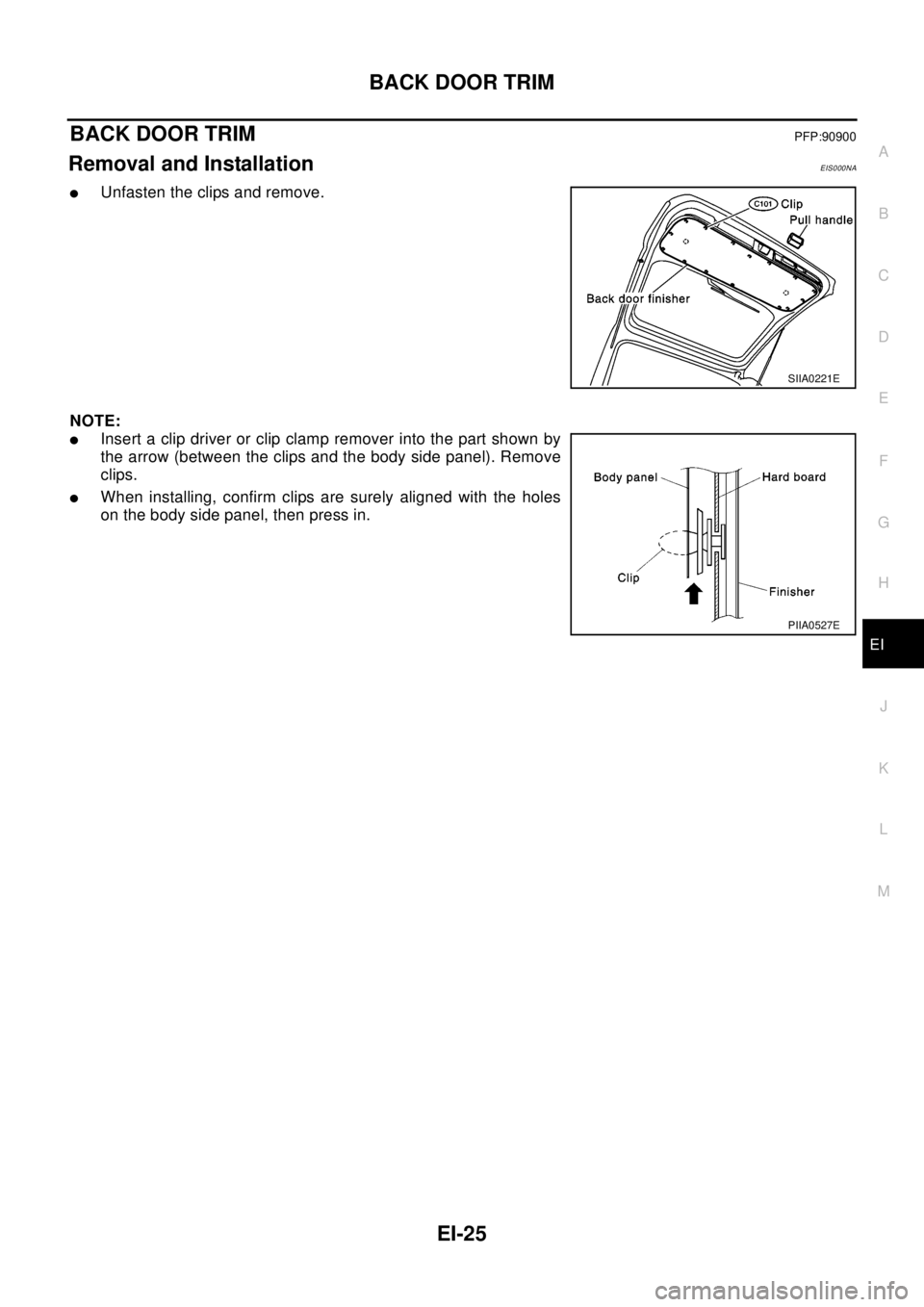

Page 1965 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BACK DOOR TRIM EI-25 C D E F G H J K L MA B EI BACK DOOR TRIMPFP:90900 Removal and InstallationEIS000NA lUnfasten the clips and remove. NOTE: lInsert a clip driver or clip clamp remover into the part

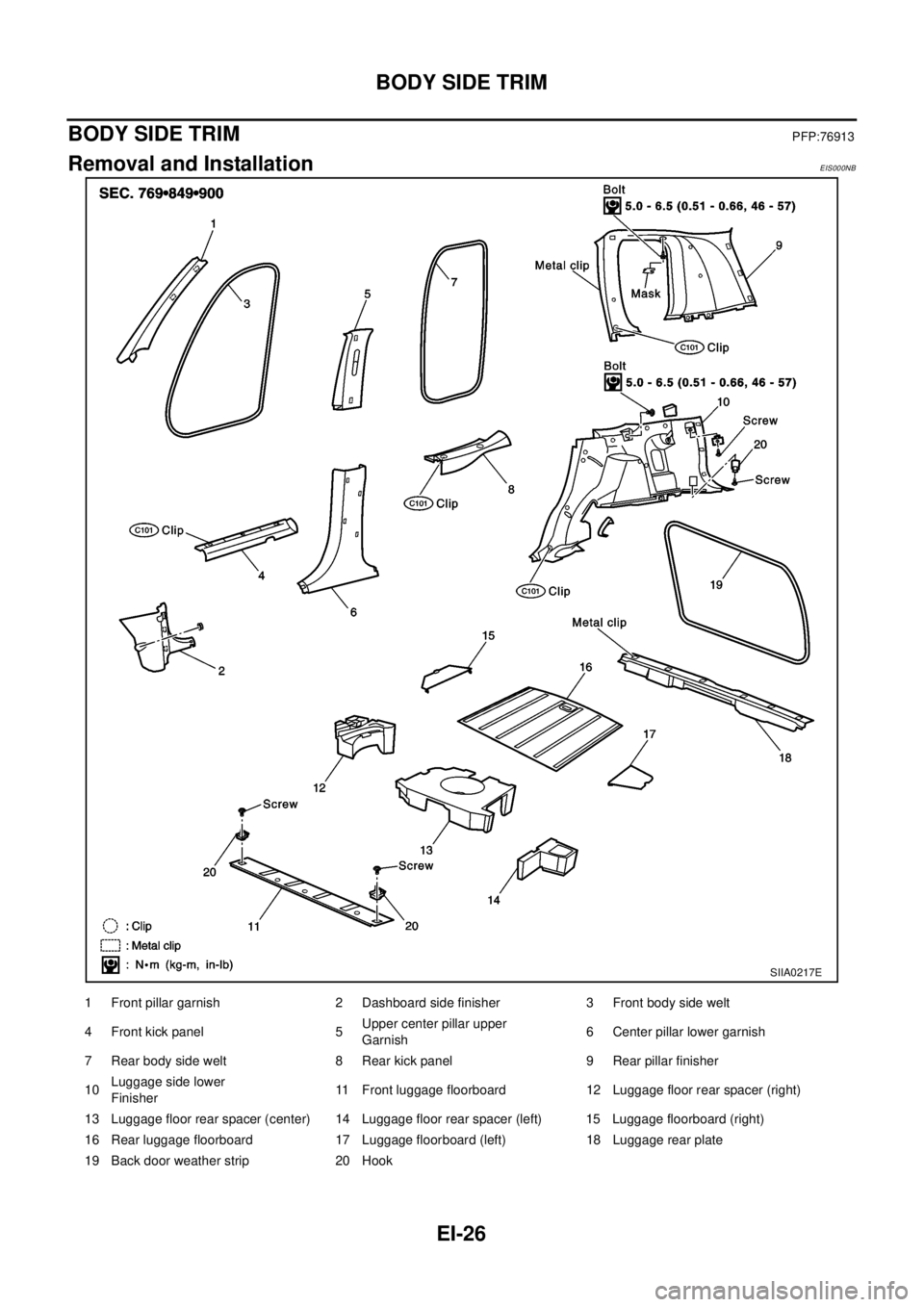

Page 1966 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-26 BODY SIDE TRIM BODY SIDE TRIM PFP:76913 Removal and InstallationEIS000NB SIIA0217E 1 Front pillar garnish 2 Dashboard side finisher 3 Front body side welt 4 Front kick panel 5Upper center pillar

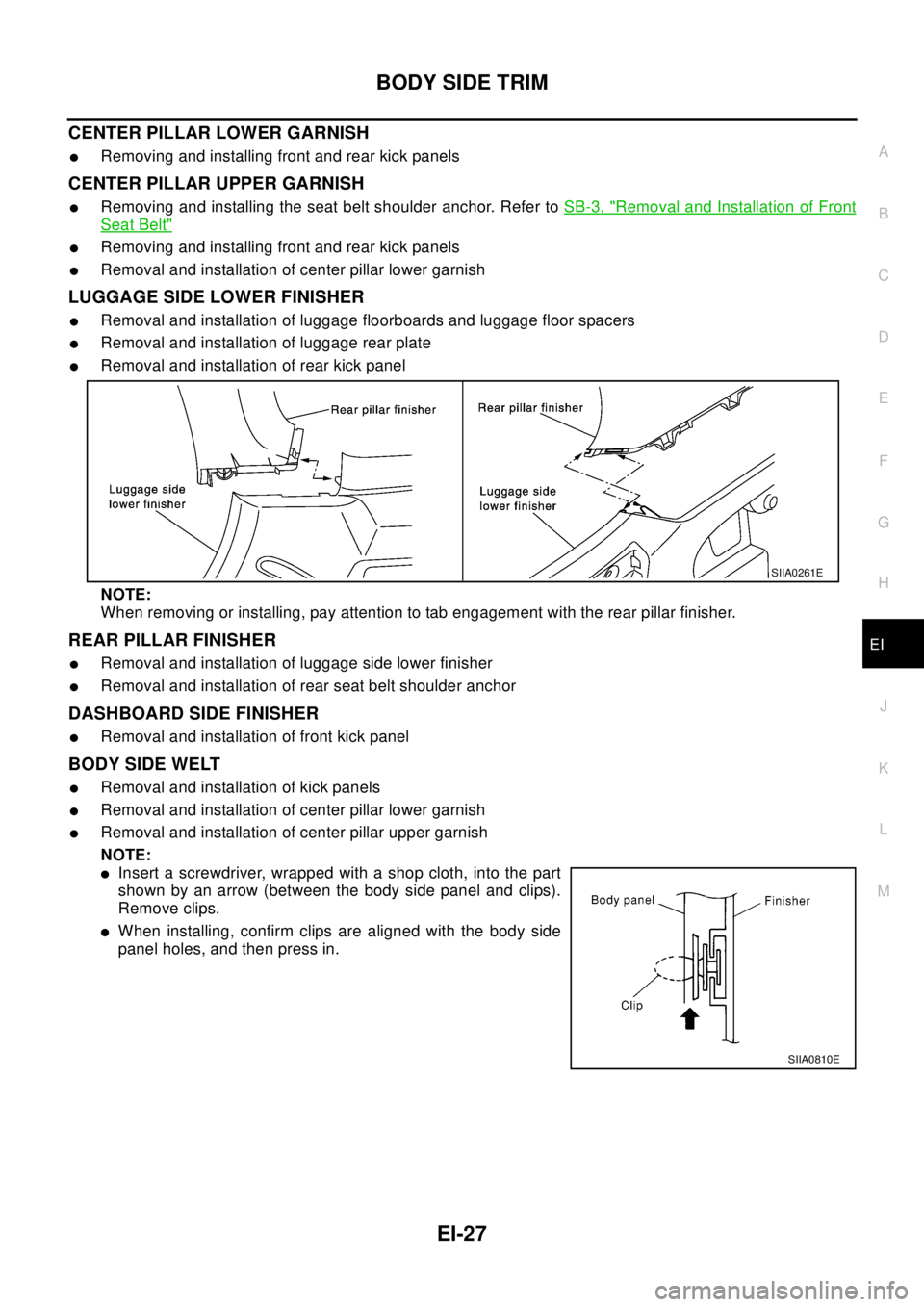

Page 1967 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BODY SIDE TRIM EI-27 C D E F G H J K L MA B EI CENTER PILLAR LOWER GARNISH lRemoving and installing front and rear kick panels CENTER PILLAR UPPER GARNISH lRemoving and installing the seat belt should

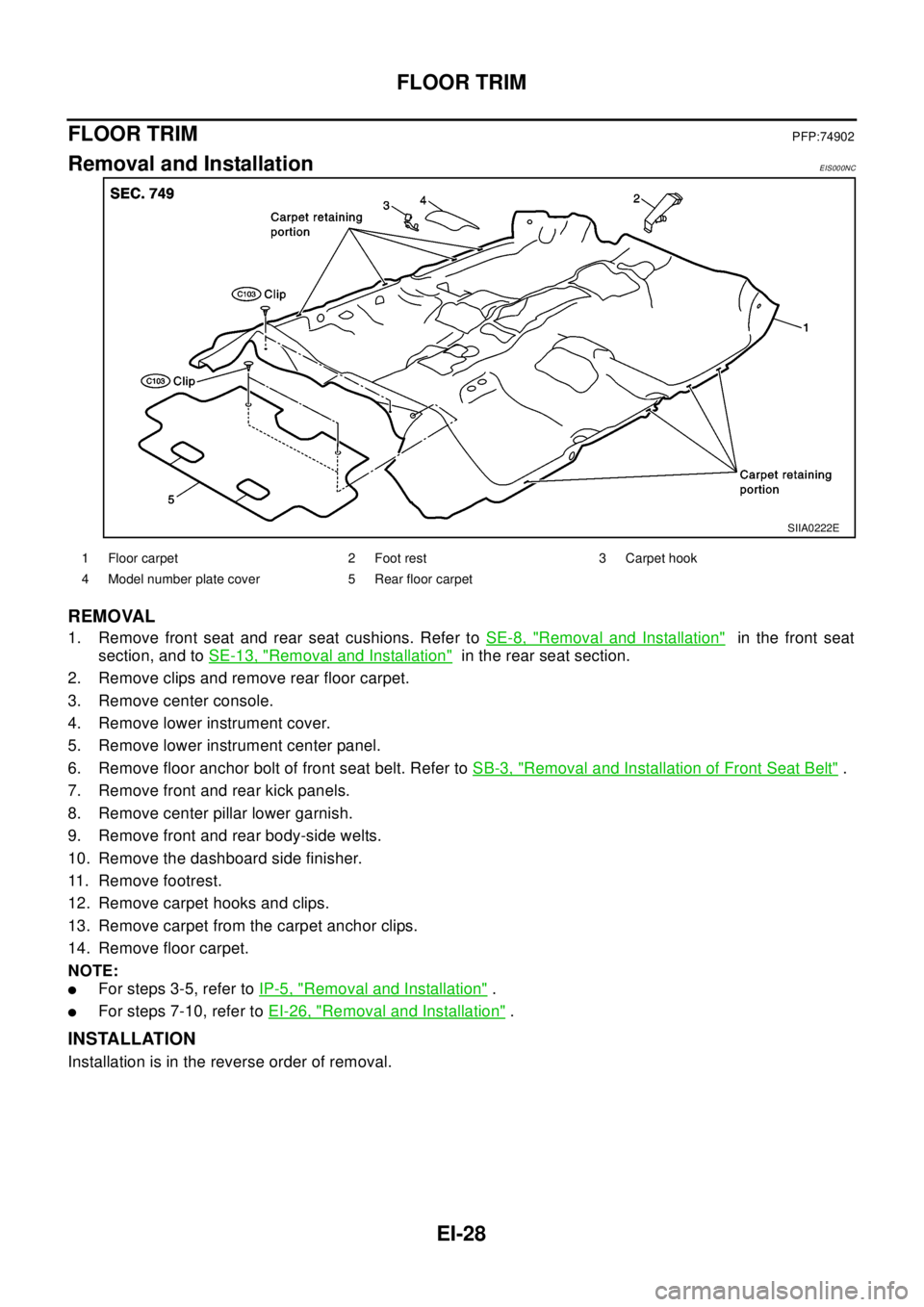

Page 1968 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-28 FLOOR TRIM FLOOR TRIM PFP:74902 Removal and InstallationEIS000NC REMOVAL 1. Remove front seat and rear seat cushions. Refer toSE-8, "Removal and Installation"in the front seat section, and toSE-
