NISSAN X-TRAIL 2003 Electronic Repair Manual SHIFT SOLENOID VALVE B AT-411 [ALL] D E F G H I J K L MA B AT SHIFT SOLENOID VALVE BPFP:31940 DescriptionECS004TW Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM in response

Page 418 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-412 [ALL] SHIFT SOLENOID VALVE B Without CONSULT-II 1. Start engine. 2. Drive vehicle in D 1®D2®D3position. 3. Perform self-diagnosis. Refer to “SELF-DIAGNOSTIC PROCEDURE (Without CON- SULT-II)

Page 419 of 3066

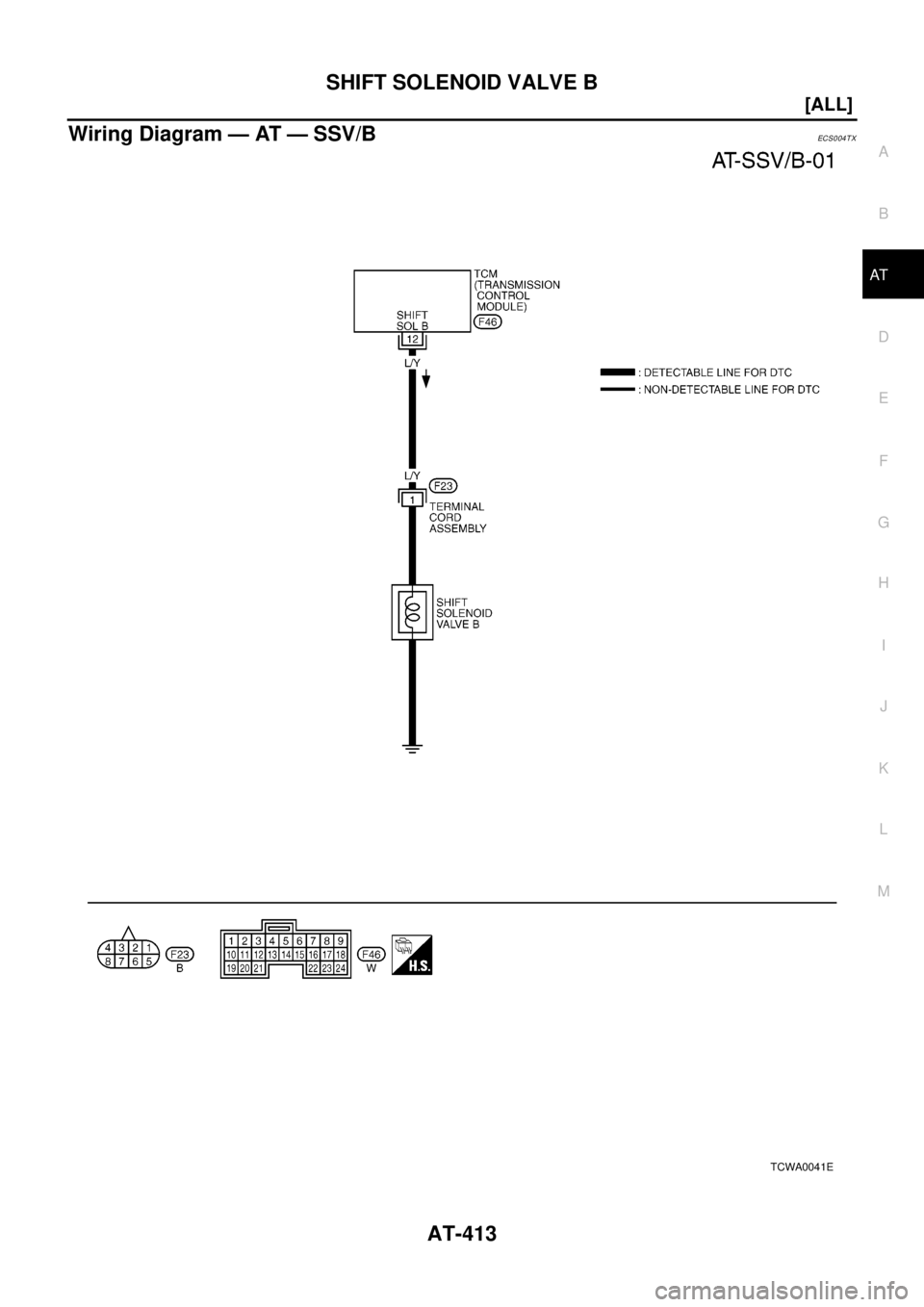

NISSAN X-TRAIL 2003 Electronic Repair Manual SHIFT SOLENOID VALVE B AT-413 [ALL] D E F G H I J K L MA B AT Wiring Diagram — AT — SSV/BECS0 04 T X TCWA0041E

Page 420 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-414 [ALL] SHIFT SOLENOID VALVE B Diagnostic Procedure ECS004TY 1.CHECK VALVE RESISTANCE 1. Turn ignition switch to “OFF” position. 2. Disconnect terminal cord assembly connector in engine compa

Page 421 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SHIFT SOLENOID VALVE B AT-415 [ALL] D E F G H I J K L MA B AT Component InspectionECS004TZ SHIFT SOLENOID VALVE B lFor removal, refer toAT-453, "Installation". Resistance Check lCheck resistance betwe

Page 422 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-416 [ALL] OVERRUNCLUTCHSOLENOIDVALVE OVERRUN CLUTCH SOLENOID VALVE PFP:31940 DescriptionECS004U0 The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the inhib

Page 423 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual OVERRUN CLUTCH SOLENOID VALVE AT-417 [ALL] D E F G H I J K L MA B AT Without CONSULT-II 1. Start engine. 2. Drive vehicle under the following conditions: Selector lever in “D” position, overdrive

Page 424 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-418 [ALL] OVERRUNCLUTCHSOLENOIDVALVE Wiring Diagram — AT — OVRCSV ECS004U1 TCWA0042E
