Page 2561 of 3066

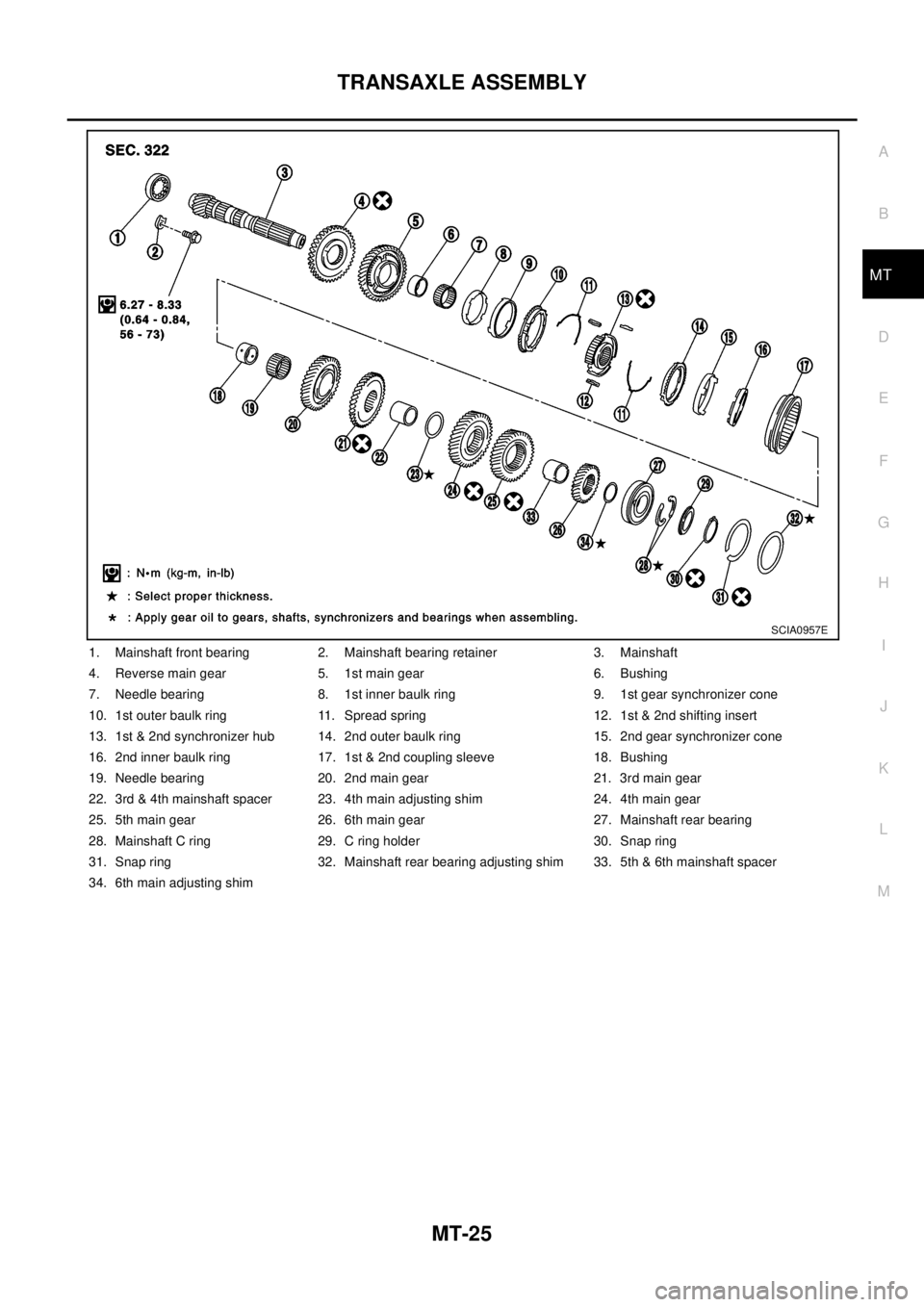

NISSAN X-TRAIL 2003 Electronic Repair Manual TRANSAXLE ASSEMBLY MT-25 D E F G H I J K L MA B MT 1. Mainshaft front bearing 2. Mainshaft bearing retainer 3. Mainshaft 4. Reverse main gear 5. 1st main gear 6. Bushing 7. Needle bearing 8. 1st inner

Page 2562 of 3066

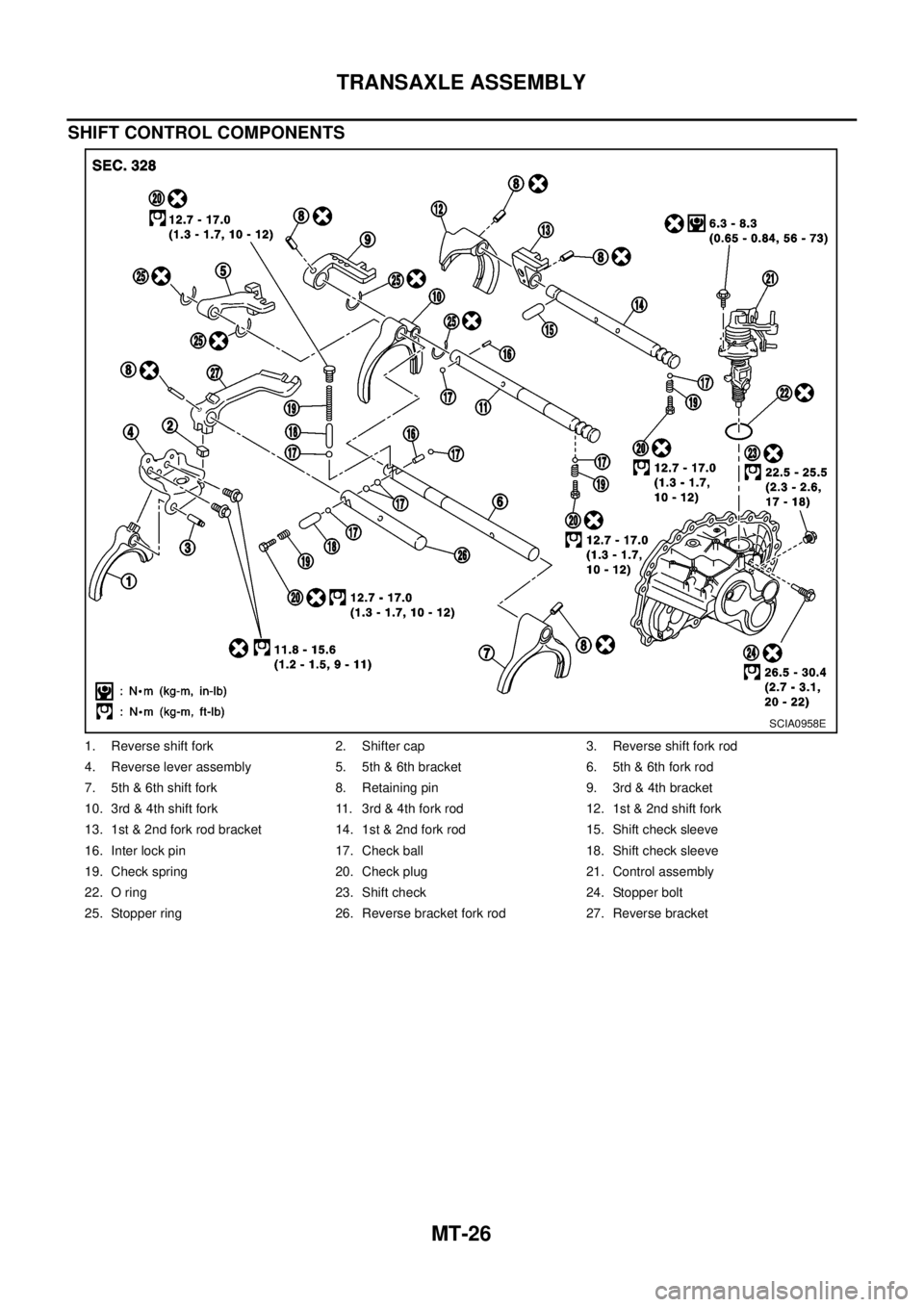

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-26 TRANSAXLE ASSEMBLY SHIFT CONTROL COMPONENTS 1. Reverse shift fork 2. Shifter cap 3. Reverse shift fork rod 4. Reverse lever assembly 5. 5th & 6th bracket 6. 5th & 6th fork rod 7. 5th & 6th shift

Page 2563 of 3066

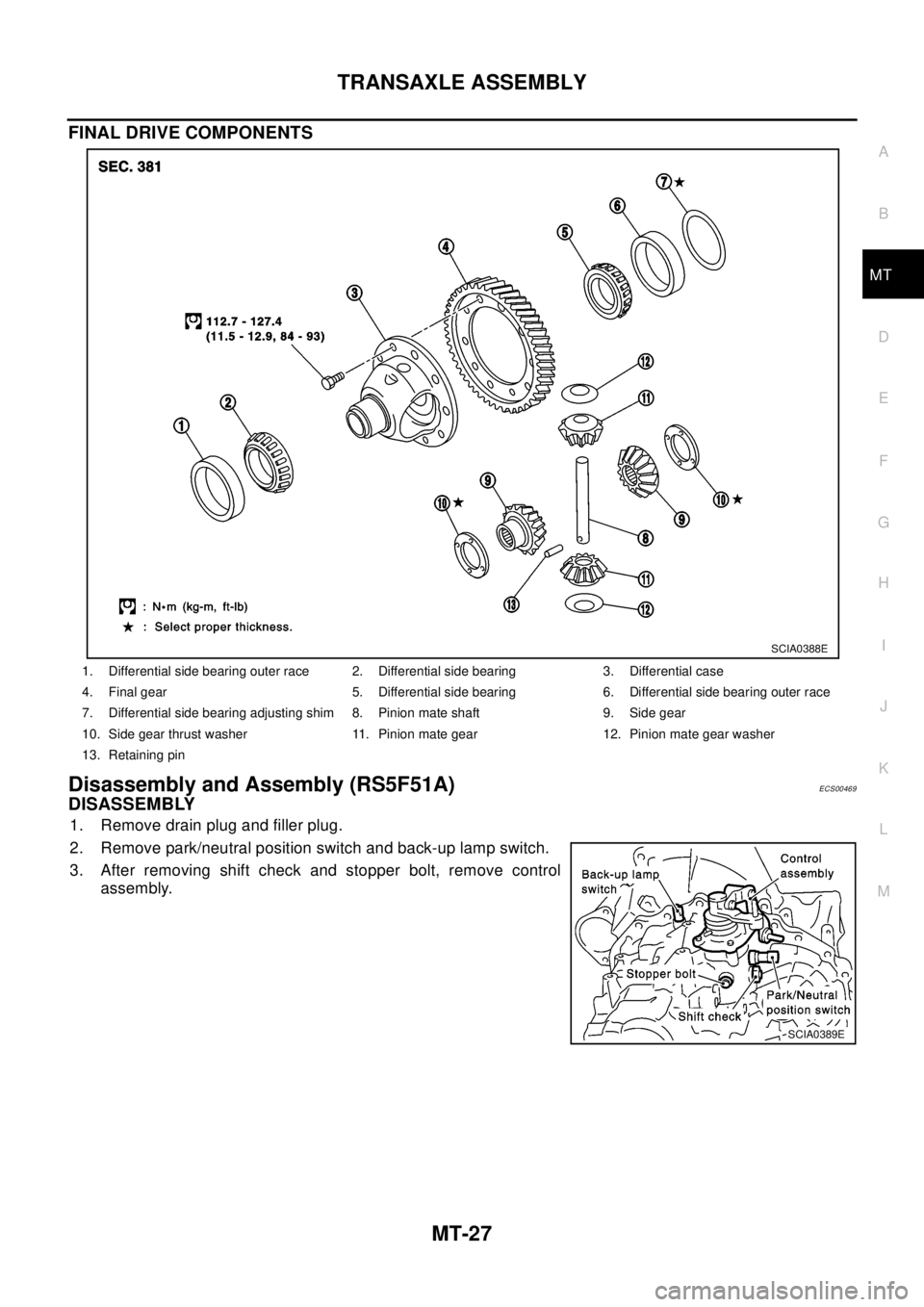

NISSAN X-TRAIL 2003 Electronic Repair Manual TRANSAXLE ASSEMBLY MT-27 D E F G H I J K L MA B MT FINAL DRIVE COMPONENTS Disassembly and Assembly (RS5F51A)ECS00469 DISASSEMBLY 1. Remove drain plug and filler plug. 2. Remove park/neutral position s

Page 2564 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-28 TRANSAXLE ASSEMBLY 4. Remove check plugs (3 pieces), check springs (3 pieces), check balls (3 pieces) and shift check sleeve (1 piece). 5. Remove transaxle case fixing bolts. 6. Remove bore plug

Page 2565 of 3066

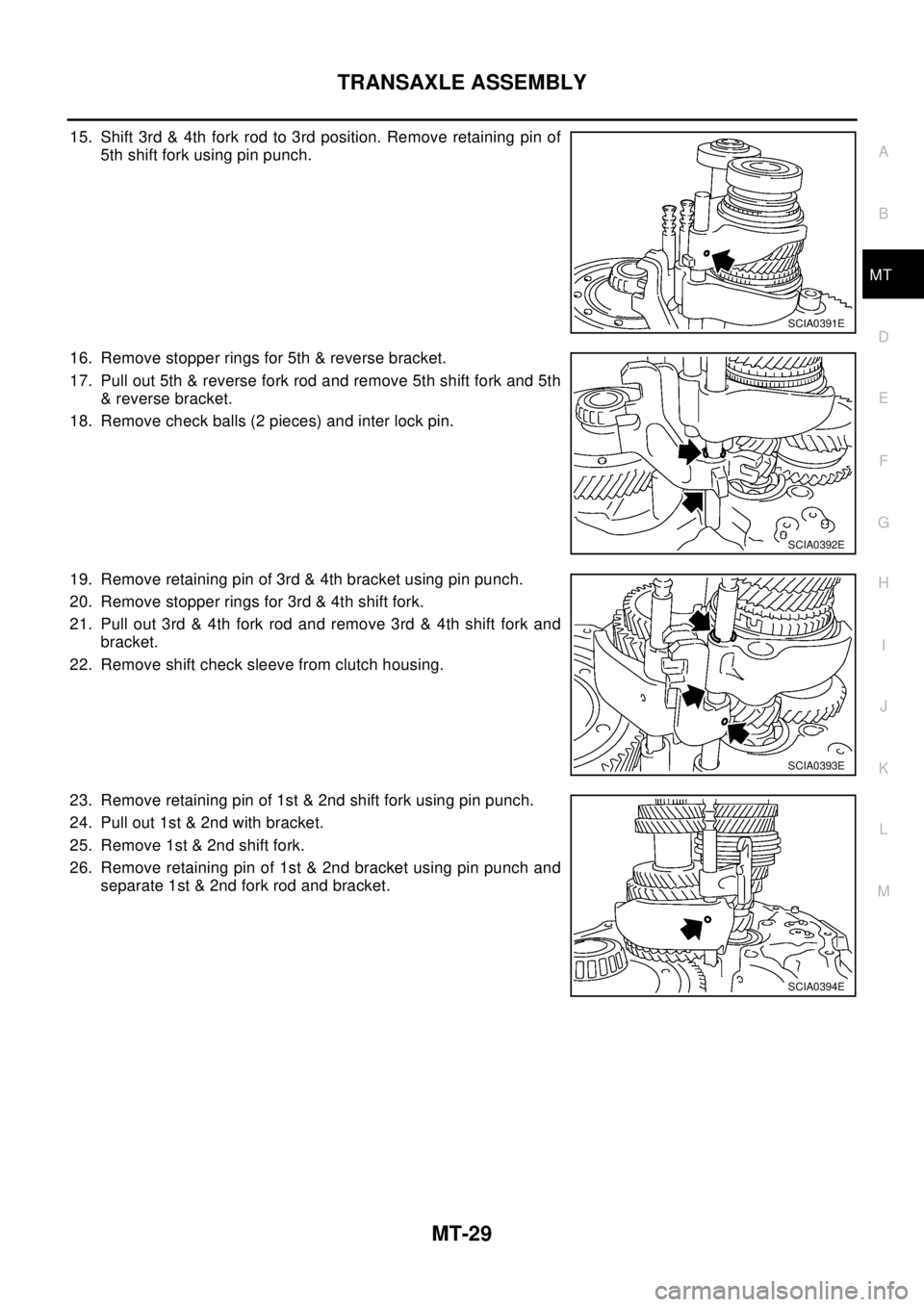

NISSAN X-TRAIL 2003 Electronic Repair Manual TRANSAXLE ASSEMBLY MT-29 D E F G H I J K L MA B MT 15. Shift 3rd & 4th fork rod to 3rd position. Remove retaining pin of 5th shift fork using pin punch. 16. Remove stopper rings for 5th & reverse brac

Page 2566 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-30 TRANSAXLE ASSEMBLY 27. Remove gear components from clutch housing in the following procedure. a. While tapping input shaft with plastic hammer, remove input shaft assembly, mainshaft assembly an

Page 2567 of 3066

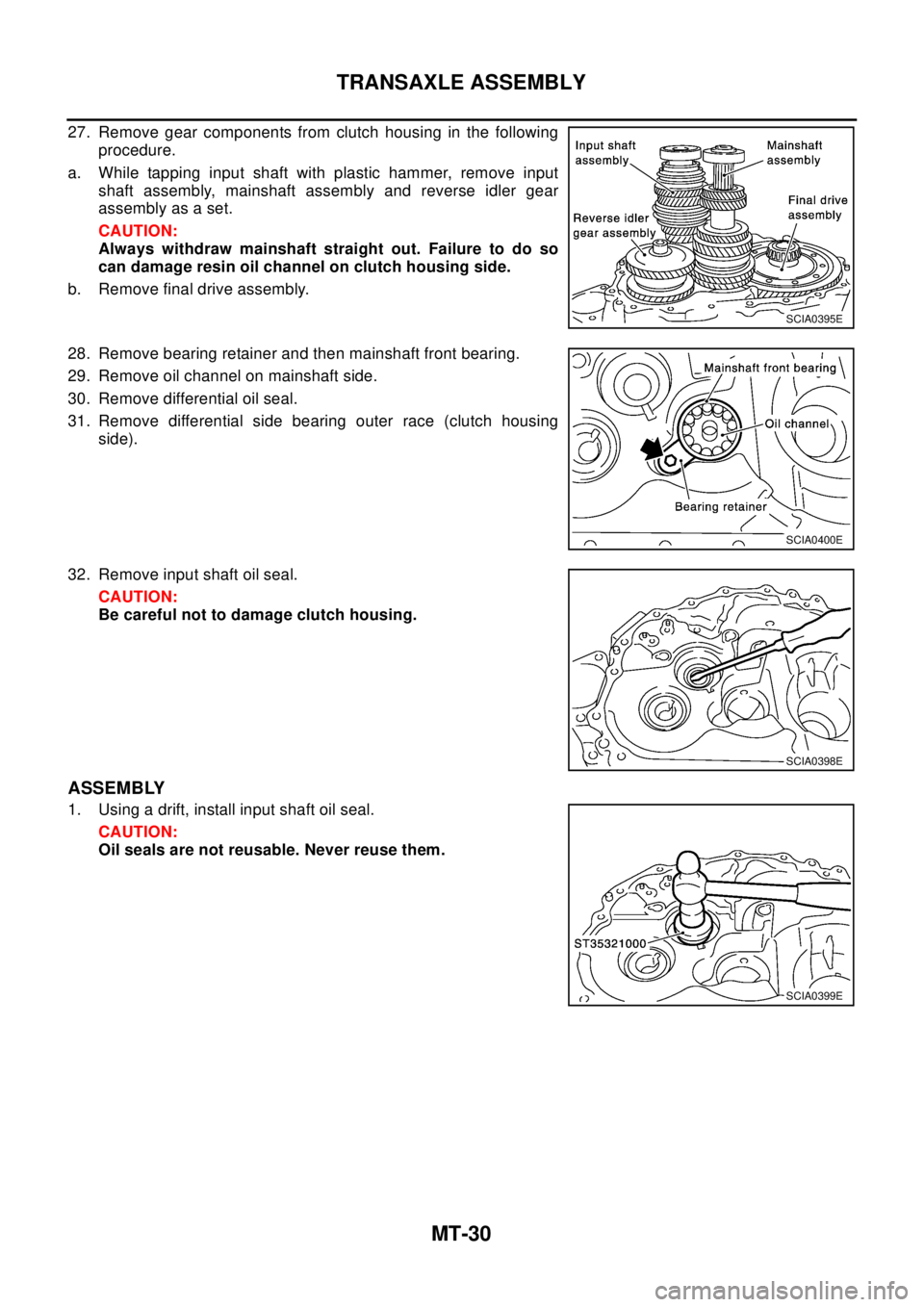

NISSAN X-TRAIL 2003 Electronic Repair Manual TRANSAXLE ASSEMBLY MT-31 D E F G H I J K L MA B MT 2. Using a drift, install differential oil seal. CAUTION: Oil seals are not reusable. Never reuse them. 3. Install oil channel on mainshaft side. CAU

Page 2568 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-32 TRANSAXLE ASSEMBLY 7. Install final drive assembly into clutch housing. 8. Install input shaft assembly, mainshaft assembly, and reverse idler gear assembly into clutch housing. CAUTION: Be sure
