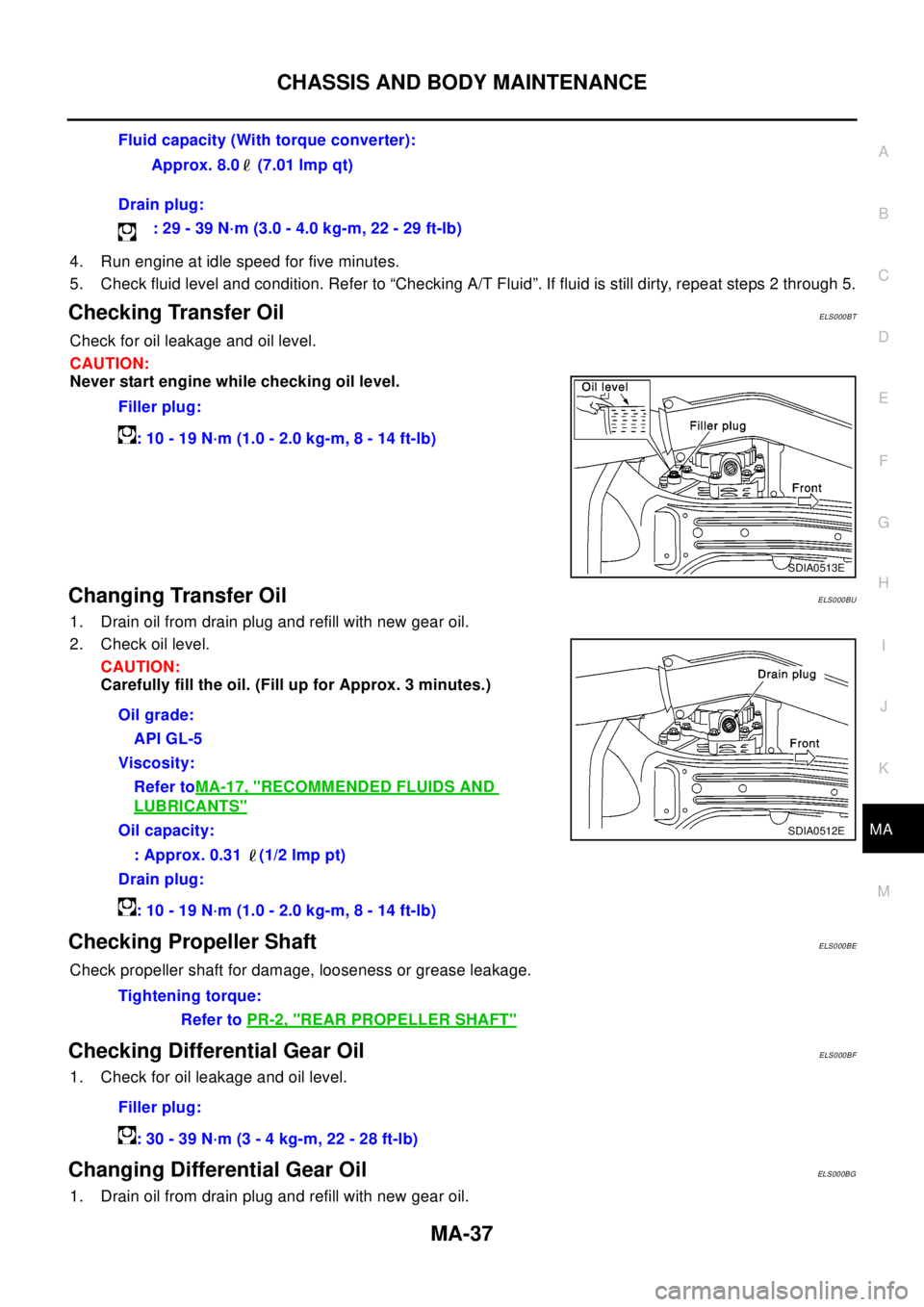

Page 2529 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CHASSIS AND BODY MAINTENANCE MA-37 C D E F G H I J K MA B MA 4. Run engine at idle speed for five minutes. 5. Check fluid level and condition. Refer to “Checking A/T Fluid”. If fluid is still dirt

Page 2530 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MA-38 CHASSIS AND BODY MAINTENANCE 2. Check oil level. Balancing WheelsELS000BH Adjust wheel balance using the road wheel center. RotationELS000BI lAfter rotating the tires, adjust the tire pressure.

Page 2531 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CHASSIS AND BODY MAINTENANCE MA-39 C D E F G H I J K MA B MA Checking Brake Lines and CablesELS000BK lCheck brake fluid lines and parking brake cables for improper attachment, leaks, chafing, abrasion

Page 2532 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MA-40 CHASSIS AND BODY MAINTENANCE PA D lCheck for wear or damage. Checking Drum BrakeELS000BN WHEEL CYLINDER Check for leakage. DRUM Check condition and inner surface. LINING Check wear or damage. Ch

Page 2533 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CHASSIS AND BODY MAINTENANCE MA-41 C D E F G H I J K MA B MA Checking Power Steering Fluid and LinesELS000BP Check fluid level in reservoir tank with engine off. Use “HOT” range at fluid temperatu

Page 2534 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MA-42 CHASSIS AND BODY MAINTENANCE Drive Shaft ELS000CL lCheck boot and drive shaft for cracks, wear, damage and grease leakage. Lubricating Locks, Hinges and Hood LatchesELS000BR Checking Seat Belts,

Page 2535 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CHASSIS AND BODY MAINTENANCE MA-43 C D E F G H I J K MA B MA PROTECTORS Damage or condition of mudguard, fender protector, chipping protector, etc. ANTI-CORROSION MATERIALS Damage or separation of ant

Page 2536 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MA-44 SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) PFP:00030 Standard and LimitELS000BZ BELT DEFLECTION AND TENSION (QR20DE) SPARK PLUG (QR20DE) Tensions of drive belts
