Page 529 of 3066
REPAIR FOR COMPONENT PARTS
AT-523
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Bearings and Forward One-way Clutch
lCheck bearings for deformation and damage.
lCheck forward one-way clutch for wear and damage.
ASSEMBLY
1. Install forward one-way clutch on forward clutch.
lTake care with the direction of forward one-way clutch.
2. Install bearing on forward one-way clutch.
lApply petroleum jelly to bearing.
3. Install thrust washer on rear internal gear.
lApply petroleum jelly to thrust washer.
lAlign hooks of thrust washer with holes of rear internal
gear.
SAT158FA
SAT976H
SAT159FA
SAT160F
Page 530 of 3066
AT-524
[ALL]
REPAIR FOR COMPONENT PARTS
4. Install bearing on rear internal gear.
lApply petroleum jelly to bearing.
5. Install thrust washer and overrun clutch hub.
lApply petroleum jelly to thrust washer.
lAlign hooks of thrust washer with holes of overrun clutch
hub.
lAlign projections of rear internal gear with holes of over-
run clutch hub.
6. Install forward clutch hub on rear internal gear.
lCheck operation of forward one-way clutch.
Hold rear internal gear and turn forward clutch hub.
Check forward clutch hub for correct locking and unlock-
ing directions.
lIf not as shown in illustration, check installation direction
of forward one-way clutch.
SAT161FA
SAT157F
AAT426
Page 531 of 3066
REPAIR FOR COMPONENT PARTS
AT-525
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

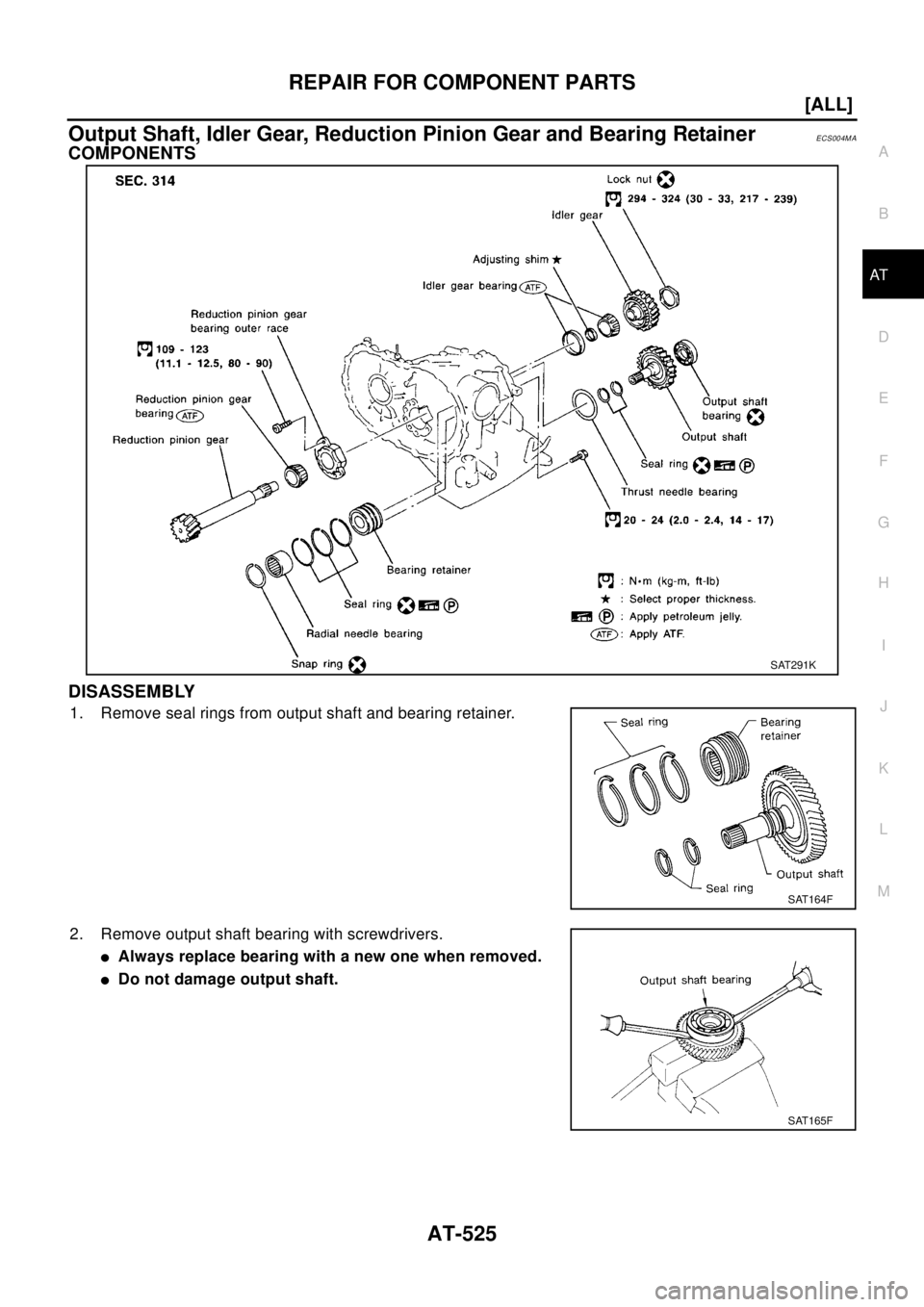

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing RetainerECS004MA
COMPONENTS
DISASSEMBLY
1. Remove seal rings from output shaft and bearing retainer.
2. Remove output shaft bearing with screwdrivers.
lAlways replace bearing with a new one when removed.
lDo not damage output shaft.
SAT291K
SAT164F
SAT165F
Page 532 of 3066
AT-526
[ALL]
REPAIR FOR COMPONENT PARTS

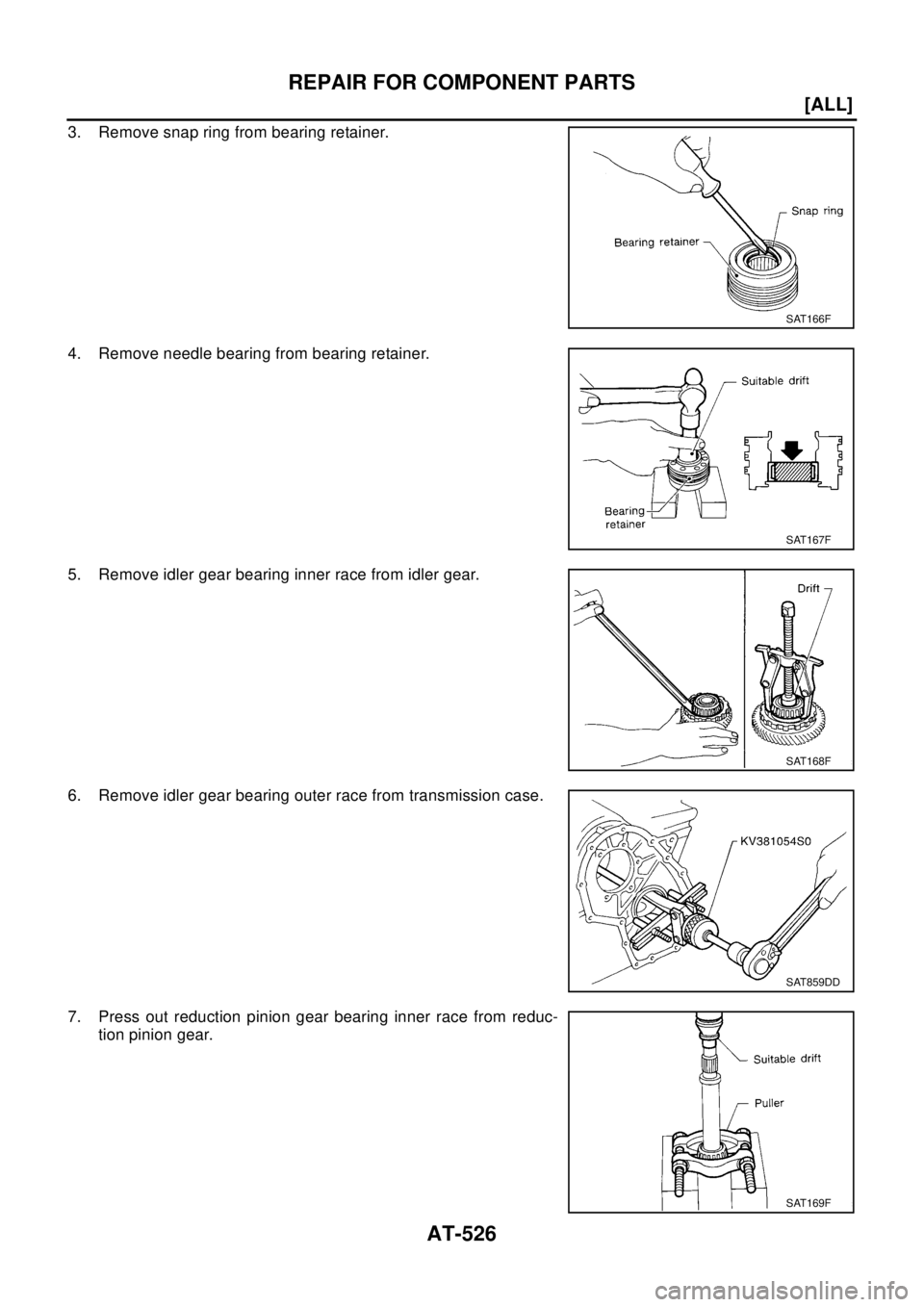

3. Remove snap ring from bearing retainer.
4. Remove needle bearing from bearing retainer.
5. Remove idler gear bearing inner race from idler gear.
6. Remove idler gear bearing outer race from transmission case.
7. Press out reduction pinion gear bearing inner race from reduc-
tion pinion gear.
SAT166F
SAT167F
SAT168F
SAT859DD
SAT169F
Page 533 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-527
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
8. Remove reduction pinion gear bearing outer race from transmis-
sion case.
INSPECTION
Output Shaft, Idler Gear and Reduction Pinion NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-527
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
8. Remove reduction pinion gear bearing outer race from transmis-
sion case.
INSPECTION
Output Shaft, Idler Gear and Reduction Pinion](/manual-img/5/57402/w960_57402-532.png)
REPAIR FOR COMPONENT PARTS
AT-527
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

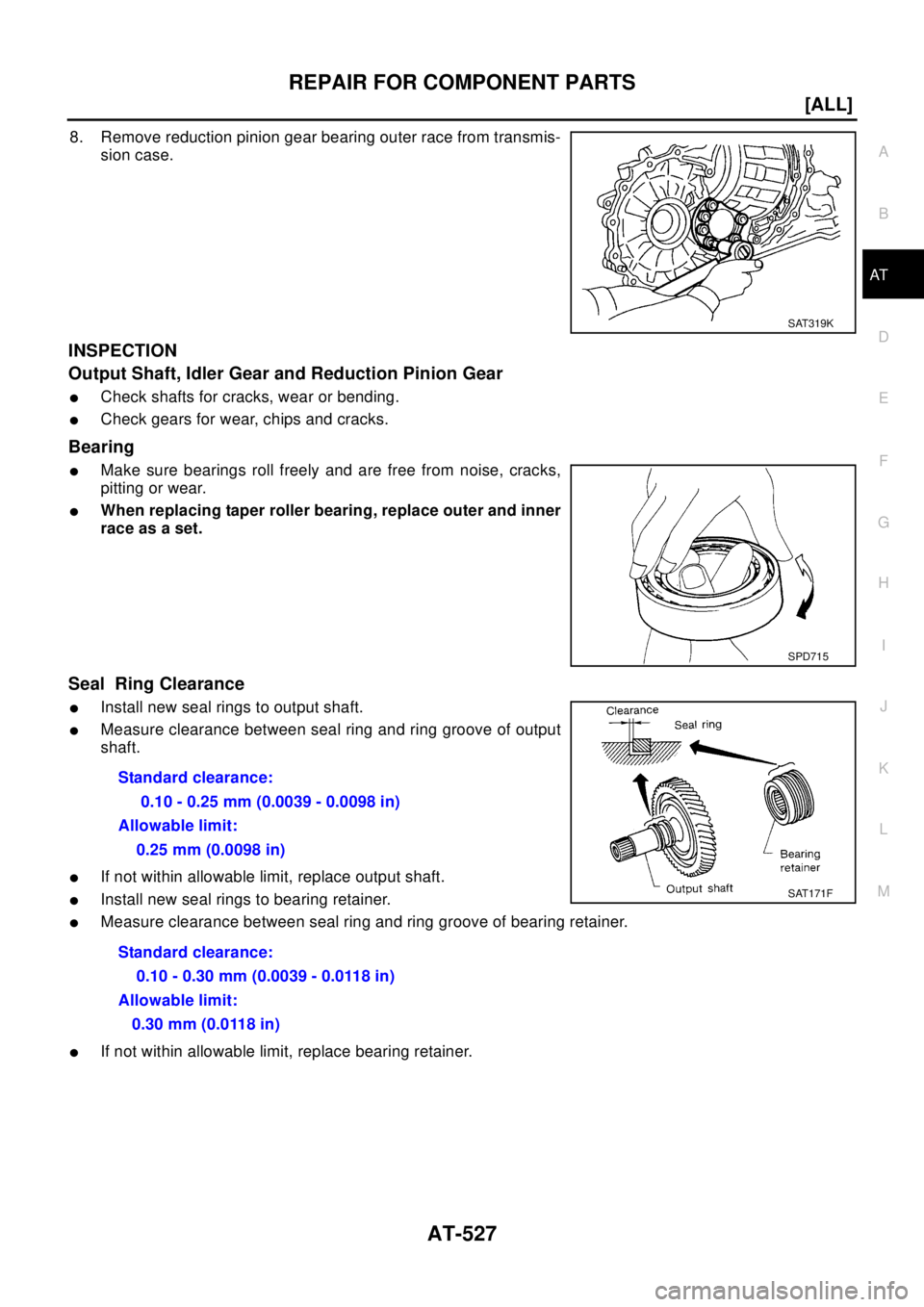

8. Remove reduction pinion gear bearing outer race from transmis-
sion case.
INSPECTION
Output Shaft, Idler Gear and Reduction Pinion Gear
lCheck shafts for cracks, wear or bending.
lCheck gears for wear, chips and cracks.
Bearing
lMake sure bearings roll freely and are free from noise, cracks,
pitting or wear.
lWhen replacing taper roller bearing, replace outer and inner
race as a set.
Seal Ring Clearance
lInstall new seal rings to output shaft.
lMeasure clearance between seal ring and ring groove of output
shaft.
lIf not within allowable limit, replace output shaft.
lInstall new seal rings to bearing retainer.
lMeasure clearance between seal ring and ring groove of bearing retainer.
lIf not within allowable limit, replace bearing retainer.
SAT319K
SPD715
Standard clearance:
0.10 - 0.25 mm (0.0039 - 0.0098 in)
Allowable limit:
0.25 mm (0.0098 in)
Standard clearance:
0.10 - 0.30 mm (0.0039 - 0.0118 in)
Allowable limit:
0.30 mm (0.0118 in)
SAT171F
Page 534 of 3066
AT-528
[ALL]
REPAIR FOR COMPONENT PARTS
ASSEMBLY
1. Press reduction pinion gear bearing inner race on reduction pin-
ion gear.
2. Install reduction pinion gear bearing outer race on transmission
case.
3. Press idler gear bearing inner race on idler gear.
4. Install idler gear bearing outer race on transmission case.
SAT172FC
: 109 - 123 N-m (11.1 - 12.5 kg-m, 80 - 90 ft-lb)
SAT319K
SAT174FC
SAT175FD
Page 535 of 3066
REPAIR FOR COMPONENT PARTS
AT-529
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

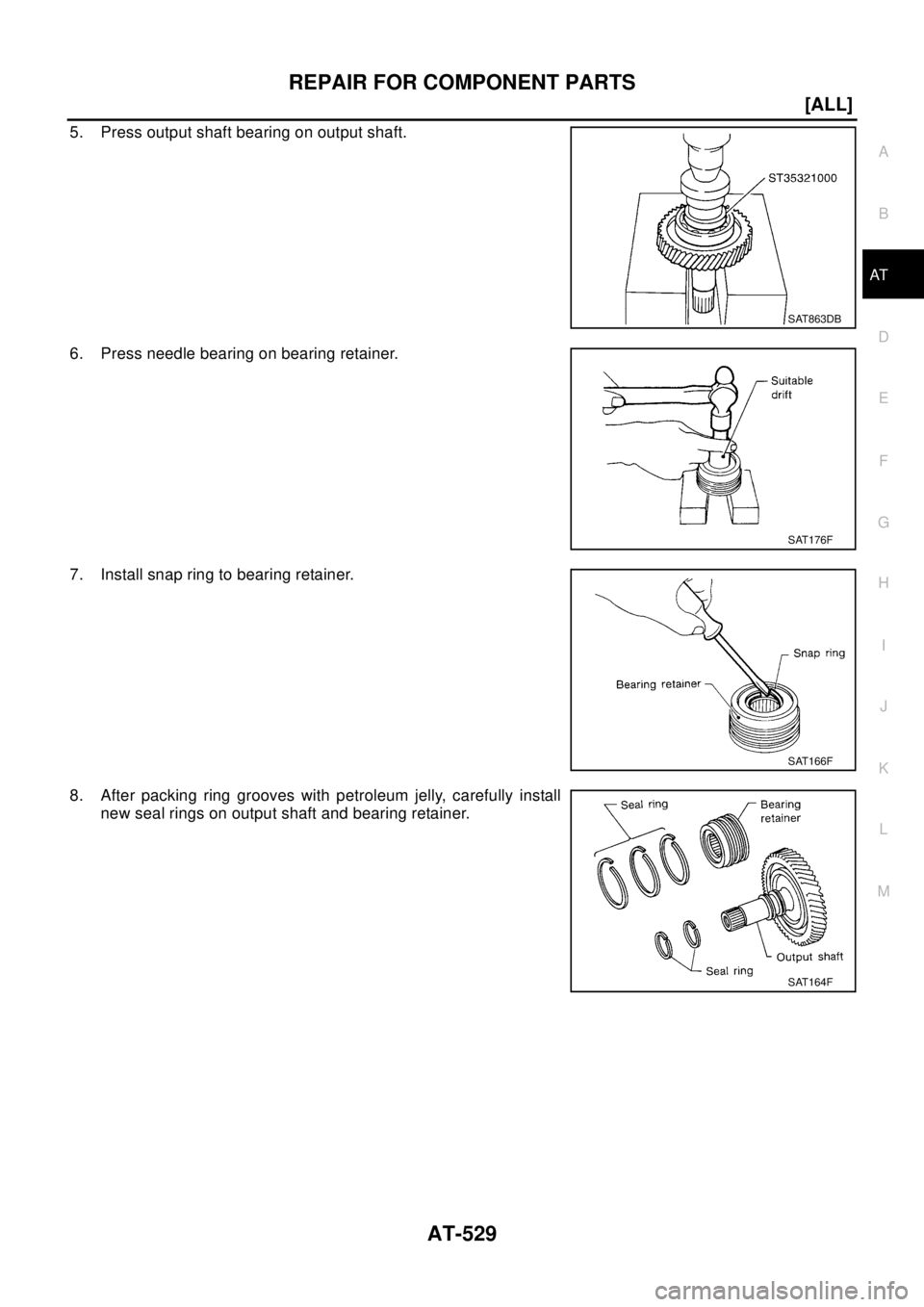

5. Press output shaft bearing on output shaft.
6. Press needle bearing on bearing retainer.
7. Install snap ring to bearing retainer.
8. After packing ring grooves with petroleum jelly, carefully install
new seal rings on output shaft and bearing retainer.
SAT863DB
SAT176F
SAT166F
SAT164F
Page 536 of 3066
AT-530
[ALL]
REPAIR FOR COMPONENT PARTS

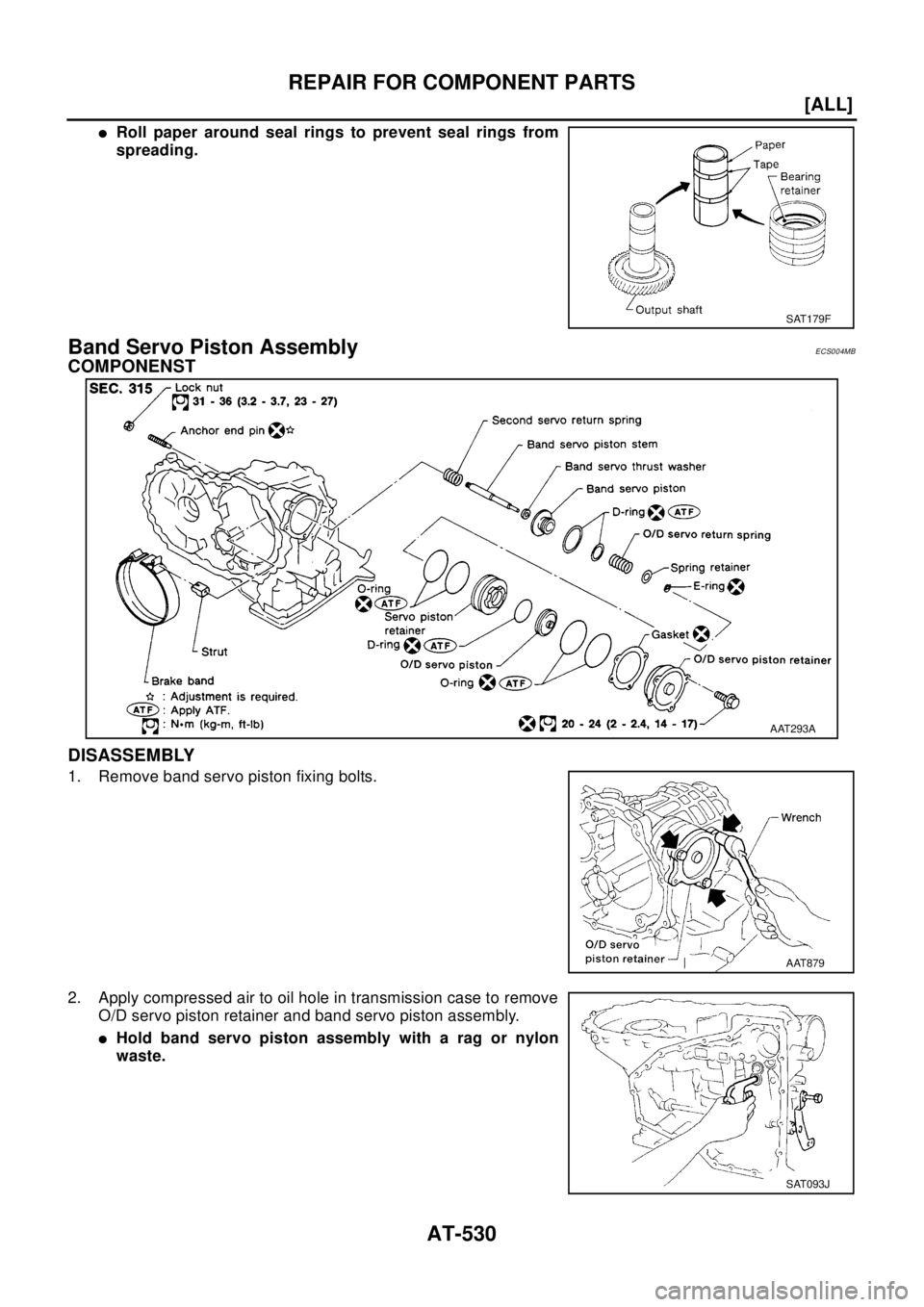

lRoll paper around seal rings to prevent seal rings from
spreading.
Band Servo Piston AssemblyECS004MB
COMPONENST
DISASSEMBLY
1. Remove band servo piston fixing bolts.
2. Apply compressed air to oil hole in transmission case to remove
O/D servo piston retainer and band servo piston assembly.
lHold band servo piston assembly with a rag or nylon
waste.
SAT179F
AAT293A
AAT879
SAT093J
