NISSAN X-TRAIL 2003 Electronic Repair Manual DRIVE BELTS EM-111 [YD22DDTi] C D E F G H I J K L MA EM AIR CONDITIONER COMPRESSOR BELT 1. Remove RH splash cover (with undercover attached). 2. Loosen idler pulley lock nut (A). 3. Turn adjusting bol

Page 2082 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-112 [YD22DDTi] AIR CLEANER AND AIR DUCT AIR CLEANER AND AIR DUCT PFP:16500 Removal and InstallationEBS00BO7 REMOVAL 1. Remove mass air flow sensor harness clamp. 2. Remove harness connector from ma

Page 2083 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AIR CLEANER AND AIR DUCT EM-113 [YD22DDTi] C D E F G H I J K L MA EM 2. Remove clips and lift up air cleaner upper case. 3. Remove air cleaner element.

Page 2084 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-114 [YD22DDTi] CHARGE AIR COOLER CHARGE AIR COOLER PFP:14461 Removal and InstallationEBS00BO8 REMOVAL Remove and install with bottom bracket as an assembly CAUTION: When removing charge air cooler,

Page 2085 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual INTAKE MANIFOLD EM-115 [YD22DDTi] C D E F G H I J K L MA EM INTAKE MANIFOLDPFP:14003 Removal and InstallationEBS00BO9 REMOVAL WA RN ING: To avoid the danger of being scalded, never drain the coolant w

Page 2086 of 3066

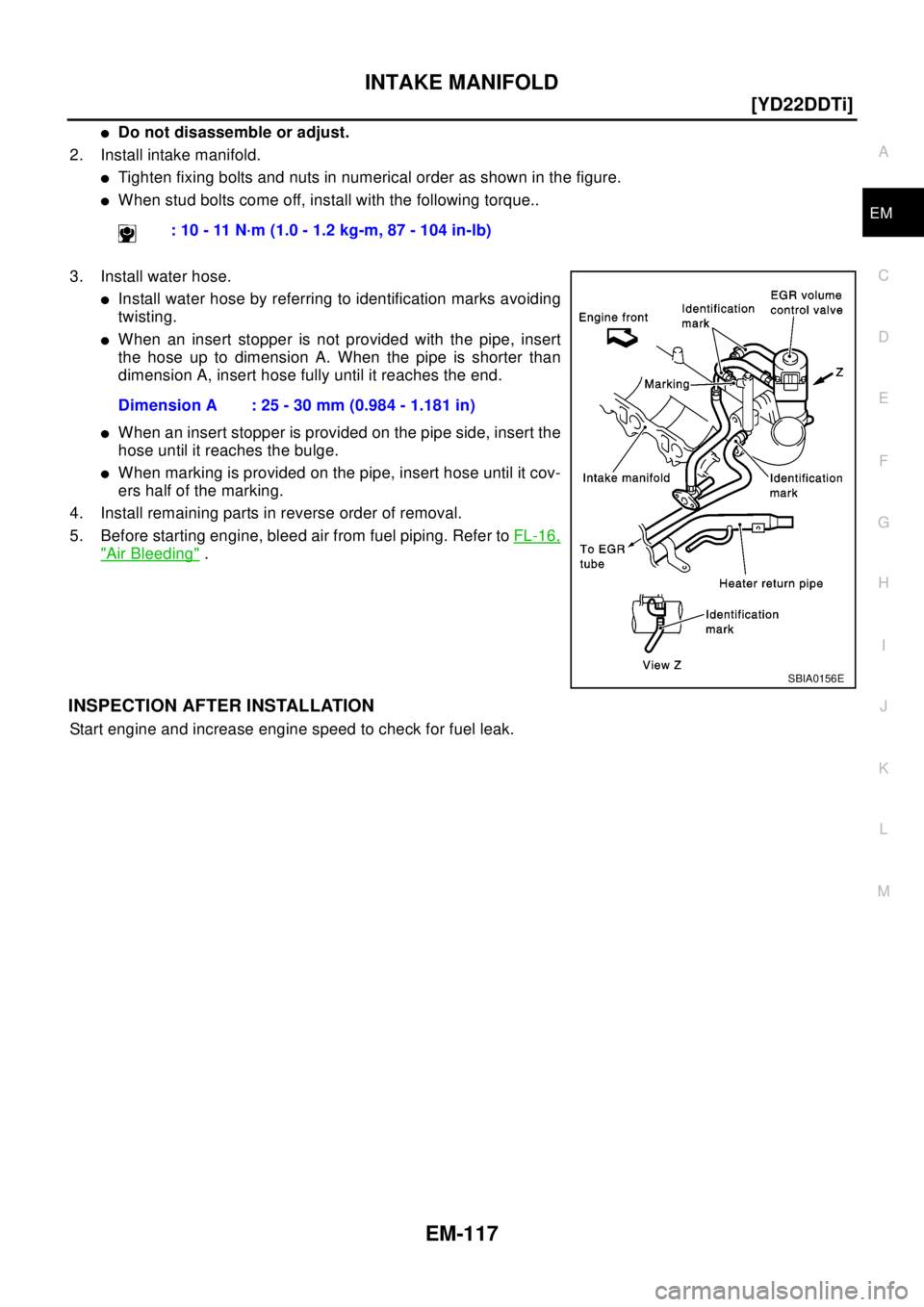

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-116 [YD22DDTi] INTAKE MANIFOLD 8. Remove EGR tube. 9. Remove vacuum hose. 10. Remove injection tube. Refer toEM-135, " Removal and Installa- tion". 11. Remove water pipe. 12. Remove fuel hose. lTo

Page 2087 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual INTAKE MANIFOLD EM-117 [YD22DDTi] C D E F G H I J K L MA EM lDo not disassemble or adjust. 2. Install intake manifold. lTighten fixing bolts and nuts in numerical order as shown in the figure. lWhen s

Page 2088 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-118 [YD22DDTi] CATALYST CATALYST PFP:20905 Removal and InstallationEBS00BOA REMOVAL 1. Remove engine under cover. 2. Drain engine coolant. Refer toCO-30, " Changing Engine Coolant". 3. Remove radia
