ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-51
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
1.CHECK O/D OFF INDICATOR LAMP

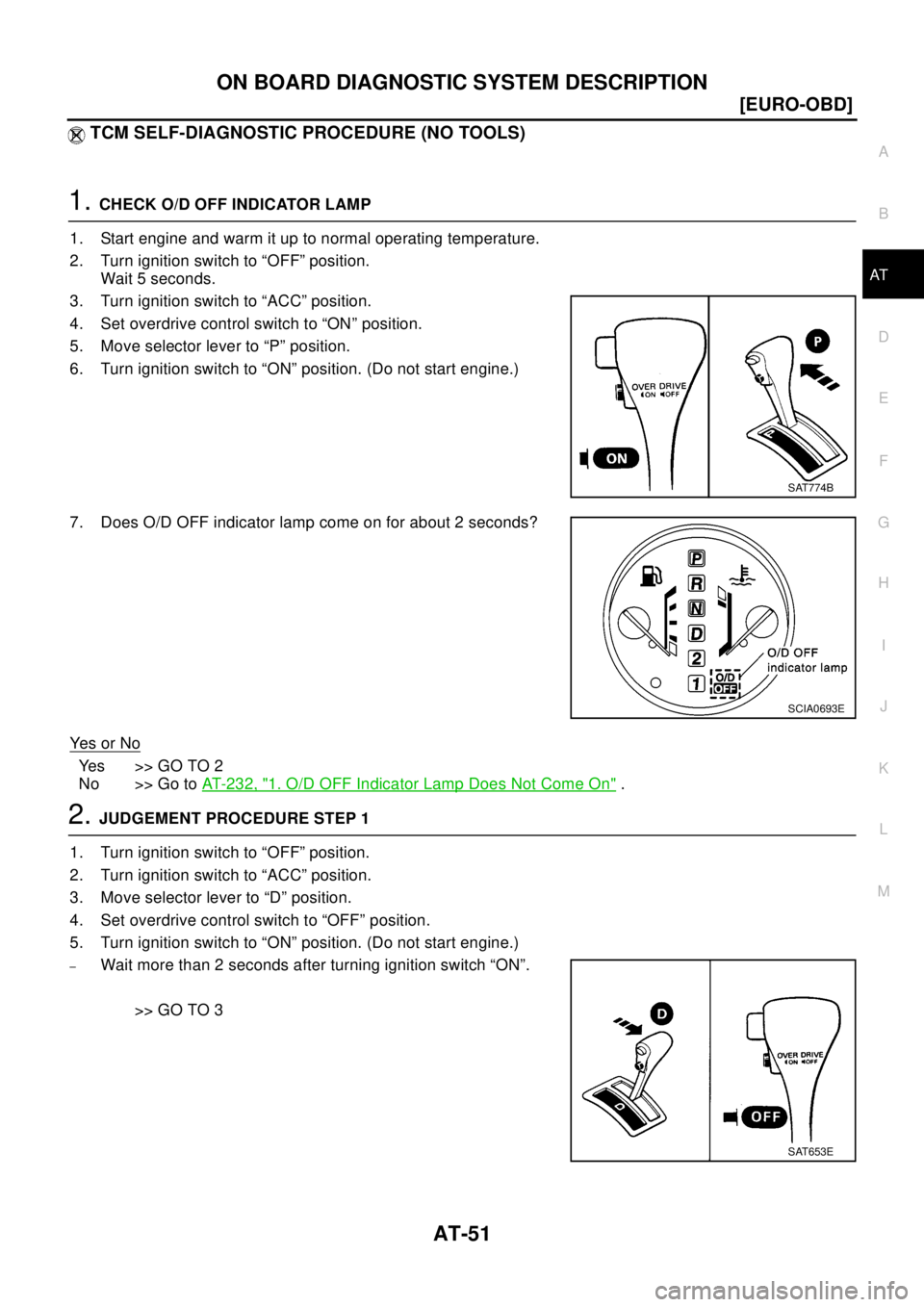

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch to “OFF” position.
Wait 5 seconds.
3. Turn ignition switch to “ACC” position.
4. Set overdrive control switch to “ON” position.
5. Move selector lever to “P” position.
6. Turn ignition switch to “ON” position. (Do not start engine.)
7. Does O/D OFF indicator lamp come on for about 2 seconds?
Ye s o r N o
Yes >>GOTO2
No >> Go toAT- 2 3 2 , "
1. O/D OFF Indicator Lamp Does Not Come On".
2.JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch to “OFF” position.
2. Turn ignition switch to “ACC” position.
3. Move selector lever to “D” position.
4. Set overdrive control switch to “OFF” position.
5. Turn ignition switch to “ON” position. (Do not start engine.)
–Wait more than 2 seconds after turning ignition switch “ON”.
>> GO TO 3
SAT774B
SCIA0693E
SAT653E
Page 58 of 3066
AT-52
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
3.JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to “2” position.
2. Set overdrive control switch to “ON” position.
>> GO TO 4
4.JUDGEMENT PROCEDURE STEP 3
1. Move selector lever to “1” position.
2. Set overdrive control switch to “OFF” position.
>> GO TO 5
5.JUDGEMENT PROCEDURE STEP 4
1. Depress accelerator pedal fully and release it.
>> GO TO 6
6.CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp. Refer toAT-53, "
JUDGEMENT OF
SELF-DIAGNOSIS CODE".
>>DIAGNOSIS END
SAT780B
SAT781B
SAT981F
SCIA0693E
Page 59 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be NISSAN X-TRAIL 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be](/manual-img/5/57402/w960_57402-58.png)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
Revolution sensor circuit is short-circuited or disconnected.
Go to DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR).
Refer toAT- 1 4 2 , "
DTC P0720 VEHICLE SPEED SENSOR·A/T
(REVOLUTION SENSOR)"
2nd judgement flicker is longer than others.
Vehicle speed sensor circuit is short-circuited or disconnected.
Go to VEHICLE SPEED SENSOR·MTR.
EURO-OBD:AT-221, "
Component Inspection"
3rd judgement flicker is longer than others.
Throttle position sensor circuit is short-circuited or disconnected.
Go to DTC P1705 ACCELEPATOR PEDAL POSI-
TION(APP)SENSOR
Refer toAT- 2 0 3 , "
DTC P1705 ACCELERATOR PEDAL POSI-
TION (APP) SENSOR"
4th judgement flicker is longer than others.
Shift solenoid valve A circuit is short-circuited or disconnected.
Go to DTC P0750 SHIFT SOLENOID VALVE A.
Refer toAT-193, "
DTC P0750 SHIFT SOLENOID VALVE A"
5th judgement flicker is longer than others.
Shift solenoid valve B circuit is short-circuited or disconnected.
Go to DTC P0755 SHIFT SOLENOID VALVE B.
Refer toAT- 1 9 8 , "
DTC P0755 SHIFT SOLENOID VALVE B"
SCIA0694ESCIA0695E
