TROUBLE DIAGNOSIS
BRC-45
[4WD/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3.INSPECTION USING DRIVE MODE CHANGE-OVER SWITCH
lOn data monitor screen of the CONSULT, check 4WD mode switch.
lCheck if the display changes from ## to 2WD mode when the 2WD switch is pressed.
lCheck if the display changes from ## to AUTO mode when the AUTO switch is pressed.
lCheck if the display changes from ## to LOCK mode when the LOCK switch is pressed.
Is inspection result OK?
YES >> No malfunction detected.
NO >>
lNot in AUTO mode. (In 2WD or LOCK mode)
Countermeasure: Slightly depress the accelerator pedal and check that the operation mode
changes to LOCK mode.
lCheck path between drive mode switch and 4WD/ABS control unit E122 terminal No.27 (BR).
(AUTO mode is not available because a malfunction is present in the 2WD mode harness.)
NOTICE:
Mechanism of drive mode change-over
l2WD mode: Operation changes to 2WD mode when 4WD/ABS control unit connector terminal
No. 27 is shorted to ground.
lAUTO mode: Operation changes to AUTO mode when 4WD/ABS control unit connector termi-
nals No. 27 and No. 26 were shorted to ground.
lLOCK mode: Operation changes to LOCK mode when 4WD/ABS control unit connector E122
terminal No. 26 (L) is shorted to ground.
Drive modes cannot be switched after engine is started.EFS001BU
1.INSPECTION USING DRIVE MODE CHANGE-OVER SWITCH
lDrive modes cannot be switched after the engine is started.
lOn data monitor screen of the CONSULT, check 4WD mode switch.
lCheck if the display changes from ## to 2WD mode when the 2WD switch is pressed.
lCheck if the display changes from ## to AUTO mode when the AUTO switch is pressed.
lCheck if the display changes from ## to LOCK mode when the LOCK switch is pressed.
Is inspection result OK?
YES >> No malfunction detected.
NO >>
lCONSULT-II display does not change from ## when the 2WD switch is pressed. Check harness
of the 2WD switch.
lCONSULT-II display does not change from ## when the AUTO switch is pressed. Check har-
ness of the 2WD switch and LOCK switch.
lCONSULT-II display does not change from ## when the LOCK switch is pressed. Check har-
ness of the LOCK switch.
lPerform drive mode change-over switch inspection.
Wheel driving, 4WD warning lamp flashes rapidly. (When it flashes for Approx.
one minute, then does not illuminate.)
EFS001BV
lWheel driving, 4WD warning lamp flashes rapidly. (When it flashes for Approx. 1 minute, then does not
illuminate.)
Rapid flashing: 2 times/second
This phenomenon protects drivetrain parts when a heavy load is applied to the electronically controlled
coupling and multiple disc clutch temperature increases. It is not a malfunction.
Wheel driving, 4WD warning lamp flashes slowly. (When it continues to illumi-
nate until engine turns OFF.)
EFS001BW
1. Check using the data monitor function of the CONSULT.
lPerform inspection with the data monitor function of the CONSULT.
lCheck if the value of IMPROPER SIZE TIRE MONITOR is 8 mm or more.
Page 914 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-46
[4WD/ABS]
TROUBLE DIAGNOSIS
lStop the engine. Restart the engine and drive the vehicle at 20 km/h or faster for approximately 200
seconds. Confirm the 4WD warning lamp flashes slowly.
(Check if NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-46
[4WD/ABS]
TROUBLE DIAGNOSIS
lStop the engine. Restart the engine and drive the vehicle at 20 km/h or faster for approximately 200
seconds. Confirm the 4WD warning lamp flashes slowly.
(Check if](/manual-img/5/57402/w960_57402-913.png)
BRC-46
[4WD/ABS]
TROUBLE DIAGNOSIS
lStop the engine. Restart the engine and drive the vehicle at 20 km/h or faster for approximately 200
seconds. Confirm the 4WD warning lamp flashes slowly.
(Check if the value of IMPROPER SIZE TIRE MONITOR is 8 mm or more.)
When the tire size is normal, the value of IMPROPER SIZE TIRE MONITOR will change from 8 mm or
more to 0 - 4 mm (normal condition) after the vehicle is driven 20 km/h or faster for approximately 5
seconds.
2. Tire inspection
lInspection of tire air pressure
lWear condition
lCheck size of the front and rear tires. (No excessive difference should be observed.) Refer toGI-46,
"Wheels&Tire s"
Vehicle does not enter 4WD mode even though 4WD warning lamp is off.EFS001BX
1. Check using the data monitor function of the CONSULT.
Perform inspection by the data monitor function of the CONSULT.
–Check if the vehicle operation changes to 2WD, AUTO, and LOCK modes.
–Check current supplied to the E-TS solenoid valve in AUTO mode.
2. Check using the active test function of the CONSULT.
Using active test mode of CONSULT, supply current to the E-TS solenoid valve and check that the monitor
current becomes close to this supply current.
lThe 4WD/ABS control unit is normal when the difference between E-TS solenoid valve current and the
monitor current is within±10%.
It is necessary to inspect the electronically controlled coupling assembly.
Tight-corner braking symptom occurs when the vehicle is started in AUTO
mode (4WD warning lamp remain OFF).
EFS001BY
1.THROTTLE POSITION SENSOR AND HARNESS INSPECTION
Check accelerator pedal stroke.
Is inspection result OK?
YES >> Perform self-diagnosis again.
NO >> Malfunctioning throttle position sensor harness
E-TS actuator relay (4WD solenoid actuator relay) turns ON/OFF frequently.EFS001BZ
1.SELF-DIAGNOSIS RESULT IS E-TS ACTUATOR RELAY (4WD ACTUATOR RELAY) ON ERROR
AND OFF ERROR.
Is self-diagnosis result [ON error and OFF error]?
Is inspection result OK?
YES >> GO TO 2.
NO >> Repair or replace as necessary.
2.E-TS ACTUATOR RELAY (4WD SOLENOID ACTUATOR RELAY) AND HARNESS INSPECTION
Is self-diagnosis result [ON error and OFF error]?
Is inspection result OK?
YES >> Perform self-diagnosis again.
NO >> Malfunctioning E-TS actuator relay (4WD solenoid actuator relay) harnessAccelerator pedal not depressed: Approx. 0 A
Accelerator pedal depressed: Approx. 2.8 A
Example) Monitor value becomes Approx. 1 A for E-TS solenoid current 1 A setting.
Page 915 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
BRC-47
[4WD/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection of drive mode change-over switch pathEFS001C0
1.INSPECTION OF DRIVE MODE CHANGE-OVER SWITCH
Inspection of drive mode change-ove NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
BRC-47
[4WD/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection of drive mode change-over switch pathEFS001C0
1.INSPECTION OF DRIVE MODE CHANGE-OVER SWITCH
Inspection of drive mode change-ove](/manual-img/5/57402/w960_57402-914.png)
TROUBLE DIAGNOSIS
BRC-47
[4WD/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection of drive mode change-over switch pathEFS001C0
1.INSPECTION OF DRIVE MODE CHANGE-OVER SWITCH
Inspection of drive mode change-over switch
Is inspection result OK?
YES >> GO TO 2.
NO >> Poor drive mode change-over switch
2.INPUT SIGNAL CHECK.
Select control module input item on monitoring item selection. While monitoring drive mode change-over
switch items, press 2WD mode switch. Check the display changes from ##to 2WD. Check the display for
AUTO and LOCK just the same. (## indicates when mode SW is not pressed.)
Is inspection result OK?
YES >>l4WD/ABS control unit input/output signal inspection
lRecheck 4WD/ABS control unit connector terminals and connection.
NO >> GO TO 3.
3.INSPECTION OF DRIVE MODE CHANGE-OVER SWITCH POWER SUPPLY
lDisconnect drive mode change-over switch connector.
lTurn ignition switch ON.
lMeasure voltage between drive mode change-over switch connector and body ground. Check the voltage
is 4V or more.
Is inspection result OK?
YES >> GO TO 4.
NO >> Harness malfunction or connector malfunction between ignition switch and drive mode change-
over switch connector or connector malfunction.
4.HARNESS CONTINUITY INSPECTION
lTurn OFF ig nitio n switch.
lConfirm continuity between following terminals.
(4WD/ABS control unit connector E122 terminal No.26 (L) - Drive mode switch connector M39 terminal
No.2 (L)) (4WD/ABS control unit connector E122 terminal No. 27 (BR) - Drive mode switch connector M39
terminal No.1 (BR)).
Is inspection result OK?
YES >> GO TO 5.
NO >> Malfunctioning harness or connector.
5.HARNESS CONTINUITY INSPECTION
Drive the vehicle for a while and the perform self-diagnosis.
Is inspection result OK?
YES >> End
NO >>
l4WD/ABS control unit input/output signal inspection
lRecheck 4WD/ABS control unit connector terminals and connection.
Page 916 of 3066
BRC-48
[4WD/ABS]
WHEEL SENSORS
WHEEL SENSORS
PFP:47910
Removal and InstallationEFS001C1
CAUTION:
lBe careful not to damage sensor edge and rotor tooth. Before removing front or rear wheel hub,
remove wheel speed sensor to avoid sensor wiring damage. Otherwise, sensor may be deacti-
vated.
lWhen removing sensor, avoid rotating it as much as possible. Do not forcibly pull sensor harness.
lWhen installing, check sensor pick-up and mounting hole for foreign material such as iron chips.
Check no foreign material has been caught in sensor rotor. Remove any foreign material found.
Tighten mounting bolts and nuts to the specified torque.
SFIA0042E
Page 917 of 3066
G-SENSOR (4WD MODEL ONLY)
BRC-49
[4WD/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
G-SENSOR (4WD MODEL ONLY)PFP:47930
Removal and InstallationEFS001C2
CAUTION:
Be careful not to drop or bump G -sensor because it is sensitive to impact.
1. Remove center console and instrument. Refer to applicable sec-
tion inIP-3, "
INSTRUMENT PANEL ASSEMBLY".
2. Disconnect G -sensor connector.
3. Remove mounting nuts and remove G -sensor.
Install in the reverse order of removal observing the precautions
above.
SFIA0065E
Page 918 of 3066
BRC-50
[4WD/ABS]
SENSOR ROTOR
SENSOR ROTOR
PFP:47970
Removal and InstallationEFS001C3
REMOVAL
Front
1. Remove drive shaft. Refer toFAX-11, "REMOVAL"in “FAX Front Axle/Drive Shaft”.
2. Remove sensor rotor from drive shaft. Refer toFAX-13, "
DISASSEMBLY"in “FAX Front axle/Drive shaft
”.
Rear
1. Remove drive shaft. Refer toRAX-9, "Removal"in “RAX Rear Axle/Drive Shaft”.
2. Remove sensor rotor from drive shaft. Refer toRAX-10, "
DISASSEMBLY"in “RAX Rear axle/Drive
shaft”.
INSTALLATION
Front
1. Install sensor rotor to drive shaft. Refer toFA X -1 5 , "ASSEMBLY"in “FAX Front axle/Drive shaft”.
2. Connect drive shaft. Refer toFAX-12, "
INSTALLATION"in “FAX Front Axle/Drive Shaft”.
Rear
1. Install sensor rotor to drive shaft. Refer toRAX-12, "ASSEMBLY"in “RAX Rear axle/Drive shaft”.
2. Connect drive shaft. Refer toRAX-9, "
Installation"in “RAX Rear Axle/Drive Shaft”.
Page 919 of 3066
ACTUATOR
BRC-51
[4WD/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

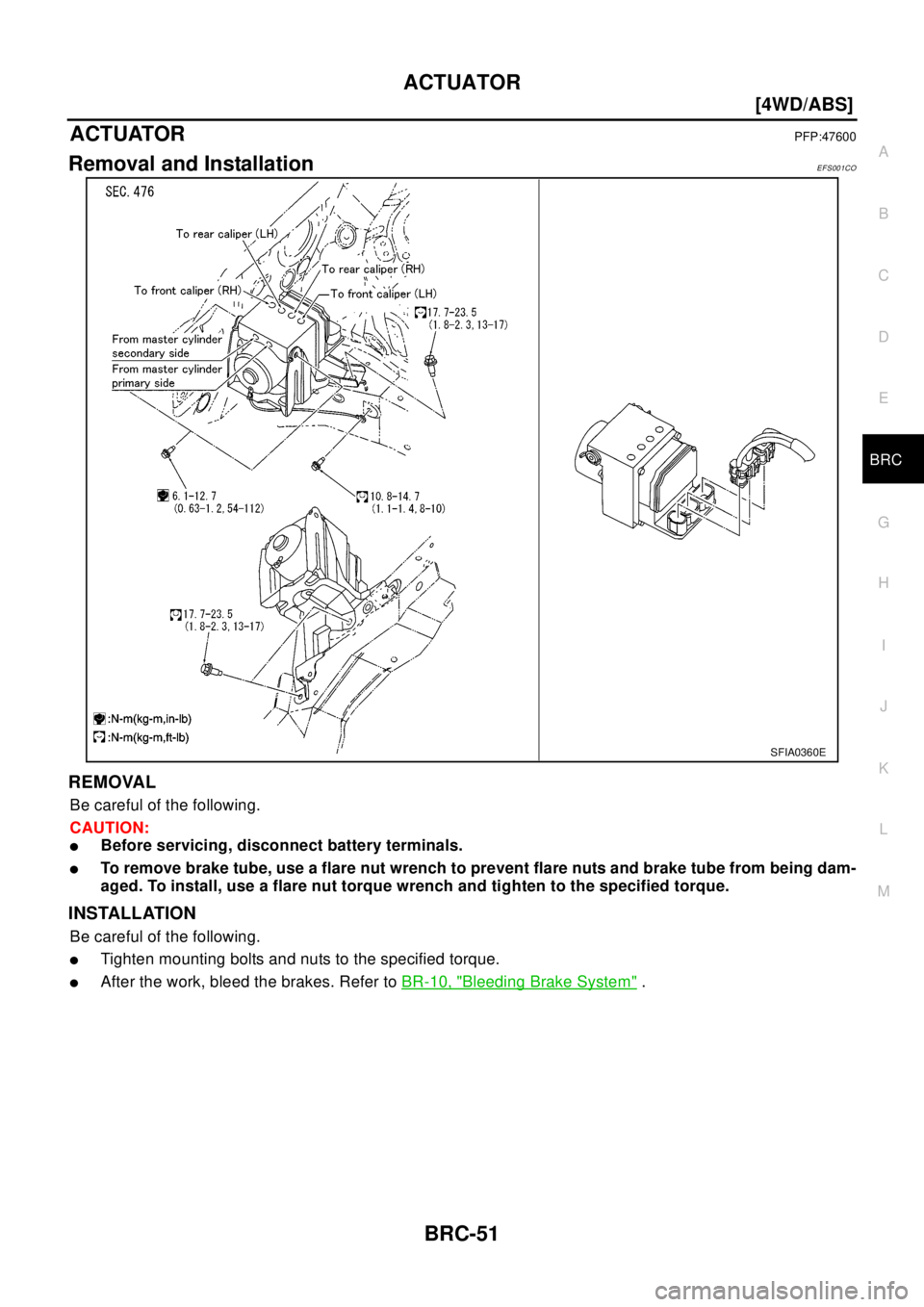

ACTUATORPFP:47600
Removal and InstallationEFS001CO
REMOVAL
Be careful of the following.
CAUTION:
lBefore servicing, disconnect battery terminals.
lTo remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-
aged. To install, use a flare nut torque wrench and tighten to the specified torque.
INSTALLATION
Be careful of the following.
lTighten mounting bolts and nuts to the specified torque.
lAfter the work, bleed the brakes. Refer toBR-10, "Bleeding Brake System".
SFIA0360E
Page 920 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-52
[ESP/TCS/ABS]
PRECAUTIONS
[ESP/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EFS0019N
The Supplemental Restrai NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-52
[ESP/TCS/ABS]
PRECAUTIONS
[ESP/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EFS0019N
The Supplemental Restrai](/manual-img/5/57402/w960_57402-919.png)
BRC-52
[ESP/TCS/ABS]
PRECAUTIONS
[ESP/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EFS0019N
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WAR NIN G:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
Precautions for Brake SystemEFS0019O
lRecommended fluid is brake fluid “DOT 3” or “DOT 4”.
lNever reuse drained brake fluid.
lBe careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed
on painted areas, wash it away with water immediately.
lNever use mineral oils such as gasoline or kerosene. They will ruin rubber parts of hydraulic system.
lUse flare nut wrench when removing and installing brake tubes.
lAlways torque brake lines when installing.
lBefore working, turn the ignition switch OFF and disconnect the
connectors for the ESP/TCS/ABS actuator and control unit or
the battery terminals.
lBurnish the brake contact surfaces after refinishing or replacing
drums or rotors, after replacing pads or linings, or if a soft pedal
occurs at very low mileage. Refer toBR-10, "
Brake Burnishing
Procedure".
WAR NIN G:
Clean brakes with a vacuum dust collector to minimize risk
of health hazard from powder caused by friction.
Precautions for Brake ControlEFS0019P
lDuring the EPS/TCS/ABS operation, the brake pedal vibrates lightly and its mechanical noise may be
heard. This is a normal condition.
lJust after starting the vehicle after ignition switch ON, the brake pedal may vibrate or the motor operating
noise may be heard from the engine compartment. This is a normal status of the operation check.
lThe stopping distance may be longer than that of vehicles without ABS when the vehicle drives on rough,
gravel, or snowy (fresh deep snow) road.
lIf a malfunction is indicated by the ABS warning lamp, or other warning lamps, collect the necessary infor-
mation from the customer (what symptoms are present under what conditions) and find out the possible
causes before starting the service. Besides the electrical system inspection, check the booster operation,
brake fluid level, and oil leaks.
lIf the tire size and type are used in a improper combination, or the brake pads are not NISSAN genuine
parts, the stopping distance or steering stability may deteriorate.
lIf there is a radio, antenna, or antenna lead-in wire (including wiring) near the control unit, the ESP/TCS/
ABS function may have a malfunction or error.
lIf aftermarket parts (e.g. Car stereo equipment, CD player) have been installed, check the electrical har-
nesses for pinches, open, and improper wiring.
SBR686C
