NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-511
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.DETECT MALFUNCTIONING PART
Check the following.
lHarness for open or short between ECM and camshaft position sen

Page 1626 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-512
[QR (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
9.CHECK INTERMITTENT INCIDENT
Refer toEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00BHW

Page 1627 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0500 VSS
EC-513
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0500 VSSPFP:32702
Component DescriptionEBS00BHY
The vehicle speed signal is sent to the combination meter from the ESP/TCS/A

Page 1628 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-514
[QR (WITHOUT EURO-OBD)]
DTC P0500 VSS
2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CON-
SULT-II. The vehicle speed on CONSULT-II should exceed 10
km/h (6 MPH) when rotating wheels with s

Page 1629 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0500 VSS
EC-515
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00BI3

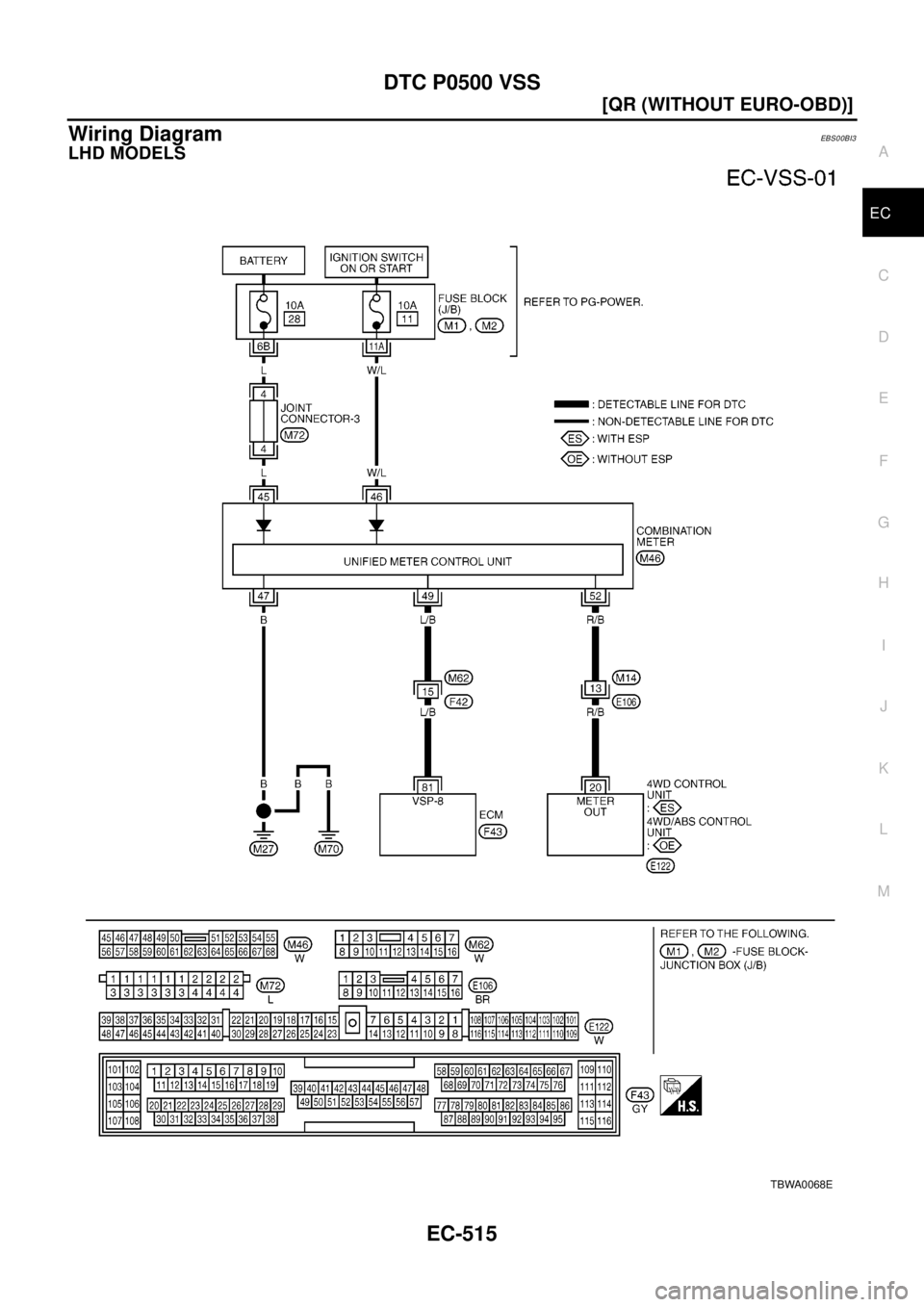

LHD MODELS
TBWA0068E

Page 1630 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-516
[QR (WITHOUT EURO-OBD)]
DTC P0500 VSS

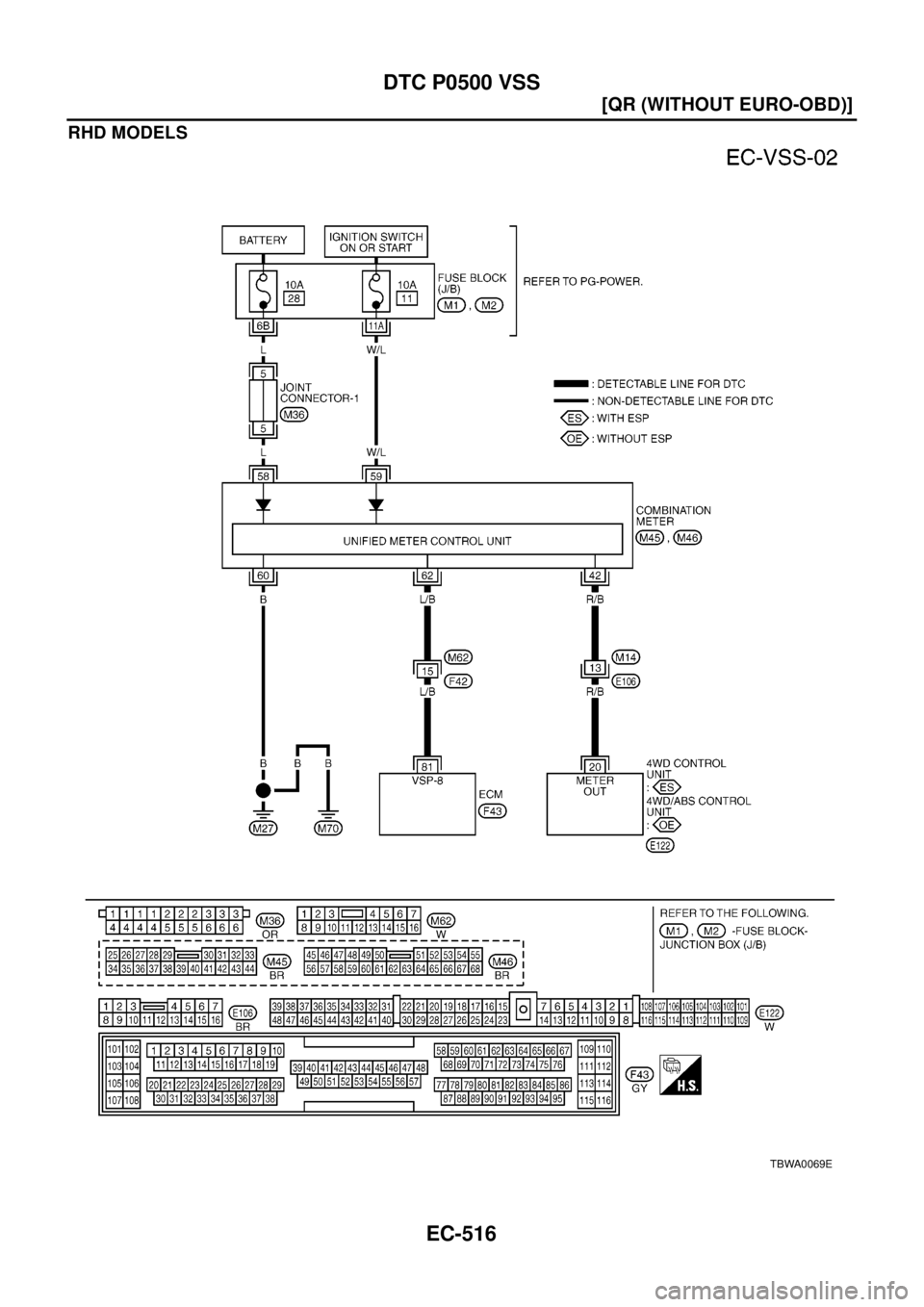

RHD MODELS
TBWA0069E

Page 1631 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0500 VSS
EC-517
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00BI4
1.CHECK DTC WITH ESP/TCS/ABS CONTROL UNIT, 4WD/ABS CONTROL UNIT
Check DTC with ESP/TCS/ABS control u

Page 1632 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-518
[QR (WITHOUT EURO-OBD)]
DTC P0550 PSP SENSOR
DTC P0550 PSP SENSOR
PFP:49763
Component DescriptionEBS00BI5
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure t

EC-518
[QR (WITHOUT EURO-OBD)]
DTC P0550 PSP SENSOR
DTC P0550 PSP SENSOR
PFP:49763
Component DescriptionEBS00BI5
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS00BI6
Specification data are reference values.
ECM Terminals and Reference ValueEBS00BI7
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00BI8
DTC Confirmation ProcedureEBS00BI9
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
PBIB0502E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
lEngine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
lWarm-up condition
lIdle speedApproximately 0V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
67 PPower steering pres-
sure sensor[Engine is running]
lSteering wheel is being turned.0.5 - 4.0V
[Engine is running]
lSteering wheel is not being turned.0.4 - 0.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pres-
sure sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.
lHarness or connectors
(The sensor circuit is open or shorted)
lPower steering pressure sensor
