REPAIR FOR COMPONENT PARTS
AT-531
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

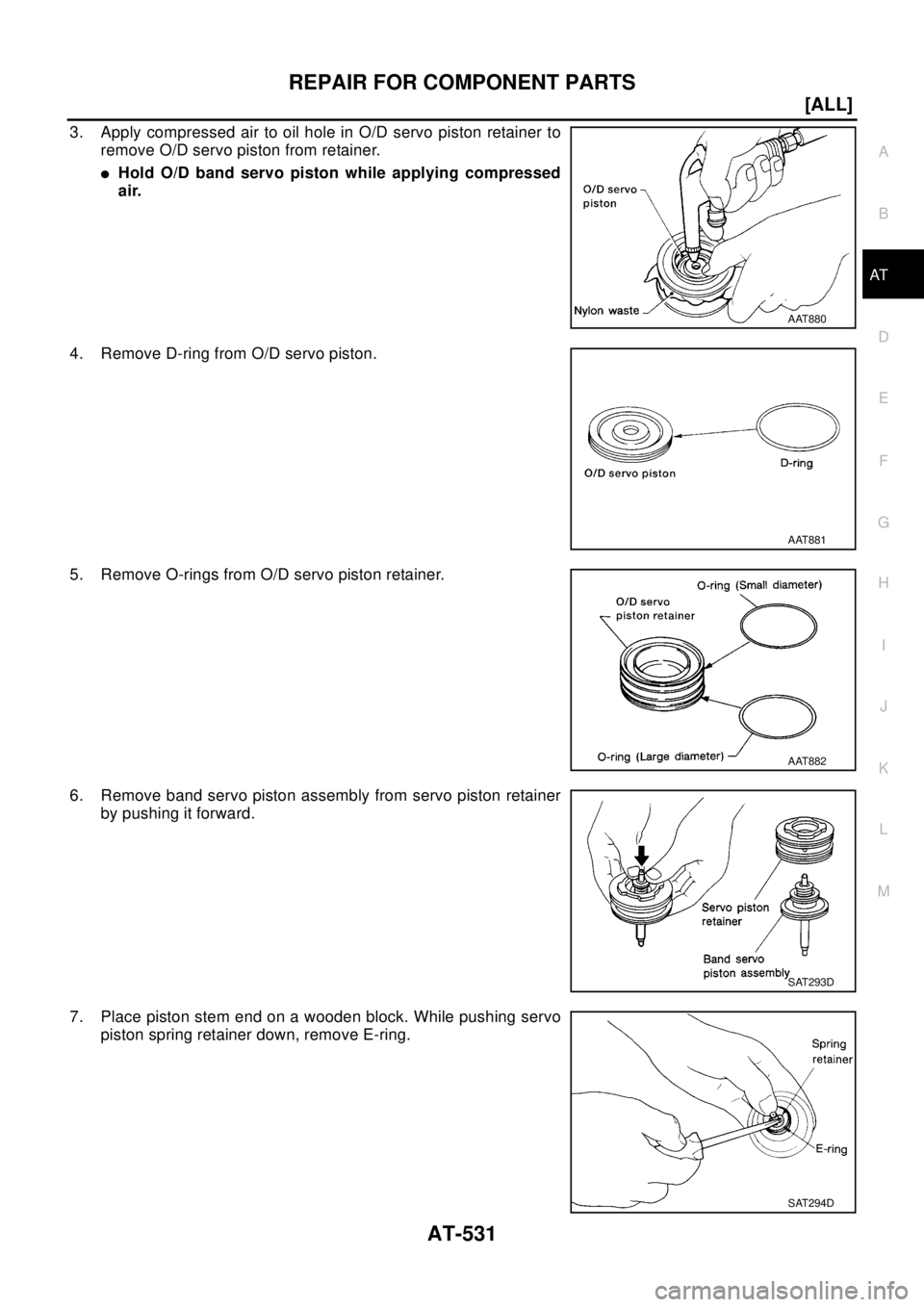

3. Apply compressed air to oil hole in O/D servo piston retainer to
remove O/D servo piston from retainer.
lHold O/D band servo piston while applying compressed
air.
4. Remove D-ring from O/D servo piston.
5. Remove O-rings from O/D servo piston retainer.
6. Remove band servo piston assembly from servo piston retainer
by pushing it forward.
7. Place piston stem end on a wooden block. While pushing servo
piston spring retainer down, remove E-ring.
AAT880
AAT881
AAT882
SAT293D
SAT294D
Page 538 of 3066
AT-532
[ALL]
REPAIR FOR COMPONENT PARTS
8. Remove O/D servo return spring, band servo thrust washer and
band servo piston stem from band servo piston.
9. Remove O-rings from servo piston retainer.
10. Remove D-rings from band servo piston.
INSPECTION
Pistons, Retainers and Piston Stem
lCheck frictional surfaces for abnormal wear or damage.
Return Springs
lCheck for deformation or damage.
lMeasure free length and outer diameter.
AAT883
SAT296DA
SAT297D
Inspection standard:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".
AAT884
Page 539 of 3066
REPAIR FOR COMPONENT PARTS
AT-533
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

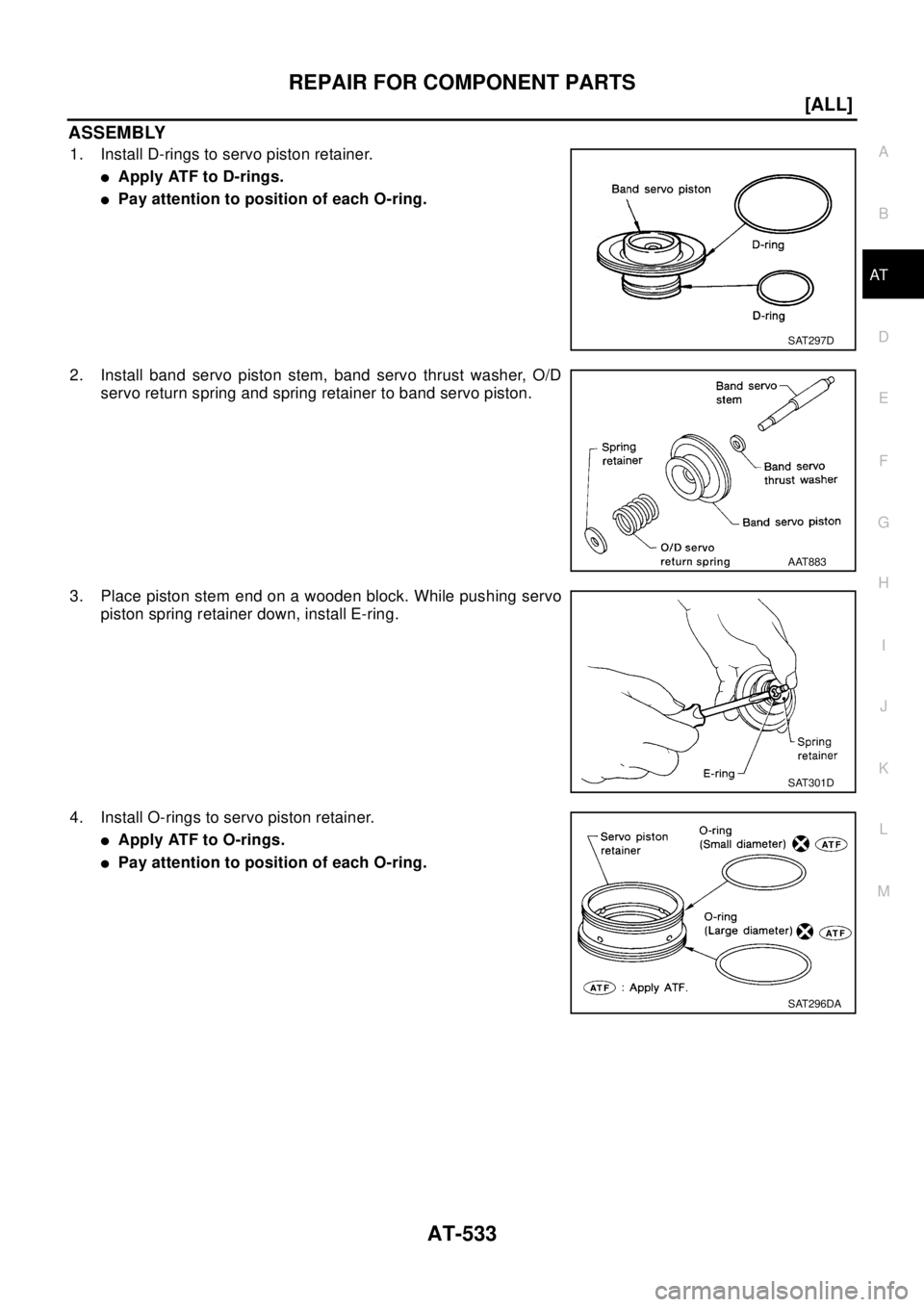

ASSEMBLY
1. Install D-rings to servo piston retainer.
lApply ATF to D-rings.
lPay attention to position of each O-ring.
2. Install band servo piston stem, band servo thrust washer, O/D
servo return spring and spring retainer to band servo piston.
3. Place piston stem end on a wooden block. While pushing servo
piston spring retainer down, install E-ring.
4. Install O-rings to servo piston retainer.
lApply ATF to O-rings.
lPay attention to position of each O-ring.
SAT297D
AAT883
SAT301D
SAT296DA
Page 540 of 3066
AT-534
[ALL]
REPAIR FOR COMPONENT PARTS

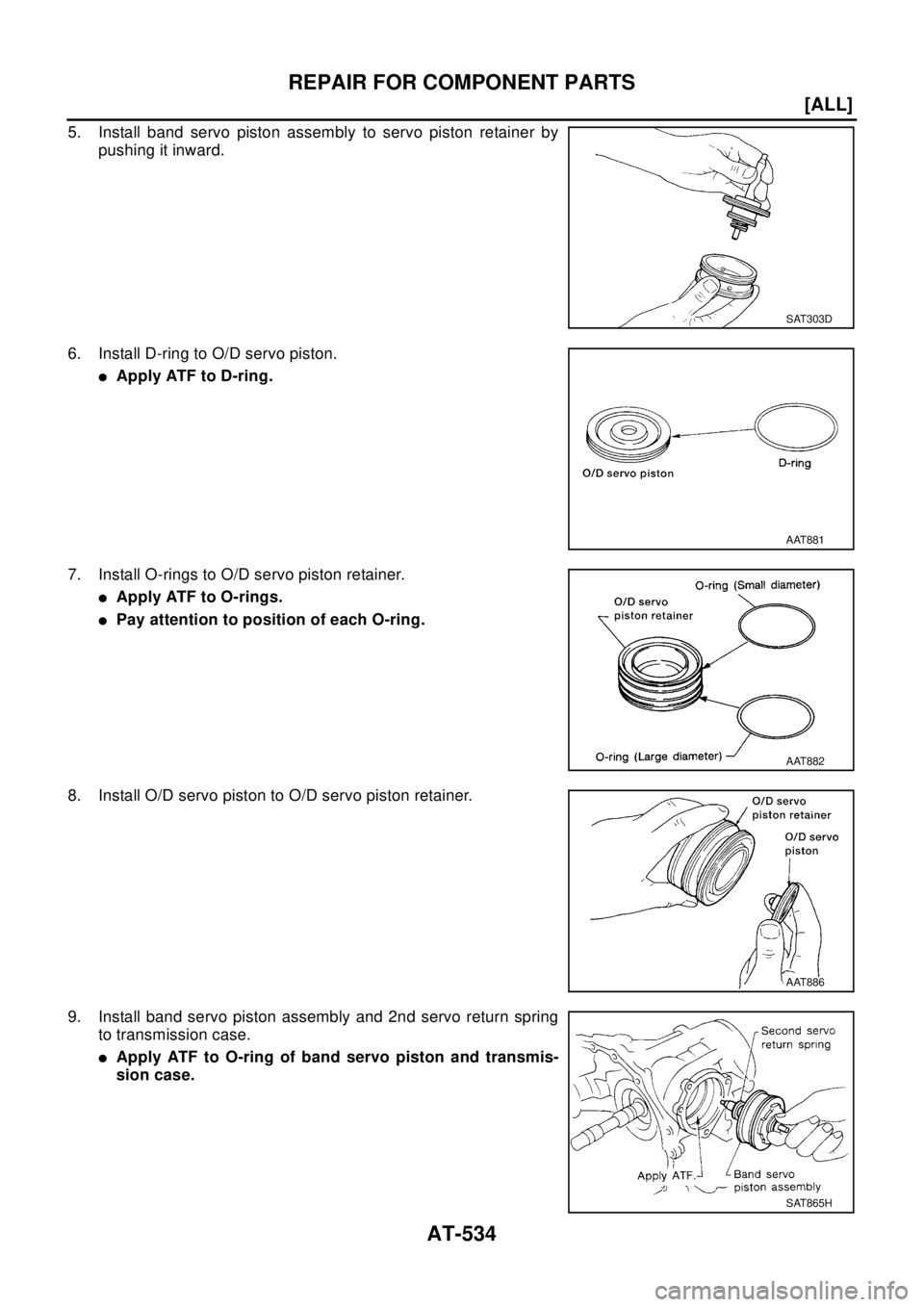

5. Install band servo piston assembly to servo piston retainer by
pushing it inward.
6. Install D-ring to O/D servo piston.
lApply ATF to D-ring.
7. Install O-rings to O/D servo piston retainer.
lApply ATF to O-rings.
lPay attention to position of each O-ring.
8. Install O/D servo piston to O/D servo piston retainer.
9. Install band servo piston assembly and 2nd servo return spring
to transmission case.
lApply ATF to O-ring of band servo piston and transmis-
sion case.
SAT303D
AAT881
AAT882
AAT886
SAT865H
Page 541 of 3066
REPAIR FOR COMPONENT PARTS
AT-535
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
10. Install O/D servo piston assembly to transmission case.
lApply ATF to O-ring of band servo piston and transmis-
sion case.
11. Install O/D servo piston retainer to transmission case.
Refer toAT- 4 6 4 , "
Oil Channel".
Final DriveECS004MC
COMPONENTS
DISASSEMBLY
1. Remove final gear.
AAT885
AAT879
SCIA0807E
SMT505B
Page 542 of 3066
AT-536
[ALL]
REPAIR FOR COMPONENT PARTS

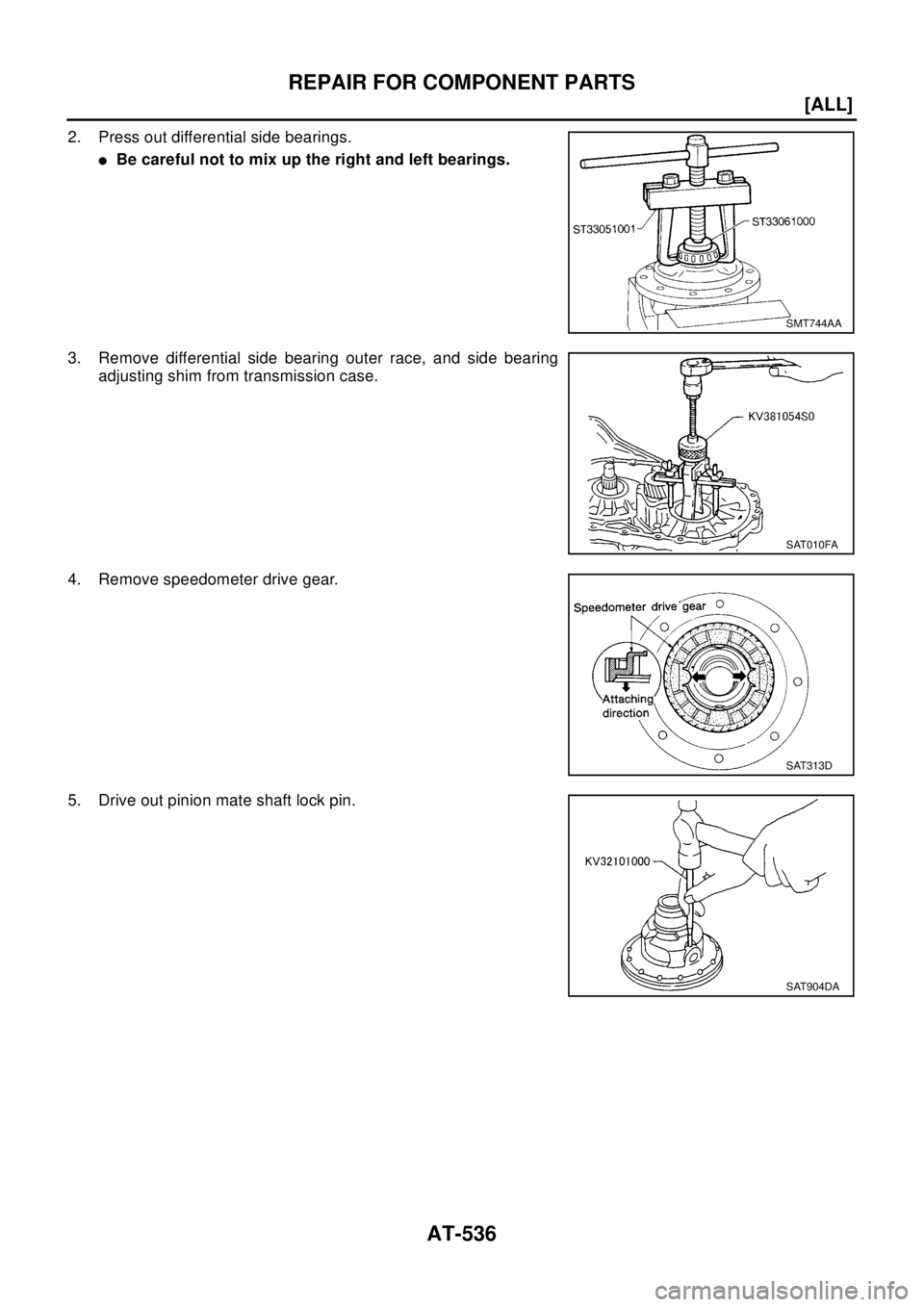

2. Press out differential side bearings.
lBe careful not to mix up the right and left bearings.
3. Remove differential side bearing outer race, and side bearing
adjusting shim from transmission case.
4. Remove speedometer drive gear.
5. Drive out pinion mate shaft lock pin.
SMT744AA
SAT010FA
SAT313D
SAT904DA
Page 543 of 3066
REPAIR FOR COMPONENT PARTS
AT-537
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

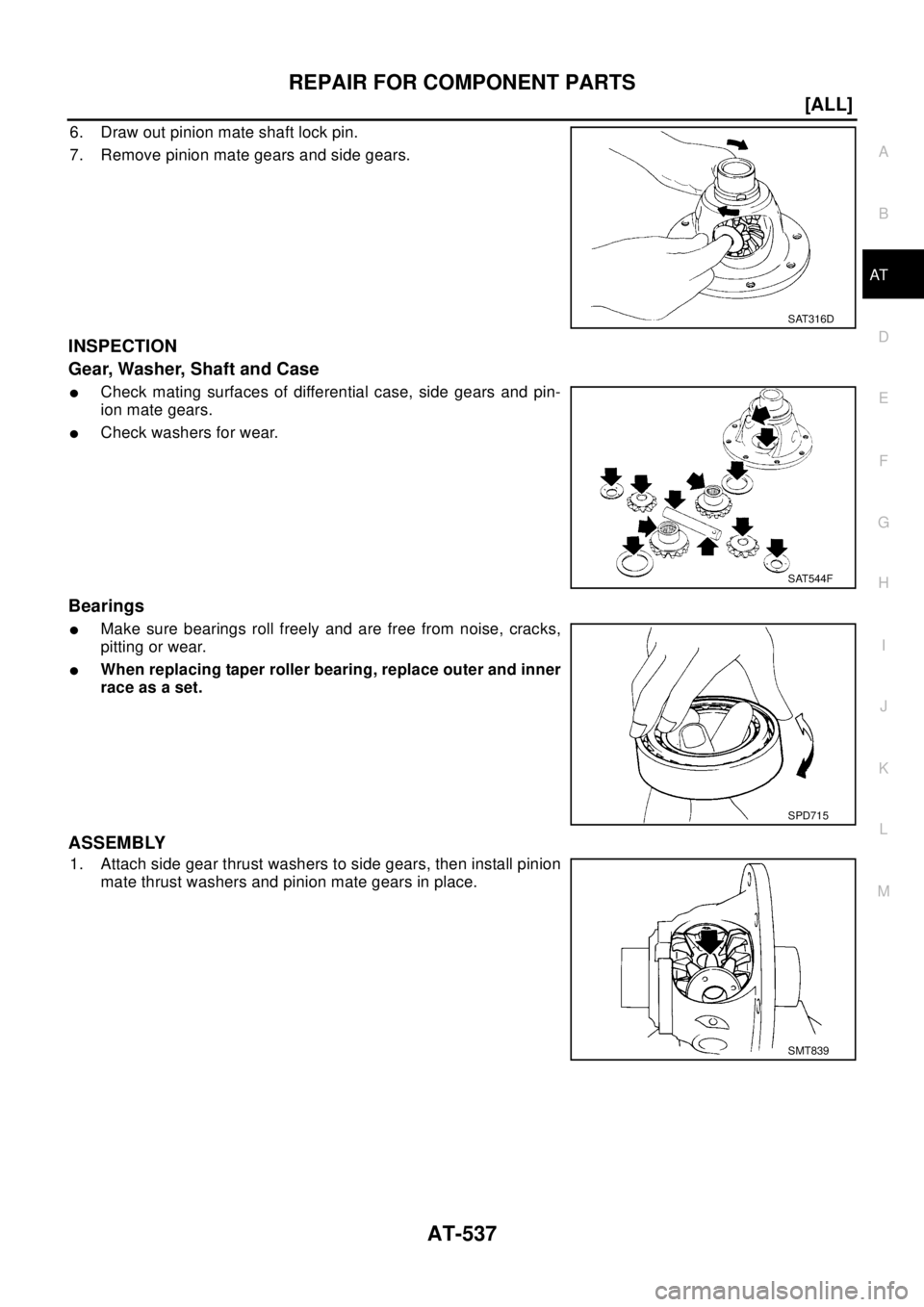

6. Draw out pinion mate shaft lock pin.
7. Remove pinion mate gears and side gears.
INSPECTION
Gear, Washer, Shaft and Case
lCheck mating surfaces of differential case, side gears and pin-
ion mate gears.
lCheck washers for wear.
Bearings
lMake sure bearings roll freely and are free from noise, cracks,
pitting or wear.
lWhen replacing taper roller bearing, replace outer and inner
race as a set.
ASSEMBLY
1. Attach side gear thrust washers to side gears, then install pinion
mate thrust washers and pinion mate gears in place.
SAT316D
SAT544F
SPD715
SMT839
Page 544 of 3066
AT-538
[ALL]
REPAIR FOR COMPONENT PARTS

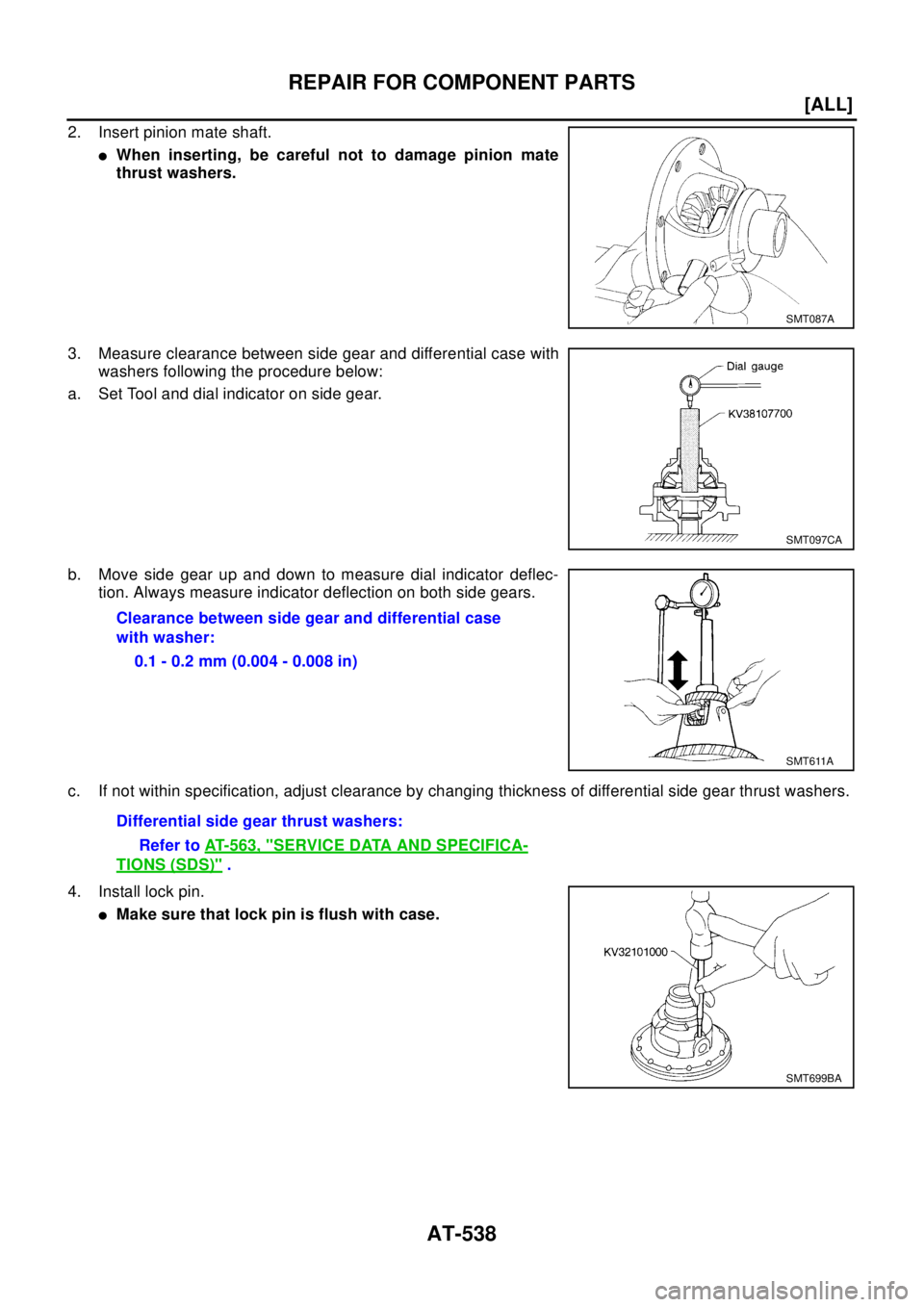

2. Insert pinion mate shaft.
lWhen inserting, be careful not to damage pinion mate
thrust washers.
3. Measure clearance between side gear and differential case with
washers following the procedure below:
a. Set Tool and dial indicator on side gear.
b. Move side gear up and down to measure dial indicator deflec-
tion. Always measure indicator deflection on both side gears.
c. If not within specification, adjust clearance by changing thickness of differential side gear thrust washers.
4. Install lock pin.
lMake sure that lock pin is flush with case.
SMT087A
SMT097CA
Clearance between side gear and differential case
with washer:
0.1 - 0.2 mm (0.004 - 0.008 in)
SMT611A
Differential side gear thrust washers:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".
