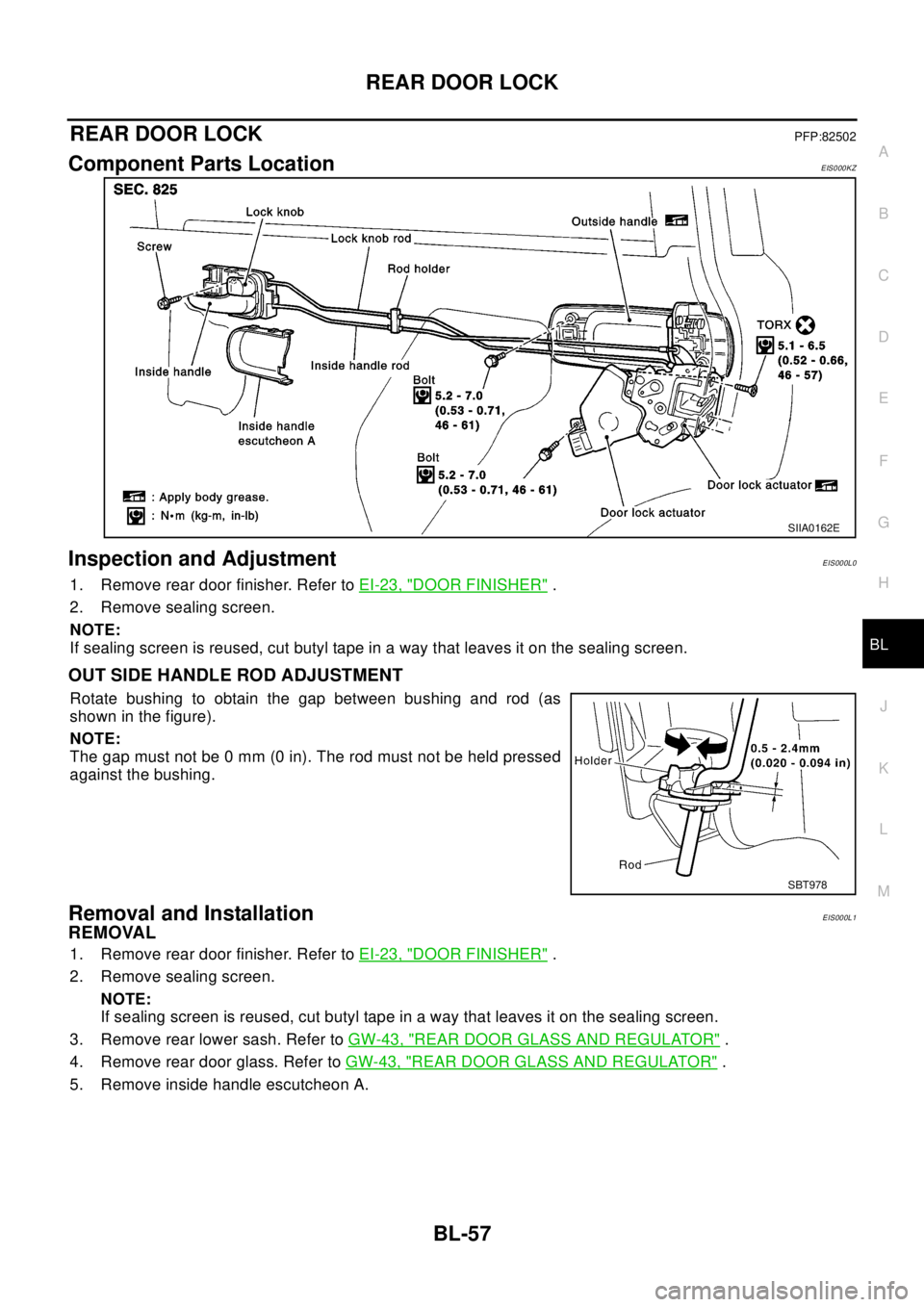

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR DOOR LOCK BL-57 C D E F G H J K L MA B BL REAR DOOR LOCKPFP:82502 Component Parts LocationEIS000KZ Inspection and AdjustmentEIS000L0 1. Remove rear door finisher. Refer toEI-23, "DOOR FINISHER".

Page 802 of 3066

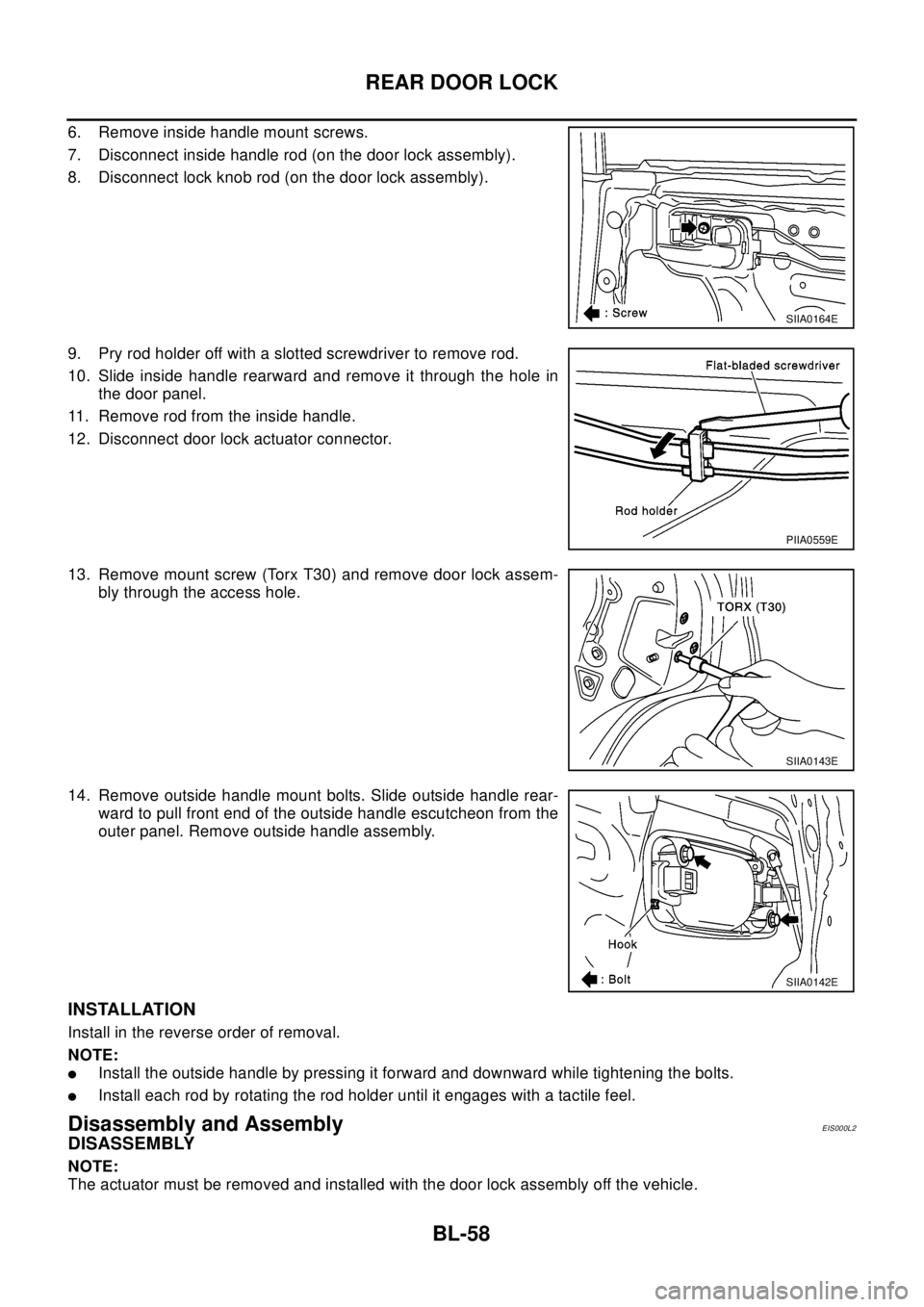

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-58 REAR DOOR LOCK 6. Remove inside handle mount screws. 7. Disconnect inside handle rod (on the door lock assembly). 8. Disconnect lock knob rod (on the door lock assembly). 9. Pry rod holder off w

Page 803 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR DOOR LOCK BL-59 C D E F G H J K L MA B BL 1. Remove mount screw and actuator from door lock assembly. 2. Pull the actuator straight down to separate it from door lock assembly. ASSEMBLY 1. Align

Page 804 of 3066

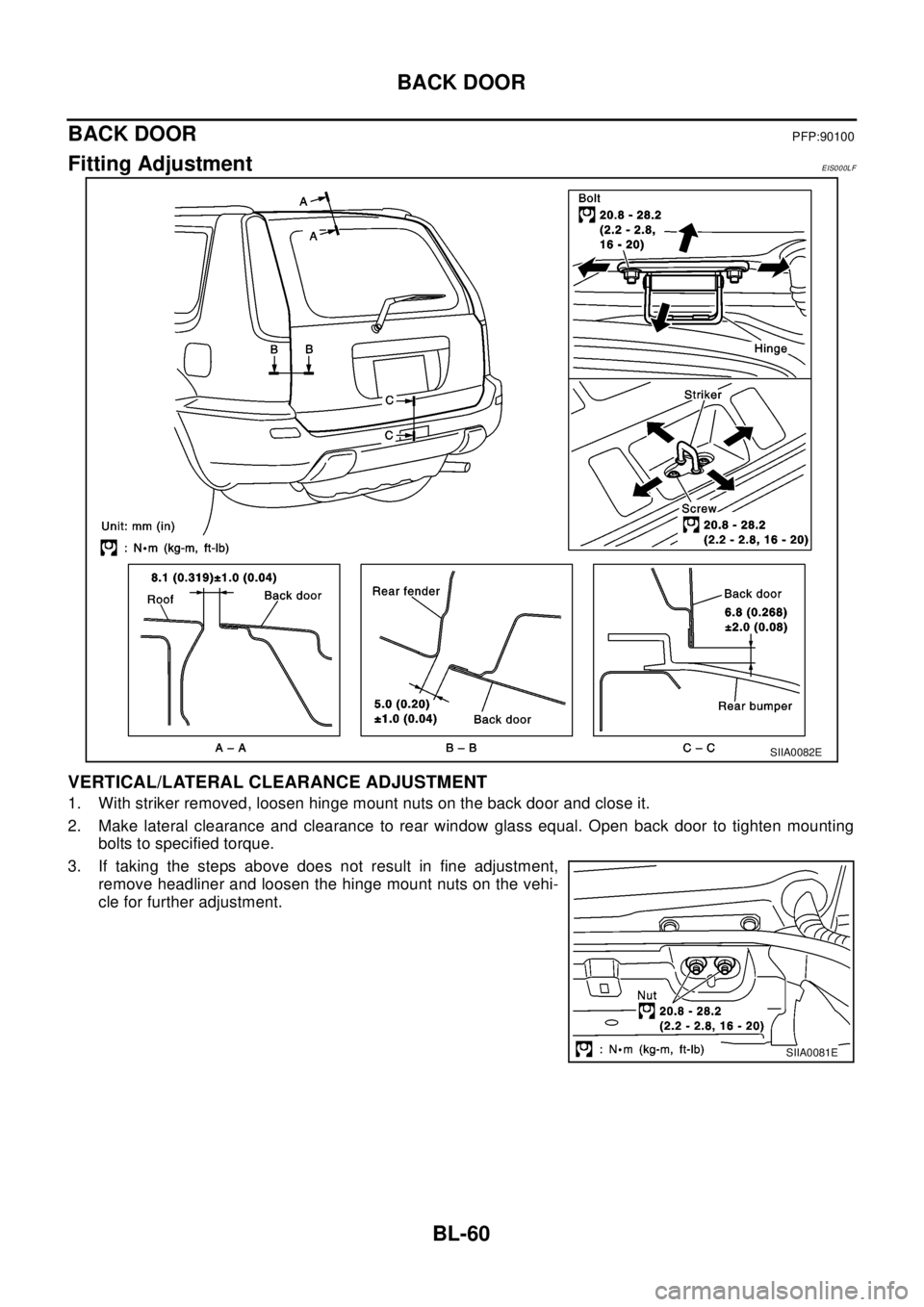

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-60 BACK DOOR BACK DOOR PFP:90100 Fitting AdjustmentEIS000LF VERTICAL/LATERAL CLEARANCE ADJUSTMENT 1. With striker removed, loosen hinge mount nuts on the back door and close it. 2. Make lateral cle

Page 805 of 3066

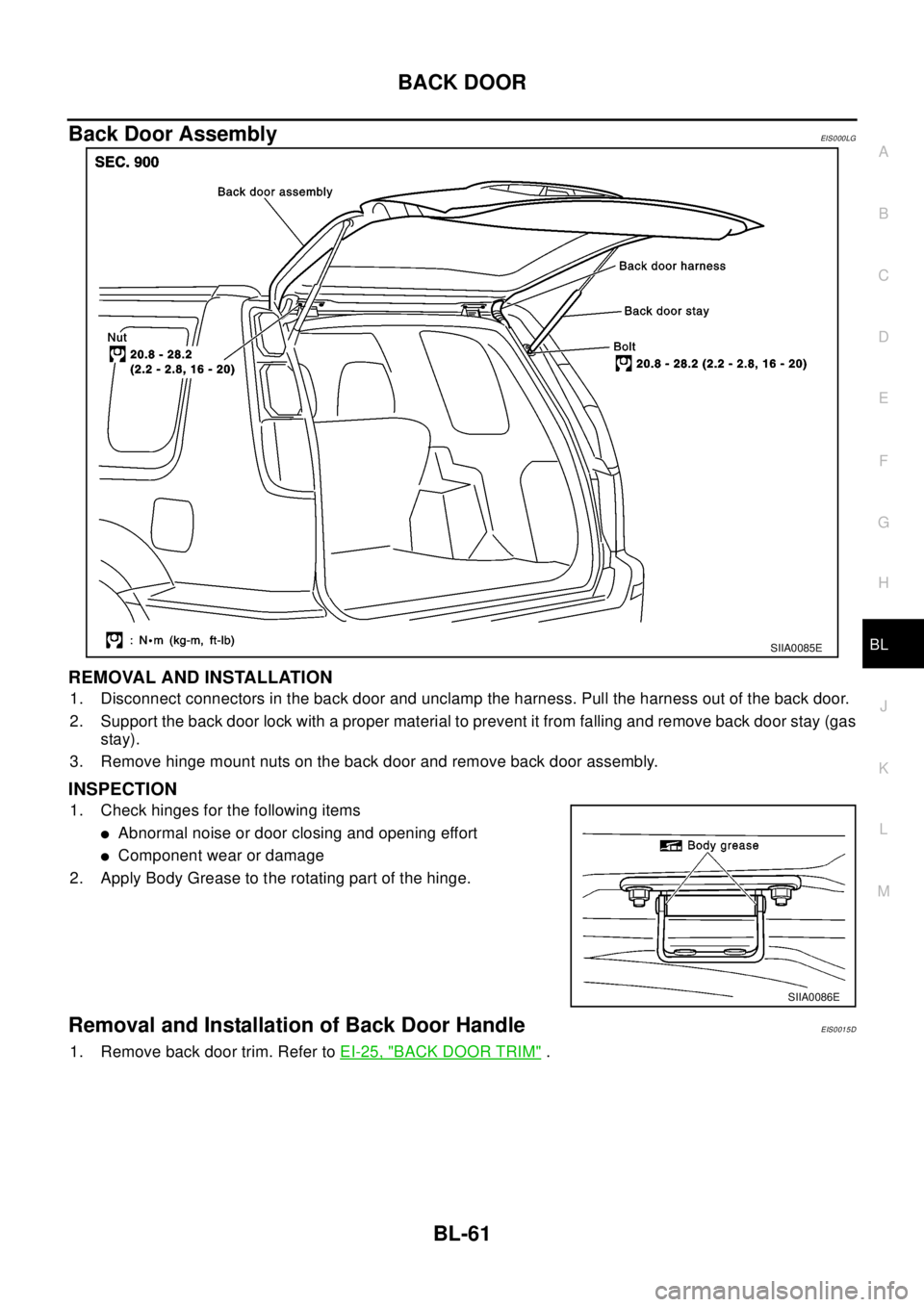

NISSAN X-TRAIL 2003 Electronic Repair Manual BACK DOOR BL-61 C D E F G H J K L MA B BL Back Door AssemblyEIS000LG REMOVAL AND INSTALLATION 1. Disconnect connectors in the back door and unclamp the harness. Pull the harness out of the back door.

Page 806 of 3066

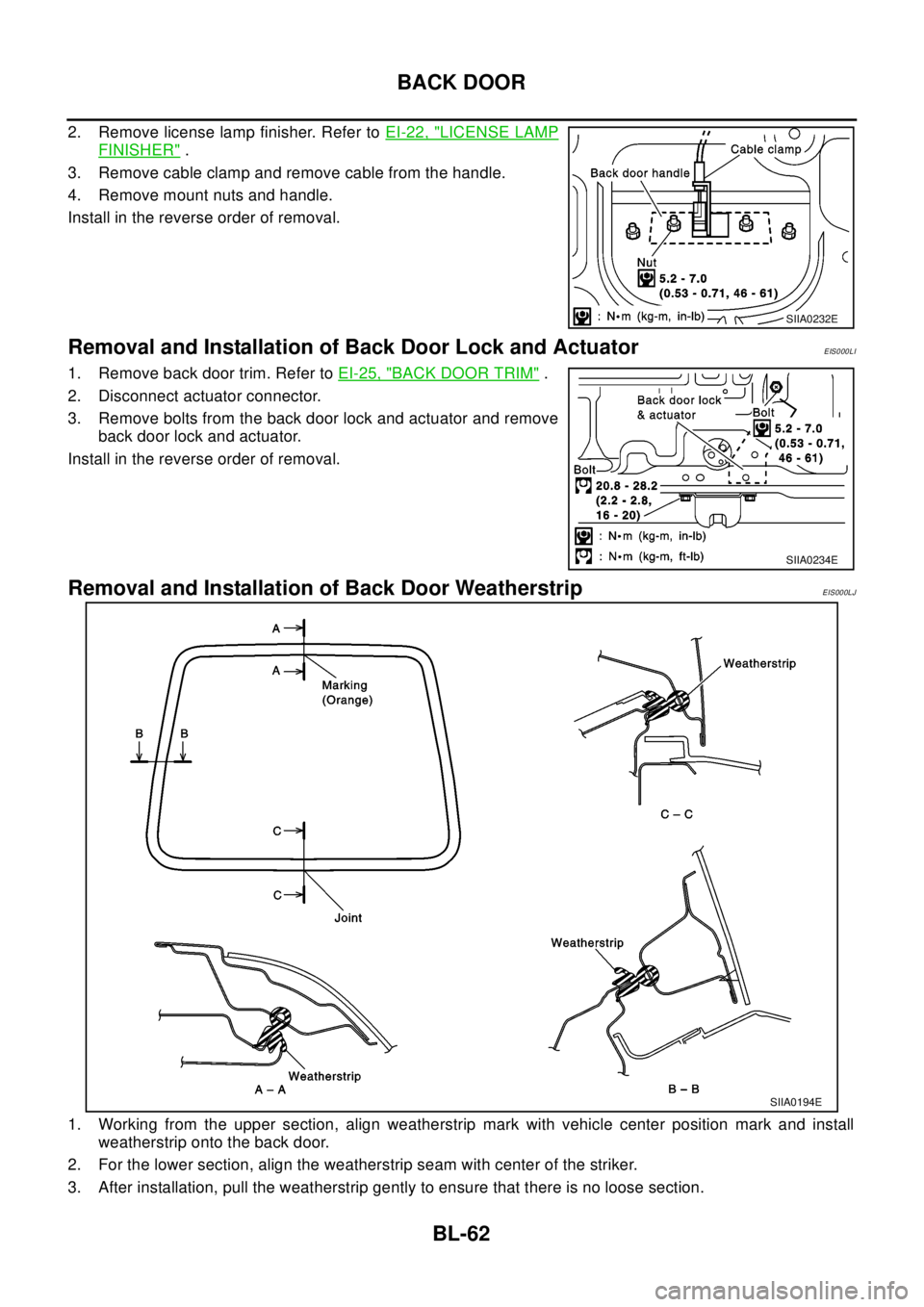

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-62 BACK DOOR 2. Remove license lamp finisher. Refer toEI-22, "LICENSE LAMP FINISHER". 3. Remove cable clamp and remove cable from the handle. 4. Remove mount nuts and handle. Install in the reverse

Page 807 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BACK DOOR BL-63 C D E F G H J K L MA B BL NOTE: Make sure the weatherstrip is fit tightly at each corner and back door rear plate.

Page 808 of 3066

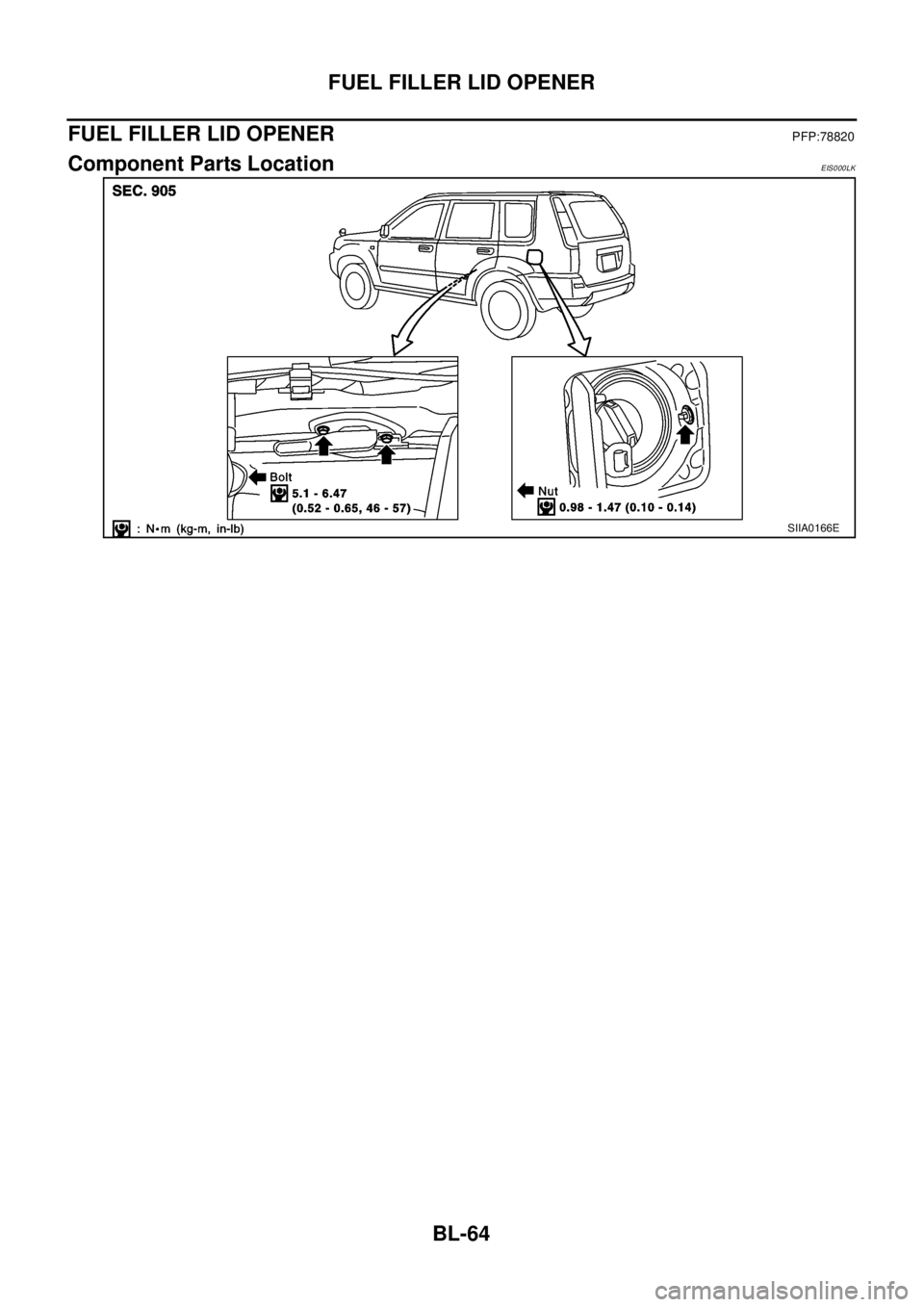

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-64 FUEL FILLER LID OPENER FUEL FILLER LID OPENER PFP:78820 Component Parts LocationEIS000LK SIIA0166E
