DISASSEMBLY
1. Remove valves at retainer plates.
lDo not use a magnetic pick-up tool.
a. Use a screwdriver to remove retainer plates.
b. Remove retainer plates while holding spring, plugs or sleeves.
lRemove plugs slowly to prevent internal parts from jump-
ing out.
c. Place mating surface of valve body face down, and remove
internal parts.
lIf a valve is hard to remove, place valve body face down
and lightly tap it with a soft hammer.
lBe careful not to drop or damage valves and sleeves.
SAT551G
SAT553G
SAT554G
SAT137D
Page 506 of 3066
AT-500
[ALL]
REPAIR FOR COMPONENT PARTS
INSPECTION
Valve Spring
lMeasure free length and outer diameter of each valve spring.
Also check for damage or deformation.
lReplace valve springs if deformed or fatigued.
Control Valves
lCheck sliding surfaces of valves, sleeves and plugs.
ASSEMBLY
lLay control valve body down when installing valves. Do not
stand the control valve body upright.
1. Lubricate the control valve body and all valves with ATF. Install
control valves by sliding them carefully into their bores.
lBe careful not to scratch or damage valve body.
lWrap a small screwdriver with vinyl tape and use it to insert
the valves into their proper positions. Inspection standard :Refer toAT-563, "
SERVICE
DATA AND SPECIFICATIONS
(SDS)".
SAT138D
SAT139D
SAT140DA
SAT141D
Page 507 of 3066
REPAIR FOR COMPONENT PARTS
AT-501
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
1-2 Accumulator Valve
lInstall 1-2 accumulator valve. Align 1-2 accumulator retainer
plate from opposite side of control valve body.
lInstall return spring, 1-2 accumulator piston and plug.
1. Install retainer plates.
lWhile pushing plug or return spring, install retainer plate.
Retainer Plate (Upper Body)
Unit: mm (in)
lInstall proper retainer plates.
Refer toAT- 4 9 8 , "
Control Valve Upper Body".
SAT142D
SAT143D
No. Name of control valve Width A Length B
22 Pilot valve
6.0 (0.236)21.5 (0.846) 30 1st reducing valve
34 3-2 timing valve
17 Torque converter relief valve
9 1-2 accumulator valve
40.5 (1.59)
25 1-2 accumulator piston valve
21 Overrunclutchreducingvalve
24.0 (0.945)
5 Cooler check valve
14 Torque converter clutch control valve 28.0 (1.102)
SAT086F
Page 508 of 3066
AT-502
[ALL]
REPAIR FOR COMPONENT PARTS
Control Valve Lower Body
ECS004M4
COMPONENTS
Apply ATF to all components before installation.
1. Lower body 2. Retainer plate 3. Return spring
4. Piston 5. Parallel pin 6. Sleeve
7. Return spring 8. Pressure modifier valve 9. Retainer plate
10. Plug 11. Shift valve B 12. Return spring
13. Manual valve 14. Pressure regulator valve 15. Return spring
16. Spring seat 17. Plug 18. Sleeve
19. Retainer plate 20. Return spring 21. Overrun clutch control valve
22. Plug 23. Retainer plate 24. Return spring
25. Accumulator control valve 26. Plug 27. Retainer plate
28. Shift valve A 29. Return spring 30. Retainer plate
31. Shuttle valve 32. Return spring 33. Plug
34. Plug 35. Retainer plate
SAT773J
Page 509 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-503
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
DISASSEMBLY
lRemove valves at retainer plate.
For removal procedures, refer to “DISASSEMBLY”,AT-498,
"Control Valve Upper Body".
I NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-503
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
DISASSEMBLY
lRemove valves at retainer plate.
For removal procedures, refer to “DISASSEMBLY”,AT-498,
"Control Valve Upper Body".
I](/manual-img/5/57402/w960_57402-508.png)
REPAIR FOR COMPONENT PARTS
AT-503
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
DISASSEMBLY
lRemove valves at retainer plate.
For removal procedures, refer to “DISASSEMBLY”,AT-498,
"Control Valve Upper Body".
INSPECTION
Valve Springs
lCheck each valve spring for damage or deformation. Also mea-
sure free length and outer diameter.
lReplace valve springs if deformed or fatigued.
Control Valves
lCheck sliding surfaces of control valves, sleeves and plugs for damage.
ASSEMBLY
lInstall control valves.
For installation procedures, refer to “ASSEMBLY”,AT-498,
"Control Valve Upper Body".
Retiner Plate (Lower Body)
Unit: mm (in)
lInstall proper retainer plates.
Refer toAT- 5 0 2 , "
Control Valve Lower Body".
SAT550G
Inspection standard :Refer toAT- 5 6 3 , "SERVICE DATA
AND SPECIFICATIONS (SDS)".
SAT138D
SAT550A
No. Name of control valve and plug Width A Length B Type
19 Pressure regulator valve
6.0
(0.236)28.0
(1.102)I 27 Accumulator control valve
30 Shift valve A
23 Overrun clutch control valve
2 Pressure modifier valve
35 Shuttle valve
9 Shift valve B — — II
SAT089F
Page 510 of 3066
AT-504
[ALL]
REPAIR FOR COMPONENT PARTS
Reverse Clutch
ECS004M5

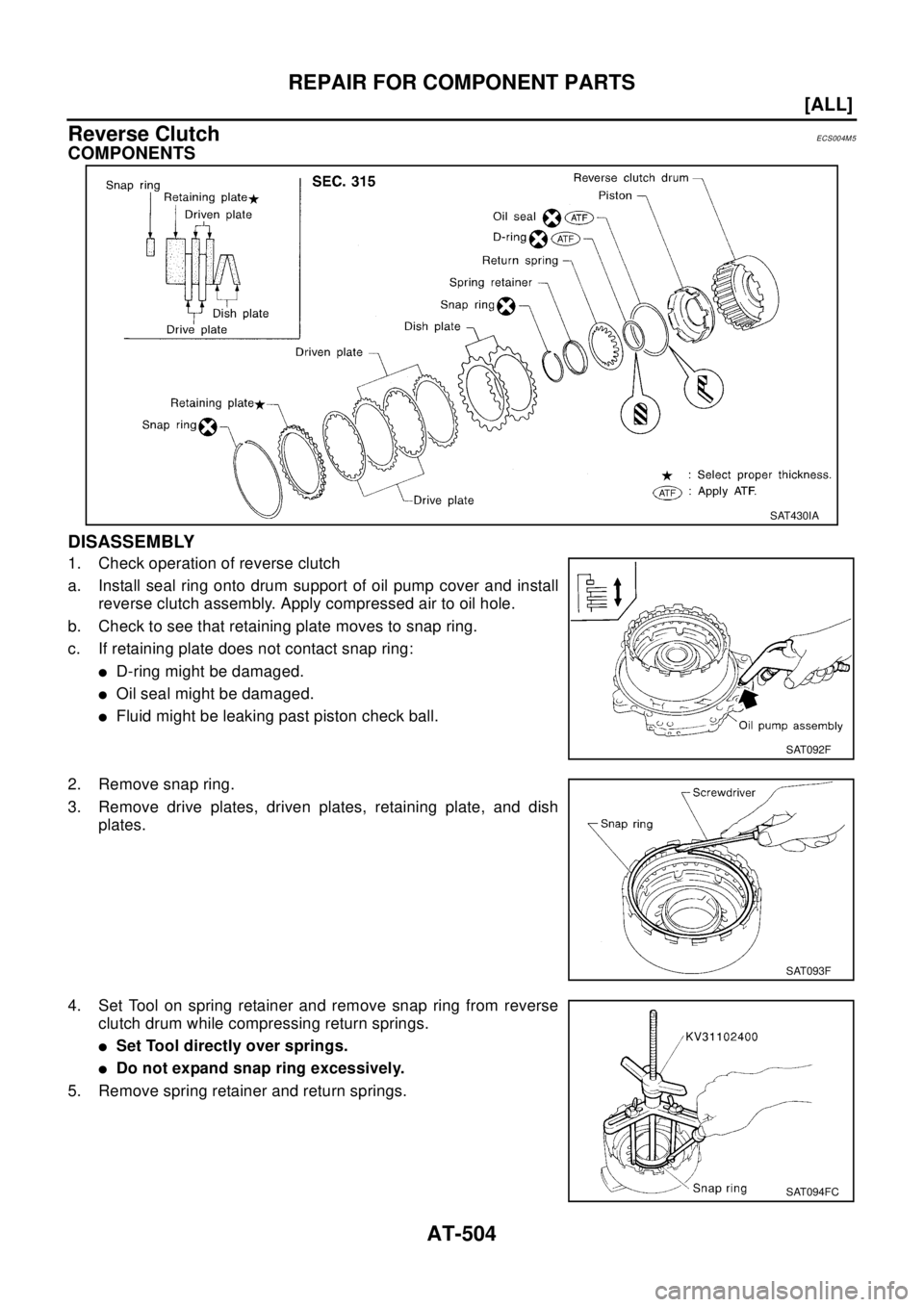

COMPONENTS
