Page 1017 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual COOLING SYSTEM
CO-7
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
COOLING SYSTEMPFP:21020

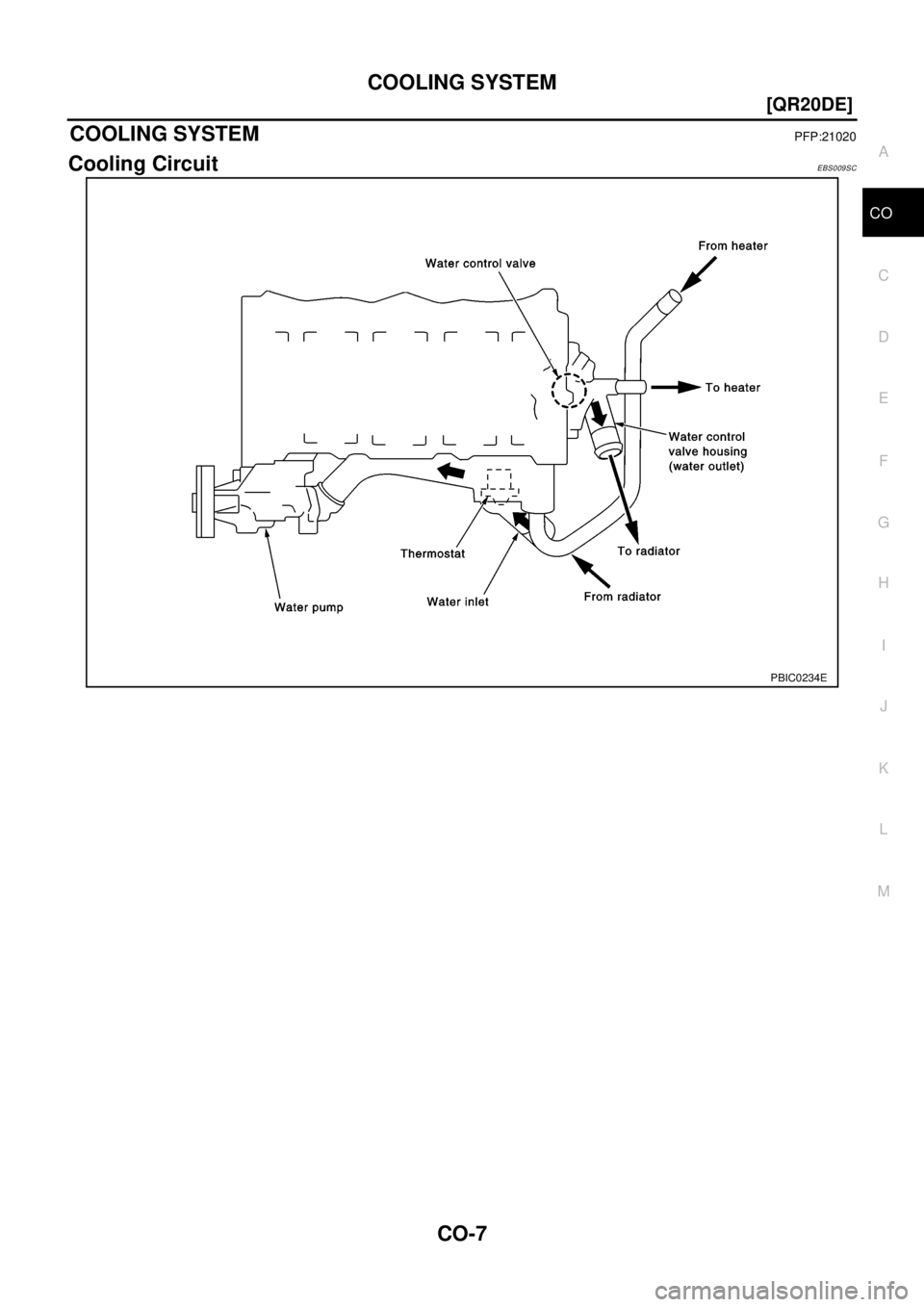

Cooling CircuitEBS009SC
PBIC0234E

Page 1018 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CO-8
[QR20DE]
COOLING SYSTEM

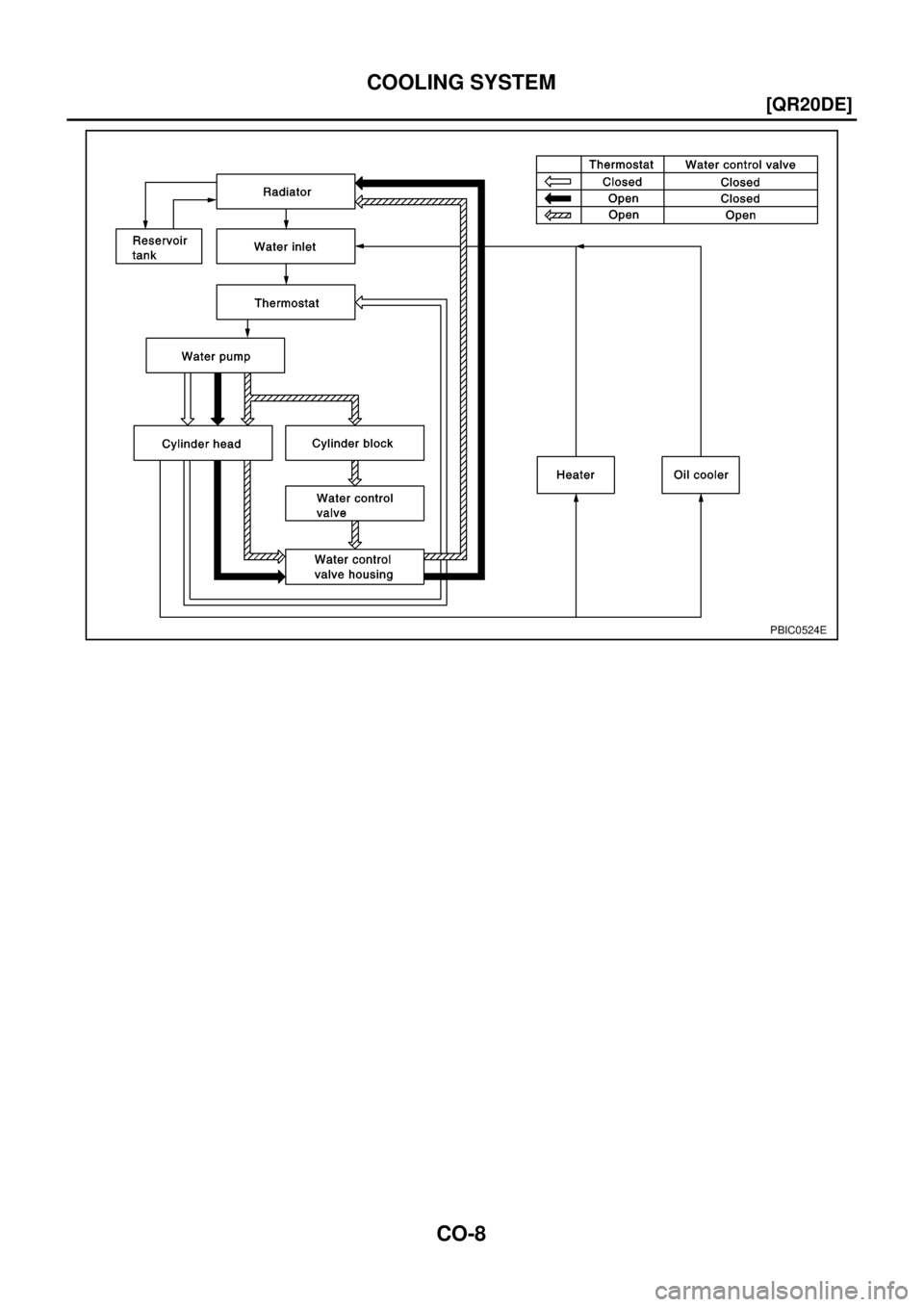

PBIC0524E

Page 1019 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ENGINE COOLANT
CO-9
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
ENGINE COOLANTPFP:KQ100
InspectionEBS009SD
LEVEL CHECK
lCheck if the reservoir tank coolant level within MIN to MAX when
engine is cool.
lAdjust

Page 1020 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CO-10
[QR20DE]
ENGINE COOLANT
2. Open drain plugs on cylinder block.
3. Remove reservoir tank and drain coolant.
4. Check drained coolant for contaminants such as rust, corrosion
or discoloration.
If

CO-10
[QR20DE]
ENGINE COOLANT
2. Open drain plugs on cylinder block.
3. Remove reservoir tank and drain coolant.
4. Check drained coolant for contaminants such as rust, corrosion
or discoloration.
If contaminated, flush engine cooling system. Refer toCO-10,
"FLUSHING COOLING SYSTEM".
REFILLING ENGINE COOLANT
1. Install reservoir tank, radiator drain plug and cylinder block drain plug.
Apply sealant to the thread of cylinder block drain plug.
lUse Genuine Liquid Gasket or equivalent.
2. Fill radiator and reservoir tank to specified level.
lUse genuine Nissan anti-freeze coolant or equivalent mixed
with water (distilled or demineralized).
Refer toMA-17, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS".
lPour coolant slowly of less than 2 (2-1/8US qt,1-3/4 lmp
qt) a minute to allow air in system to escape.
3. Warm up engine to normal operating temperature without radia-
tor cap installed.
lIf coolant overflows radiator filler hole, install filler cap.
4. Run engine at 3,000 rpm for 10 seconds and return to idle speed
with radiator cap installed.
lRepeat two or three times.
Watch coolant temperature gauge so as not to overheat the engine.
5. Stop engine and cool down to less than approximately 50°C(122°F).
lCool down using a fan to reduce the time.
lIf necessary, refill radiator up to filler neck with coolant.
6. Refill reservoir tank to MAX level line with coolant.
7. Repeat steps 5 through 7 two or more times with radiator cap installed until coolant level no longer drops.
8. Check cooling system for leaks with engine running.
9. Warm up engine, and check for sound of coolant flow while running engine from idle up to 3,000 rpm with
heater temperature controller set at several position between COOL and WARM.
lSound may be noticeable at heater unit.
10. If sound is heard, bleed air from cooling system by repeating steps 5 through 7 until coolant level no
longer drops.
lClean excess coolant from engine.
FLUSHING COOLING SYSTEM
1. Fill radiator and reservoir tank with water and reinstall radiator cap.
KBIA0163E
: 7.8 - 11.8 N·m (0.8 -1.2 kg-m , 69 - 104 in-lb)
Engine coolant capacity (With reservoir tank):
Approx. 7.1 (6-1/4 Imp qt)
SMA182B
Reservoir tank:
0.6 (1/2 lmp qt )
SMA412B

Page 1021 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ENGINE COOLANT
CO-11
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it c

Page 1022 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CO-12
[QR20DE]
RADIATOR
RADIATOR
PFP:21400
Removal and InstallationEBS009SF
WAR NIN G:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escapi

Page 1023 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RADIATOR
CO-13
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Disassembly and Assembly Radiator FanEBS009SG
DISASSEMBLY
1. Remove radiator fan.
2. Remove insulator.
3. Remove fan motor from fan shroud.
ASSEMBLY
l

Page 1024 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CO-14
[QR20DE]
RADIATOR
lCheck radiator cap relief pressure.
lWhen connecting the radiator cap to the tester, apply water or
LLC to the cap seal part.
lReplace the radiator cap if there is an unusualn
