Page 753 of 3066
DOOR
BL-9
C
D
E
F
G
H
J
K
L
MA
B
BL

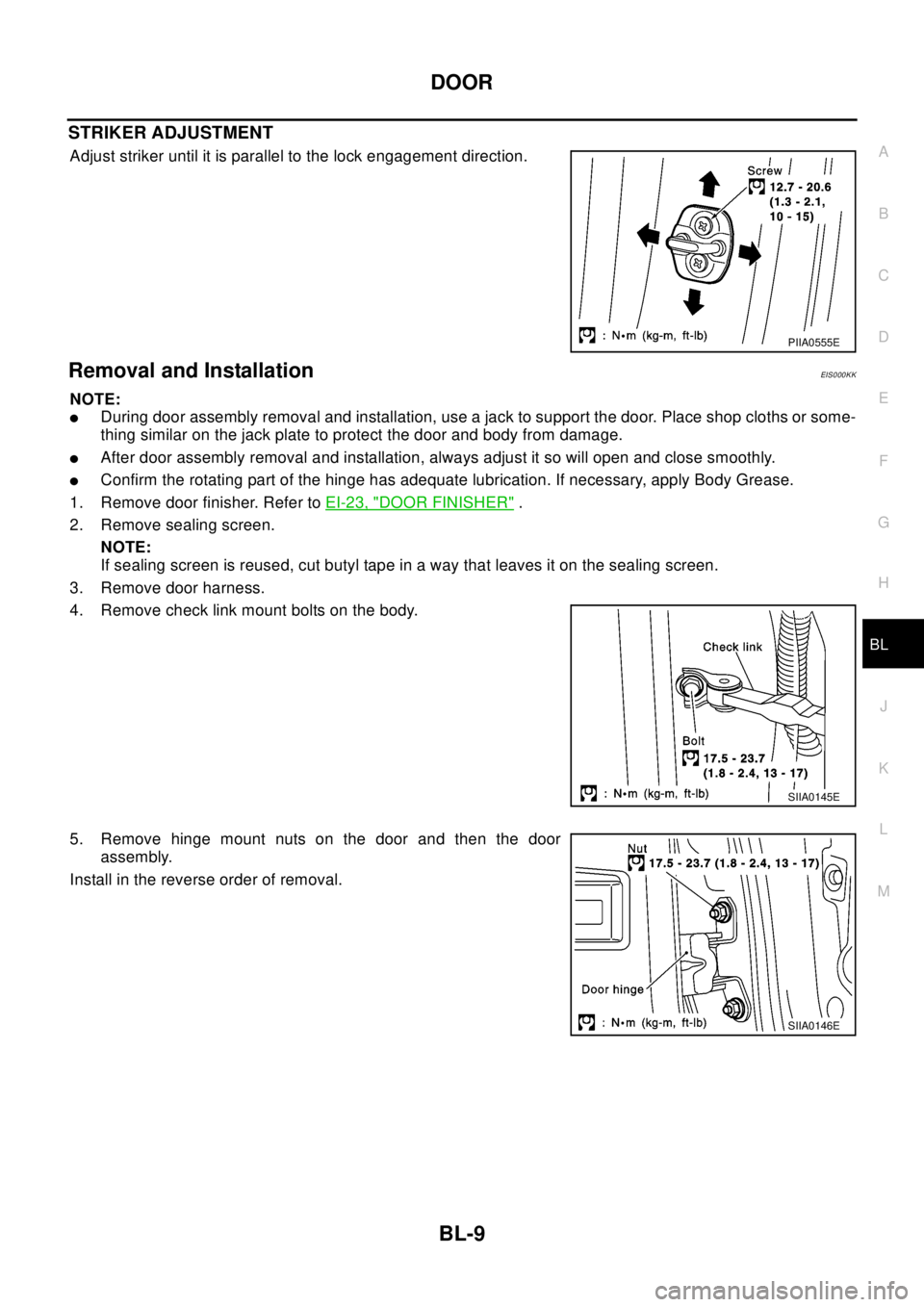

STRIKER ADJUSTMENT
Adjust striker until it is parallel to the lock engagement direction.
Removal and InstallationEIS000KK
NOTE:
lDuring door assembly removal and installation, use a jack to support the door. Place shop cloths or some-
thing similar on the jack plate to protect the door and body from damage.
lAfter door assembly removal and installation, always adjust it so will open and close smoothly.
lConfirm the rotating part of the hinge has adequate lubrication. If necessary, apply Body Grease.
1. Remove door finisher. Refer toEI-23, "
DOOR FINISHER".
2. Remove sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.
3. Remove door harness.
4. Remove check link mount bolts on the body.
5. Remove hinge mount nuts on the door and then the door
assembly.
Install in the reverse order of removal.
PIIA0555E
SIIA0145E
SIIA0146E
Page 754 of 3066
BL-10
DOOR

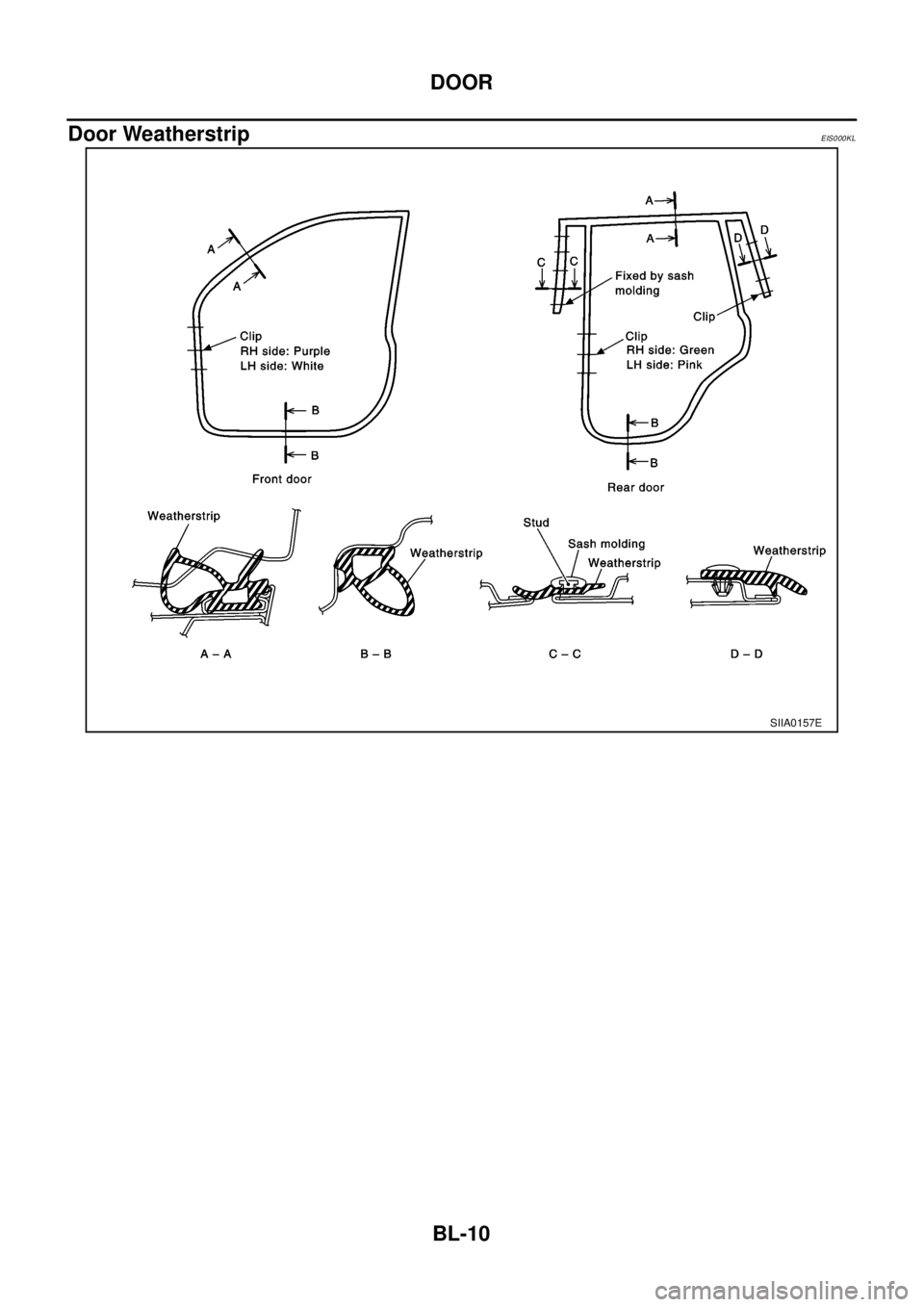

Door Weatherstrip
EIS000KL
SIIA0157E
Page 755 of 3066
POWERDOORLOCKSYSTEM
BL-11
C
D
E
F
G
H
J
K
L
MA
B
BL
POWER DOOR LOCK SYSTEMPFP:24814
System DescriptionEIS001SE
OPERATION
Power door lock/unlock operation by door key cylinder
lWith the key inserted into driver's door key cylinder, turning it to LOCK will lock all doors.
lWith the key inserted into driver's door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by lock/unlock switch
lWith lock/unlock switch setting to LOCK will lock all doors.
lWith lock/unlock switch setting to UNLOCK will unlock all doors.
Key reminder system
lIf the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
Component Parts and Harness Connector LocationEIS001R2
PIIA0584E
Page 756 of 3066
BL-12
POWER DOOR LOCK SYSTEM
Schematic
EIS0 01 R3
TIWA0003E
Page 757 of 3066
POWERDOORLOCKSYSTEM
BL-13
C
D
E
F
G
H
J
K
L
MA
B
BL

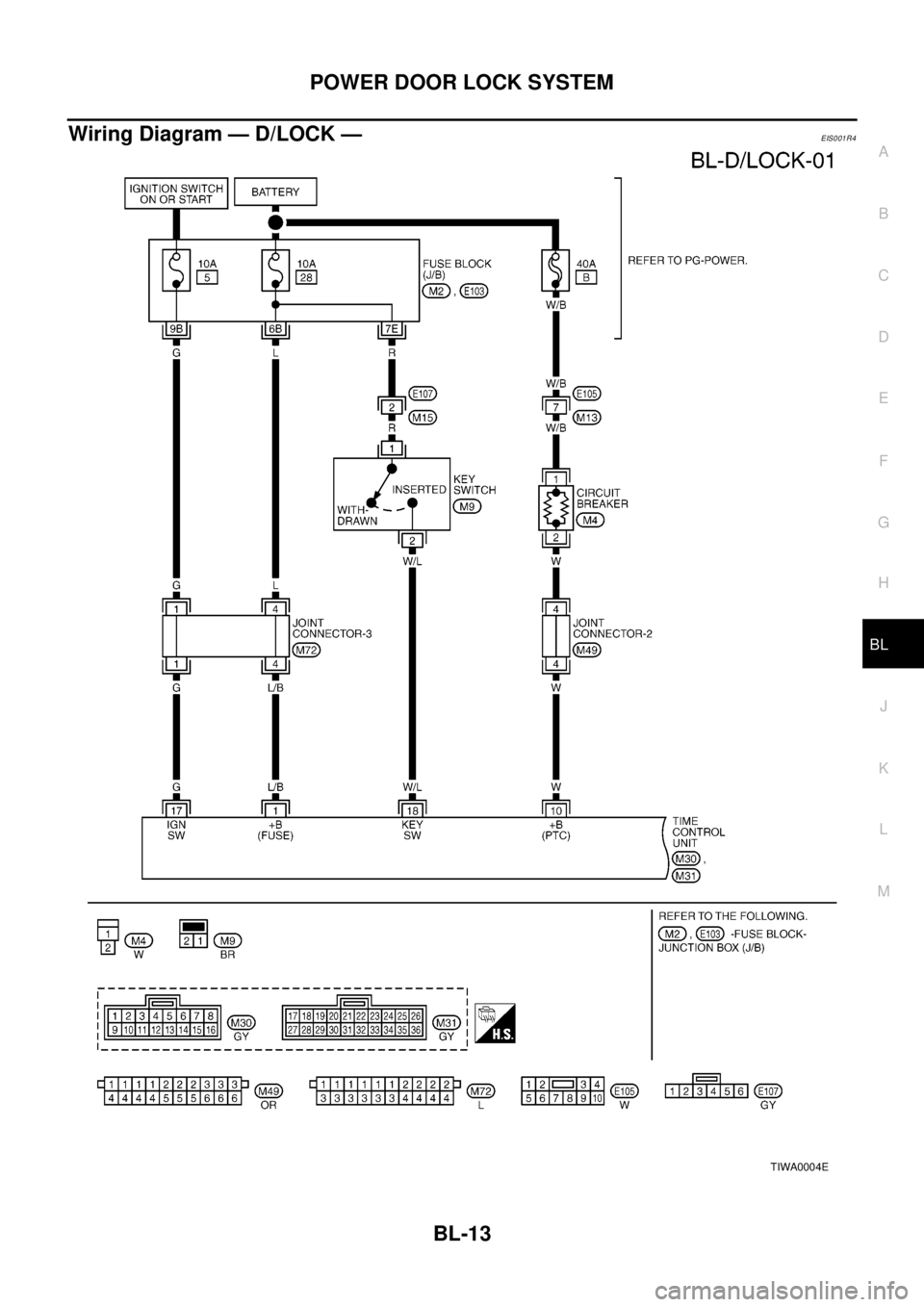

Wiring Diagram — D/LOCK —EIS001R4
TIWA0004E
Page 758 of 3066

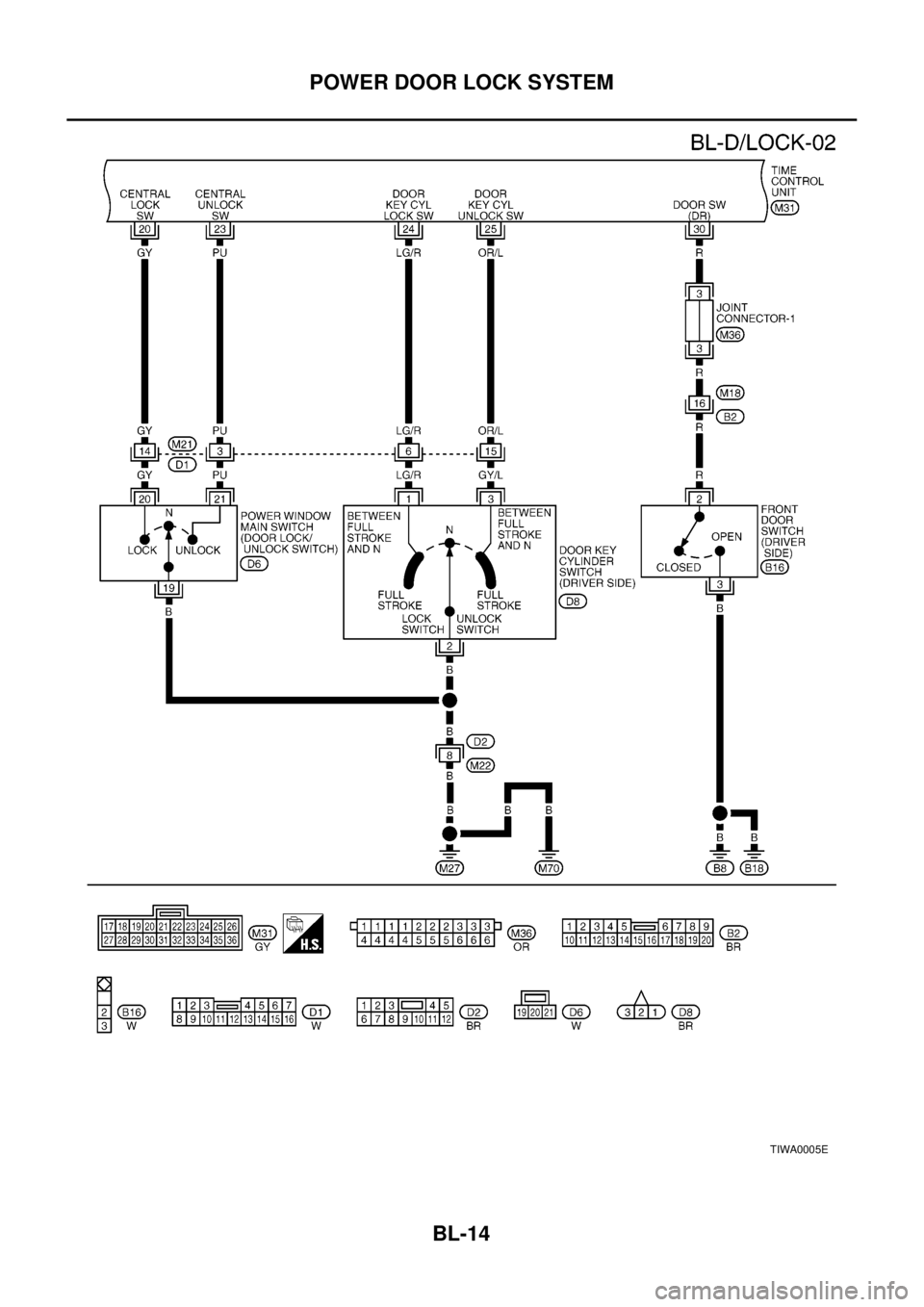

BL-14
POWER DOOR LOCK SYSTEM
TIWA0005E

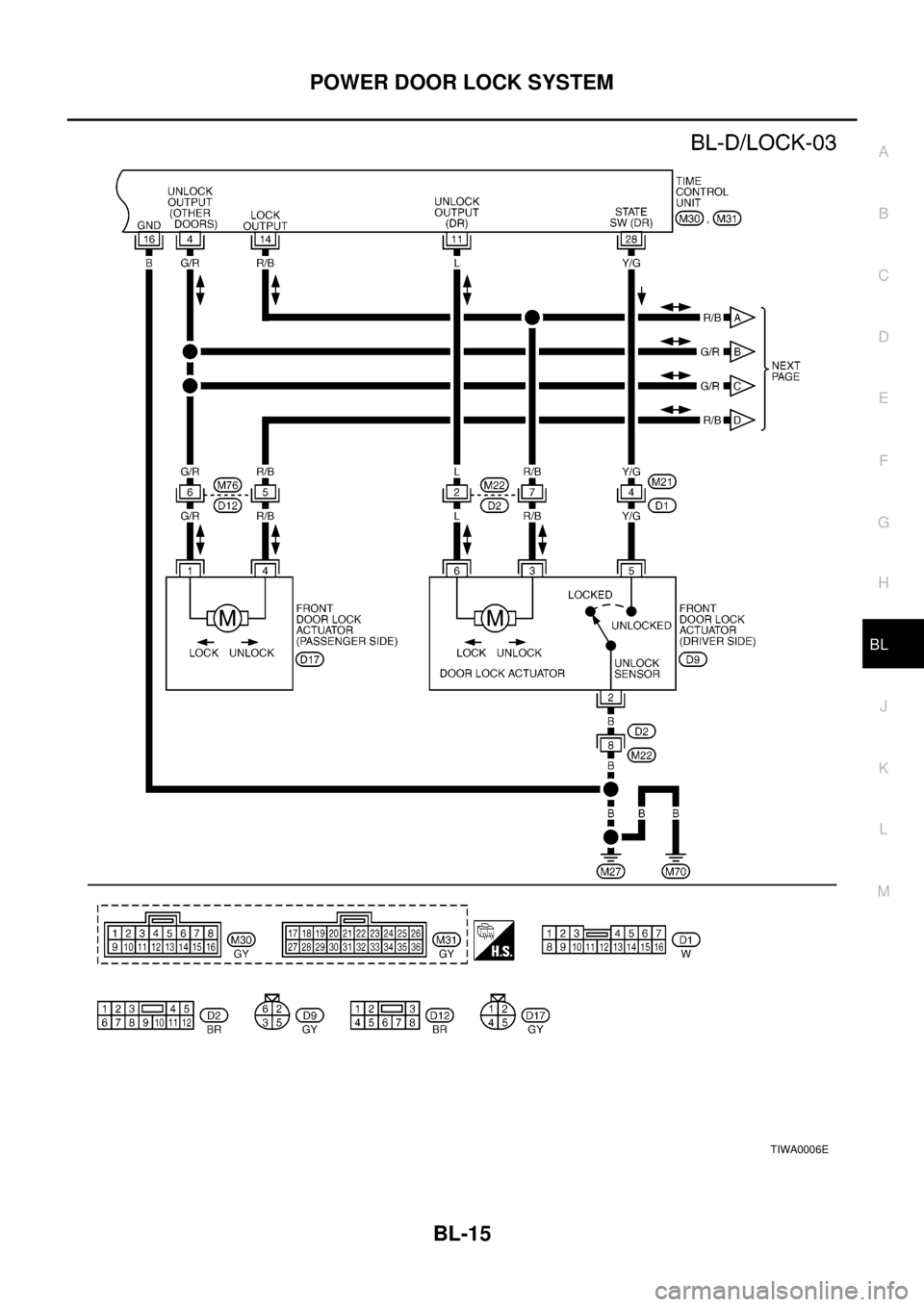

Page 759 of 3066
POWERDOORLOCKSYSTEM
BL-15
C
D
E
F
G
H
J
K
L
MA
B
BL
TIWA0006E

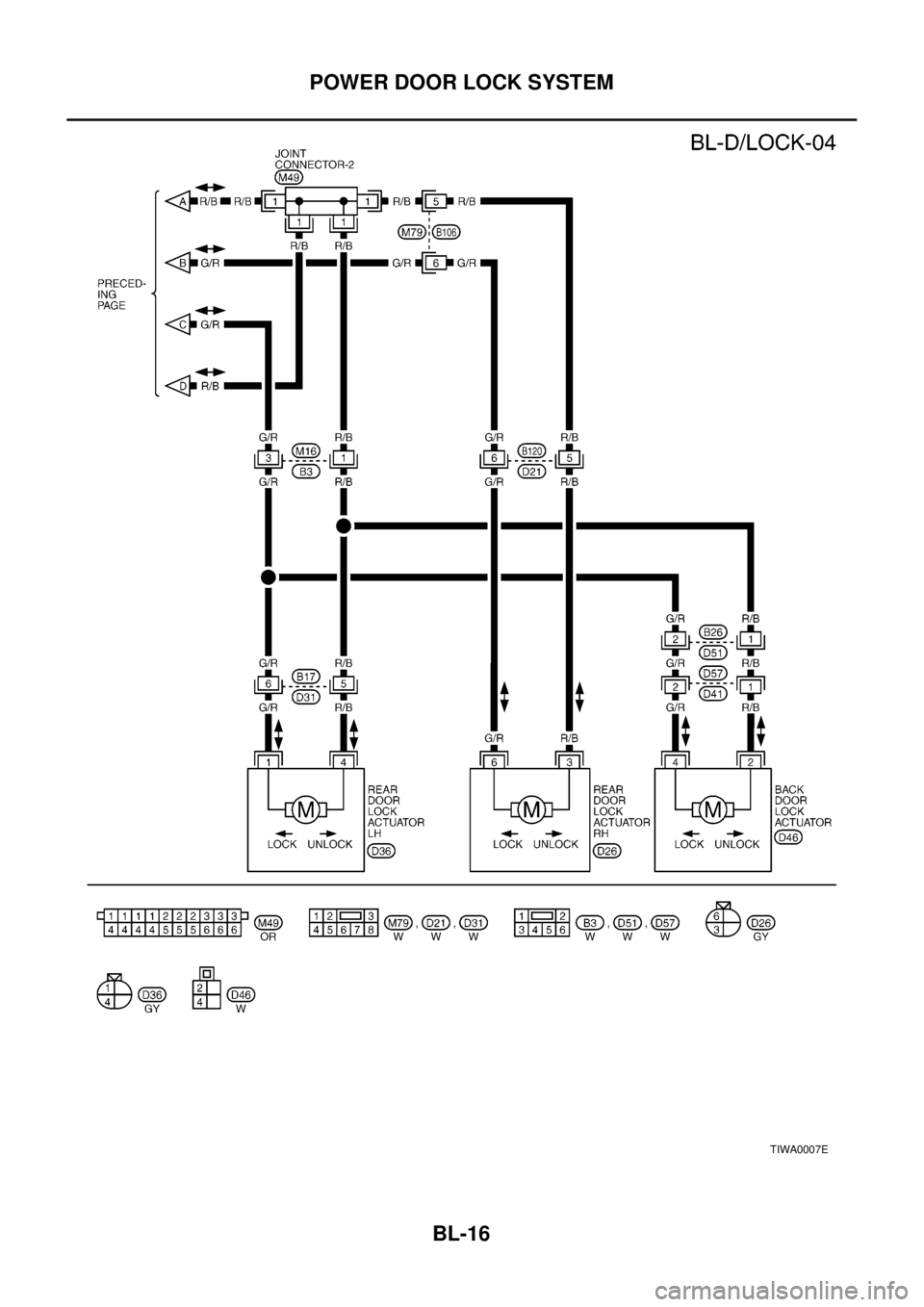

Page 760 of 3066
BL-16
POWER DOOR LOCK SYSTEM
TIWA0007E
