Page 1529 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-415 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 10.CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSPECTION END NG

Page 1530 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-416 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS 15.CHECK IGNITION TIMING AGAIN 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSPECTION END NG >> GO TO 16. 16.CHE

Page 1531 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-417 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Symptom Matrix ChartEBS00BMY SYSTEM — BASIC ENGINE CONTROL SYSTEM SYMPTOM Reference page HARD/NO START/RESTART (EXCP. HA) E

Page 1532 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-418 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS 1 - 6: The numbers refer to the order of inspection. (continued on next page) SYSTEM — ENGINE MECHANICAL & OTHER Electrical load signal circuit 3 3 3

Page 1533 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-419 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Air Air duct 55555 5EM-15 Air cleanerEM-15 Air leakage from air duct (Mass air flow sensor —electric throttle control actua

Page 1534 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-420 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS 1 - 6: The numbers refer to the order of inspection. (continued on next page)Cooling Radiator/Hose/Radiator filler cap 55555 55 25CO-12 Thermostat 5CO-

Page 1535 of 3066

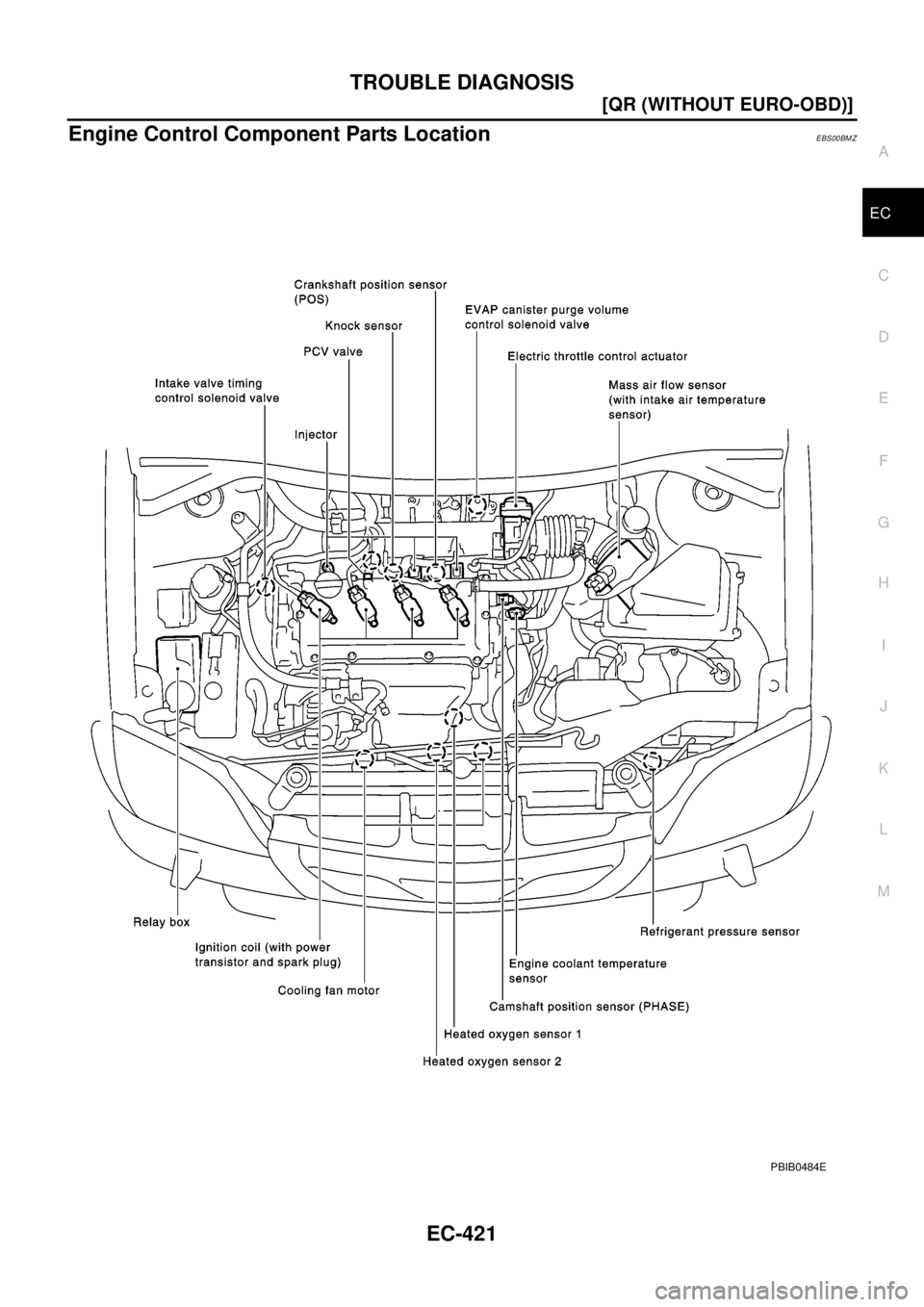

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-421 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Engine Control Component Parts LocationEBS00BMZ PBIB0484E

Page 1536 of 3066

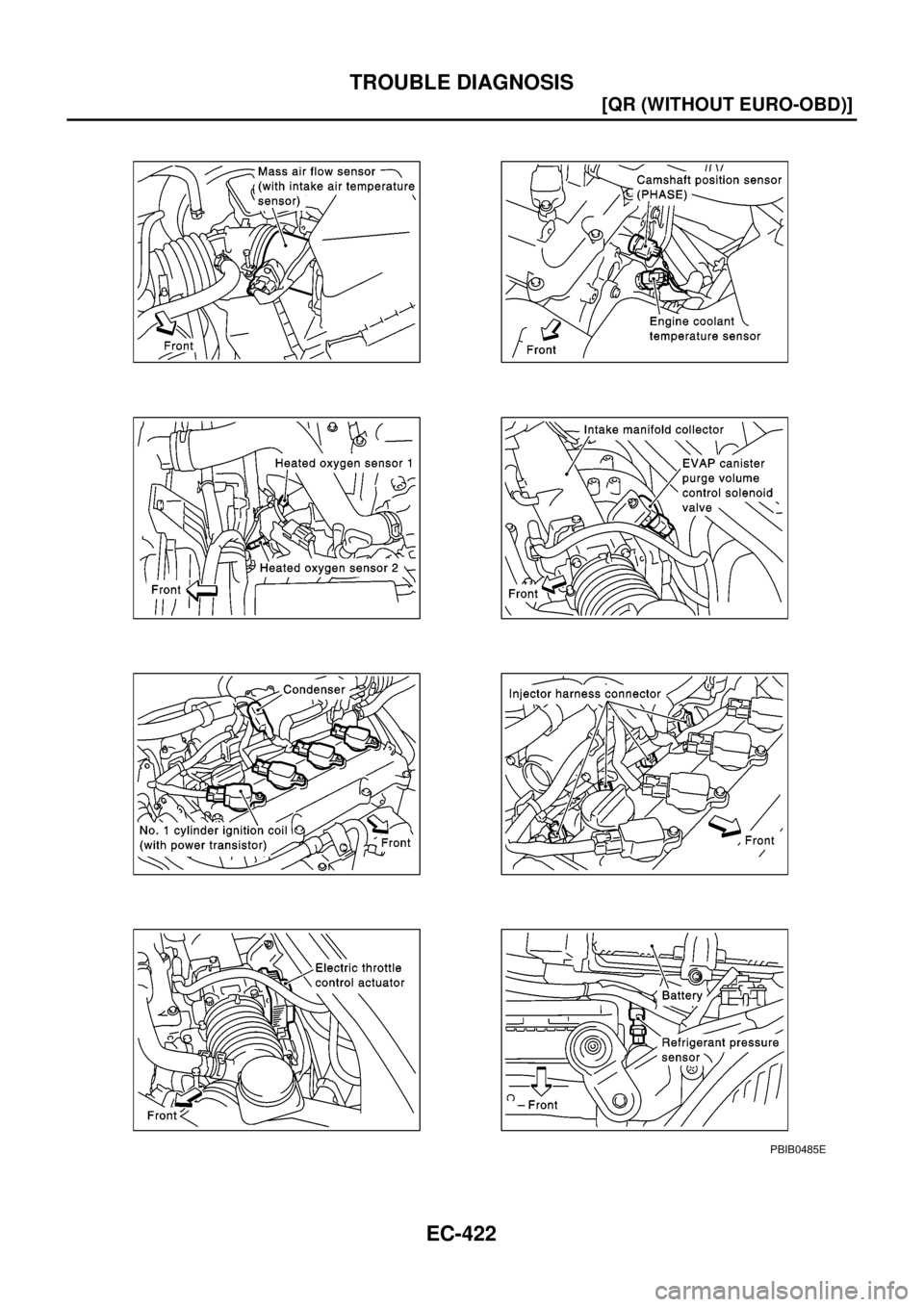

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-422 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS PBIB0485E
