NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
EC-695
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
REAL TIME DIAGNOSIS IN DATA MONITOR MODE
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONI

TROUBLE DIAGNOSIS
EC-695
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
REAL TIME DIAGNOSIS IN DATA MONITOR MODE
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
–The malfunction will be identified on the CONSULT-II screen in
real time.
In other words, DTC will be displayed if the malfunction is
detected by ECM.
At the moment a malfunction is detected by ECM, “MONITOR”
in “DATA MONITOR” screen is changed to “Recording Data ...
xx%” as shown in the figure, and the data after the malfunction
detection is recorded. Then when the percentage reached
100%, “REAL-TIME DIAG” screen is displayed. If “STOP” is
touched on the screen during “ Recording Data ... xx%”, “REAL-
TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the recording speed can be changed by “TRIG-
GER POINT” and “Recording Speed”. Refer to CONSULT-II OPERATION MANUAL.
2. “MANU TRIG” (Manual trigger):
–DTC will not be displayed automatically on CONSULT-II screen
even though a malfunction is detected by ECM.
DATA MONITOR can be performed continuously even though a
malfunction is detected.
Use these triggers as follows:
1. “AUTO TRIG”
–While trying to detect the DTC by performing the “DTC Confir-
mation Procedure”, be sure to select to “DATA MONITOR
(AUTO TRIG)” mode. You can confirm the malfunction at the
moment it is detected.
–While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, components
and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC will be dis-
played. Refer toGI-24, "
How to Perform Efficient Diagnosis for an Electrical Incident", “INCIDENT SIMU-
LATION TESTS”.
2. “MANU TRIG”
GLOW RELAY
lIgnition switch: ON (Engine
stopped)
lTurn the glow relay “ON” and
“OFF” using CONSULT-II and lis-
ten to operating sound.Glow relay makes the operating
sound.lHarness and connector
lGlow relay
EGR VOL CONT/
V
lIgnition switch: ON
lChange EGR volume control
valve opening step using CON-
SULT-II.EGR volume control valve makes
an operating sound.lHarness and connector
lEGR volume control valve
PRES REGULA-
TOR
lIgnition switch: ON
lChange fuel pressure in common
rail using CONSULT-IIFuel leaks.lFuel line
lFuel pressure relief valve TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
PBIB0480E
SEF707X

Page 1810 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-696
[YD]
TROUBLE DIAGNOSIS
–If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store

Page 1811 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
EC-697
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
MAS AIR/FL SE
lEngine: After warming up
lAir conditioner switch: OFF
lShift lever: Neutral position
lNo-loadIdle 1.0 - 2.5V
2,000 rpm 2.1 - 2.7V

TROUBLE DIAGNOSIS
EC-697
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
MAS AIR/FL SE
lEngine: After warming up
lAir conditioner switch: OFF
lShift lever: Neutral position
lNo-loadIdle 1.0 - 2.5V
2,000 rpm 2.1 - 2.7V
BATTERY VOLT
lIgnition switch: ON (Engine stopped) 11 - 14V
P/N POSI SW
lIgnition switch: ONShift lever: Neutral position ON
Except above OFF
START SIGNAL
lIgnition switch: ON®START®ON OFF®ON®OFF
PW/ST SIGNAL
lEngine: After warming up, idle
the engineSteering wheel is in neutral posi-
tion. (Forward direction)OFF
Steering wheel is turned. ON
BRAKE SW
lIgnition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
IGN SW
lIgnition switch: ON®OFF ON®OFF
ACT CR PRESS
lEngine: After warming up
lAir conditioner switch: OFF
lShift lever: Neutral position
lNo-loadIdle 30 - 40 MPa
2,000 rpm 40 - 50 MPa
SUCTION CV
lEngine: After warming up
lAir conditioner switch: OFF
lShift lever: Neutral position
lNo-loadIdle 70.0 - 71.5°CA
2,000 rpm 73.5 - 75.0°CA
MAIN INJ WID
lEngine: After warming up
lShift lever: Neutral position
lIdle speedNo-load 0.68 - 0.78 msec
Air conditioner switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
GLOW RLY Refer toEC-796, "
GLOW CONTROL SYSTEM".
COOLING FAN
lWhen cooling fan is stopped. OFF
lWhen cooling fans operate at low speed. LOW
lWhen cooling fans operate at high speed. HIGH
EGR VOL CON/V
lEngine: After warming up
lAir conditioner switch: OFF
lShift lever: Neutral position
lNo-loadAfter one minute at idle More than 10 steps
Revvingenginefromidleto3,600
rpm0step
INT/A VOLUME
lEngine: After warming up, idle the engine 150 - 450 mg/st
BARO SEN
lIgnition switch: ONAltitude
Approx. 0m: Approx. 100.62 kPa
(1.0062 bar, 1.026 kg/cm
2,14.59
psi)
Approx. 1,000 m: Approx. 88.95
kPa (0.8895 bar, 0.907 kg/cm
2,
12.90 psi)
Approx. 1,500 m: Approx. 83.16
kPa (0.8316 bar, 0.848 kg/cm
2,
12.06 psi)
Approx. 2,000 m: Approx. 78.36
kPa (0.7836 bar, 0.799 kg/cm
2,
11 . 3 6 p s i )
CYL COUNT
lEngine is running 0®1®2®3 MONITOR ITEM CONDITION SPECIFICATION

Page 1812 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-698
[YD]
TROUBLE DIAGNOSIS
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
Major Sensor Reference Graph in Data Monitor ModeEBS00

Page 1813 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-699
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS00321
Intermittent incidents (I/I) may occur. In ma

Page 1814 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-700
[YD]
POWER SUPPLY CIRCUIT FOR ECM
POWER SUPPLY CIRCUIT FOR ECM
PFP:24110
ECM Terminals and Reference ValueEBS00369
Remarks: Specification data are reference values and are measured between each

Page 1815 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY CIRCUIT FOR ECM
EC-701
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

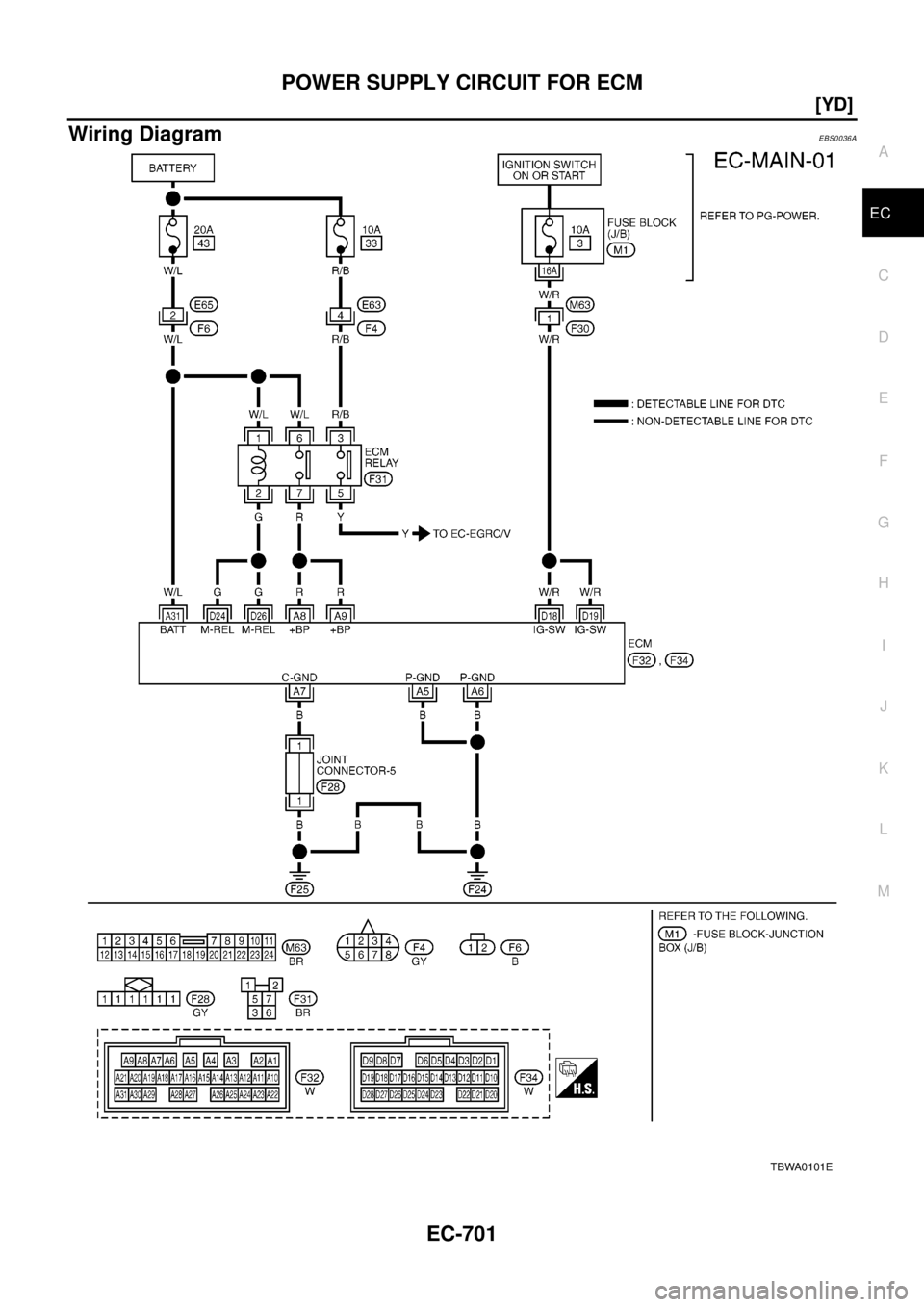

Wiring DiagramEBS0036A
TBWA0101E

Page 1816 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-702
[YD]
POWER SUPPLY CIRCUIT FOR ECM

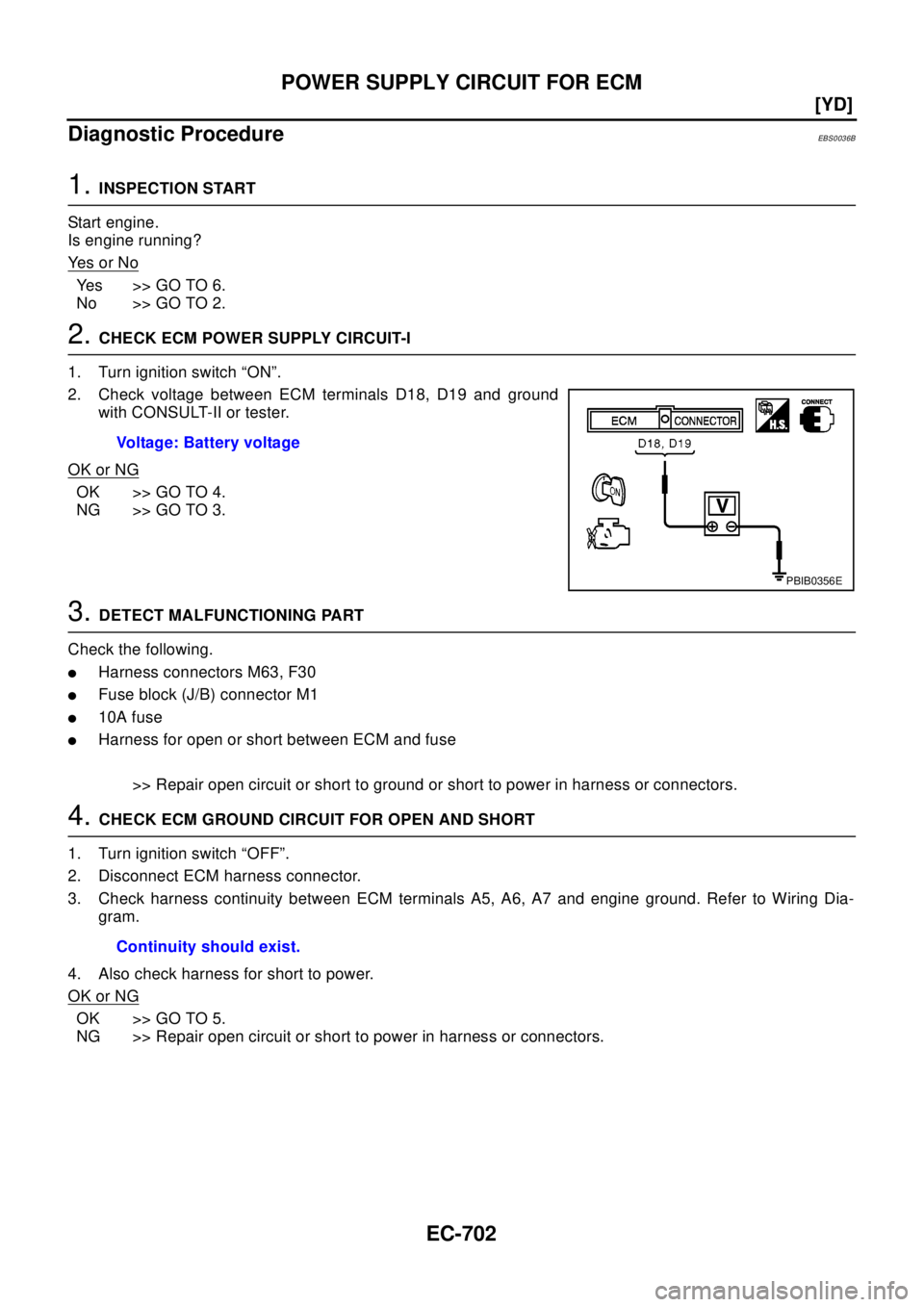

Diagnostic Procedure
EBS0036B
1.INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Yes >>GOTO6.
No >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1
