NISSAN X-TRAIL 2003 Electronic Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR AT-403 [ALL] D E F G H I J K L MA B AT Wiring Diagram — AT — TPSECS004TQ TCWA0039E

Page 410 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-404 [ALL] ACCELE RATOR PEDAL POSITION (APP) SENSOR Diagnostic Procedure ECS004TR 1.CHECK DTC WITH ECM lCheck P code with CONSULT-II “ENGINE”. Turn ignition switch ON and select “SELF DIAGNOST

Page 411 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR AT-405 [ALL] D E F G H I J K L MA B AT 3.CHECK INPUT SIGNAL (WITHOUT CONSULT-II) Wi th ou t C O N S U LT-I I 1. Turn ignition switch to “ON” position. (Do

Page 412 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-406 [ALL] SHIFT SOLENOID VALVE A SHIFT SOLENOID VALVE A PFP:31940 DescriptionECS004TS Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM in response to signals sent from the

Page 413 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SHIFT SOLENOID VALVE A AT-407 [ALL] D E F G H I J K L MA B AT Without CONSULT-II 1. Start engine. 2. DrivevehicleinD 1®D2position. 3. Perform self-diagnosis. Refer to “SELF-DIAGNOSTIC PROCEDURE (Wi

Page 414 of 3066

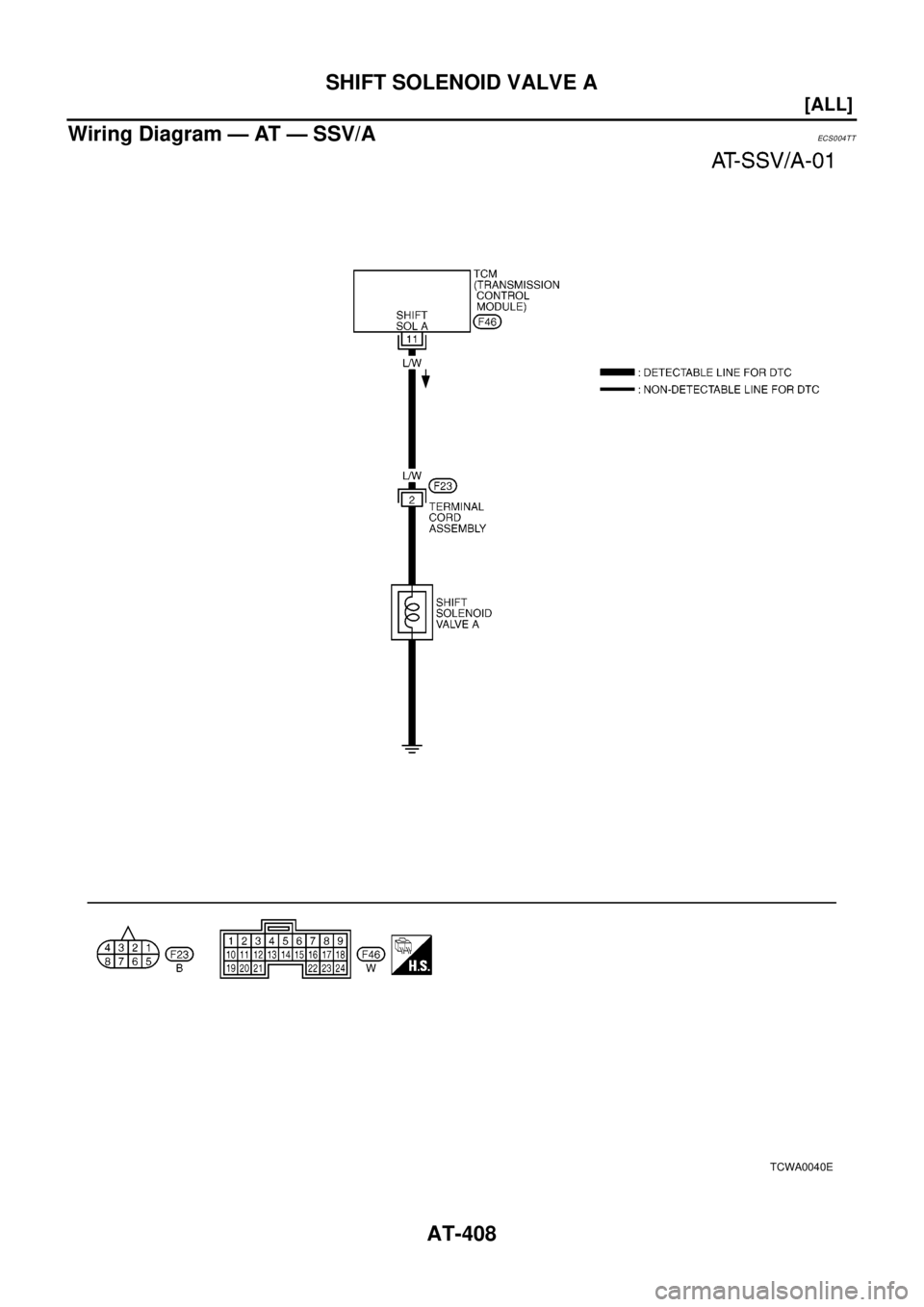

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-408 [ALL] SHIFT SOLENOID VALVE A Wiring Diagram — AT — SSV/A ECS0 04 T T TCWA0040E

Page 415 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SHIFT SOLENOID VALVE A AT-409 [ALL] D E F G H I J K L MA B AT Diagnostic ProcedureECS004TU 1.CHECK VALVE RESISTANCE 1. Turn ignition switch to “OFF” position. 2. Disconnect terminal cord assembly

Page 416 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-410 [ALL] SHIFT SOLENOID VALVE A Component Inspection ECS004TV SHIFT SOLENOID VALVE A lFor removal, refer toAT-453, "Installation". Resistance Check lCheck resistance between two terminals. Operati
