NISSAN X-TRAIL 2003 Electronic Repair Manual PRECAUTIONS
WW-3
C
D
E
F
G
H
I
J
L
MA
B
WW
PRECAUTIONSPFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0032L
The Supplemental Restraint

Page 3042 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual WW-4
FRONT WIPER AND WASHER SYSTEM
FRONT WIPER AND WASHER SYSTEM
PFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
There

WW-4
FRONT WIPER AND WASHER SYSTEM
FRONT WIPER AND WASHER SYSTEM
PFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:
lLO speed
lHI speed
lINT (Intermittent)
With the ignition switch in the ON or START position, power is supplied
lthrough 20A fuse [No. 6, located in the fuse block (J/B)]
lto front wiper motor terminal 4.
LOW AND HIGH SPEED WIPER OPERATION
Ground is supplied to wiper and washer switch terminal 17 through body grounds E24 and E50.
When the wiper switch is placed in the LO position, ground is supplied
lthrough terminal 14 of the front wiper and washer switch
lto front wiper motor terminal 3.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied
lthrough terminal 16 of the front wiper and washer switch
lto wiper motor terminal 1.
With power and ground supplied, the wiper motor operates at high speed.
AUTO STOP OPERATION
With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided
lfrom terminal 14 of the front wiper and washer switch
lto front wiper motor terminal 3, in order to continue wiper motor operation at low speed.
Ground is also supplied
lthrough terminal 13 of the front wiper and washer switch
lto front wiper motor terminal 2
lthrough terminal 6 of the front wiper motor, and
lthrough body grounds E24 and E50.
When wiper arms reach base of windshield, front wiper motor terminals 4 and 2 are connected instead of ter-
minals 6 and 2. Wiper motor will then stop wiper arms at the STOP position.
INTERMITTENT OPERATION
The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to 13
seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper and washer
switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier.
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied
lthrough wiper amplifier (OUTPUT) and
lthrough terminal 14 of front wiper and washer switch
lto front wiper motor terminal 3
The wiper motor operates at low speed at the desired interval.
WASHER OPERATION
With the ignition switch in the ON or START position, power is supplied
lthrough 20A fuse [No. 6, located in the fuse block (J/B)]
lto washer motor terminal 1.

Page 3043 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW
When the lever is pulled to the WASH position, ground is supplied
lfrom body grounds E24 and E50
lthrough terminal 17 of the front wiper an

Page 3044 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual WW-6
FRONT WIPER AND WASHER SYSTEM

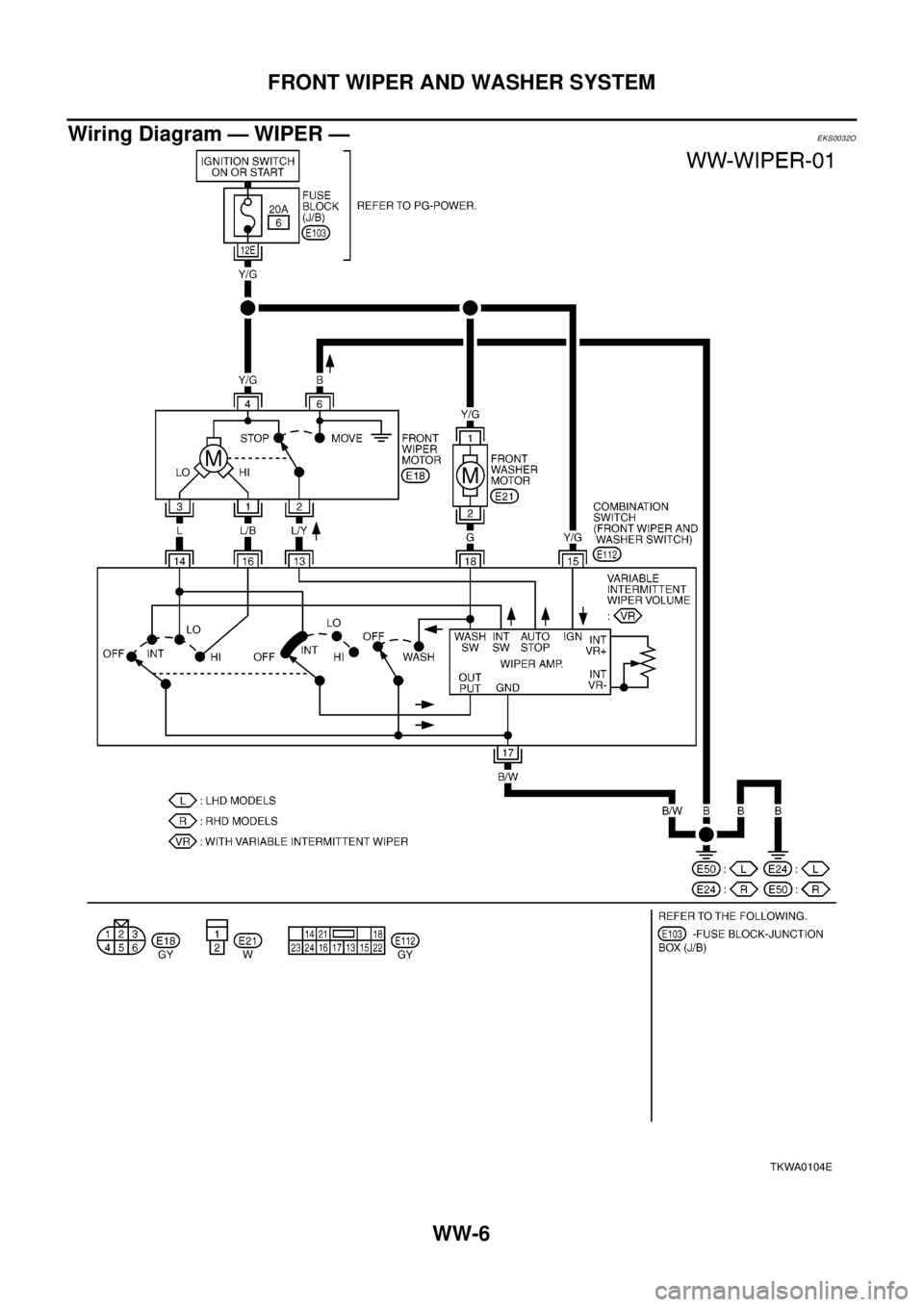

Wiring Diagram — WIPER —
EKS0032O
TKWA0104E

Page 3045 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual FRONT WIPER AND WASHER SYSTEM
WW-7
C
D
E
F
G
H
I
J
L
MA
B
WW
Terminal and Reference Values for Combination SwitchEKS0032P
Removal and Installation for Front Wiper Arms, Adjustment for Wiper Arms
Stop

Page 3046 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual WW-8
FRONT WIPER AND WASHER SYSTEM

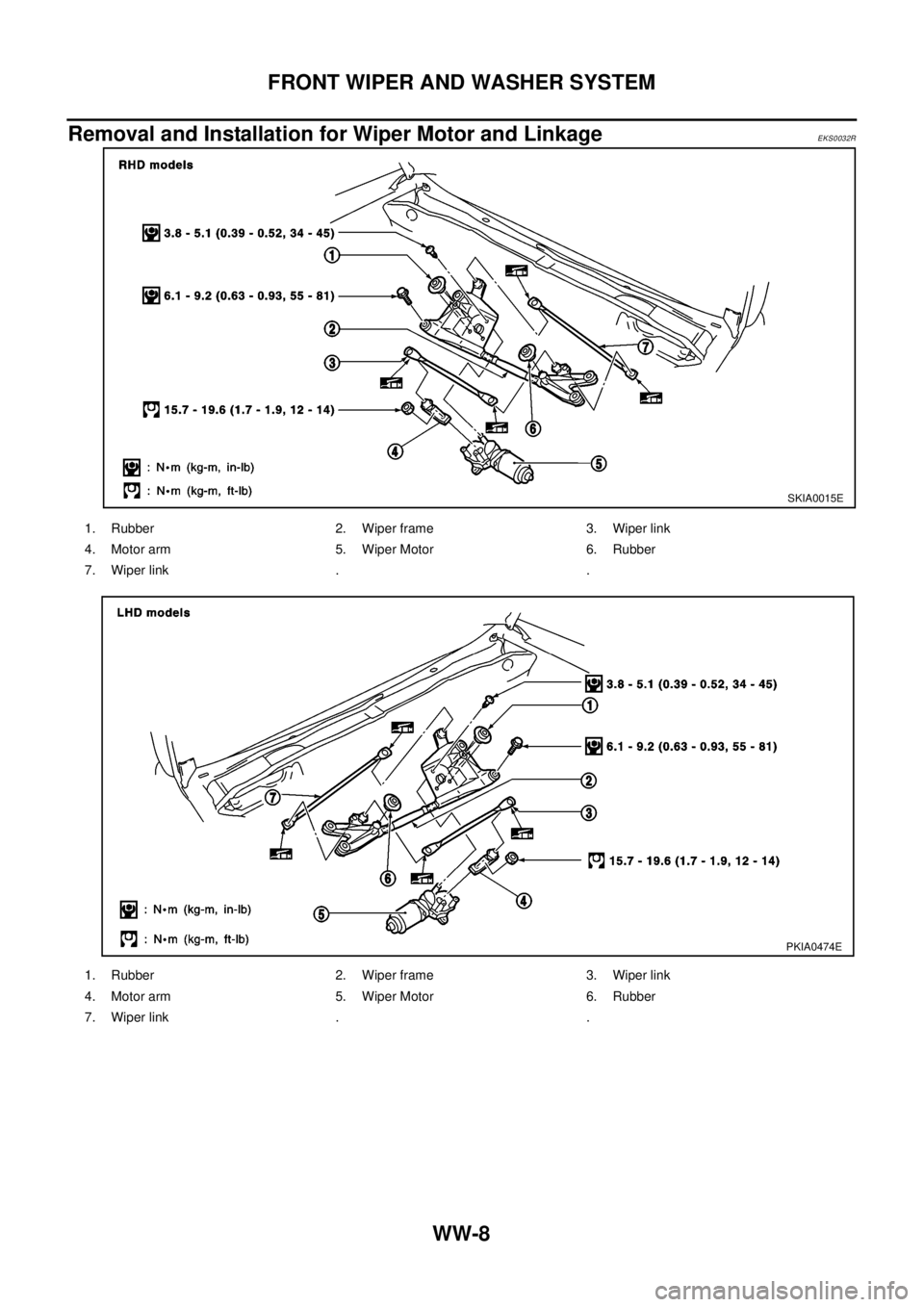

Removal and Installation for Wiper Motor and Linkage
EKS0032R
SKIA0015E
1. Rubber 2. Wiper frame 3. Wiper link
4. Motor arm 5. Wiper Motor 6. Rubber
7. Wiper link .

Page 3047 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual FRONT WIPER AND WASHER SYSTEM
WW-9
C
D
E
F
G
H
I
J
L
MA
B
WW

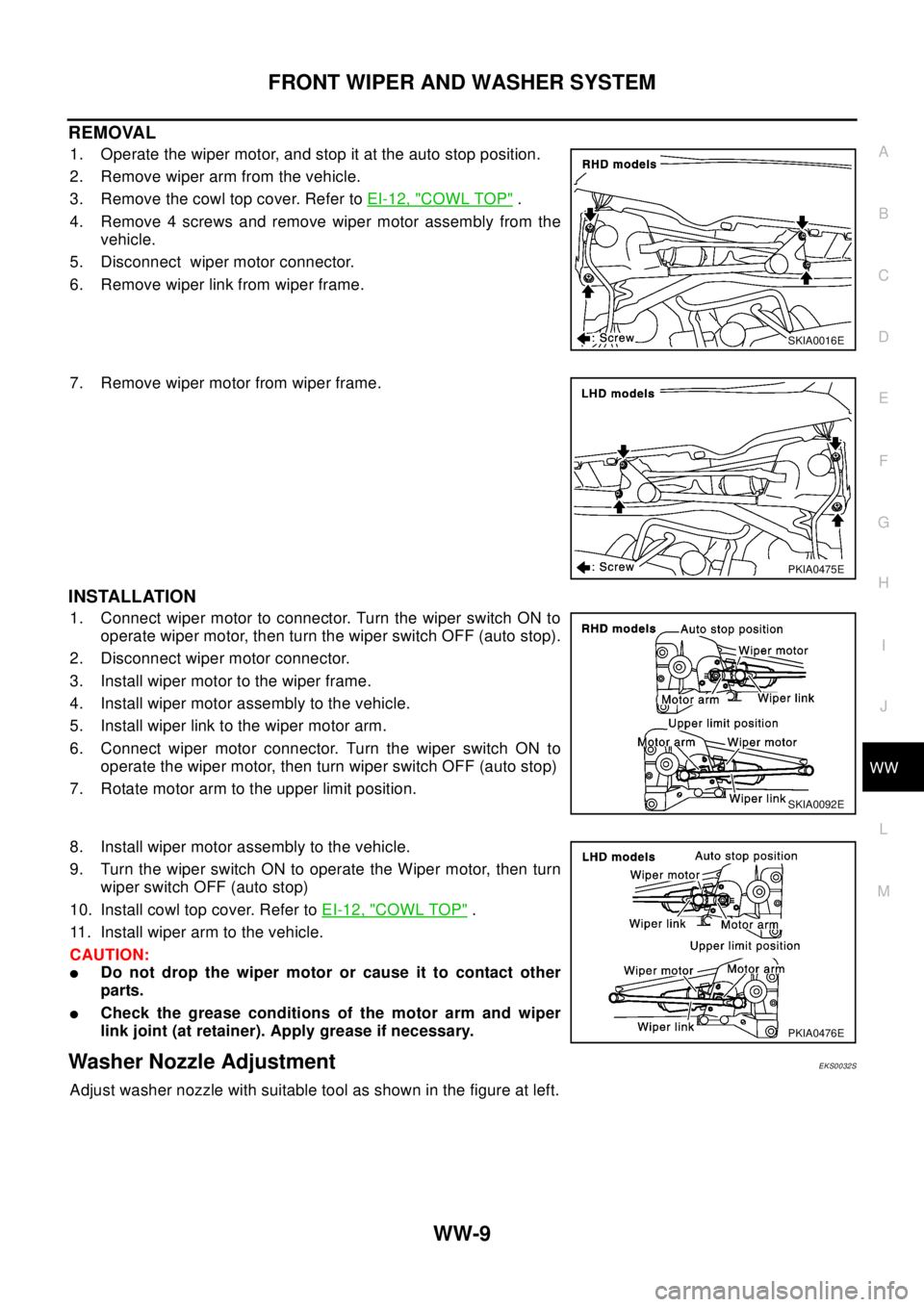

REMOVAL
1. Operate the wiper motor, and stop it at the auto stop position.
2. Remove wiper arm from the vehicle.
3. Remove the cowl top cov

Page 3048 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual WW-10
FRONT WIPER AND WASHER SYSTEM
Unit: mm (in)
NOTE:
l*: The diameters of these circles are less than 80 mm (3.15 in).

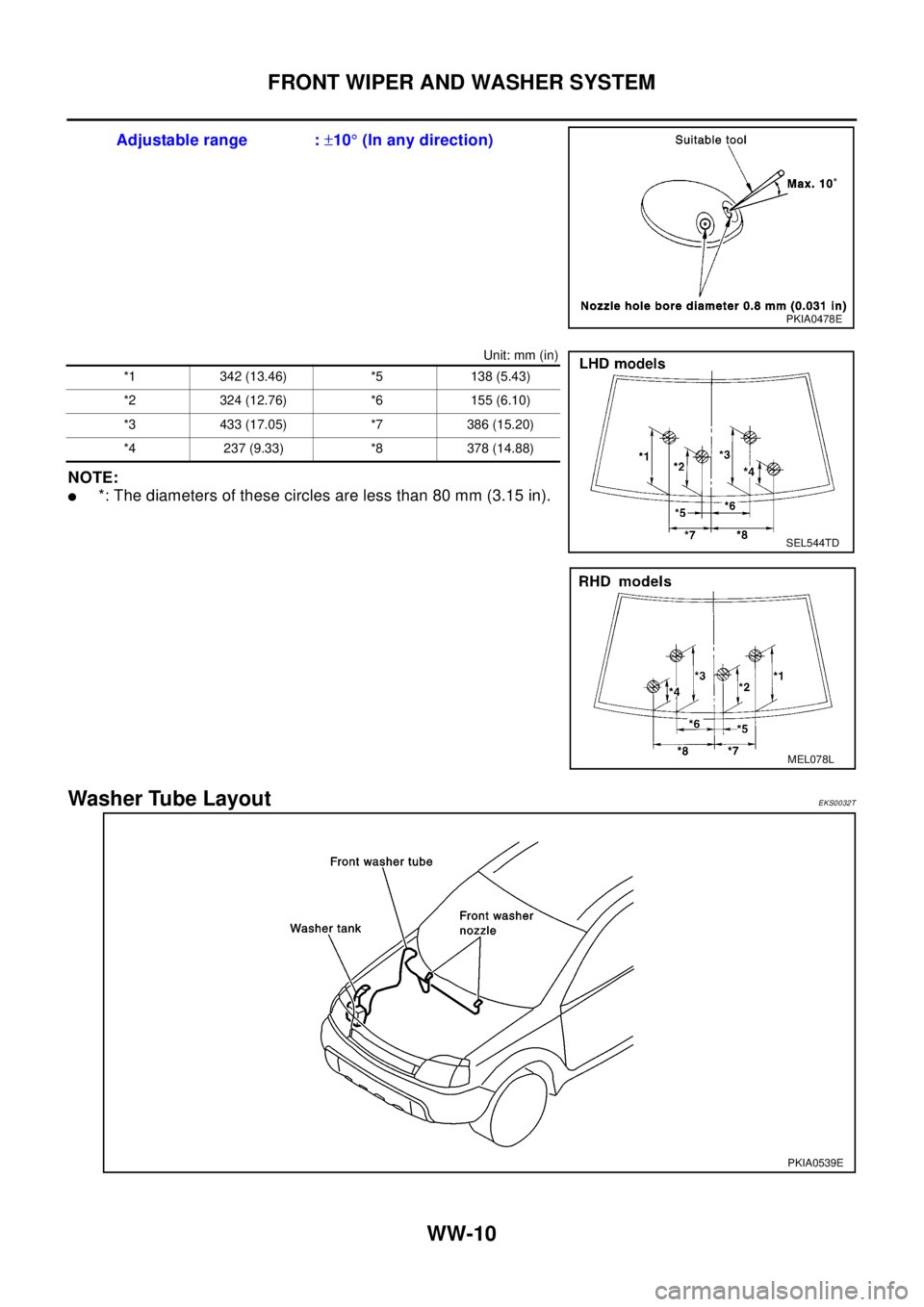

Washer Tube LayoutEKS0032T
Adjustable range :±10°(In any direction)
PKIA0478
