DTC Work Support Mode
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of t

TROUBLE DIAGNOSIS
EC-95
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Work Support Mode
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be selected by
touching “SETTING” in “DATA MONITOR” mode.

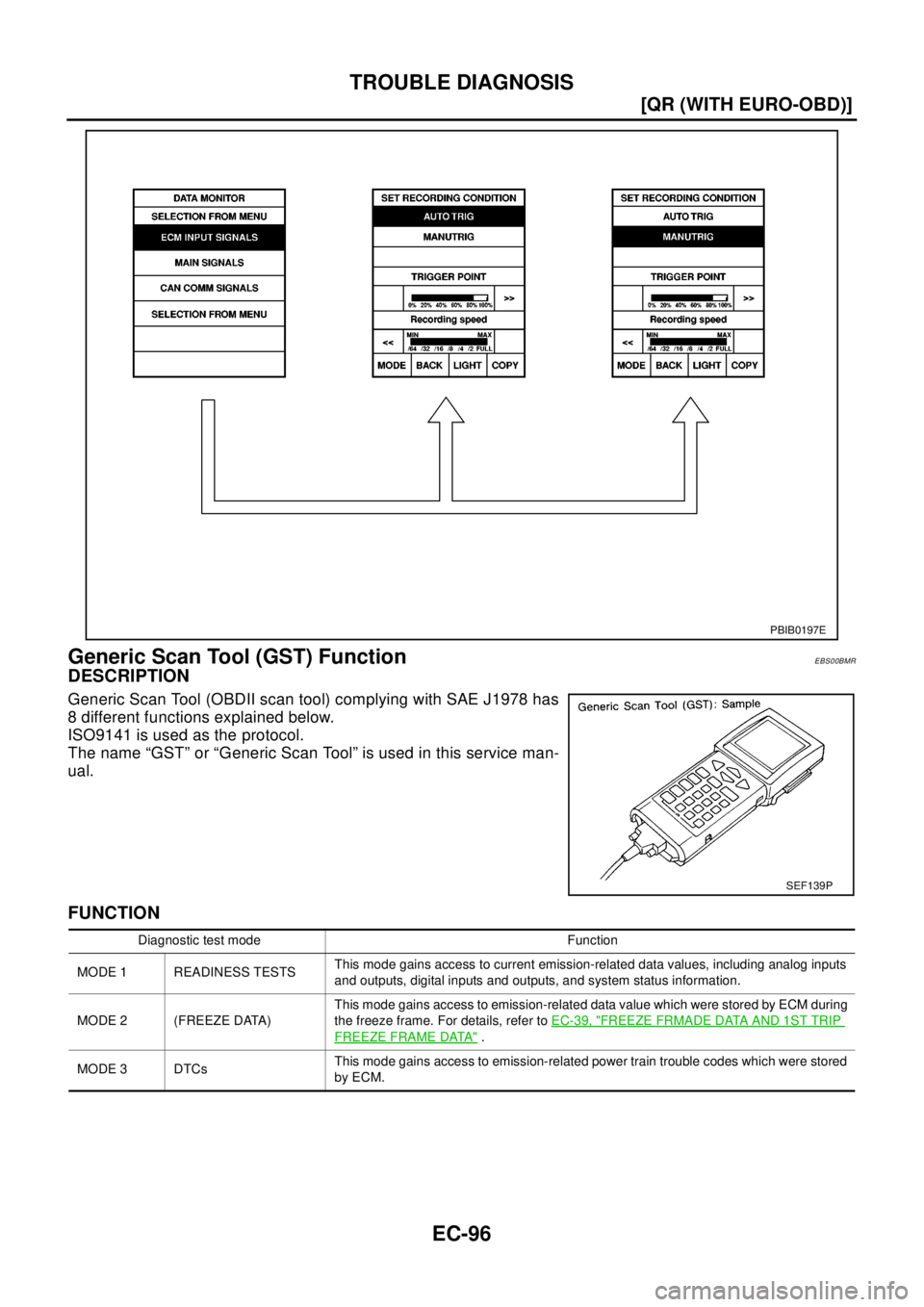

1. “AUTO TRIG” (Automatic trigger):
–The malfunction will be identified on the CONSULT-II screen in
real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONITOR”
in “DATA MONITOR” screen is changed to “Recording Data ...
xx%” as shown at right, and the data after the malfunction detec-
tion is recorded. Then when the percentage reached 100%,
“REAL-TIME DIAG” screen is displayed. If “STOP” is touched on
the screen during “Recording Data ... xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the recording speed can be changed by “TRIG-
GER POINT” and “Recording Speed”. Refer to CONSULT-II OPERATION MANUAL.
2. “MANU TRIG” (Manual trigger):
–DTC/1st trip DTC and malfunction item will not be displayed automatically on CONSULT-II screen even
though a malfunction is detected by ECM.
DATA MONITOR can be performed continuously even though a malfunction is detected.
Operation
1. “AUTO TRIG”
–While trying to detect the DTC/1st trip DTC by performing the “DTC Confirmation Procedure”, be sure to
select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.
–While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, components
and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC/1st trip
DTC will be displayed. (Refer to “Incident Simulation Tests” inGI-24, "
How to Perform Efficient Diagnosis
for an Electrical Incident".)
2. “MANU TRIG”
–If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for further
diagnosis, such as a comparison with the value for the normal operating condition.
Test mode Test item Condition Reference page
HO2S1HO2S1 (B1) P0133
Refer to corresponding
trouble diagnosis for
DTC.EC-166
HO2S1 (B1) P0134EC-174
HO2S1 (B1) P1143EC-284
HO2S1 (B1) P1144EC-290
H02S2HO2S2 (B1) P0139EC-187HO2S2 (B1) P1146EC-296
HO2S2 (B1) P1147EC-303
SEF706XSEF707X

Page 1210 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-96
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
Generic Scan Tool (GST) Function
EBS00BMR
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained belo

Page 1211 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
EC-97
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
GST INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connector, which is located under LH
dash

Page 1212 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-98
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
lSpecification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to

EC-98
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
lSpecification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
lIf the real-time diagnosis results are NG and the on board diagnostic system results are OK when diagnosing the mass air flow sen-
sor, first check to see if the fuel pump control circuit is normal.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
lTachometer: Connect
lRun engine and compare tachometer indication with the CONSULT-II
value.Almost the same speed as the
CONSULT-II value.
MAS A/F SE-B1
lEngine: After warming up
lAir conditioner switch: OFF
lShift lever: N
lNo-loadIdle Approx. 1.0 - 1.5V
2,500 rpm Approx. 1.6 - 2.0V
B/FUEL SCHDL
lEngine: After warming up
lShift lever: N
lAir conditioner switch: OFF
lNo-loadIdle 2.5 - 3.5 msec
2,000 rpm 2.5 - 3.5 msec
A/F ALPHA-B1
lEngine: After warming upMaintaining engine speed at 2,000
rpm54% - 155%
COOLAN TEMP/S
lEngine: After warming up More than 70°C(158°F)
HO2S1 (B1)
lEngine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V¬®Approx. 0.6 - 1.0V
HO2S2 (B1)
lEngine: After warming upRevving engine from idle to 3,000
rpm quickly.0 - 0.3V¬®Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)
lEngine: After warming upMaintaining engine speed at 2,000
rpmLEAN¬®RICH
Changes more than 5 times dur-
ing 10 seconds.
HO2S2 MNTR (B1)
lEngine: After warming upRevving engine from idle to 3,000
rpm quickly.LEAN¬®RICH
VEH SPEED SE
lTurn drive wheels and compare speedometer indication with the CON-
SULT-II value.Almost the same speed as the
CONSULT-II value
BATTERY VOLT
lIgnition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN1
lIgnition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.41 - 0.71V
Accelerator pedal: Fully depressed More than 3.9V
ACCEL SEN2
lIgnition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.15 - 0.97V
Accelerator pedal: Fully depressed More than 3.8V
THRTL SEN1
THRTL SEN2
lIgnition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
lShift lever:
D (A/T model)
1st (M/T model)Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL
lIgnition switch: ON®START®ON OFF®ON®OFF
CLSD THL POS
lIgnition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
lEngine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
lIgnition switch: ONShift lever:
P or N (A/T model)
Neutral (M/T model)ON
Shift lever: Except above OFF

Page 1213 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
EC-99
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PW/ST SIGNALlEngine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering whee

Page 1214 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-100
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
*: These items are not applied for M/T models without ESP.
Major Sensor Reference Graph in Data Monitor ModeEBS00BMT
The following are the major sensor re

EC-100
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
*: These items are not applied for M/T models without ESP.
Major Sensor Reference Graph in Data Monitor ModeEBS00BMT
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch “ON” and with selector lever in "D" position (A/T models) or with shift lever in
"1st" position (M/T models).
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.

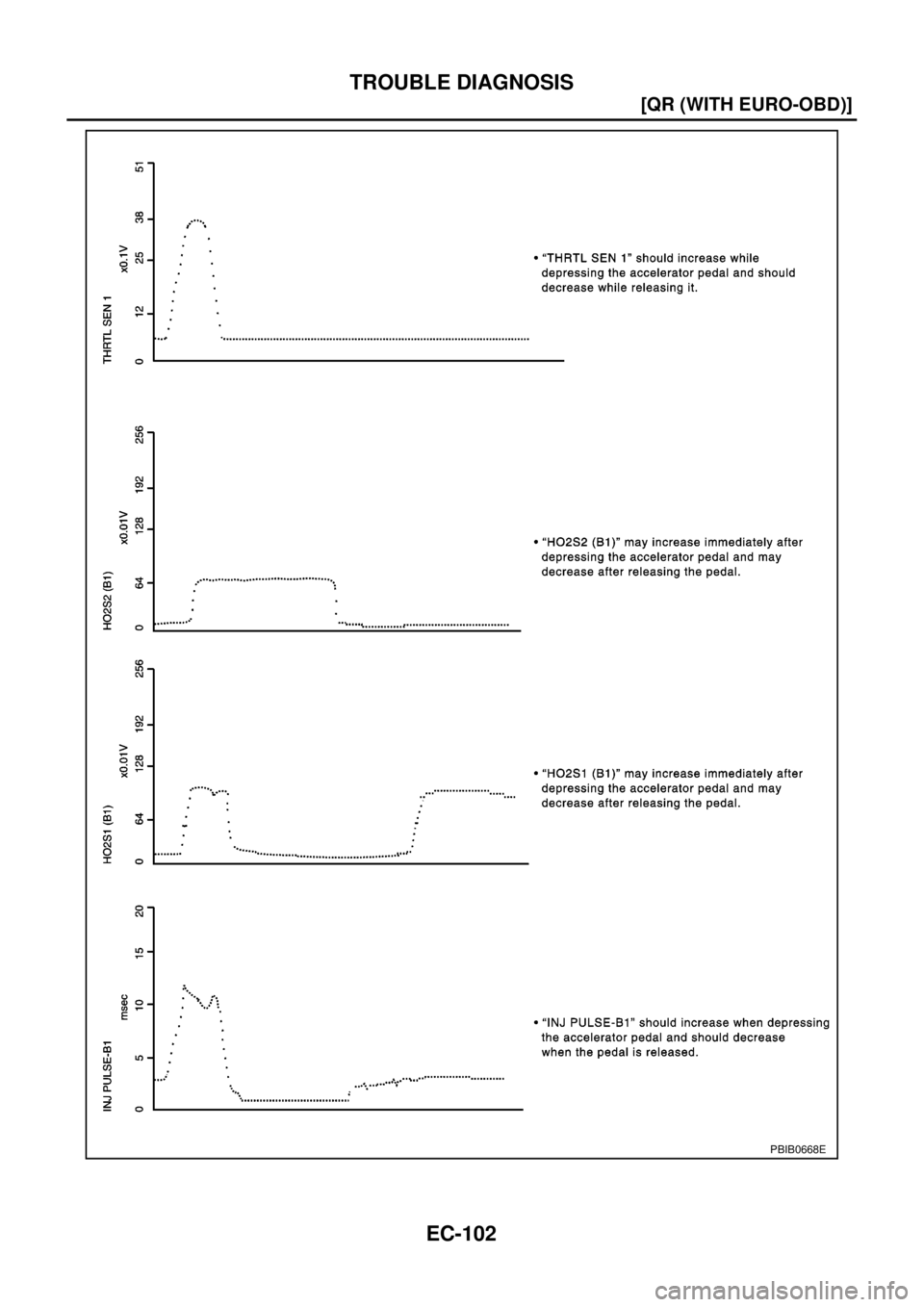

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.
COOLING FAN
lEngine: After warming up, idle
the engine
lAir conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH
HO2S1 HTR (B1)
lEngine: After warming up
lEngine speed: Below 3,600 rpmON
lEngine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)
lEngine speed: Below 3,800 rpm [After driving for 2 minutes at a speed of
70 km/h (43 MPH) or more]ON
lEngine speed: Above 3,800 rpm OFF
TRVL AFTER MIL
lIgnition switch: ONVehicle has traveled after MI has
turned ON.0-65,535km
(0 - 40,723 mile)
AC PRESS SEN
lIgnition switch: ON (Engine stopped) Approx. 0V
lEngine: Idle
lAir conditioner switch: OFF1.0 - 4.0V
CAN COMM*
lIgnition switch: ONOK
CANCIRC1*OK
CANCIRC2*OK (A/T models)
UNKWN (M/T models with ESP)
CANCIRC3*UNKWN (A/T models)
OK (M/T models with ESP)
CANCIRC4*UNKWN
CANCIRC5*UNKWN MONITOR ITEM CONDITION SPECIFICATION
PBIB0198E

Page 1215 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS
EC-101
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Each value is for reference, the exact value may vary.
SEF241Y

Page 1216 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-102
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB0668E
