DIAGNOSTIC PROCEDURE
SYMPTOM: A/C system does not come on.
1.CHECK POWER SUPPLY CIRCUIT FOR AUTO AMP.
OK or NG
OK >> GO TO 2.
NG >> Check 10A fuses (Nos. 15, 19 and 28) located in the fuse block.
lIf fuses are OK, check for open circuit in wiring harness. Repair or replace as necessary.
lIf fuses are NG, replace fuse and check wiring harness for short circuit. Repair or replace as
necessary.
2.CHECK BODY GROUND CIRCUIT FOR AUTO AMP.
Ye s o r N o
Yes >> Replace auto amp. INSPECTION END
No >> Repair or replace harness.

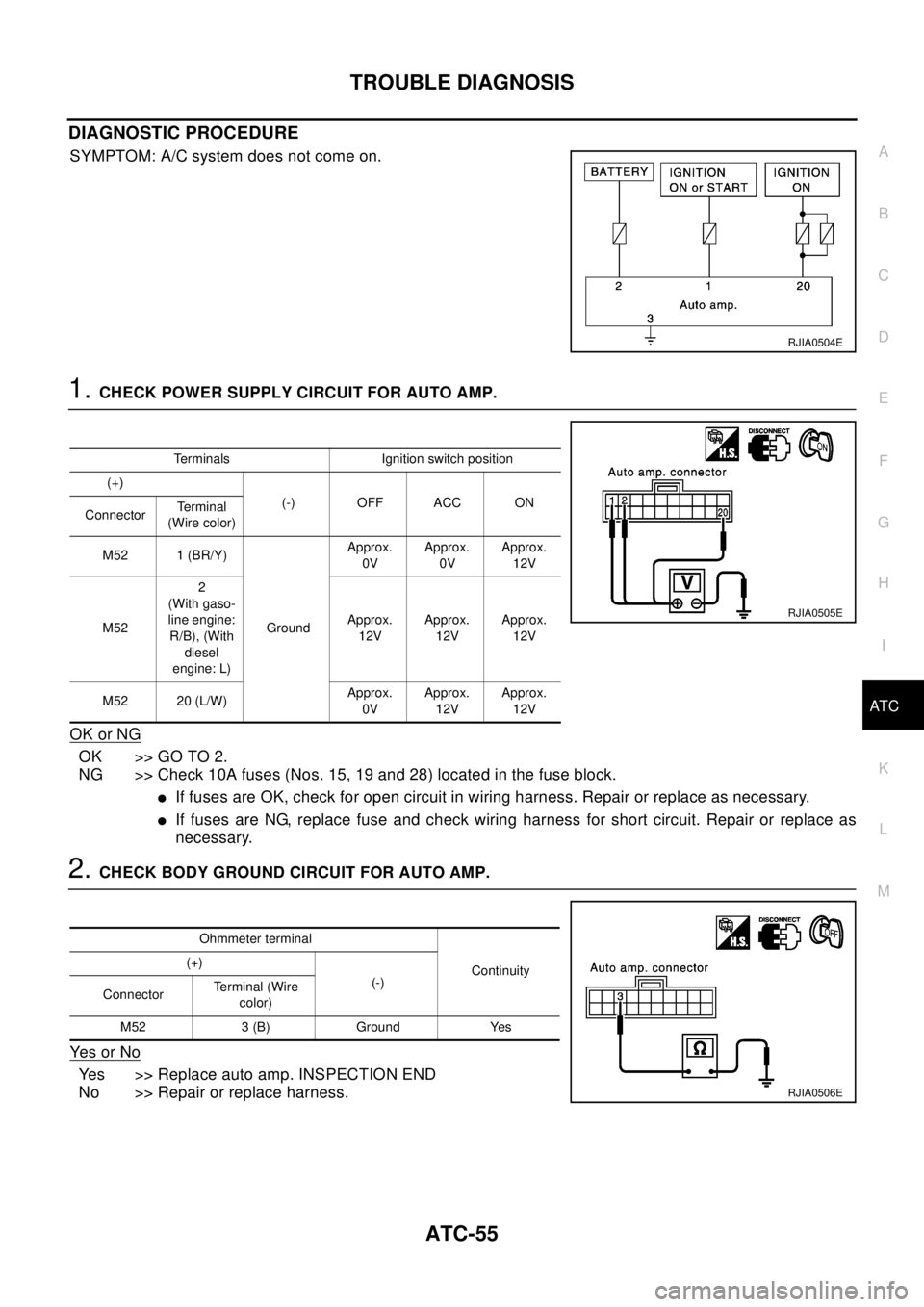

RJIA0504E
Terminals Ignition switch position
(+)
(-) OFF ACC ON
ConnectorTe r m i n a l
(Wire color)
M52 1 (BR/Y)
GroundApprox.
0VApprox.
0VApprox.
12V
M522
(With gaso-
line engine:
R/B), (With
diesel
engine: L)Approx.
12VApprox.
12VApprox.
12V
M52 20 (L/W)Approx.
0VApprox.
12VApprox.
12V
RJIA0505E
Ohmmeter terminal
Continuity (+)
(-)
ConnectorTerminal (Wire
color)
M52 3 (B) Ground Yes
RJIA0506E
Page 634 of 3066
ATC-56
TROUBLE DIAGNOSIS
LAN System Circuit
EJS001H0
SYMPTOM: Mode door motor, intake door motor and/or air mix door motor does not operate normally.
DIAGNOSTIC PROCEDURE
1.CHECK POWER SUPPLY FOR AUTO AMP. (LCU) SIDE
OK or NG
OK >> GO TO 2.
NG >> Replace auto amp.(LCU).
2.CHECK SIGNAL FOR AUTO AMP. (LCU) SIDE
OK or NG
OK >> GO TO 3.
NG >> Replace auto amp.(LCU).

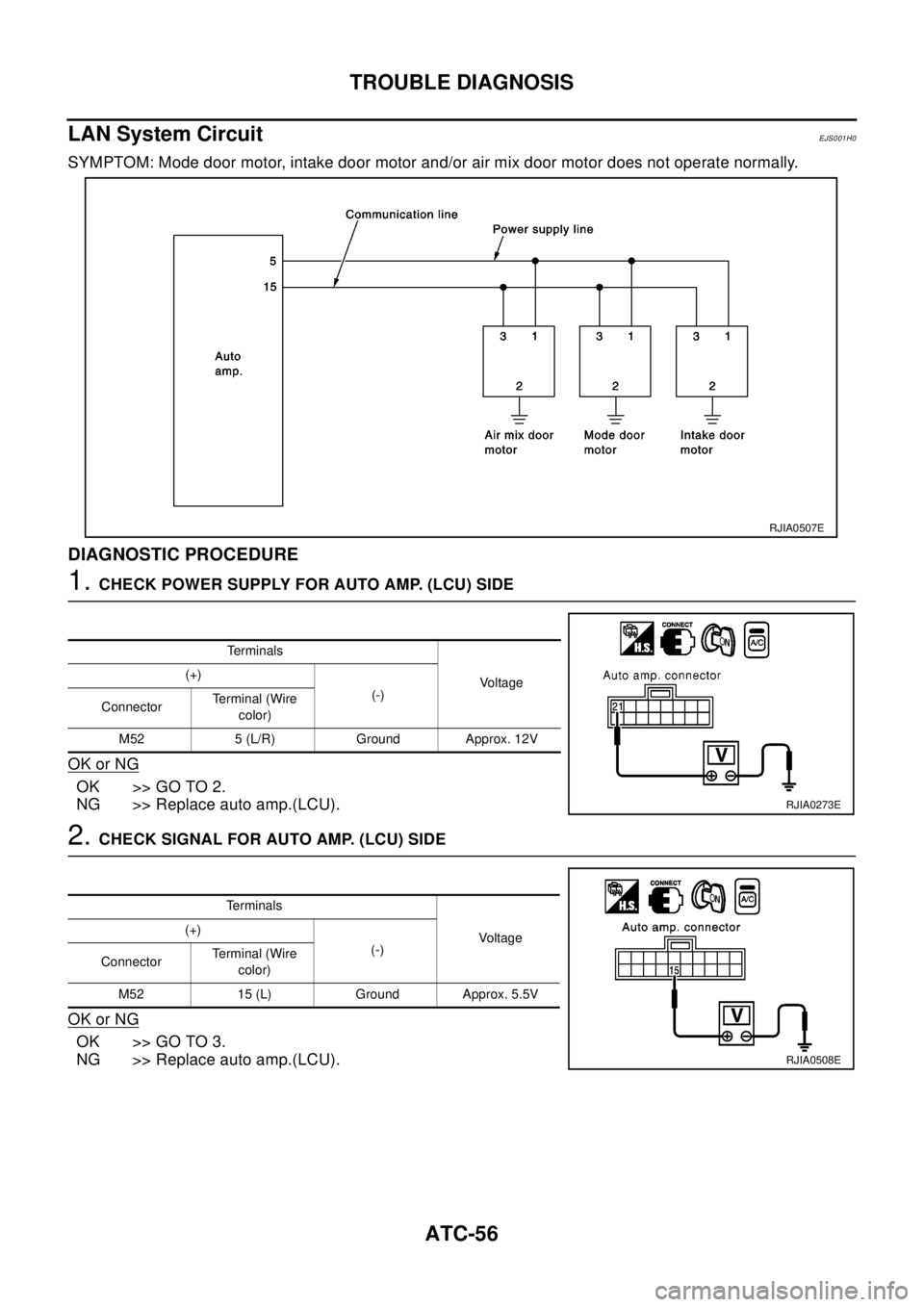

RJIA0507E
Te r m i n a l s
Vo l ta g e (+)
(-)
ConnectorTerminal (Wire
color)
M52 5 (L/R) Ground Approx. 12V
RJIA0273E
Te r m i n a l s
Vo ltag e (+)
(-)
ConnectorTerminal (Wire
color)
M52 15 (L) Ground Approx. 5.5V
RJIA0508E
Page 635 of 3066

TROUBLE DIAGNOSIS
ATC-57
C
D
E
F
G
H
I
K
L
MA
B
AT C
3.CHECK POWER SUPPLY FOR MOTOR SIDE
OK or NG
OK >> GO TO 4.
NG >> Replace harness or connector.
4.CHECK SIGNAL FOR MOTOR SIDE
OK or NG
OK >> GO TO 5.
NG >> Replace harness or connector.
5.CHECK MOTOR GROUND CIRCUIT
OK or NG
OK >> GO TO 6.
NG >> Replace harness or connector.
6.CHECK MOTOR OPERATION
Disconnect and reconnect the motor connector and confirm the motor operation.
OK or NG
OK >> (Return to operate normally.)
lPoor contacting the motor connector
NG >> (Does not operate normally.)
lGO TO 7
Door motorTe r m i n a l s
Voltag e (+)
(-)
ConnectorTe r m i n a l
(Wire color)
Mode M37 1 (L/R)
Body groundApprox.
12V Air mix M38 1 (L/R)
Intake M47 1 (L/R)
RJIA0509E
Door motorTe r m i n a l s
Vo l ta g e (+)
(-)
ConnectorTe r m i n a l
(Wire color)
Mode M37 3 (L)
Body groundApprox.
5.5V Air mix M38 3 (L)
Intake M47 3 (L)
RJIA0610E
Door motorTe r m i n a l s
Continuity (+)
(-)
ConnectorTe r m i n a l
(Wire color)
Mode M37 2 (B)
Body ground Yes Air mix M38 2 (B)
Intake M47 2 (B)
RJIA0511E
Page 636 of 3066

ATC-58
TROUBLE DIAGNOSIS
7.CHECK MODE DOOR MOTOR OPERATION
1. Disconnect mode door motor and air mix door motor connector.
2. Reconnect mode door motor connector and confirm the mode door motor operation.
OK or NG
OK >> (Mode door motor operates normally.)
lGO TO 8
NG >> (Mode door motor does not operate normally.)
lReplace the mode door motor.
8.CHECK AIR MIX DOOR MOTOR OPERATION
1. Disconnect mode door motor connector.
2. Reconnect air mix door motor connector and confirm the air mix door motor operation.
OK or NG
OK >> (Air mix door motor operates normally.)
lGO TO 9
NG >> (Air mix door motor does not operate normally.)
lReplace the air mix door motor.
9.CHECK INTAKE DOOR MOTOR OPERATION
1. Disconnect air mix door motor connector.
2. Reconnect intake door motor connector and confirm the intake door motor operation.
OK or NG
OK >> (Intake door motor operates normally.)
lReplace auto amp.
NG >> (Intake door motor does not operate normally.)
lReplace intake door motor.
Mode Door Motor CircuitEJS001H1
SYMPTOM:
lAir outlet does not change.
lMode door motor does not operate normally.
Page 637 of 3066
TROUBLE DIAGNOSIS
ATC-59
C
D
E
F
G
H
I
K
L
MA
B
AT C
INSPECTION FLOW
*1 Discharge air flowAT C - 2 8*7 Sunload sensor circuitAT C -9 8*13 Symptom tableAT C - 3 0
*2 Operational checkAT C -5 1*8 Air mix door motor circuitAT C -6 1*14 Intake sensor circuitAT C - 1 0 8
*3 Self-diagnosisAT C - 4 2, see No.1 *9 Self-diagnosisAT C - 4 2,seeNo.14
*4 Self-diagnosisAT C - 4 2
, see No. 5 *10 LAN system circuitAT C -4 2
*5 Ambient sensor circuitAT C - 9 3*11 Component description for Mode door
AT C -6 1
*6 In-vehicle sensor circuitAT C - 9 5*12 Operational checkAT C - 5 1
RJIA0512E
Page 638 of 3066

ATC-60
TROUBLE DIAGNOSIS
SYSTEM DESCRIPTION
Component Parts
Mode door control system components are:
lAuto amp.
lMode door motor (LCU)
lA/C LAN system (PBR built-in air mix door motor, mode door motor and intake door motor)
lIn-vehicle sensor
lAmbient sensor
lSunload sensor
lIntake sensor
System Operation
The auto amplifier receives data from each of the sensors. The amplifier sends air mix door, mode door and
intake door opening angle data to the air mix door motor LCU, mode door motor LCU and intake door motor
LCU.
The air mix door motor, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the auto amplifier and each of the motor posi-
tion sensors are compared by the LCUs in each motor with the existing decision and opening angles. Subse-
quently, HOT/COLD or DEFROST/VENT or FRESH/RECIRCULATION operation is selected. The new
selection data is returned to the auto amplifier.
Mode Door Control Specification
RHA045HA
RHA384HA
Page 639 of 3066
TROUBLE DIAGNOSIS
ATC-61
C
D
E
F
G
H
I
K
L
MA
B
AT C
COMPONENT DESCRIPTION
Mode Door Motor

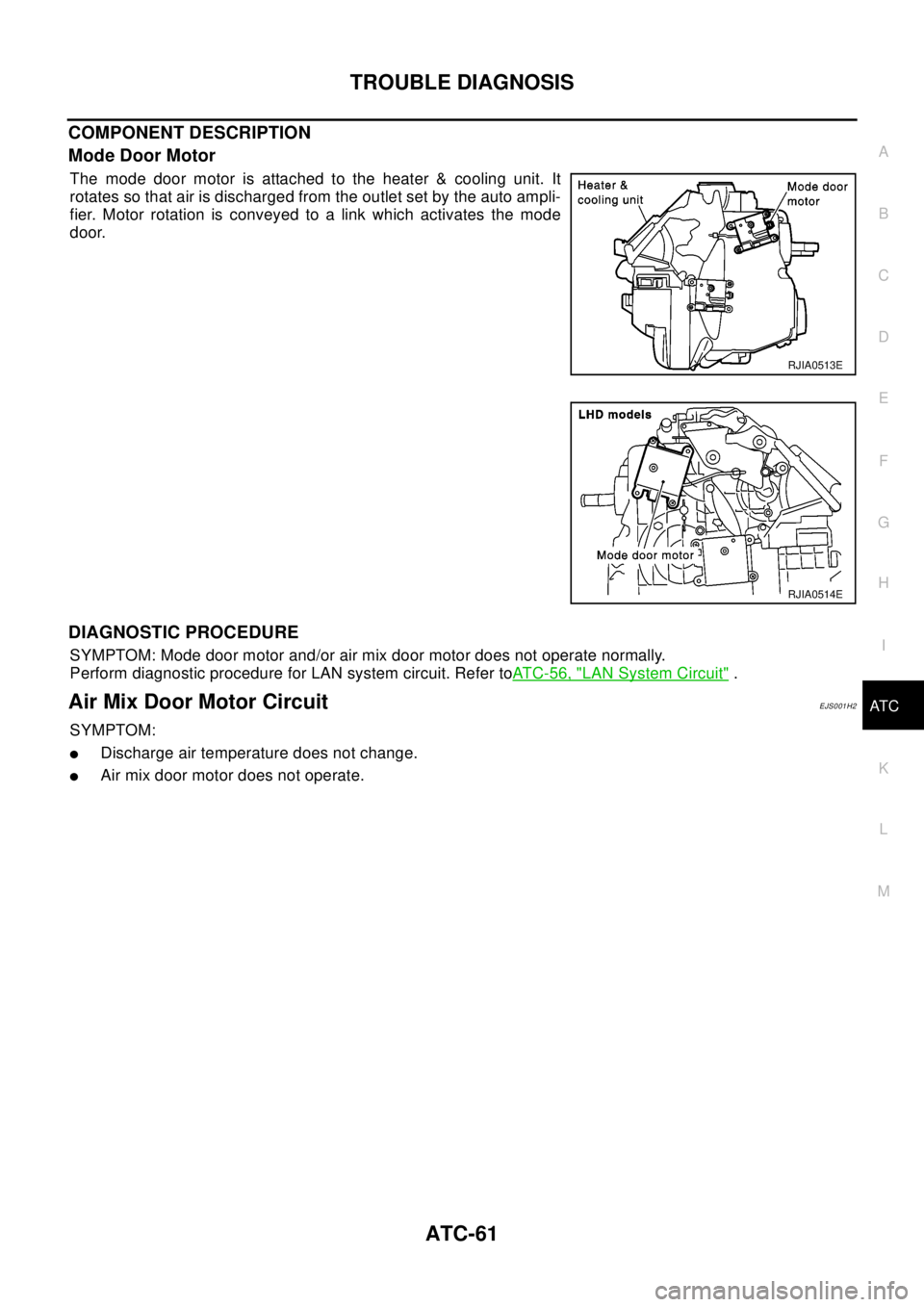

The mode door motor is attached to the heater & cooling unit. It
