Page 2129 of 3066

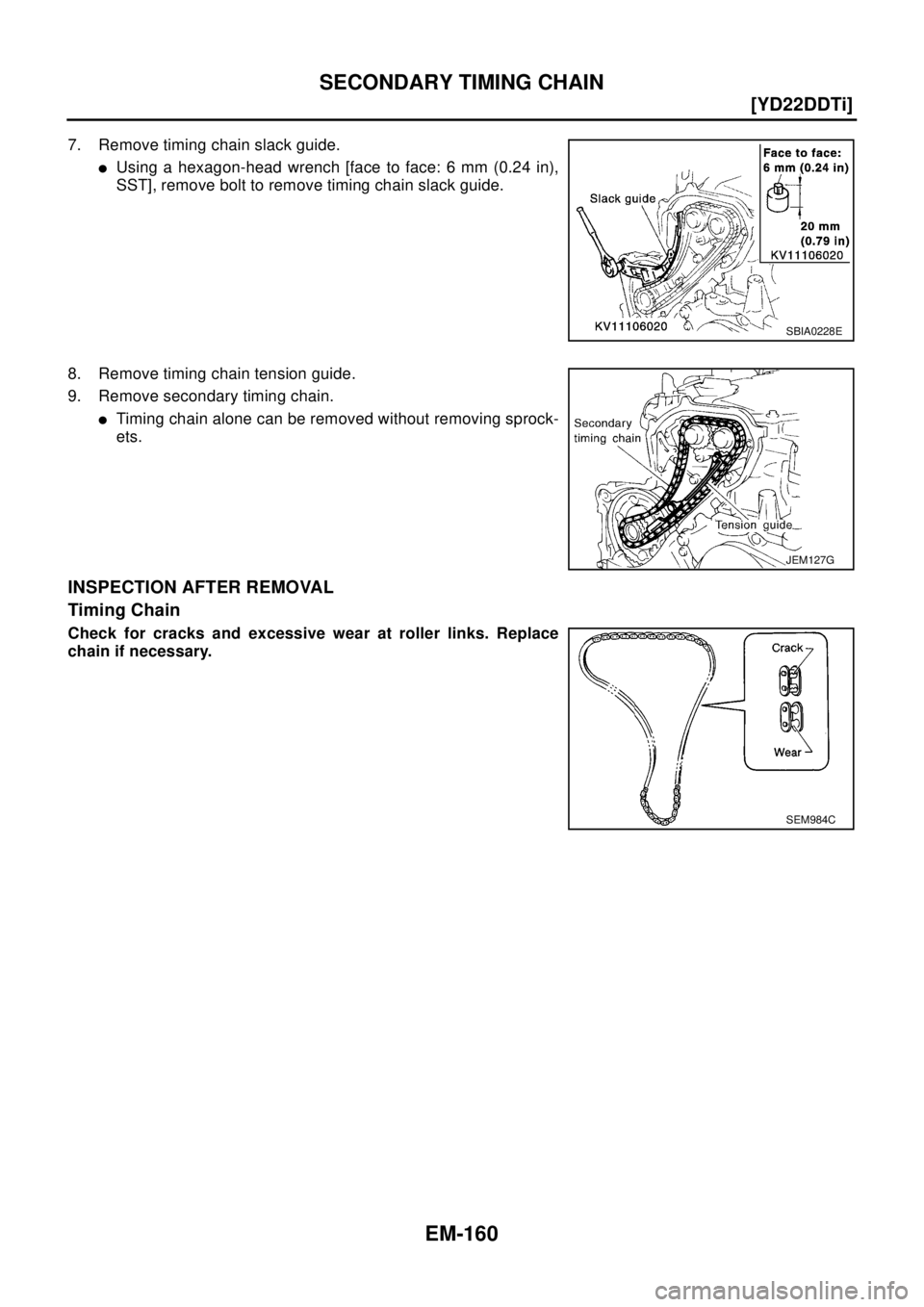

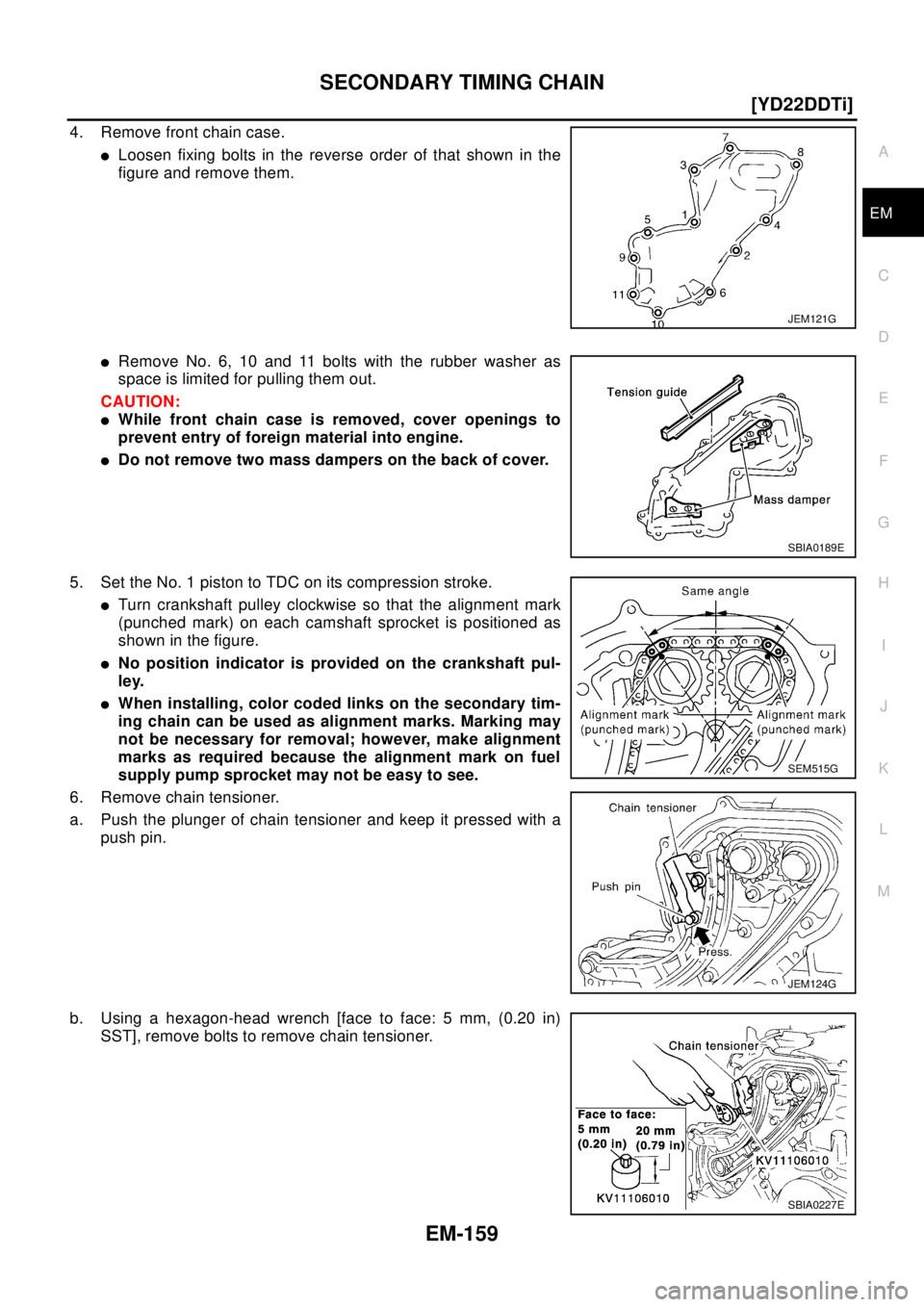

NISSAN X-TRAIL 2003 Electronic Repair Manual SECONDARY TIMING CHAIN EM-159 [YD22DDTi] C D E F G H I J K L MA EM 4. Remove front chain case. lLoosen fixing bolts in the reverse order of that shown in the figure and remove them. lRemove No. 6, 10

Page 2130 of 3066

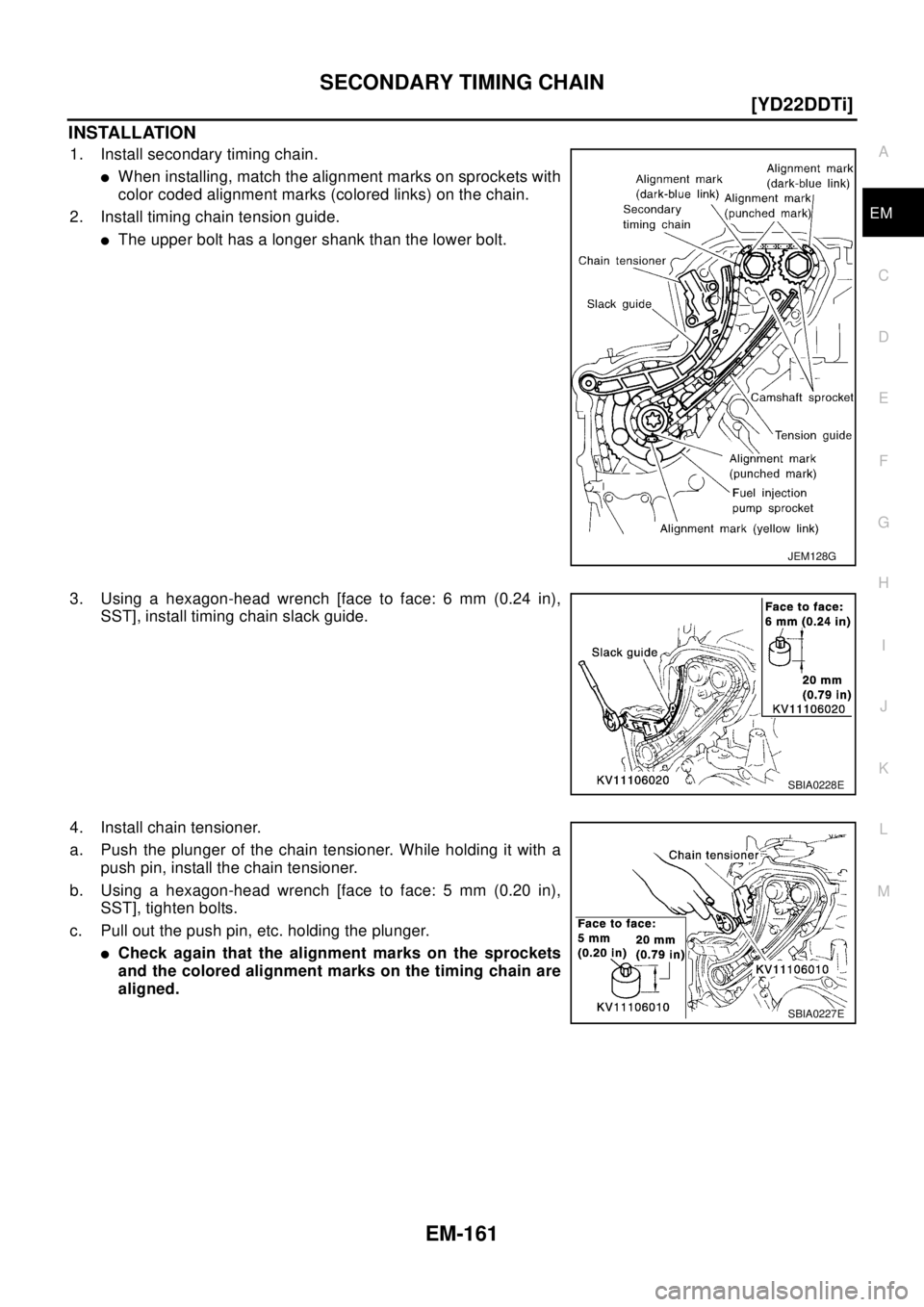

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-160 [YD22DDTi] SECONDARY TIMING CHAIN 7. Remove timing chain slack guide. lUsing a hexagon-head wrench [face to face: 6 mm (0.24 in), SST], remove bolt to remove timing chain slack guide. 8. Remove

Page 2131 of 3066

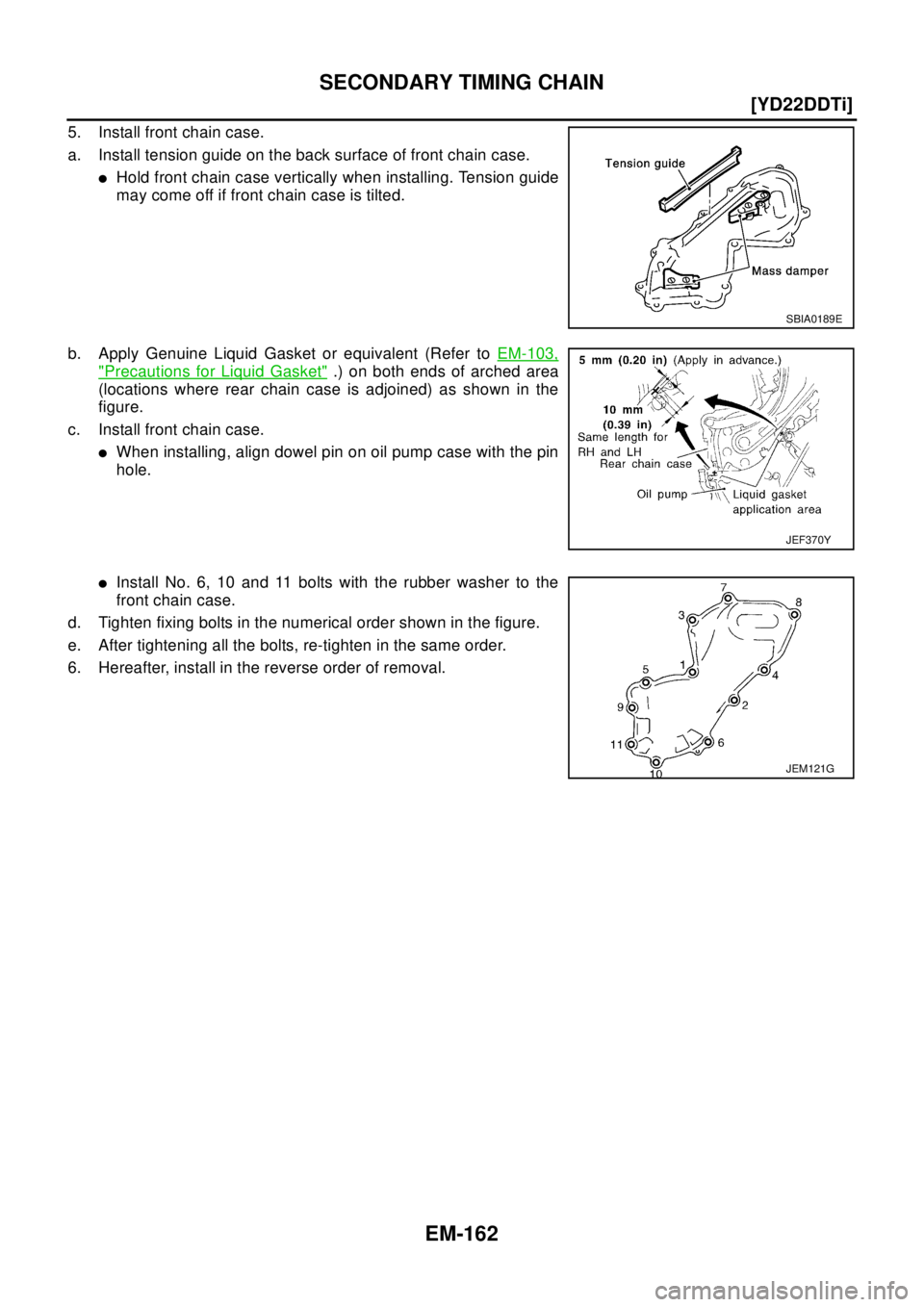

NISSAN X-TRAIL 2003 Electronic Repair Manual SECONDARY TIMING CHAIN EM-161 [YD22DDTi] C D E F G H I J K L MA EM INSTALLATION 1. Install secondary timing chain. lWhen installing, match the alignment marks on sprockets with color coded alignment m

Page 2132 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-162 [YD22DDTi] SECONDARY TIMING CHAIN 5. Install front chain case. a. Install tension guide on the back surface of front chain case. lHold front chain case vertically when installing. Tension guide

Page 2133 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PRIMARY TIMING CHAIN EM-163 [YD22DDTi] C D E F G H I J K L MA EM PRIMARY TIMING CHAINPFP:13028 Removal and InstallationEBS00BR5 CAUTION: lAfter removing timing chain, do not turn crankshaft and camsha

Page 2134 of 3066

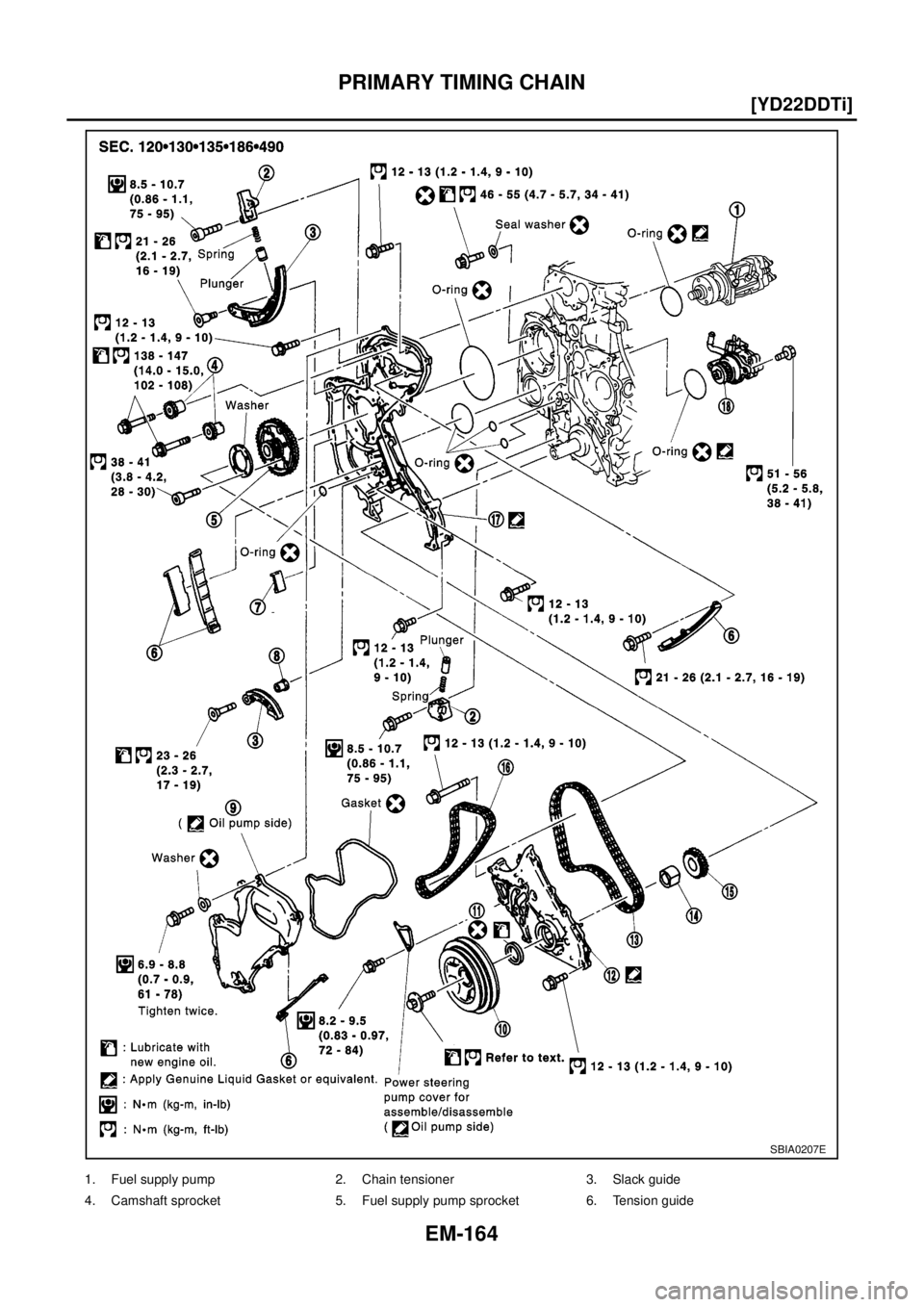

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-164 [YD22DDTi] PRIMARY TIMING CHAIN SBIA0207E 1. Fuel supply pump 2. Chain tensioner 3. Slack guide 4. Camshaft sprocket 5. Fuel supply pump sprocket 6. Tension guide

Page 2135 of 3066

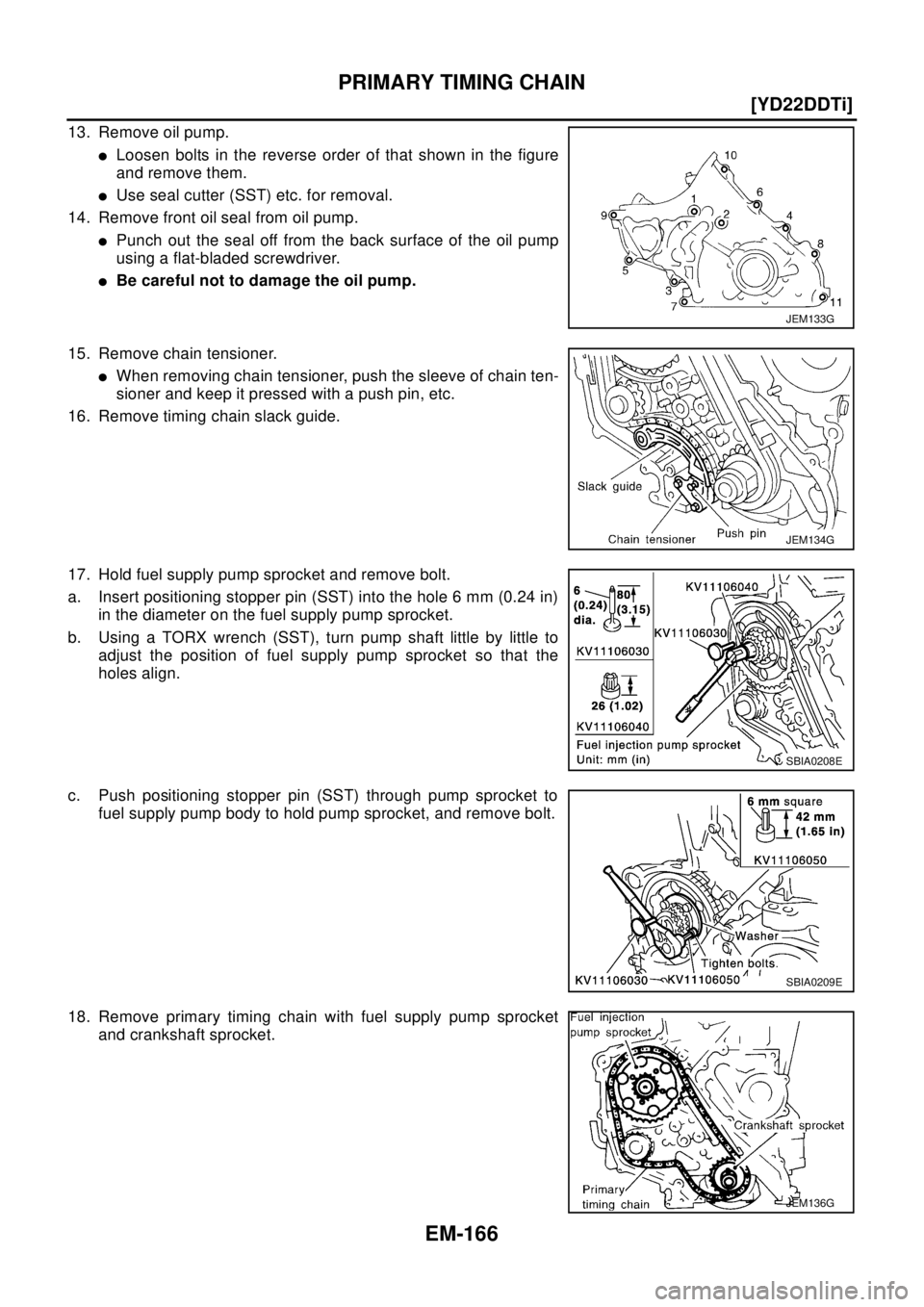

NISSAN X-TRAIL 2003 Electronic Repair Manual PRIMARY TIMING CHAIN EM-165 [YD22DDTi] C D E F G H I J K L MA EM REMOVAL 1. Remove coolant reservior tank. 2. Remove charge air cooler. Refer toEM-114, " Removal and Installation". 3. Remove oil clean

Page 2136 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-166 [YD22DDTi] PRIMARY TIMING CHAIN 13. Remove oil pump. lLoosen bolts in the reverse order of that shown in the figure and remove them. lUse seal cutter (SST) etc. for removal. 14. Remove front oi
