Page 1681 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P1805 BRAKE SWITCH EC-567 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions. 3. If NG, replace stop la

Page 1682 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-568 [QR (WITHOUT EURO-OBD)] HO2S1 HEATER HO2S1 HEATER PFP:22690 DescriptionEBS00BJQ SYSTEM DESCRIPTION The ECM performs ON/OFF duty control of the heated oxygen sensor 1 heater corresponding to the

Page 1683 of 3066

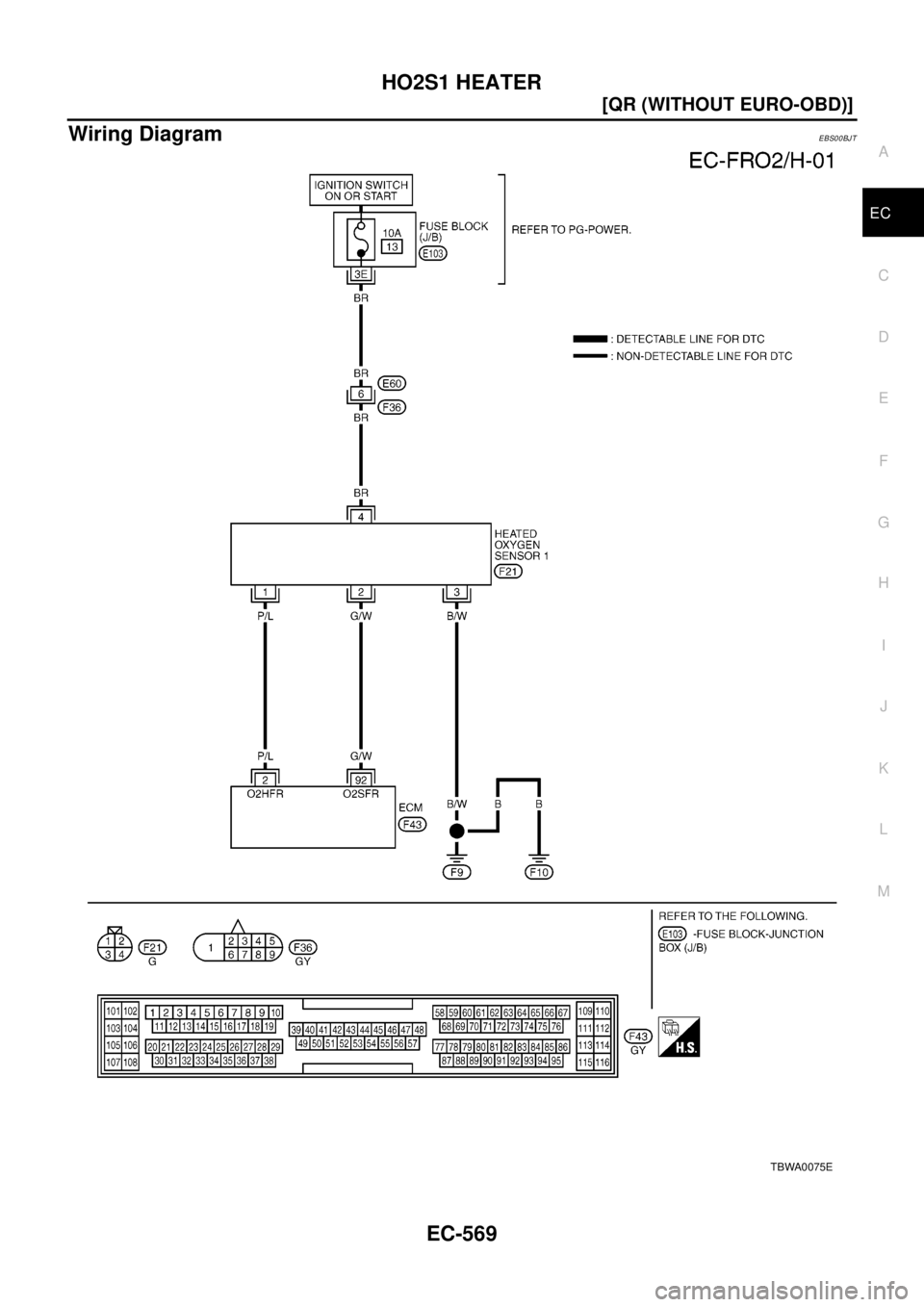

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S1 HEATER EC-569 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS00BJT TBWA0075E

Page 1684 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-570 [QR (WITHOUT EURO-OBD)] HO2S1 HEATER Diagnostic Procedure EBS00BJU 1.CHECK OVERALL FUNCTION CHECK 1. Start engine and warm it up to normal operating temperature. 2. Turn ignition switch "OFF" a

Page 1685 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S1 HEATER EC-571 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 3.DETECT MALFUNCTIONING PART Check the following. lHarness connectors E60, F36 lFuse block (J/B) connector E103 l10A fuse lHarness

Page 1686 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-572 [QR (WITHOUT EURO-OBD)] HO2S1 HEATER Component Inspection EBS00BJV HEATED OXYGEN SENSOT 1 HEATER 1. Check resistance between HO2S1 terminals as follows. 2. If NG, replace heated oxygen sensor 1

Page 1687 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HO2S2 HEATER EC-573 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC HO2S2 HEATERPFP:226A0 DescriptionEBS00BJX SYSTEM DESCRIPTION The ECM performs ON/OFF control of the heated oxygen sensor 2 heater

Page 1688 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-574 [QR (WITHOUT EURO-OBD)] HO2S2 HEATER Wiring Diagram EBS00BK0 TBWA0077E
