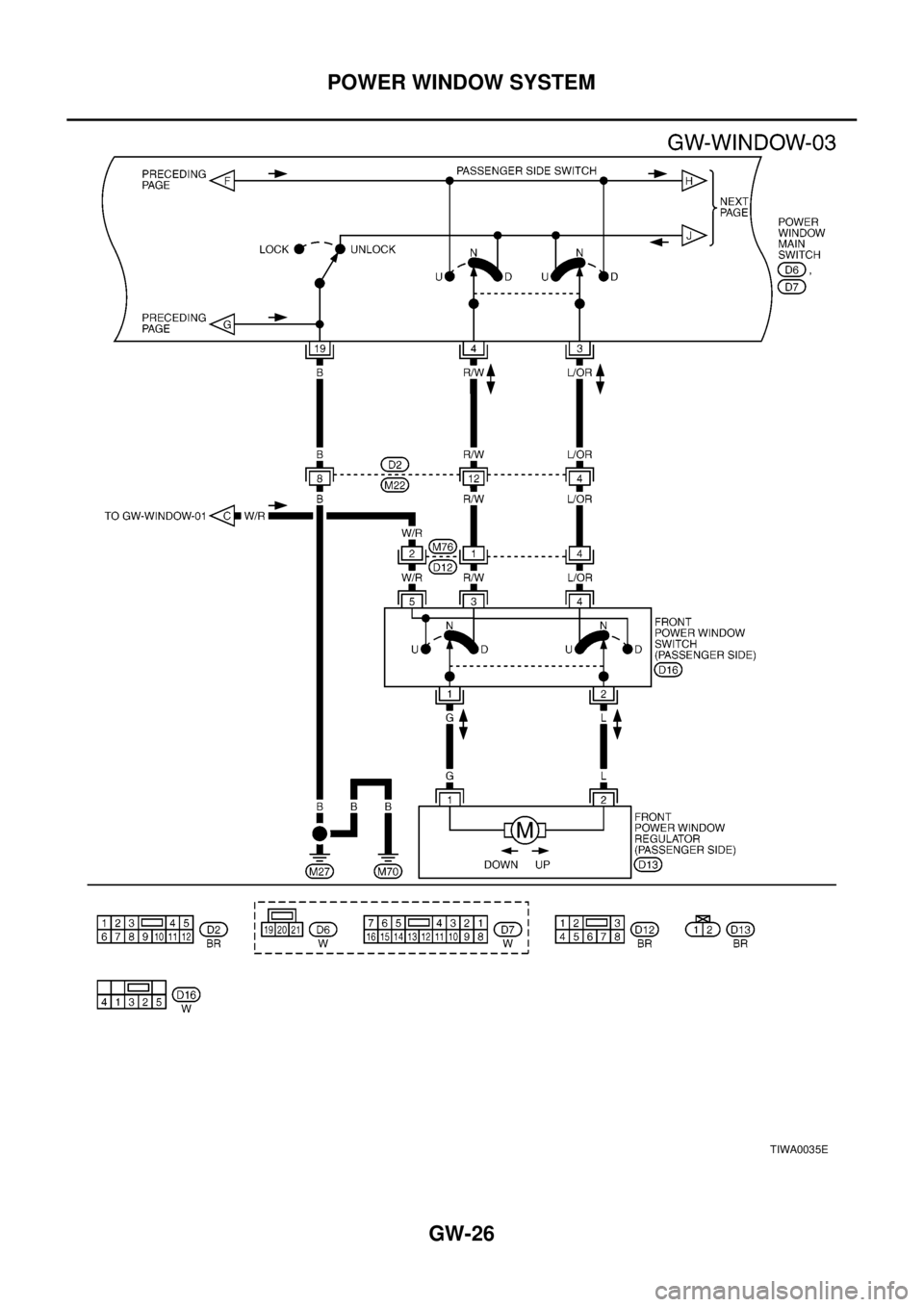

Page 2329 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-26 POWER WINDOW SYSTEM TIWA0035E

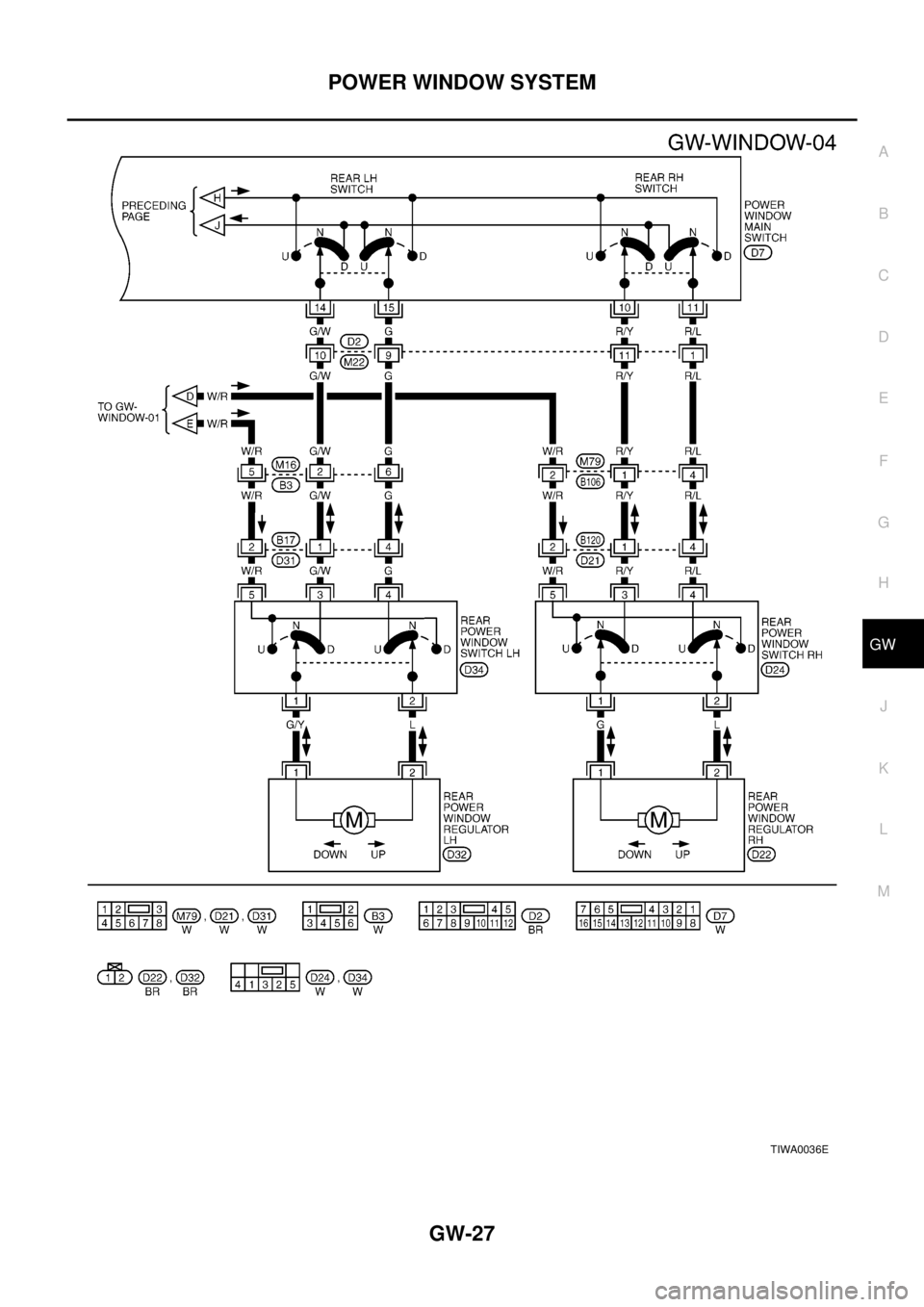

Page 2330 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER WINDOW SYSTEM GW-27 C D E F G H J K L MA B GW TIWA0036E

Page 2331 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-28 POWER WINDOW SYSTEM Terminal and Reference Value for Power Window Main Switch (LHD models) EIS001S2 TERMINALWIRE COLORITEM CONDITION VOLTAGE (V) 1LDriver power window motor DOWN signalWhen DOWN

Page 2332 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER WINDOW SYSTEM GW-29 C D E F G H J K L MA B GW Terminal and Reference Value for Each Doors Power Window Switch (LHD models) EIS000M2 11 R / LRear RH power window UP signalMain switch rear RH swi

Page 2333 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-30 POWER WINDOW SYSTEM 3 R/W Power window DOWN signalPower window switch DOWN operation.Approx. 0 Power window switch UP operation.Approx. 0 Power window switch DOWN operation.Battery voltage Power

Page 2334 of 3066

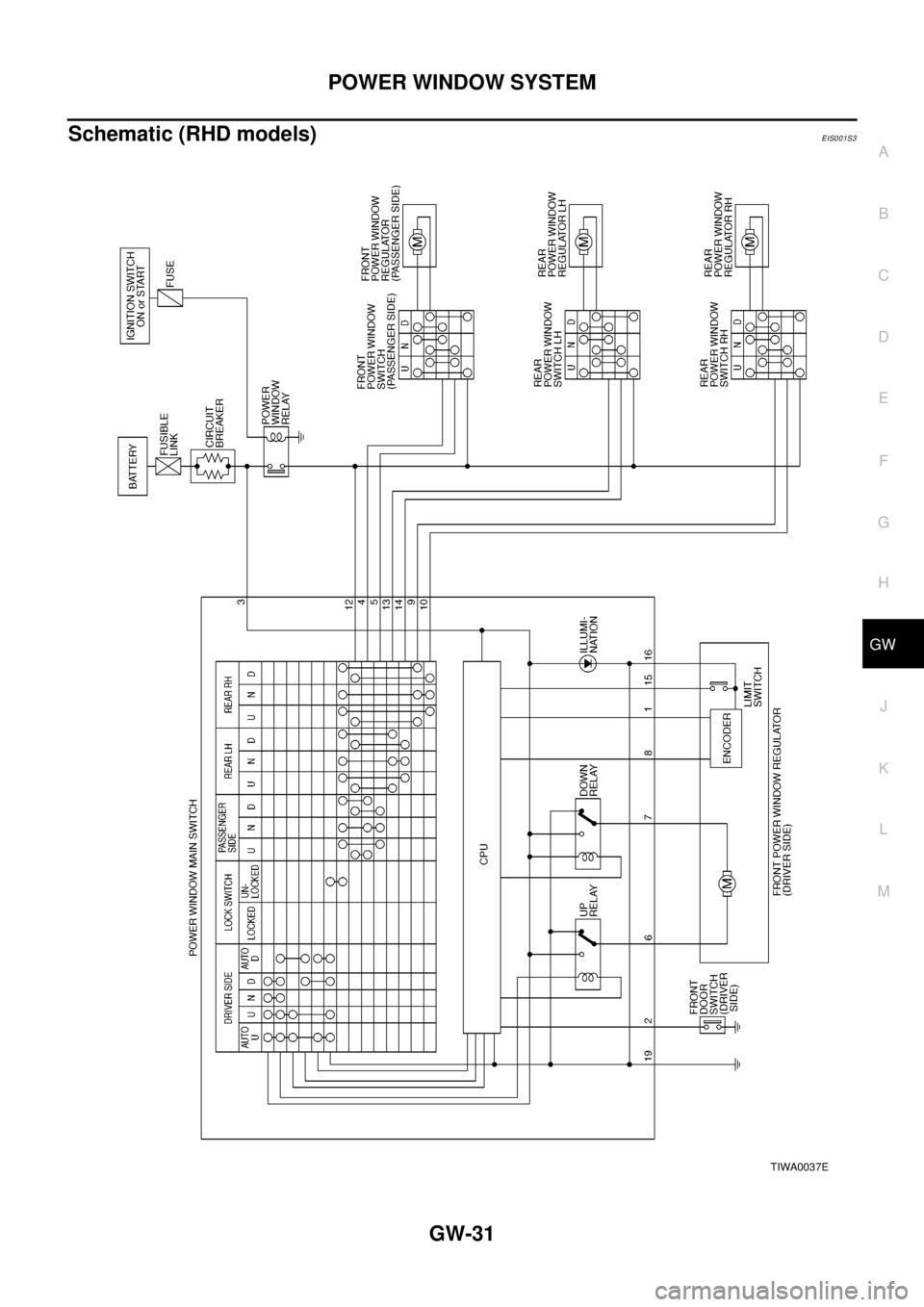

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER WINDOW SYSTEM GW-31 C D E F G H J K L MA B GW Schematic (RHD models)EIS001S3 TIWA0037E

Page 2335 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-32 POWER WINDOW SYSTEM Wiring Diagram – WINDOW – RHD models EIS001S4 TIWA0038E

Page 2336 of 3066

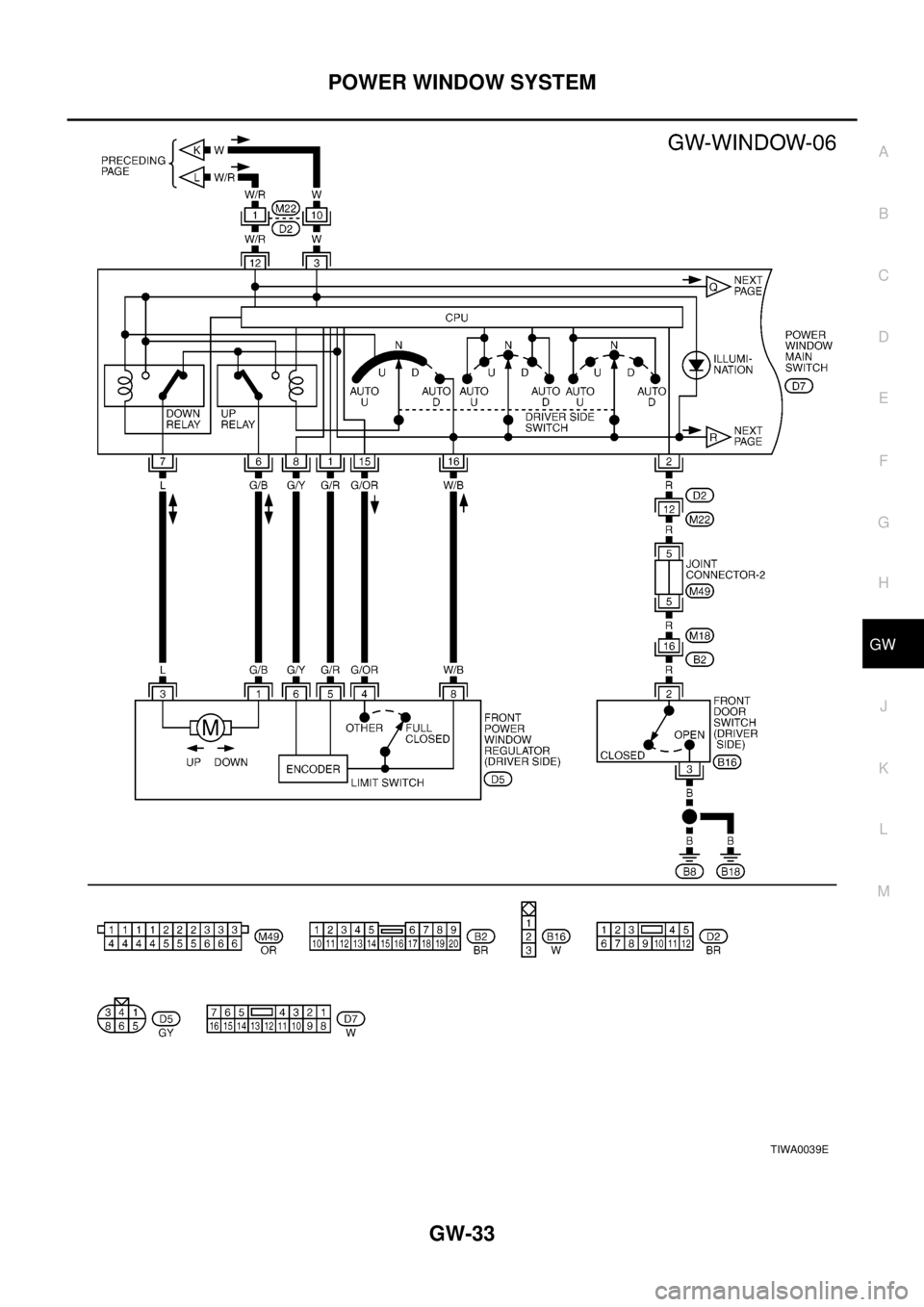

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER WINDOW SYSTEM GW-33 C D E F G H J K L MA B GW TIWA0039E
