NISSAN X-TRAIL 2003 Electronic Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EC-607 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Component InspectionEBS00B97 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE With CONSULT-I

Page 1722 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-608 [QR (WITHOUT EURO-OBD)] IVT CONTROL SOLENOID VALVE IVT CONTROL SOLENOID VALVE PFP:23796 DescriptionEBS00BM1 SYSTEM DESCRIPTION This mechanism hydraulically controls cam phases continuously with

Page 1723 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual IVT CONTROL SOLENOID VALVE EC-609 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC ECM Terminals and Reference ValueEBS00B9B Specification data are reference values and are measured between each term

Page 1724 of 3066

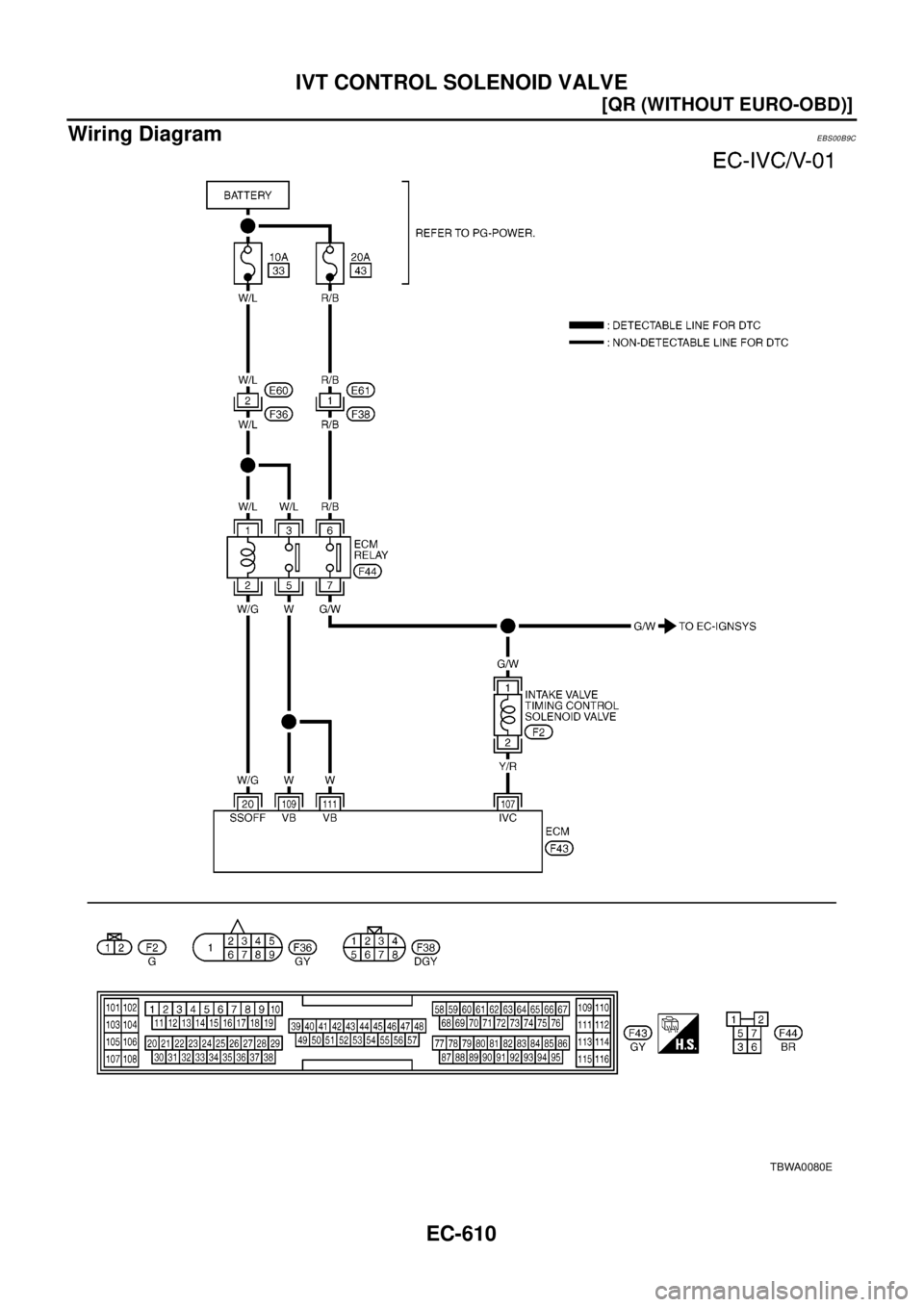

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-610 [QR (WITHOUT EURO-OBD)] IVT CONTROL SOLENOID VALVE Wiring Diagram EBS00B9C TBWA0080E

Page 1725 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual IVT CONTROL SOLENOID VALVE EC-611 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00B9D 1.CHECK OVERALL FUNCTION CHECK 1. Start engine and warm it up to normal operating tempe

Page 1726 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-612 [QR (WITHOUT EURO-OBD)] IVT CONTROL SOLENOID VALVE 3.DETECT MALFUNCTION PART Check the harness for open or short between intake valve timing control solenoid valve and ECM relay. >> Repair harn

Page 1727 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual IVT CONTROL SOLENOID VALVE EC-613 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 9.CHECK INTERMITTENT INCIDENT Refer toEC-453, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT". >>INSPECTION END Compo

Page 1728 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-614 [QR (WITHOUT EURO-OBD)] PNP SWITCH PNP SWITCH PFP:32006 Component DescriptionEBS00B9G When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON
