2003 NISSAN X-TRAIL Electronic Repair Manual

fuel consumption winter tires navigation update towing clock setting clock

Page 1769 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual INDEX FOR DTC
EC-655
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
P0203 CYL3 INJECTOR´EC-727
P0204 CYL4 INJECTOR´EC-727
P0335 CRANK POS SEN (TDC)´EC-734
P0340 CAM POS SEN/CIR´EC-739
P0500 VEHICLE SPEED SEN´EC-

Page 1770 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-656
[YD]
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS008RR
The Supplemental Restraint System such as “

EC-656
[YD]
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS008RR
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WAR NIN G:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
PrecautionsEBS00317
lBefore connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.
lDo not disassemble ECM.
lWhen connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminal, when connecting pin connectors.
lSecurely connect ECM harness connectors.
A poor connection can cause an extremely high (surge)
voltage to develop in coil and condenser, thus resulting in
damage to IC's.
lKeep engine control system harness at least 10cm (4 in)
away from adjacent harness, to prevent engine control sys-
tem malfunctions due to receiving external noise, degraded
operation of IC's, etc.
lKeep engine control system parts and harness dry.
SEF289H
PBIB0378E
SEF291H

Page 1771 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PRECAUTIONS
EC-657
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
lBefore replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer toEC-685
.
lAfter performing each

Page 1772 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-658
[YD]
PRECAUTIONS
lWhen installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on installation location.

Page 1773 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ENGINE CONTROL SYSTEM
EC-659
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
ENGINE CONTROL SYSTEMPFP:23710

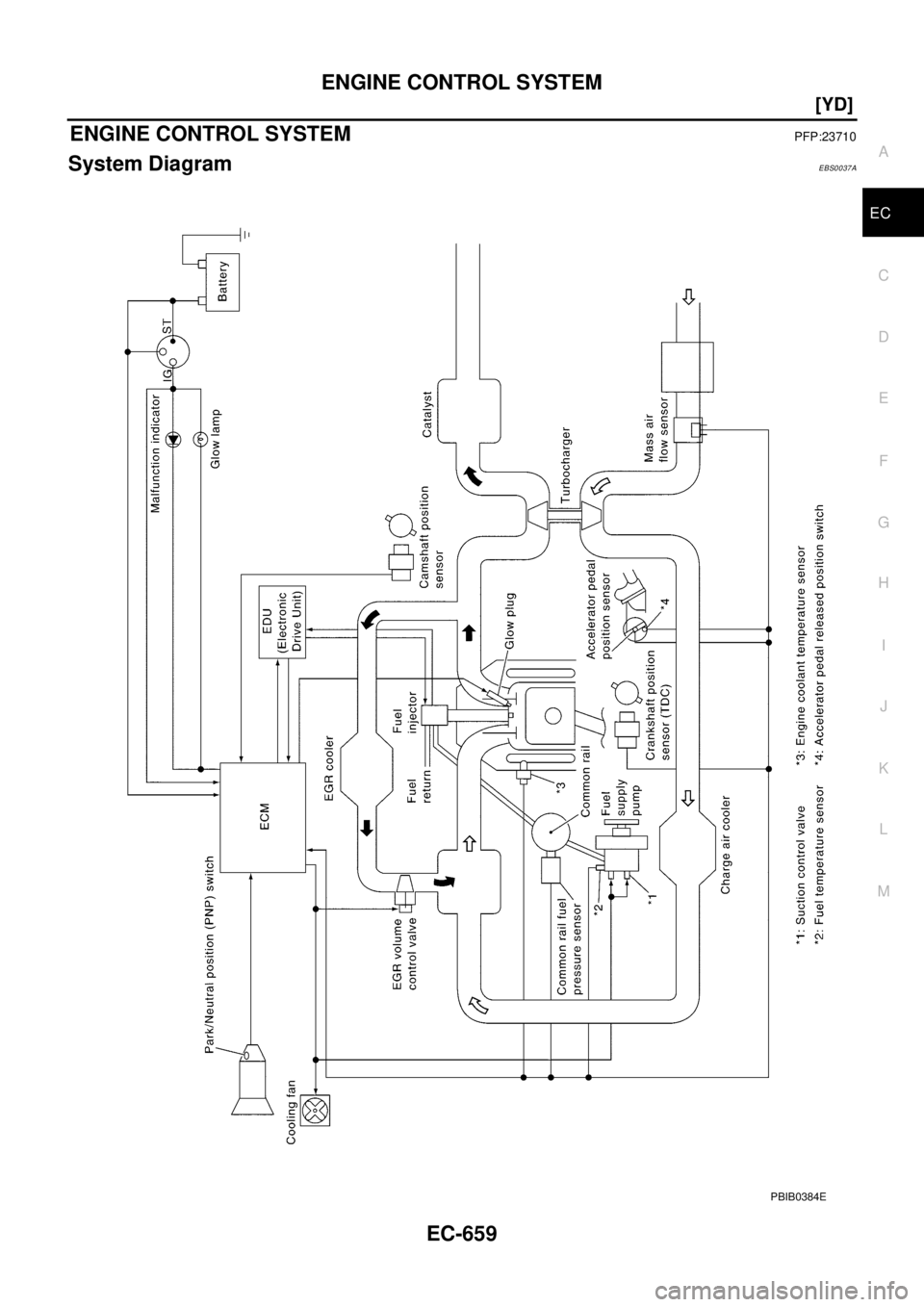

System DiagramEBS0037A
PBIB0384E

Page 1774 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-660
[YD]
ENGINE CONTROL SYSTEM
System Chart
EBS0037B
Fuel Injection Control SystemEBS0036G
SYSTEM DESCRIPTION
Three types of fuel injection control are provided to accommodate engine operating cond

EC-660
[YD]
ENGINE CONTROL SYSTEM
System Chart
EBS0037B
Fuel Injection Control SystemEBS0036G
SYSTEM DESCRIPTION
Three types of fuel injection control are provided to accommodate engine operating conditions; normal control,
idle control and start control. The ECM determines the appropriate fuel injection control. Under each control,
the amount of fuel injected is adjusted to improve engine performance.
Pulse signals are exchanged between ECM and Electronic Drive Unit (EDU). EDU controls fuel injectors
according to the input signals to adjust the amount of fuel injected to the preset value.
START CONTROL
Input/Output Signal Chart
When the ECM receives a start signal from the ignition switch, the
ECM adapts the fuel injection system for the start control. The
amount of fuel injected at engine starting is a preset program value
in the ECM. The program is determined by the engine speed, engine
coolant temperature and common rail fuel pressure.
For better startability under cool engine conditions, the lower the
coolant temperature becomes, the greater the amount of fuel
injected. The ECM ends the start control when the engine speed
reaches the specific value, and shifts the control to the normal or idle
control.
Input (Sensor) ECM Function Output (Actuator)
lAccelerator pedal position sensor
lAccelerator pedal released position switch
lCommon rail fuel pressure sensor
lFuel temperature sensor
lEngine coolant temperature sensor
lCrankshaft position sensor (TDC)
lCamshaft position sensor
lVehicle speed sensor
lIgnition switch
lStop Lamp switch
lAir conditioner switch
lMass air flow sensor
lPark/neutral position switch
lBattery voltage
lPower steering oil pressure switchFuel injection controlEDU, Fuel injectors and Suction control
valve
Fuel injection timing controlEDU, Fuel injectors and Suction control
valve
Fuel cut controlEDU, Fuel injectors and Suction control
valve
Glow control system Glow relay & glow indictor lamp
On board diagnostic system Malfunction indicator (MI)
EGR volume control EGR volume control valve
Cooling fan control Cooling fan relay
Air conditioning cut control Air conditioner relay
Sensor Input Signal to ECM ECM Function Actuator
Engine coolant temperature sensor Engine coolant temperature
Fuel injection
control (start
control)EDU
Fuel injectors
Suction control valve Crankshaft position sensor (TDC) Engine speed
Camshaft position sensor Piston position
Ignition switch Start signal
Common rail fuel pressure sensor Common rail fuel pressure
SEF648S

Page 1775 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ENGINE CONTROL SYSTEM
EC-661
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
IDLE CONTROL
Input/Output Signal Chart
When the ECM determines that the engine speed is at idle, the fuel injection system is adapted for th

ENGINE CONTROL SYSTEM
EC-661
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
IDLE CONTROL
Input/Output Signal Chart
When the ECM determines that the engine speed is at idle, the fuel injection system is adapted for the idle
control. The ECM regulates the amount of fuel injected corresponding to changes in load applied to the engine
to keep engine speed constant. The ECM also provides the system with a fast idle control in response to the
engine coolant temperature signal.
NORMAL CONTROL
Input/Output Signal Chart
The amount of fuel injected under normal driving conditions is deter-
mined according to sensor signals. The crankshaft position sensor
(TDC) detects engine speed, the accelerator pedal position sensor
detects accelerator pedal position and common rail fuel pressure
sensor detects common rail fuel pressure. These sensors send sig-
nals to the ECM.
The fuel injection data, predetermined by correlation between vari-
ous engine speeds, accelerator pedal positions and common rail fuel
pressure are stored in the ECM memory, forming a map. The ECM
determines the optimal amount of fuel to be injected using the sen-
sor signals in comparison with the map.
MAXIMUM AMOUNT CONTROL
Input/Output Signal Chart
The maximum injection amount is controlled to an optimum by the engine speed, intake air amount, engine
coolant temperature, and accelerator opening in accordance with the driving conditions.
This prevents the oversupply of the injection amount caused by decreased air density at a high altitude or dur-
ing a system failure.
Sensor Input Signal to ECM ECM Function Actuator
Engine coolant temperature sensor Engine coolant temperature
Fuel injection
control (Idle
control)EDU
Fuel injectors
Suction control valve Crankshaft position sensor (TDC) Engine speed
Battery Battery voltage
Accelerator pedal position sensor Accelerator pedal position
Accelerator pedal released position switch Accelerator pedal released position
Vehicle speed sensor Vehicle speed
Air conditioner switch Air conditioner signal
Common rail fuel pressure sensor Common rail fuel pressure
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (TDC) Engine speed
Fuel injection
control (Nor-
mal control)EDU
Fuel injectors
Suction control valve Accelerator pedal position sensor Accelerator position
Common rail fuel pressure sensor Common rail fuel pressure
SEF649S
Sensor Input Signal to ECM ECM Function Actuator
Mass air flow sensor Amount of intake air
Fuel injection
control (Maxi-
mum amount
control)EDU
Fuel Injectors Engine coolant temperature sensor Engine coolant temperature
Crankshaft position sensor (TDC) Engine speed
Accelerator pedal position sensor Accelerator position

Page 1776 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-662
[YD]
ENGINE CONTROL SYSTEM
DECELERATION CONTROL
Input/Output Signal Chart
The ECM sends a fuel cut signal to the fuel injector and suction control valve during deceleration for better fuel
effi

EC-662
[YD]
ENGINE CONTROL SYSTEM
DECELERATION CONTROL
Input/Output Signal Chart
The ECM sends a fuel cut signal to the fuel injector and suction control valve during deceleration for better fuel
efficiency. The ECM determines the time of deceleration according to signals from the accelerator pedal
released position switch and crankshaft position sensor (TDC).
Fuel Injection Timing Control SystemEBS0036H
DESCRIPTION
The target fuel injection timing in accordance with the engine speed and the fuel injection amount are recorded
as a map in the ECM beforehand. The ECM determines the optimum injection timing using sensor signals
accordance with the map.
Air Conditioning Cut ControlEBS0036I
INPUT / OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
This system improves acceleration when the air conditioner is used.
When the accelerator pedal is fully depressed, the air conditioner is turned off for a few seconds.
When engine coolant temperature becomes excessively high, the air conditioner is turned off. This continues
until the engine coolant temperature returns to normal.
Fuel Cut Control (At No Load & High Engine Speed)EBS0036J
INPUT/OUTPUT SIGNAL CHART
If the engine speed is above 2,800 rpm with no load (for example, in neutral and engine speed over 2,800
rpm) fuel will be cut off after some time. The exact time when the fuel is cut off varies based on engine speed.
Fuel cut will operate until the engine speed reaches 1,500 rpm, then fuel cut is cancelled.
NOTE:
This function is different from deceleration control listed underEC-660, "
Fuel Injection Control Sys-
tem".
Sensor Input Signal to ECM ECM Function Actuator
Accelerator pedal released position switch Accelerator pedal position Fuel injection
control (Decel-
eration control)EDU
Fuel injectors
Crankshaft position sensor (TDC) Engine speed
Sensor Input Signal to ECM ECM Function Actuator
Air conditioner switch Air conditioner “ON” signal
Air conditioner
cut controlAir conditioner relay Accelerator pedal position sensor Accelerator pedal opening angle
Vehicle speed sensor Vehicle speed
Engine coolant temperature sensor Engine coolant temperature
Sensor Input Signal to ECM ECM Function Actuator
Vehicle speed sensor Vehicle speed
Fuel cut controlEDU
Fuel injectors Accelerator pedal released position switch Accelerator position
Crankshaft position sensor (TDC) Engine speed

Load next 8 pages

Page: < prev 1-10 ... 1737-1744 1745-1752 1753-1760 1761-1768 1769-1776 1777-1784 1785-1792 1793-1800 1801-1808 ... 3072 next >

seat adjustment emergency towing fuel tank removal alternator airbag disable coolant temperature
