Page 2305 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS001P3
The Supplemental Restraint System such as “AIR BAG

GW-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS001P3
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WAR NIN G:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
PrecautionsEIS001P4
lWhen removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.
lWhen removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
lKeep removed parts protected with cloth.
lIf a clip is deformed or damaged, replace it.
lIf an unreusable part is removed, replace it with a new one.
lTighten bolts and nuts firmly to the specified torque.
lAfter re-assembly has been completed, make sure each part functions correctly.
lRemove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
lDo not use any organic solvent, such as thinner or benzine.

Page 2306 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual WINDSHIELD GLASS AND MOLDING
GW-3
C
D
E
F
G
H
J
K
L
MA
B
GW
WINDSHIELD GLASS AND MOLDINGPFP:72700
Removal and InstallationEIS001P5
REMOVAL

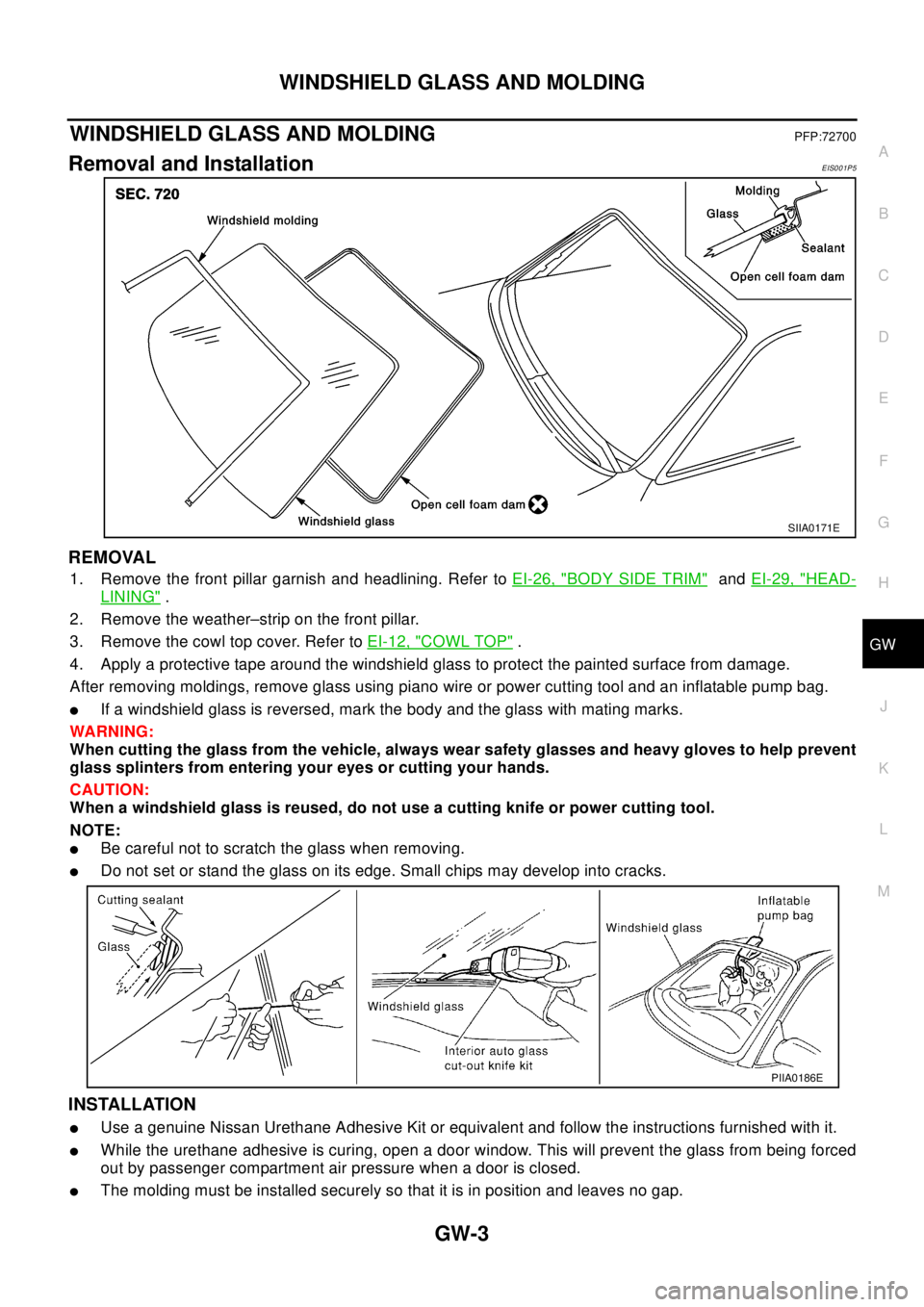

1. Remove the front pillar garnish and headlining. Refer toEI

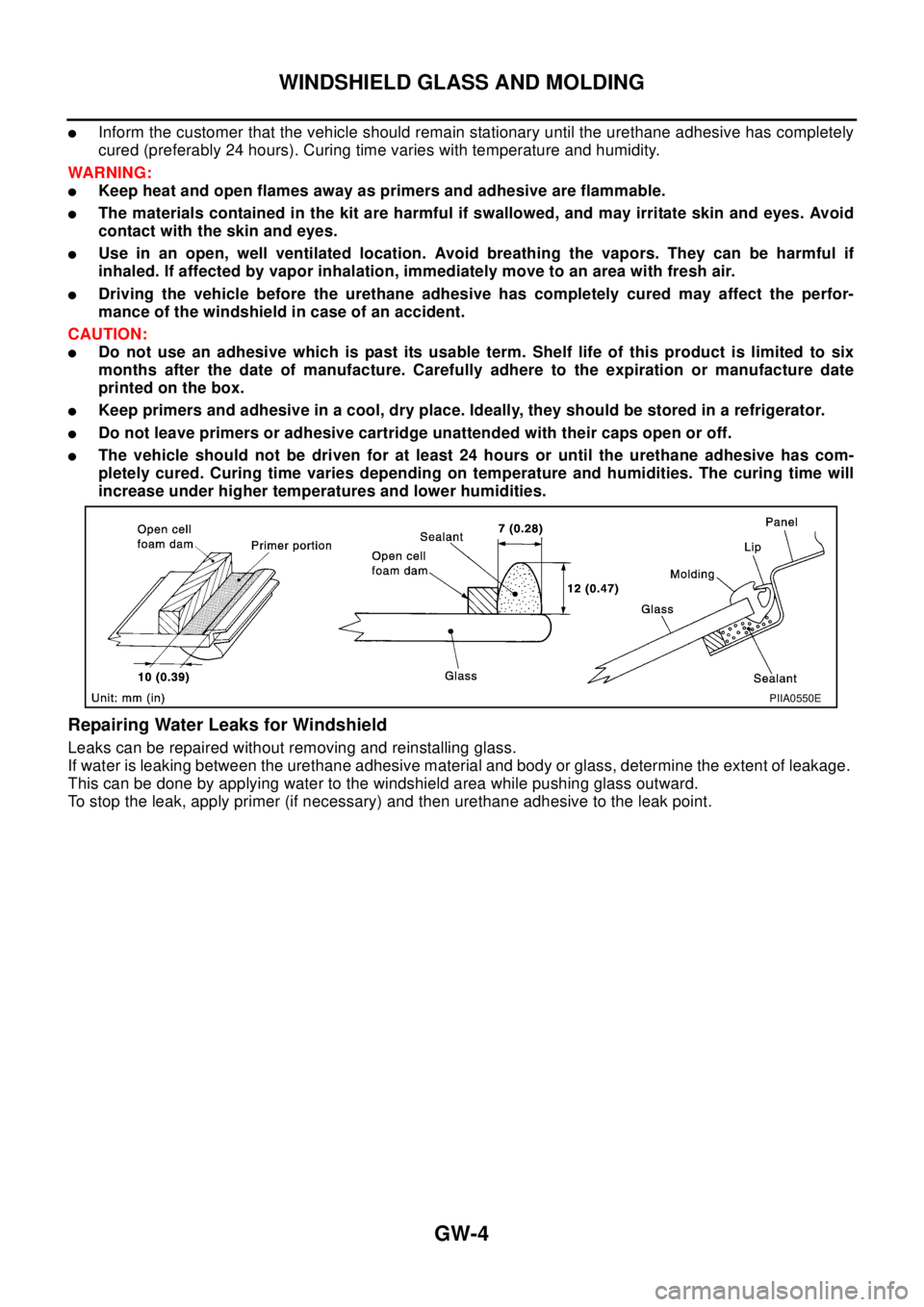

Page 2307 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-4
WINDSHIELD GLASS AND MOLDING
lInform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with tempera

Page 2308 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SIDE WINDOW GLASS
GW-5
C
D
E
F
G
H
J
K
L
MA
B
GW
SIDE WINDOW GLASSPFP:83300
Removal and InstallationEIS000LV
REMOVAL
1. Remove luggage side lower finisher and rear pillar finisher. Refer toEI-26, "BOD

Page 2309 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-6
SIDE WINDOW GLASS
6. Using a spatula, repair any adhesive overflow or shortage to make the surface smooth.
NOTE:
After installing glass, open the door windows until adhesive has had enough time t

Page 2310 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BACK DOOR WINDOW GLASS
GW-7
C
D
E
F
G
H
J
K
L
MA
B
GW
BACK DOOR WINDOW GLASSPFP:90300
Removal and InstallationEIS000LW
REMOVAL

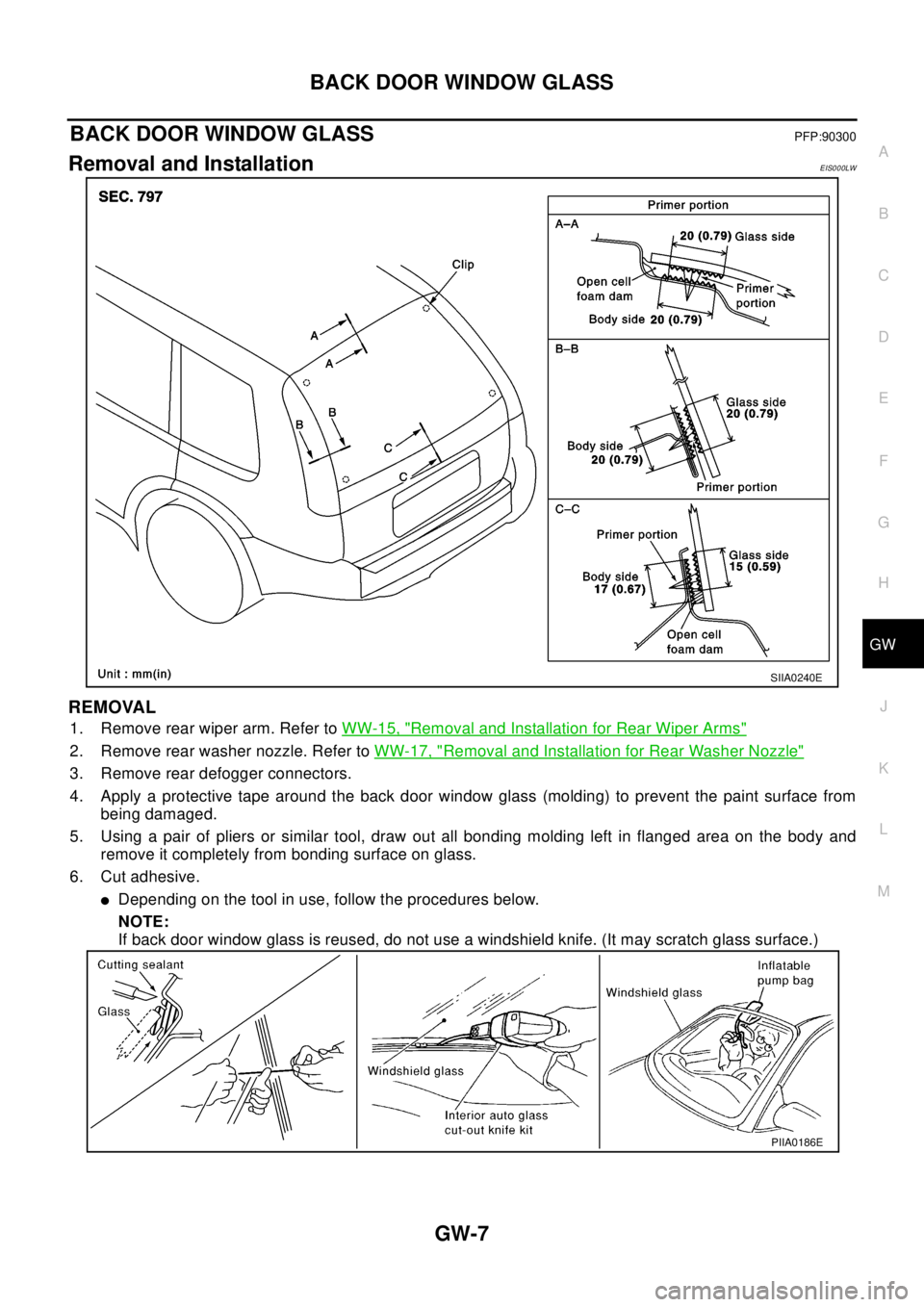

1. Remove rear wiper arm. Refer toWW-15, "Removal and Installation for Re

Page 2311 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-8
BACK DOOR WINDOW GLASS
INSTALLATION
1. With a knife, scrape off remaining adhesive left around on the
side of vehicle body to as thin and flat as 2 mm. (0.08in).
2. When reusing glass, using a kn

Page 2312 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR WINDOW DEFOGGER
GW-9
C
D
E
F
G
H
J
K
L
MA
B
GW
REAR WINDOW DEFOGGERPFP:25350

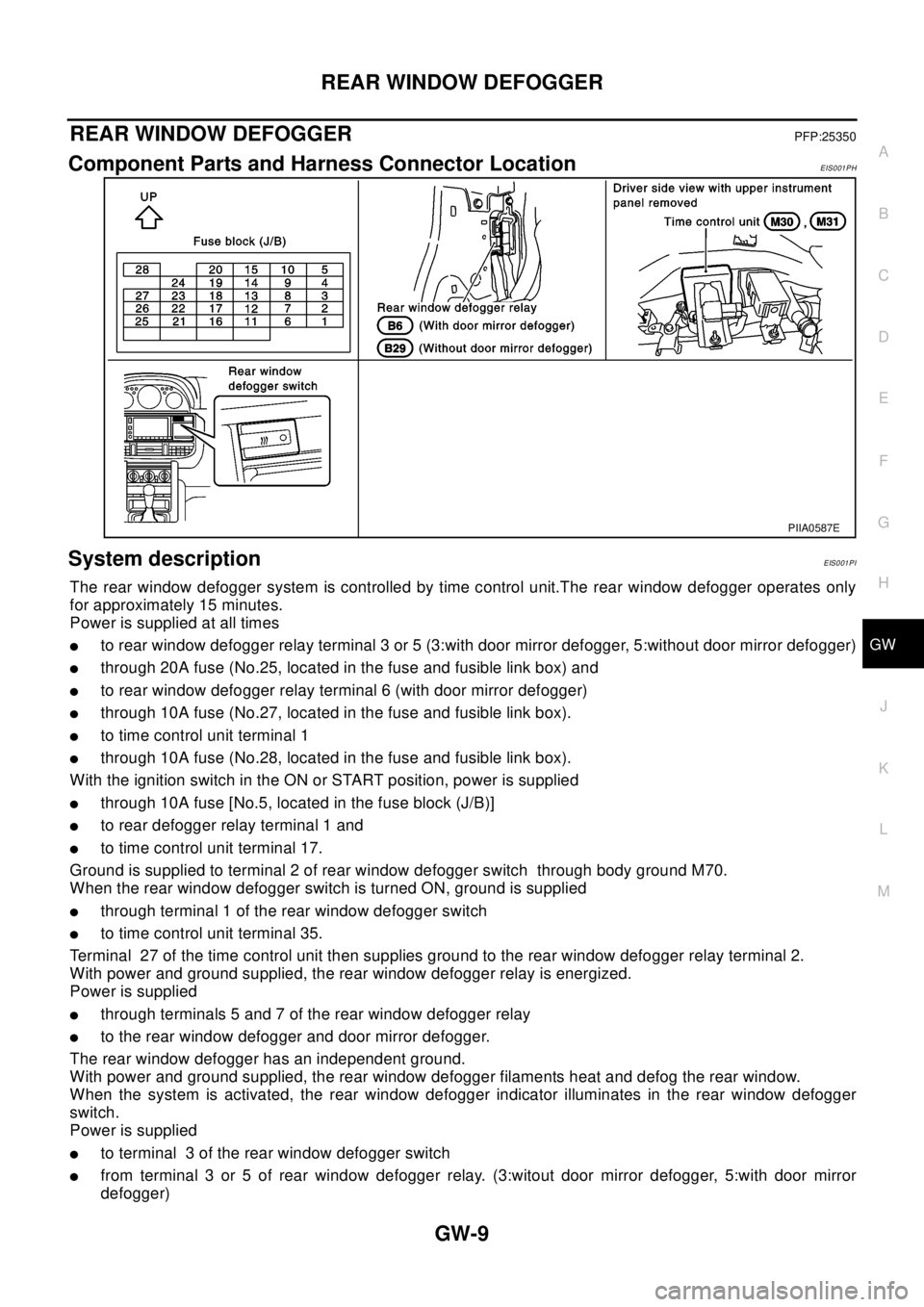

Component Parts and Harness Connector LocationEIS001PH
System descriptionEIS001PI
The rear window defogger system is c
