Page 697 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AIR MIX DOOR MOTOR ATC-119 C D E F G H I K L MA B AT C AIR MIX DOOR MOTORPFP:27732 Removal and InstallationEJS001F5 1. Disconnect the air mix door motor connector. 2. Remove the air mix door motor. RJ

Page 698 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ATC-120 HEATER CORE HEATER CORE PFP:27140 Removal and InstallationEJS000W0 1. Remove the heater & cooling unit. Refer to .AT C - 11 5 , "HEATER &COOLING UNIT ASSEMBLY" 2. Remove the heater pipe suppor

Page 699 of 3066

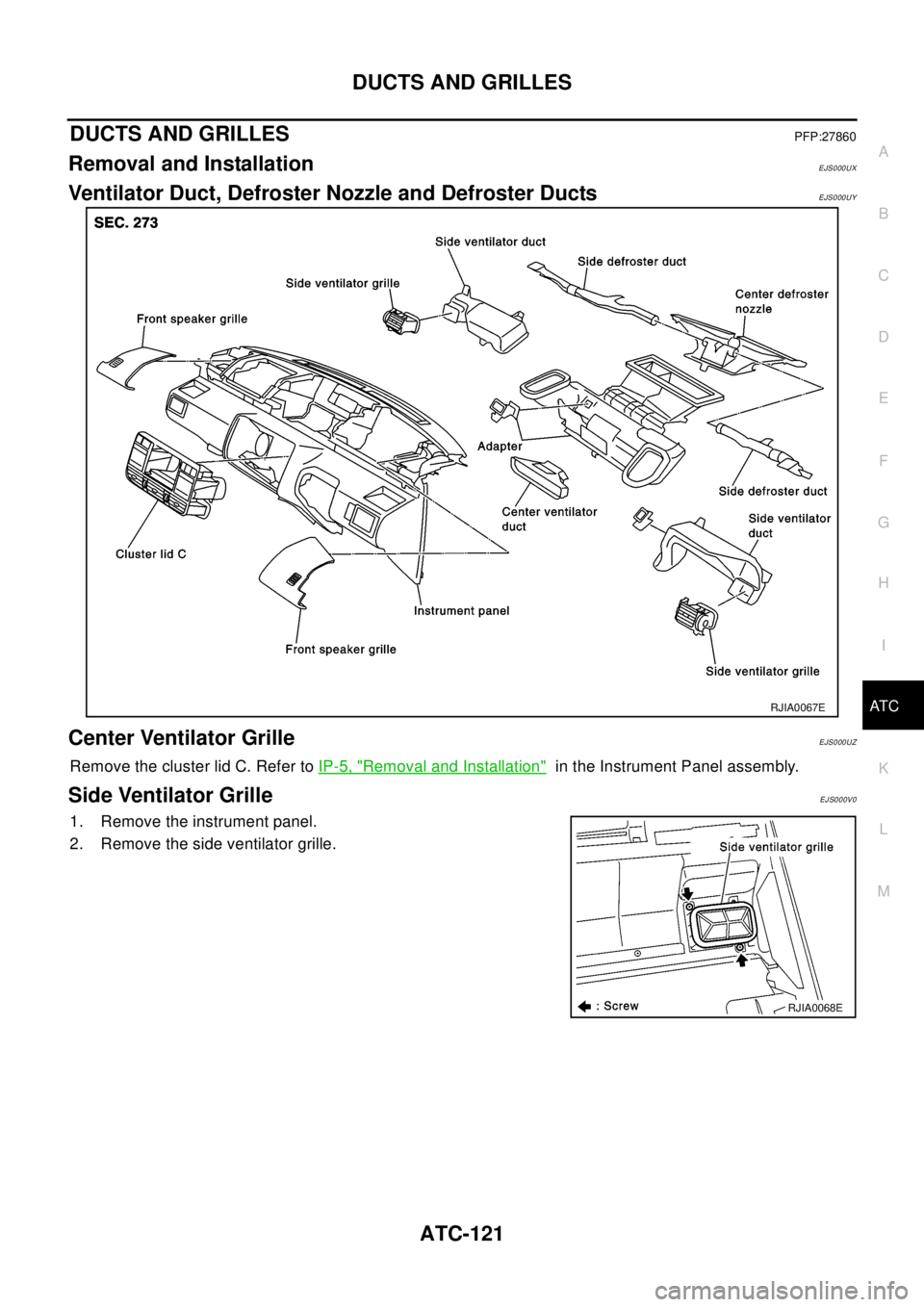

NISSAN X-TRAIL 2003 Electronic Repair Manual DUCTS AND GRILLES ATC-121 C D E F G H I K L MA B AT C DUCTS AND GRILLESPFP:27860 Removal and InstallationEJS000UX Ventilator Duct, Defroster Nozzle and Defroster DuctsEJS000UY Center Ventilator Grille

Page 700 of 3066

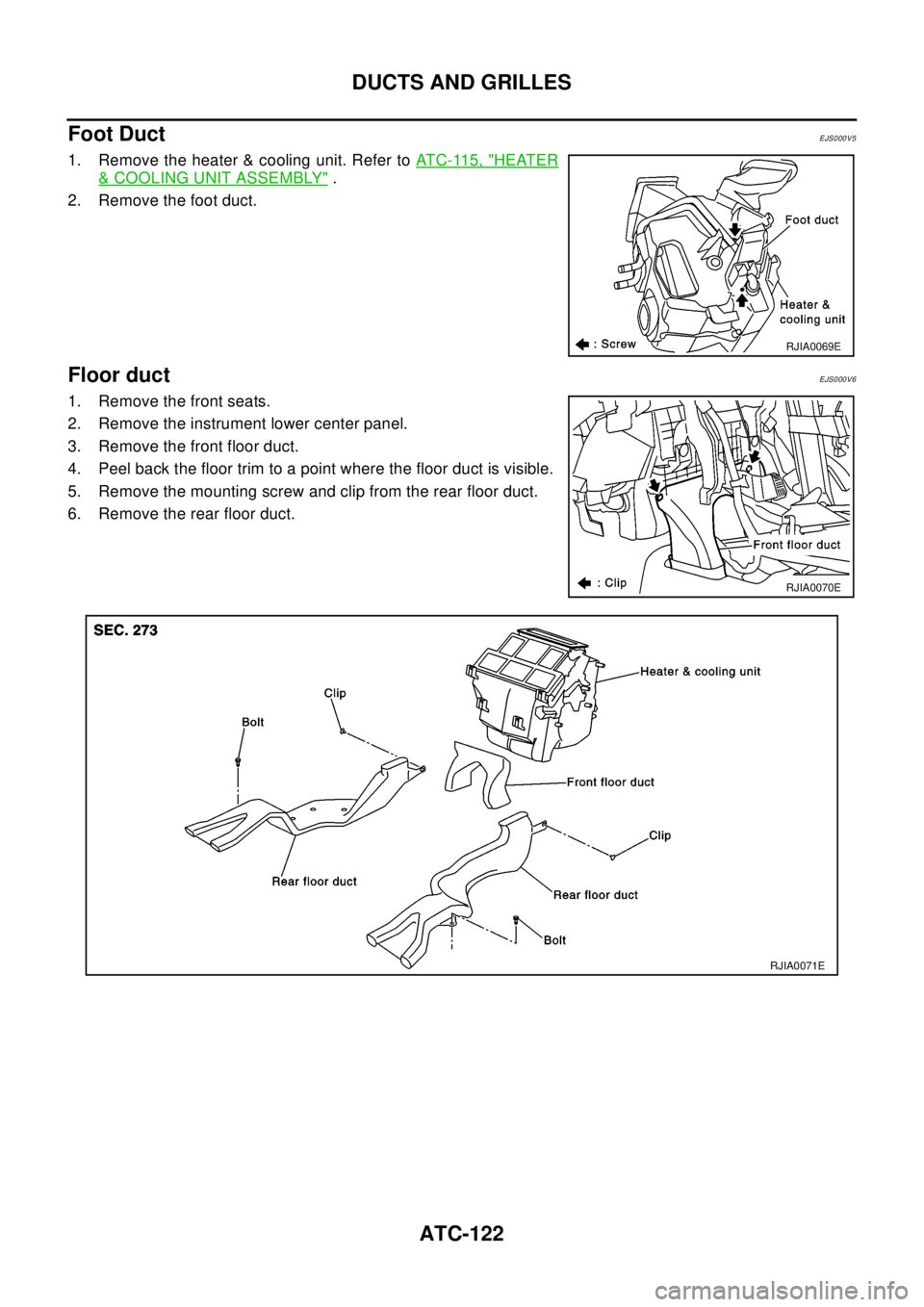

NISSAN X-TRAIL 2003 Electronic Repair Manual ATC-122 DUCTS AND GRILLES Foot Duct EJS000V5 1. Remove the heater & cooling unit. Refer toATC-115, "HEATER &COOLING UNIT ASSEMBLY". 2. Remove the foot duct. Floor ductEJS000V6 1. Remove the front seat

Page 701 of 3066

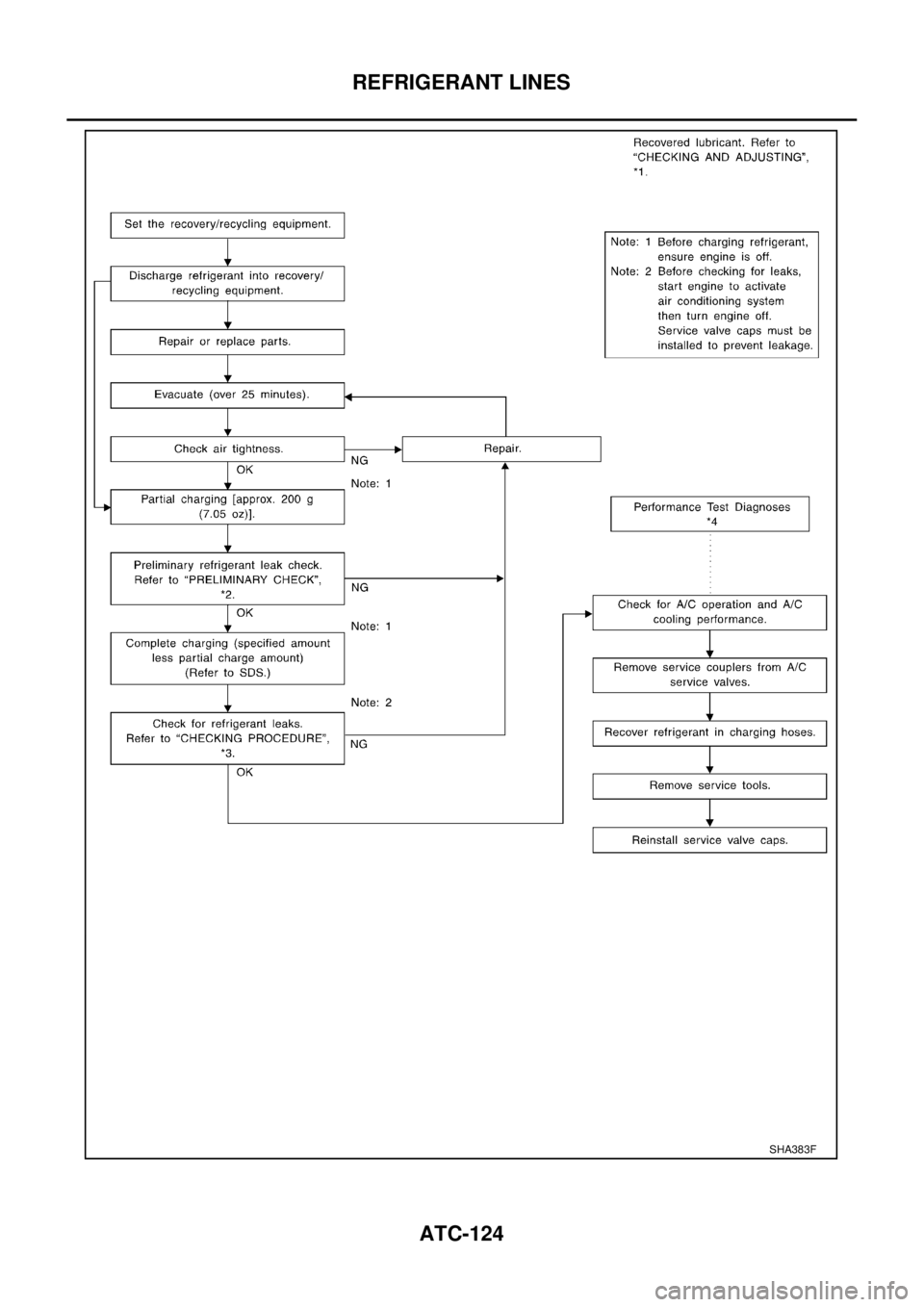

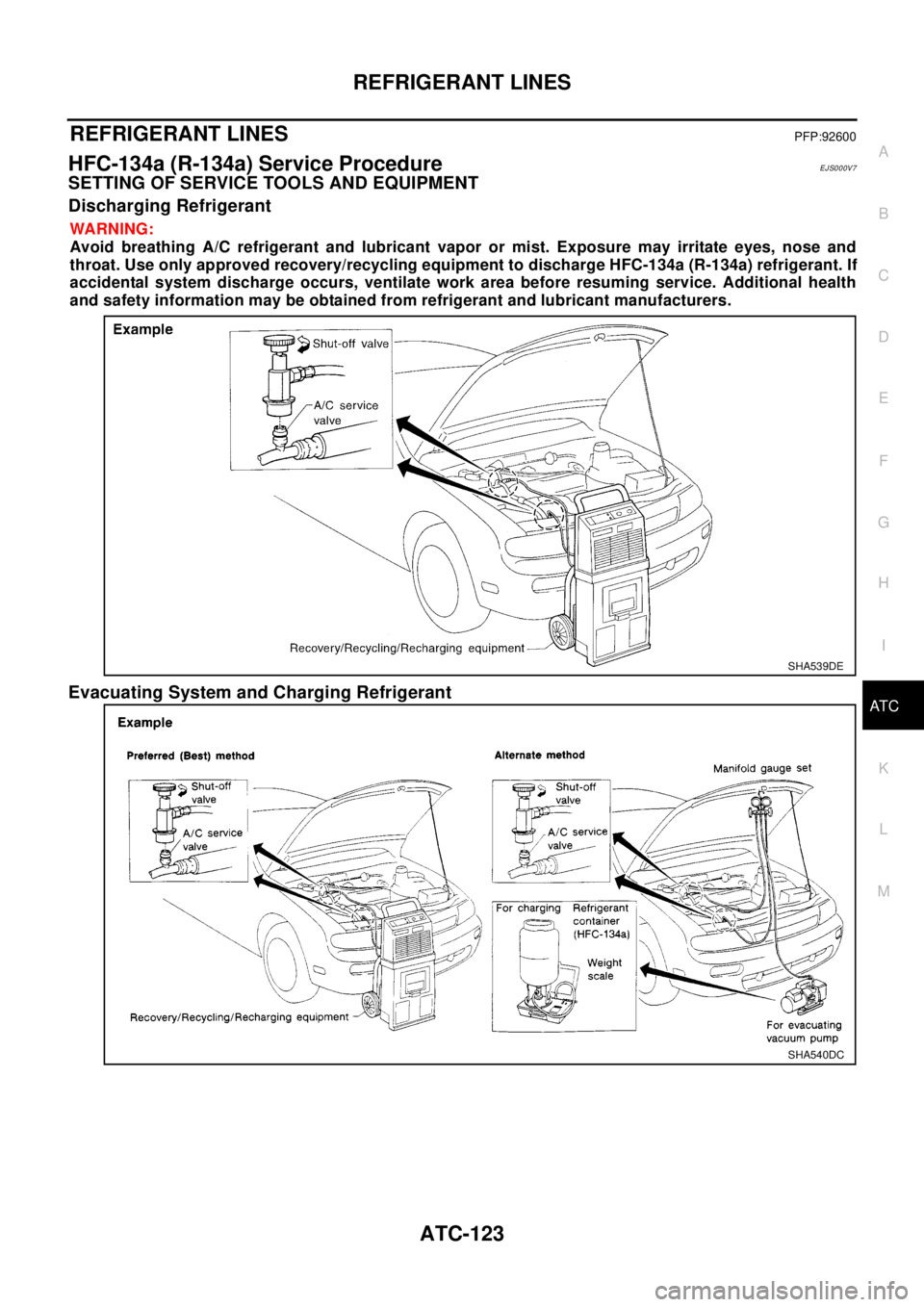

NISSAN X-TRAIL 2003 Electronic Repair Manual REFRIGERANT LINES ATC-123 C D E F G H I K L MA B AT C REFRIGERANT LINESPFP:92600 HFC-134a (R-134a) Service ProcedureEJS000V7 SETTING OF SERVICE TOOLS AND EQUIPMENT Discharging Refrigerant WA RN ING: A

Page 702 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ATC-124 REFRIGERANT LINES SHA383F

Page 703 of 3066

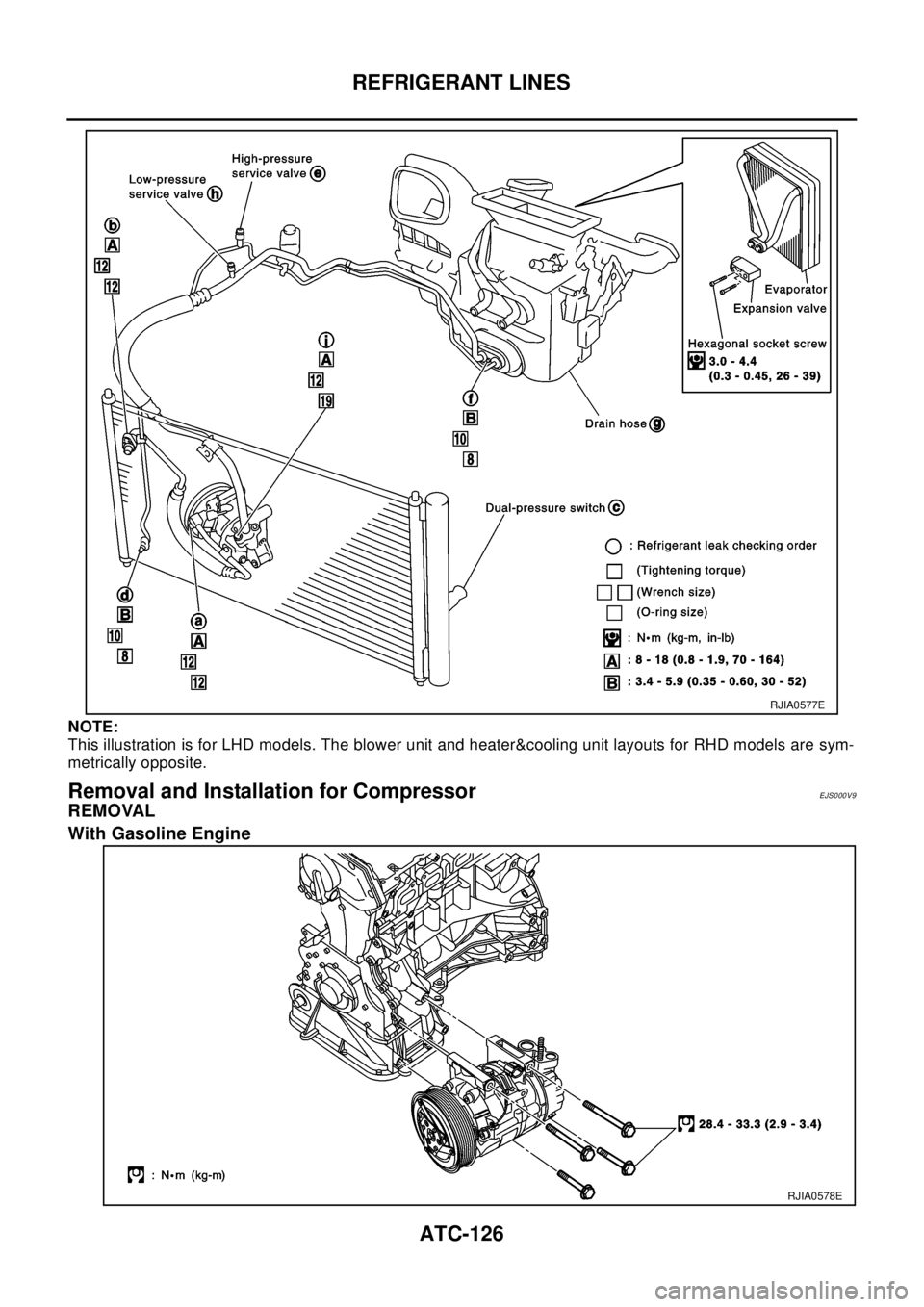

NISSAN X-TRAIL 2003 Electronic Repair Manual REFRIGERANT LINES ATC-125 C D E F G H I K L MA B AT C ComponentsEJS000V8 Refer to pageAT C - 5reading "Precautions for Refrigerant connection". NOTE: This illustration is for RHD models. The blower un

Page 704 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ATC-126 REFRIGERANT LINES NOTE: This illustration is for LHD models. The blower unit and heater&cooling unit layouts for RHD models are sym- metrically opposite. Removal and Installation for Compresso
