Page 2105 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual INJECTION TUBE AND FUEL INJECTOR
EM-135
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
INJECTION TUBE AND FUEL INJECTORPFP:00018
Removal and InstallationEBS00BPY
CAUTION:
Apply new engine oil to parts marked in NISSAN X-TRAIL 2003 Electronic Repair Manual INJECTION TUBE AND FUEL INJECTOR
EM-135
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
INJECTION TUBE AND FUEL INJECTORPFP:00018
Removal and InstallationEBS00BPY
CAUTION:
Apply new engine oil to parts marked in](/manual-img/5/57402/w960_57402-2104.png)
INJECTION TUBE AND FUEL INJECTOR
EM-135
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
INJECTION TUBE AND FUEL INJECTORPFP:00018
Removal and InstallationEBS00BPY
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
REMOVAL
1. Remove charge air cooler. Refer toEM-114, "Removal and Installation".
2. Remove harness connector from fuel injector.
3. Remove spill hose.
4. Following steps below, remove injection tubes.
a. Put a paint mark or tag on injection tubes to identify each cylin-
der.
lUse a fuel-resistant method.
b. Remove injection tubes in order of 2-1-4-3 individually.
CAUTION:
Be careful not to allow leaked fuel to contaminate engine
compartment. Especially, ensure to keep engine mount
insulator clear of fuel.
NOTE:
Removal procedure of fuel injector is shown below.
SBIA0202E
1. Spill tube 2. Eye-bolt 3. Spill tube gasket
4. Nozzle support 5. Fuel injector 6. O-ring
7. Nozzle gasket 8. Nozzle oil seal 9. Injection tube No.1
10. Injection tube No.2 11. Injection tube No.3 12. Injection tube No.4
13. Injection tube center 14. Common rail assembly
SBIA0203E
Page 2106 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EM-136
[YD22DDTi]
INJECTION TUBE AND FUEL INJECTOR
5. Remove nozzle oil seal.
lUsing a slotted screwdriver, pry flange to remove oil seal.
NOTE:
Nozzle oil seal seals between fuel injector and rocker NISSAN X-TRAIL 2003 Electronic Repair Manual EM-136
[YD22DDTi]
INJECTION TUBE AND FUEL INJECTOR
5. Remove nozzle oil seal.
lUsing a slotted screwdriver, pry flange to remove oil seal.
NOTE:
Nozzle oil seal seals between fuel injector and rocker](/manual-img/5/57402/w960_57402-2105.png)
EM-136
[YD22DDTi]
INJECTION TUBE AND FUEL INJECTOR
5. Remove nozzle oil seal.
lUsing a slotted screwdriver, pry flange to remove oil seal.
NOTE:
Nozzle oil seal seals between fuel injector and rocker cover. If
only injection tube shall be removed and installed, nozzle oil
seal replacement is not required.
6. Remove rocker cover. Refer toEM-147, "
Removal and Installa-
tion".
7. Remove spill tube mounting bolts and nut.
lLoosen bolts and nut to the reverse order of the shown in the
figure and remove then.
8. Following steps below, remove fuel injector.
a. Remove nozzle support.
b. Remove fuel injector. While rotating it to left and right, raise it to
remove.
CAUTION:
lHandle fuel injector carefully without giving any impact.
lDo not disassemble fuel injector.
c. If nozzle gasket remains in cylinder head, hook it with tip of a
slotted screwdriver and pull it out.
INSTALLATION
1. Following steps below, install fuel injector.
a. Install O-ring and nozzle gasket to fuel injector, and insert them into cylinder head.
b. Secure it with support.
SBIA0176E
SBIA0205E
SBIA0204E
Page 2107 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual INJECTION TUBE AND FUEL INJECTOR
EM-137
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Connect spill tube.
lTighten fixing bolts and nut in the numerical order shown in
the figure.
NOTE:
Connection of spill NISSAN X-TRAIL 2003 Electronic Repair Manual INJECTION TUBE AND FUEL INJECTOR
EM-137
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Connect spill tube.
lTighten fixing bolts and nut in the numerical order shown in
the figure.
NOTE:
Connection of spill](/manual-img/5/57402/w960_57402-2106.png)

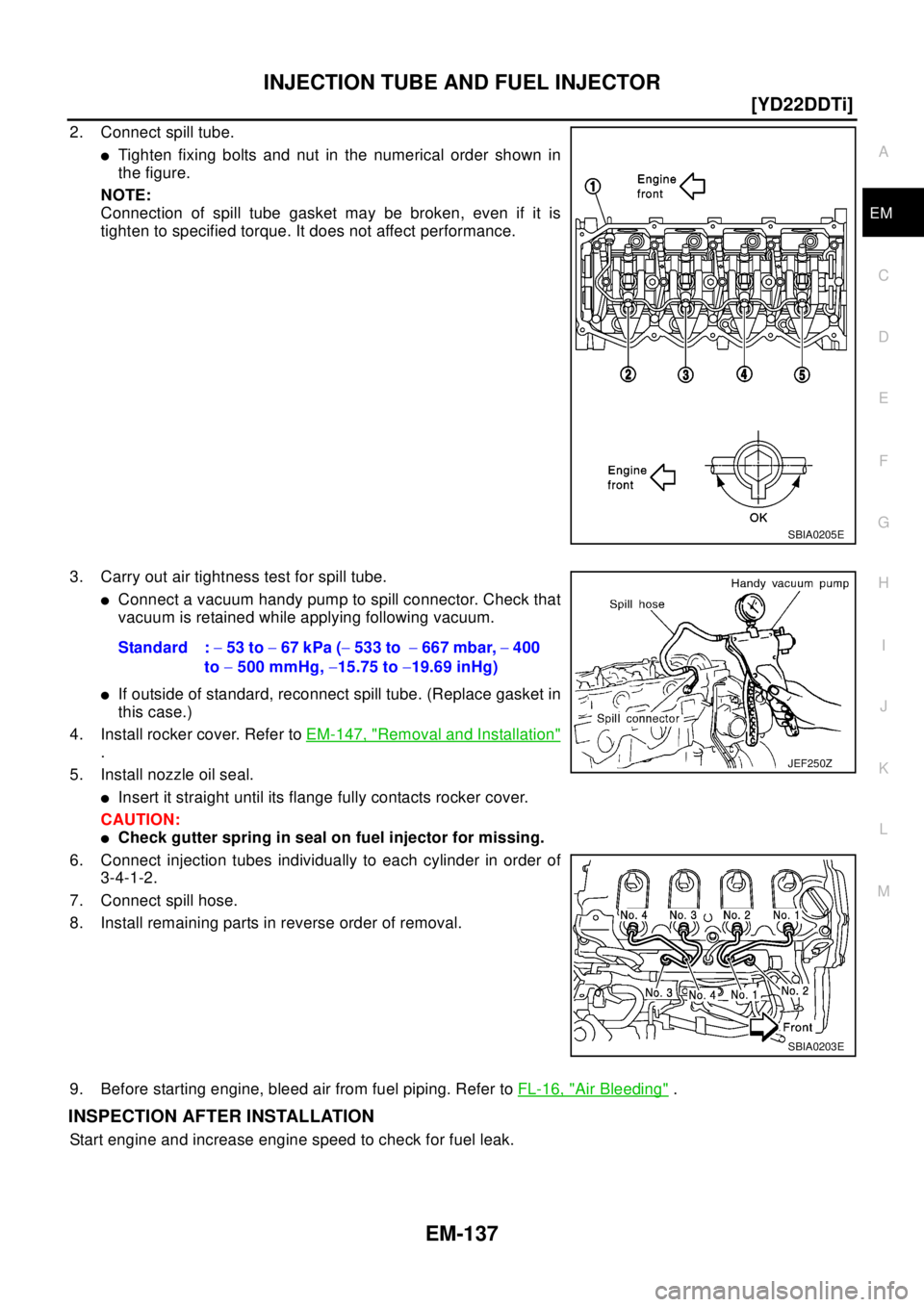

INJECTION TUBE AND FUEL INJECTOR
EM-137
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Connect spill tube.
lTighten fixing bolts and nut in the numerical order shown in
the figure.
NOTE:
Connection of spill tube gasket may be broken, even if it is
tighten to specified torque. It does not affect performance.
3. Carry out air tightness test for spill tube.
lConnect a vacuum handy pump to spill connector. Check that
vacuum is retained while applying following vacuum.
lIf outside of standard, reconnect spill tube. (Replace gasket in
this case.)
4. Install rocker cover. Refer toEM-147, "
Removal and Installation"
.
5. Install nozzle oil seal.
lInsert it straight until its flange fully contacts rocker cover.
CAUTION:
lCheck gutter spring in seal on fuel injector for missing.
6. Connect injection tubes individually to each cylinder in order of
3-4-1-2.
7. Connect spill hose.
8. Install remaining parts in reverse order of removal.
9. Before starting engine, bleed air from fuel piping. Refer toFL-16, "
Air Bleeding".
INSPECTION AFTER INSTALLATION
Start engine and increase engine speed to check for fuel leak.
SBIA0205E
Standard :-53 to-67 kPa (-533 to-667 mbar,-400
to-500 mmHg,-15.75 to-19.69 inHg)
JEF250Z
SBIA0203E
Page 2108 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EM-138
[YD22DDTi]
FUEL SUPPLY PUMP
FUEL SUPPLY PUMP
PFP:00018
Removal and InstallationEBS00CBL
CAUTION:
lbefore removing and installing fuel supply pump, be sure to remove sprocket. Do not loosen or
r NISSAN X-TRAIL 2003 Electronic Repair Manual EM-138
[YD22DDTi]
FUEL SUPPLY PUMP
FUEL SUPPLY PUMP
PFP:00018
Removal and InstallationEBS00CBL
CAUTION:
lbefore removing and installing fuel supply pump, be sure to remove sprocket. Do not loosen or
r](/manual-img/5/57402/w960_57402-2107.png)
EM-138
[YD22DDTi]
FUEL SUPPLY PUMP
FUEL SUPPLY PUMP
PFP:00018
Removal and InstallationEBS00CBL
CAUTION:
lbefore removing and installing fuel supply pump, be sure to remove sprocket. Do not loosen or
remove installation nut in the center of fuel supply pump. If loosened or removed, replace fuel
supply pump.
lAfter removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
lWhen installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
lApply new engine oil to parts marked in illustration before installation.
REMOVAL
1. Remove coolant reservoir tank.
2. Remove charge air cooler. Refer toEM-114, "
Removal and Installation".
3. Remove RH engine mount insulator and bracket. Refer toEM-184, "
Removal and Installation".
4. Pull power steering reservoir tank out of brackets to move power steering piping.
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
1. Washer 2. Fuel supply pump sprocket 3. Fuel supply pump
4. Fuel supply pump rear bracket 5. Fuel connector (Feed side) 6. Fuel connector (Return side)
SBIA0213E
Page 2109 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual FUEL SUPPLY PUMP
EM-139
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove RH front wheel.
6. Remove RH splash cover (combined with under cover)
7. Remove fuel hose from fuel supply pump.
8. Remove the ha NISSAN X-TRAIL 2003 Electronic Repair Manual FUEL SUPPLY PUMP
EM-139
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove RH front wheel.
6. Remove RH splash cover (combined with under cover)
7. Remove fuel hose from fuel supply pump.
8. Remove the ha](/manual-img/5/57402/w960_57402-2108.png)

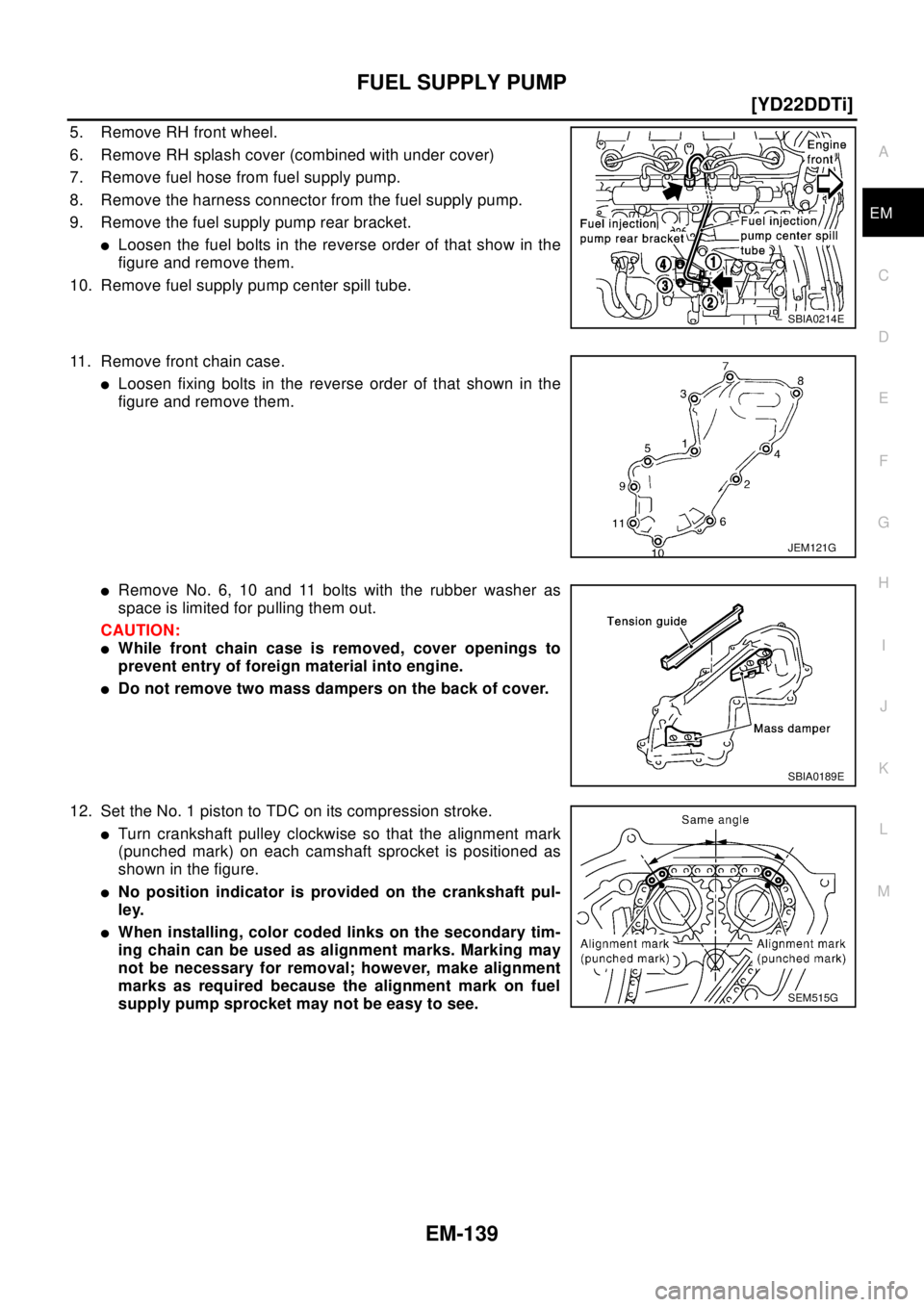

FUEL SUPPLY PUMP
EM-139
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove RH front wheel.
6. Remove RH splash cover (combined with under cover)
7. Remove fuel hose from fuel supply pump.
8. Remove the harness connector from the fuel supply pump.
9. Remove the fuel supply pump rear bracket.
lLoosen the fuel bolts in the reverse order of that show in the
figure and remove them.
10. Remove fuel supply pump center spill tube.
11. Remove front chain case.
lLoosen fixing bolts in the reverse order of that shown in the
figure and remove them.
lRemove No. 6, 10 and 11 bolts with the rubber washer as
space is limited for pulling them out.
CAUTION:
lWhile front chain case is removed, cover openings to
prevent entry of foreign material into engine.
lDo not remove two mass dampers on the back of cover.
12. Set the No. 1 piston to TDC on its compression stroke.
lTurn crankshaft pulley clockwise so that the alignment mark
(punched mark) on each camshaft sprocket is positioned as
showninthefigure.
lNo position indicator is provided on the crankshaft pul-
ley.
lWhen installing, color coded links on the secondary tim-
ing chain can be used as alignment marks. Marking may
not be necessary for removal; however, make alignment
marks as required because the alignment mark on fuel
supply pump sprocket may not be easy to see.
SBIA0214E
JEM121G
SBIA0189E
SEM515G
Page 2110 of 3066
EM-140
[YD22DDTi]
FUEL SUPPLY PUMP

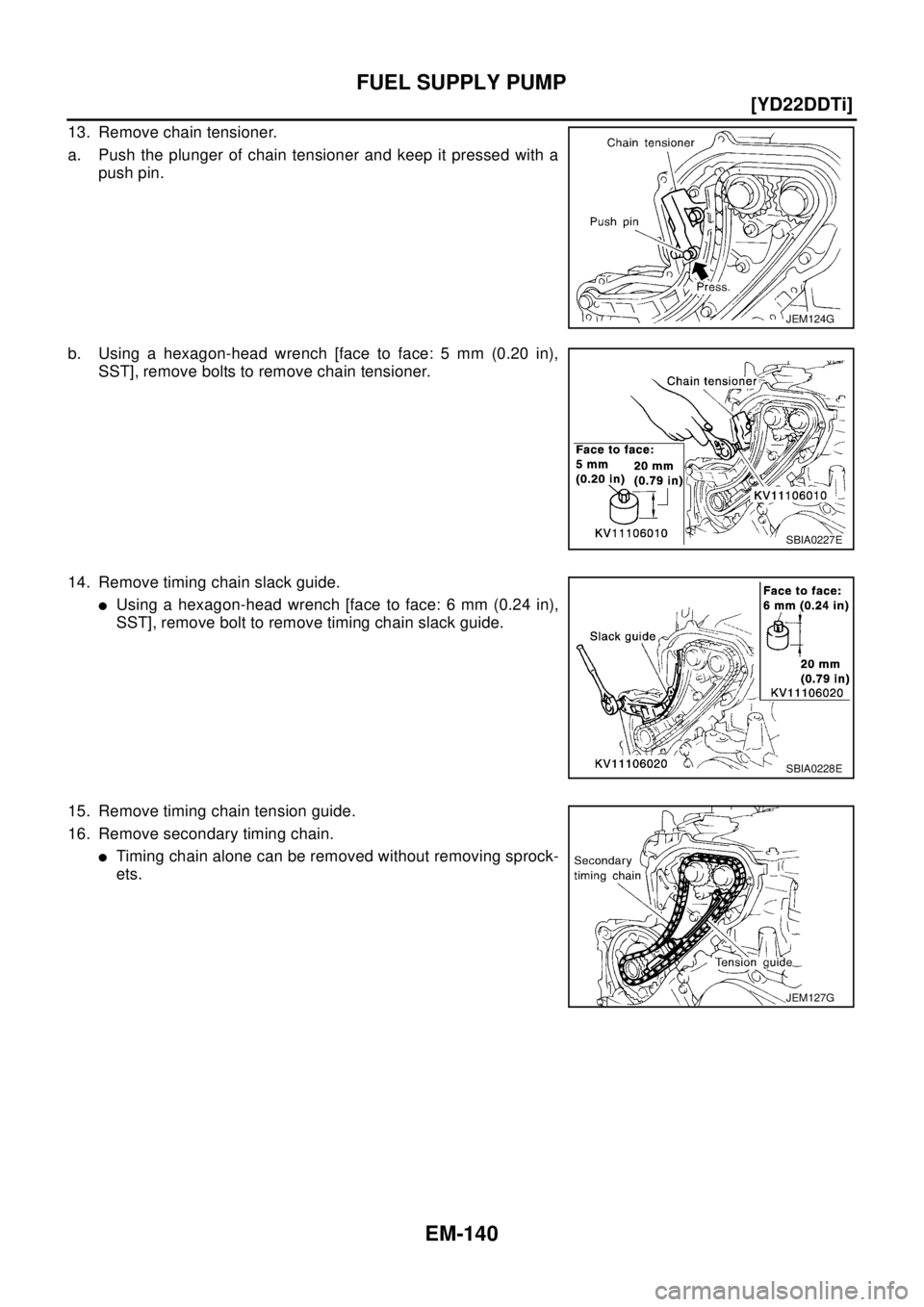

13. Remove chain tensioner.
a. Push the plunger of chain tensioner and keep it pressed with a
push pin.
b. Using a hexagon-head wrench [face to face: 5 mm (0.20 in),
SST], remove bolts to remove chain tensioner.
14. Remove timing chain slack guide.
lUsing a hexagon-head wrench [face to face: 6 mm (0.24 in),
SST], remove bolt to remove timing chain slack guide.
15. Remove timing chain tension guide.
16. Remove secondary timing chain.
lTiming chain alone can be removed without removing sprock-
ets.
JEM124G
SBIA0227E
SBIA0228E
JEM127G
Page 2111 of 3066
FUEL SUPPLY PUMP
EM-141
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

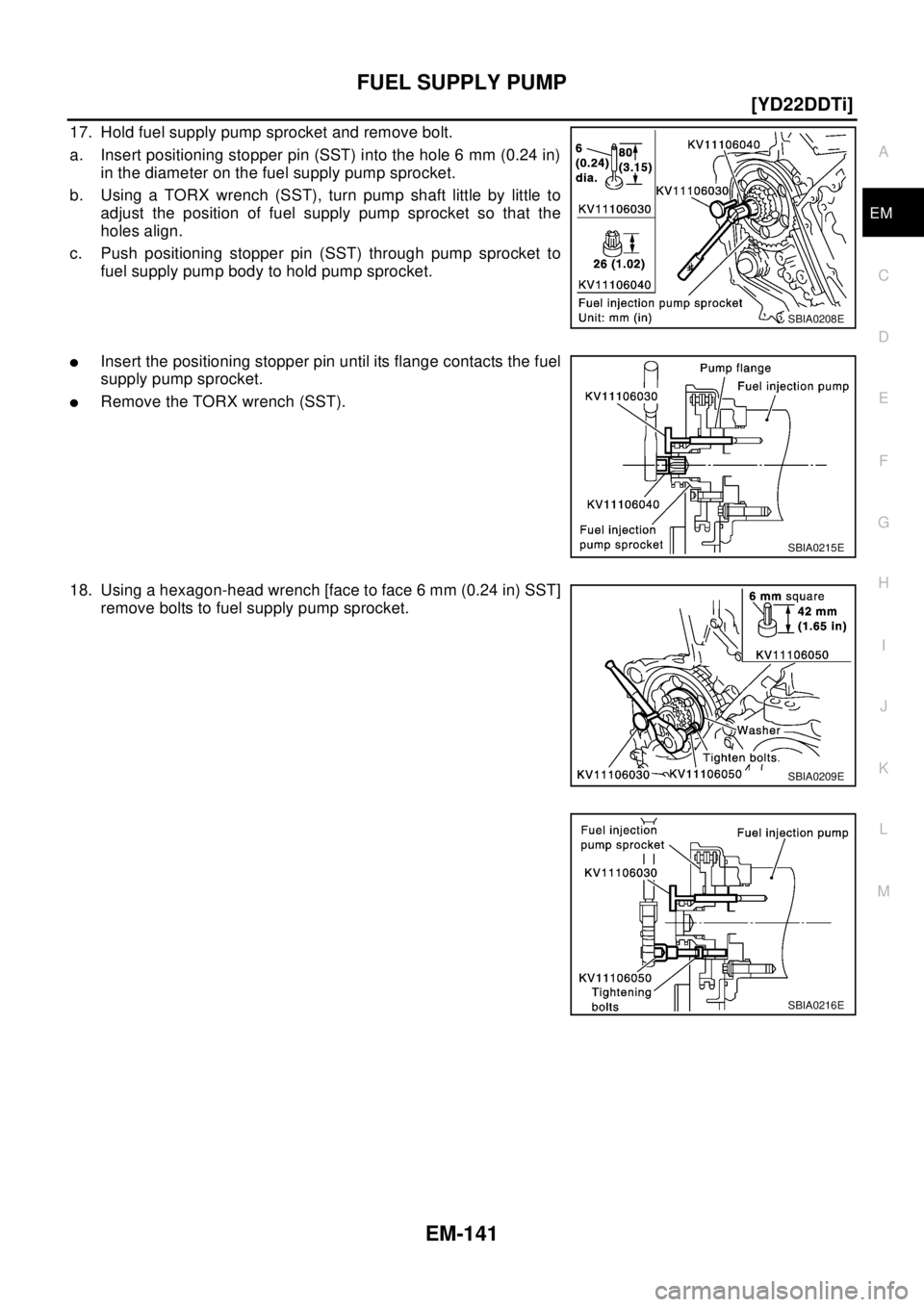

17. Hold fuel supply pump sprocket and remove bolt.
a. Insert positioning stopper pin (SST) into the hole 6 mm (0.24 in)
in the diameter on the fuel supply pump sprocket.
b. Using a TORX wrench (SST), turn pump shaft little by little to
adjust the position of fuel supply pump sprocket so that the
holes align.
c. Push positioning stopper pin (SST) through pump sprocket to
fuel supply pump body to hold pump sprocket.
lInsert the positioning stopper pin until its flange contacts the fuel
supply pump sprocket.
lRemove the TORX wrench (SST).
18. Using a hexagon-head wrench [face to face 6 mm (0.24 in) SST]
remove bolts to fuel supply pump sprocket.
SBIA0208E
SBIA0215E
SBIA0209E
SBIA0216E
Page 2112 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EM-142
[YD22DDTi]
FUEL SUPPLY PUMP
19. Using the sprocket holder (SST), hold the fuel supply pump
sprocket to prevent falling.
lAs for the sprocket holder, install fuel supply pump mounting
bolt throu NISSAN X-TRAIL 2003 Electronic Repair Manual EM-142
[YD22DDTi]
FUEL SUPPLY PUMP
19. Using the sprocket holder (SST), hold the fuel supply pump
sprocket to prevent falling.
lAs for the sprocket holder, install fuel supply pump mounting
bolt throu](/manual-img/5/57402/w960_57402-2111.png)
EM-142
[YD22DDTi]
FUEL SUPPLY PUMP
19. Using the sprocket holder (SST), hold the fuel supply pump
sprocket to prevent falling.
lAs for the sprocket holder, install fuel supply pump mounting
bolt through hole of KV11106060 as shown in figure.
lWhen the sprocket holder is installed, if the positioning stop-
per pin interferes, pull out the stopper pin approximately 10
mm (0.39 in), then install it.
lAfter the sprocket holder is installed temporarily, insert the
extension bar (SST) and TORX socket in the three holes A.
After positioning the holes, tighten the holder mounting bolts.
lThe length of the sprocket holder mounting bolts should be
approximately 15 mm (0.59 in) (M6 thread length).
lMake sure that the a- and b-faces of the sprocket holder con-
tact the bottom side of the sprocket (small diameter side).
CAUTION:
Do not remove the sprocket holder until the fuel supply
pump is installed.
lAfter the sprocket holder is installed, pull out the positioning
stopper pin (SST) from the fuel supply pump sprocket.
20. Using the extension bar [SST: whole length 43 mm (1.69 in)] and
the TORX socket (Q6-E12: commercially available), remove the
mounting bolts, them remove the fuel supply pump toward the
rear of the engine
CAUTION:
Do not disassemble or adjust the fuel supply pump.
SBIA0217E
SBIA0218E
SBIA0219E
SBIA0220E
