DTC P1102 MAF SENSOR
EC-263
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B7M
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2.CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect MAF sensor harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between MAF sensor terminals 2, 4 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
lHarness for open or short between ECM relay and mass air flow sensor
lHarness for open or short between mass air flow sensor and ECM
>> Repair harness or connectors.
PBIB0494E
PBIB0495E
Terminal Voltage
2 Approximately 5V
4 Battery voltage
PBIB0076E
Page 1378 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EC-264
[QR (WITH EURO-OBD)]
DTC P1102 MAF SENSOR
4.CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuit NISSAN X-TRAIL 2003 Electronic Repair Manual EC-264
[QR (WITH EURO-OBD)]
DTC P1102 MAF SENSOR
4.CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuit](/manual-img/5/57402/w960_57402-1377.png)
EC-264
[QR (WITH EURO-OBD)]
DTC P1102 MAF SENSOR
4.CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 80.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal 1 and ECM terminal 72.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK MASS AIR FLOW SENSOR
Refer toEC-264, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> Replace mass air flow sensor.
7.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00B7N
MASS AIR FLOW SENSOR
1. Reconnect harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 72 (Mass air flow sensor
signal) and ground.
*: Check for liner voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.
lTurn ignition switch "OFF". Continuity should exist.
Continuity should exist.
Condition Voltage V
Ignition switch "ON" (Engine stopped.) Approx. 1.0
Idle (Engine is warmed-up to normal
operating temperature.)1.1 - 1.5
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.6 - 2.0
Idle to about 4,000 rpm* 1.5 - 2.0 to Approx. 4.0
PBIB0537E
Page 1379 of 3066
DTC P1102 MAF SENSOR
EC-265
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
lDisconnect mass air flow sensor harness connector and reconnect it again.
lPerform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
6. If NG, clean or replace mass air flow sensor.
Removal and InstallationEBS00B7O
MASS AIR FLOW SENSOR
Refer toEM-15, "AIR CLEANER AND AIR DUCT".
Page 1380 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EC-266
[QR (WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
DTC P1111 IVT CONTROL SOLENOID VALVE
PFP:23796
Component DescriptionEBS00B7P
Intake valve timing control solenoid valve is activated by NISSAN X-TRAIL 2003 Electronic Repair Manual EC-266
[QR (WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
DTC P1111 IVT CONTROL SOLENOID VALVE
PFP:23796
Component DescriptionEBS00B7P
Intake valve timing control solenoid valve is activated by](/manual-img/5/57402/w960_57402-1379.png)
EC-266
[QR (WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
DTC P1111 IVT CONTROL SOLENOID VALVE
PFP:23796
Component DescriptionEBS00B7P
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00B7Q
Specification data are reference values.
ECM Terminals and Reference ValueEBS00B7R
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00B7S
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
lEngine: After warming up
lShift lever: N
lAir conditioner switch: OFF
lNo-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
107 Y/RIntake valve timing
control solenoid valve[Engine is running]
lWarm-up condition
lIdle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
lWarm-up condition
lWhen revving engine up to 2,000 rpm quicklyApproximately 4V - BATTERY
VOLTAGE (11 - 14V)
PBIB0532E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111Intake valve timing con-
trol solenoid valve cir-
cuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
lHarness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
lIntake valve timing control solenoid valve
Page 1381 of 3066
DTC P1111 IVT CONTROL SOLENOID VALVE
EC-267
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureEBS00B7T
NOTE:
If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF"
and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go toEC-269, "
Diagnostic Procedure"
.
WITH GST
Following the procedure "WITH CONSULT-II" above.
SEF058Y
Page 1382 of 3066
EC-268
[QR (WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE

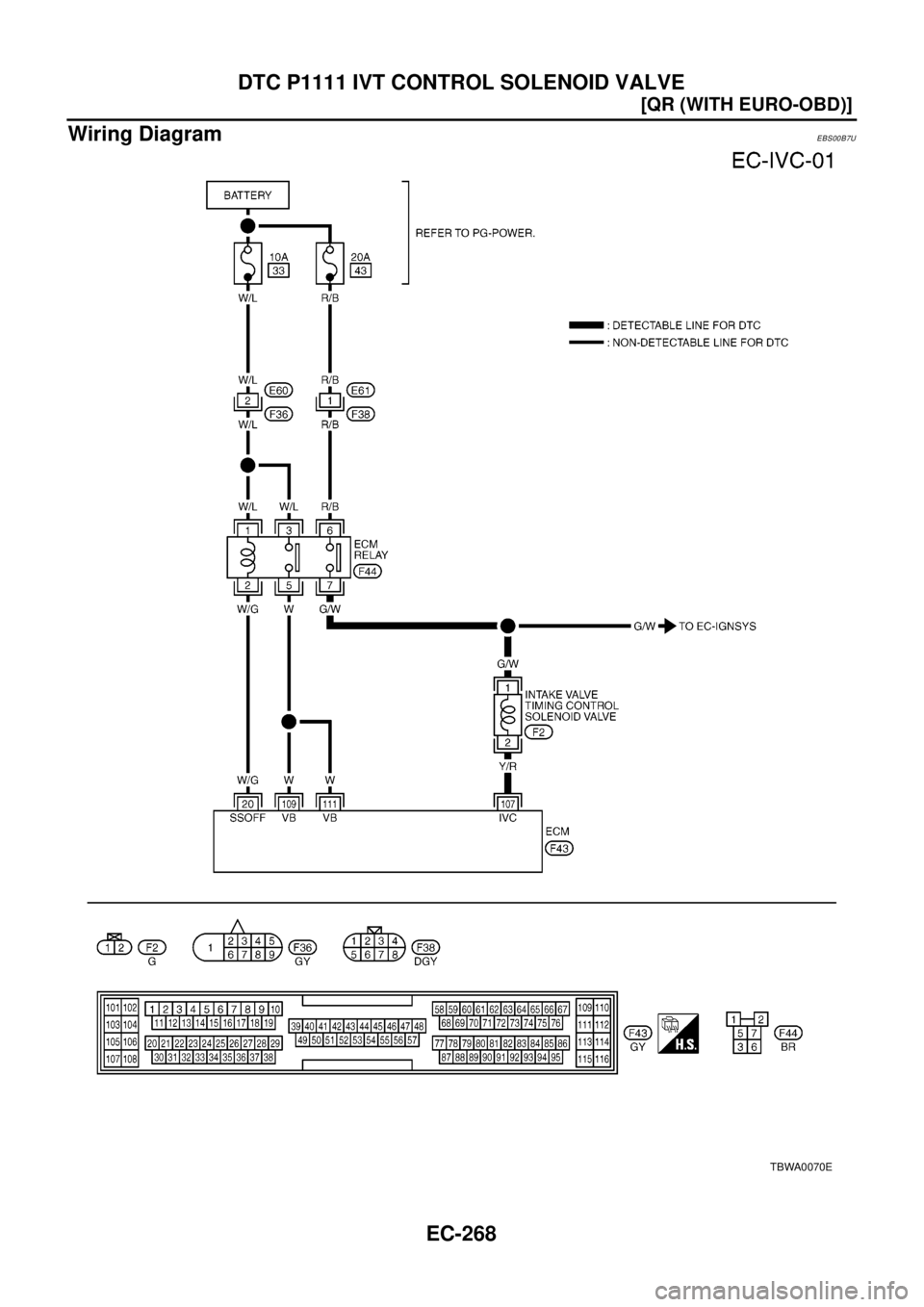

Wiring Diagram
EBS00B7U
TBWA0070E
Page 1383 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P1111 IVT CONTROL SOLENOID VALVE
EC-269
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B7V
1.CHECK POWER SUPPLY CIRCIUT
1. Turn ignition switch "OFF".
2. Disconnect intake NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P1111 IVT CONTROL SOLENOID VALVE
EC-269
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B7V
1.CHECK POWER SUPPLY CIRCIUT
1. Turn ignition switch "OFF".
2. Disconnect intake](/manual-img/5/57402/w960_57402-1382.png)
DTC P1111 IVT CONTROL SOLENOID VALVE
EC-269
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B7V
1.CHECK POWER SUPPLY CIRCIUT
1. Turn ignition switch "OFF".
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch "ON".
4. Check voltage between intake valve timing control solenoid
valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTION PART
Check the harness for open or short between intake valve timing control solenoid valve and ECM relay.
>> Repair harness or connectors.
3.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch "OFF".
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 107 and intake valve timing control solenoid valve termi-
nal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer toEC-270, "
Component Inspection".
OK or NG
OK >> GO TO 5.
NG >> Replace intake valve timing control solenoid valve.Voltage: Battery voltage
PBIB0511E
PBIB0285E
Continuity should exist.
Page 1384 of 3066
EC-270
[QR (WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
5.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00B7W
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve terminals 1 and 2.
Removal and InstallationEBS00B7X
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer toEM-43, "TIMING CHAIN".
Terminals Resistance
1 and 2 Approximately 8Wat 20°C(68°F)
1or2andground¥W
(Continuity should not exist)
PBIB0574E
