Page 977 of 3066

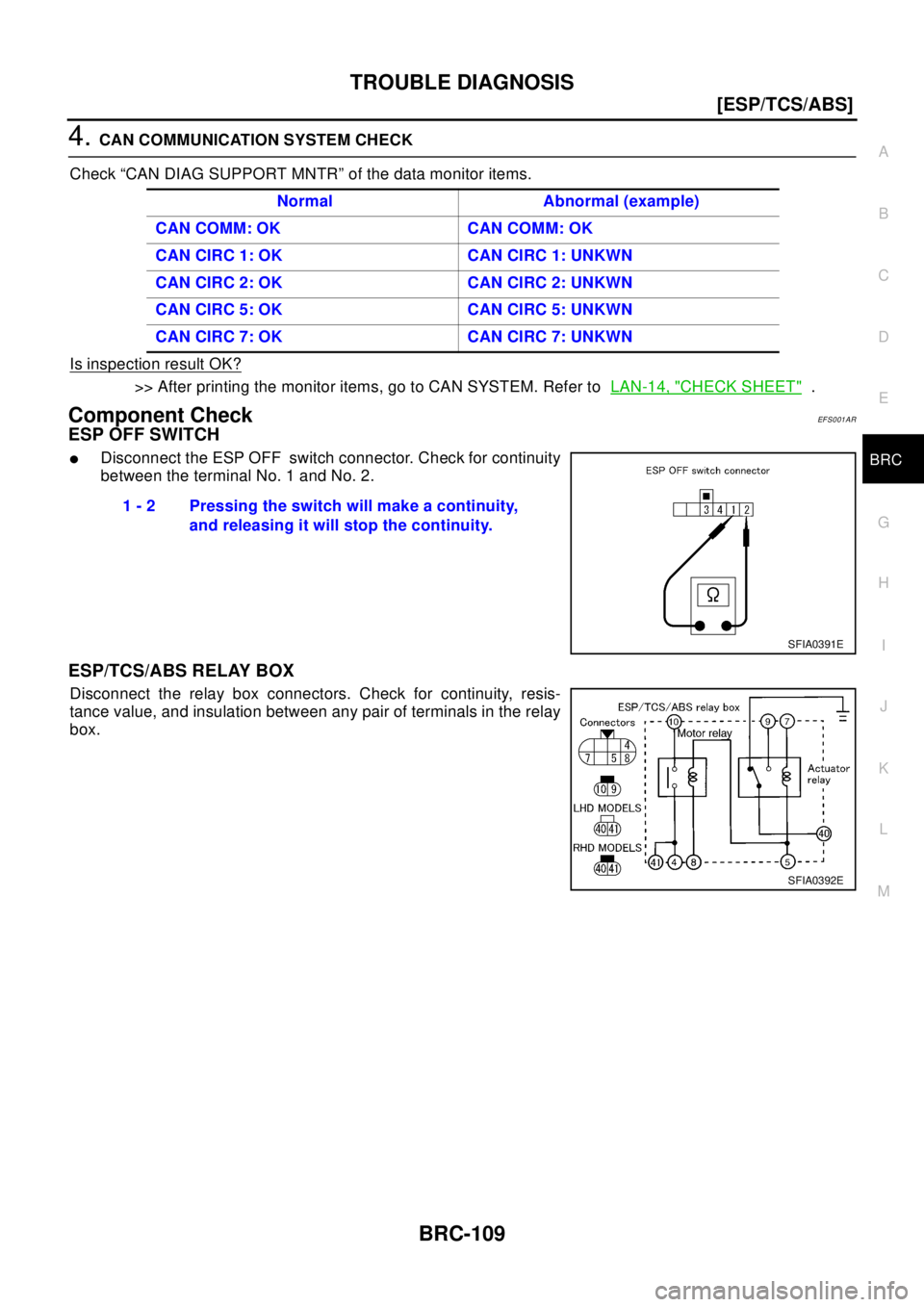

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS BRC-109 [ESP/TCS/ABS] C D E G H I J K L MA B BRC 4.CAN COMMUNICATION SYSTEM CHECK Check “CAN DIAG SUPPORT MNTR” of the data monitor items. Is inspection result OK? >> After print

Page 978 of 3066

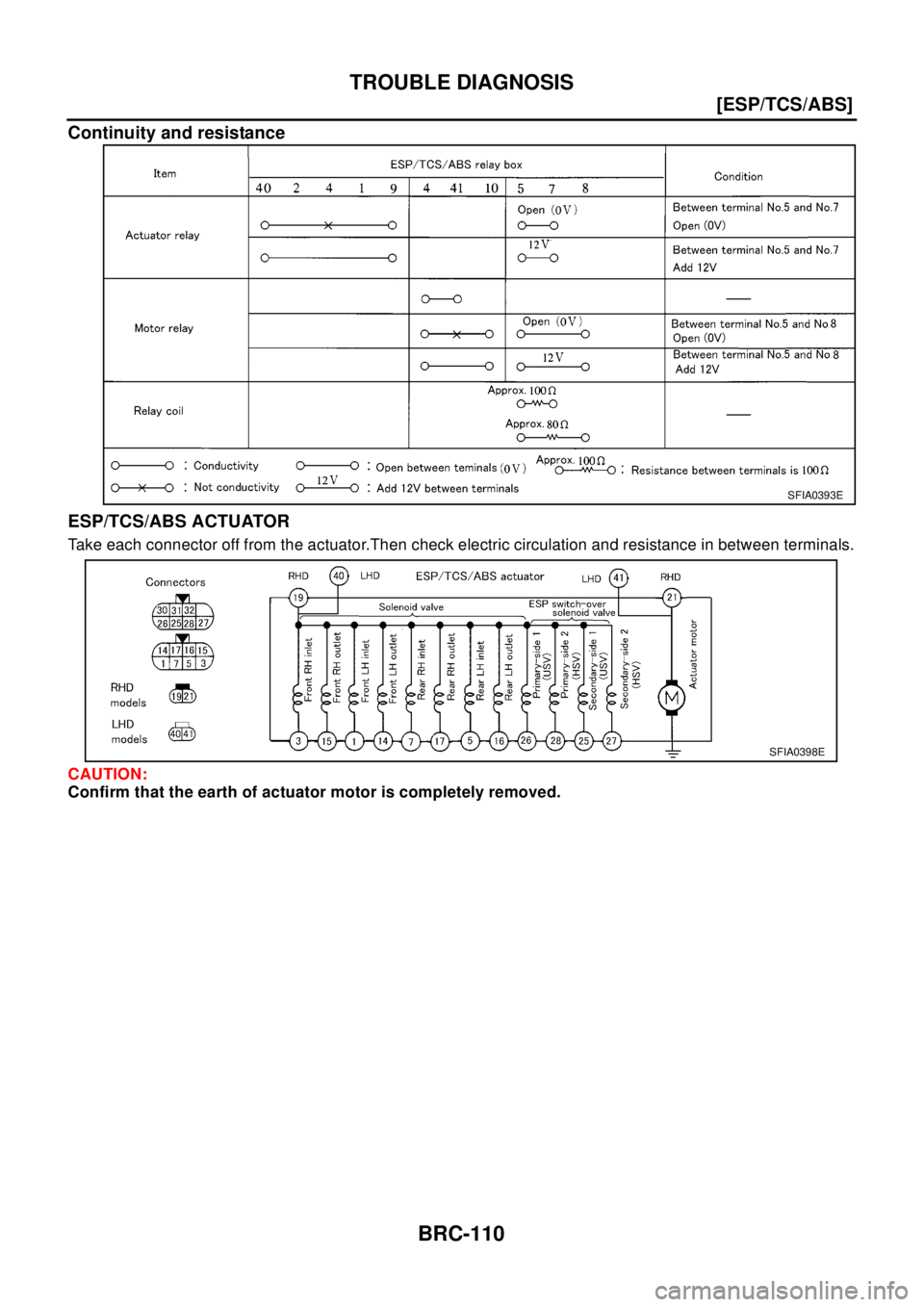

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-110 [ESP/TCS/ABS] TROUBLE DIAGNOSIS Continuity and resistance ESP/TCS/ABS ACTUATOR Take each connector off from the actuator.Then check electric circulation and resistance in between terminals. CA

Page 979 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS BRC-111 [ESP/TCS/ABS] C D E G H I J K L MA B BRC Continuity and resistance Check the resistance SFIA0399E Standard value (W) Solenoid valves Outlet ~ Outlet : 6.0 - 10.0 Outlet ~ Inl

Page 980 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-112 [ESP/TCS/ABS] TROUBLE DIAGNOSIS Actuator operation check 1. Connect 19 and 21 terminals of actuator to 40 and 41 terminals of relay box. 2. Measure the motor voltage (No.4 terminal to body ear

Page 981 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS BRC-113 [ESP/TCS/ABS] C D E G H I J K L MA B BRC 2.PEDAL FORCE INSPECTION Check that the brake is effective with the pedal depressed. Is the pedal heavy, but effective? YES >> Normal

Page 982 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-114 [ESP/TCS/ABS] TROUBLE DIAGNOSIS 4.WHEEL SPEED SENSOR INSPECTION Check the wheel speed sensor system. lSensor mounting inspection lSensor pick-up inspection for iron chips lSensor rotor inspect

Page 983 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS BRC-115 [ESP/TCS/ABS] C D E G H I J K L MA B BRC 3.SYMPTOM CHECK 3 Does the symptom appear during normal braking operation? CAUTION: ABS may work in following driving conditions even

Page 984 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BRC-116 [ESP/TCS/ABS] TROUBLE DIAGNOSIS Symptom 7: SLIP Indicator Lamp Does Not Illuminate EFS001AY Inspection procedure 1.SLIP INDICATOR LAMP BURNED-OUT BULB INSPECTION Check for continuity between t
