Page 2313 of 3066
GW-10
REAR WINDOW DEFOGGER
Terminal 4 of the rear window defogger switch is grounded through body ground M70.

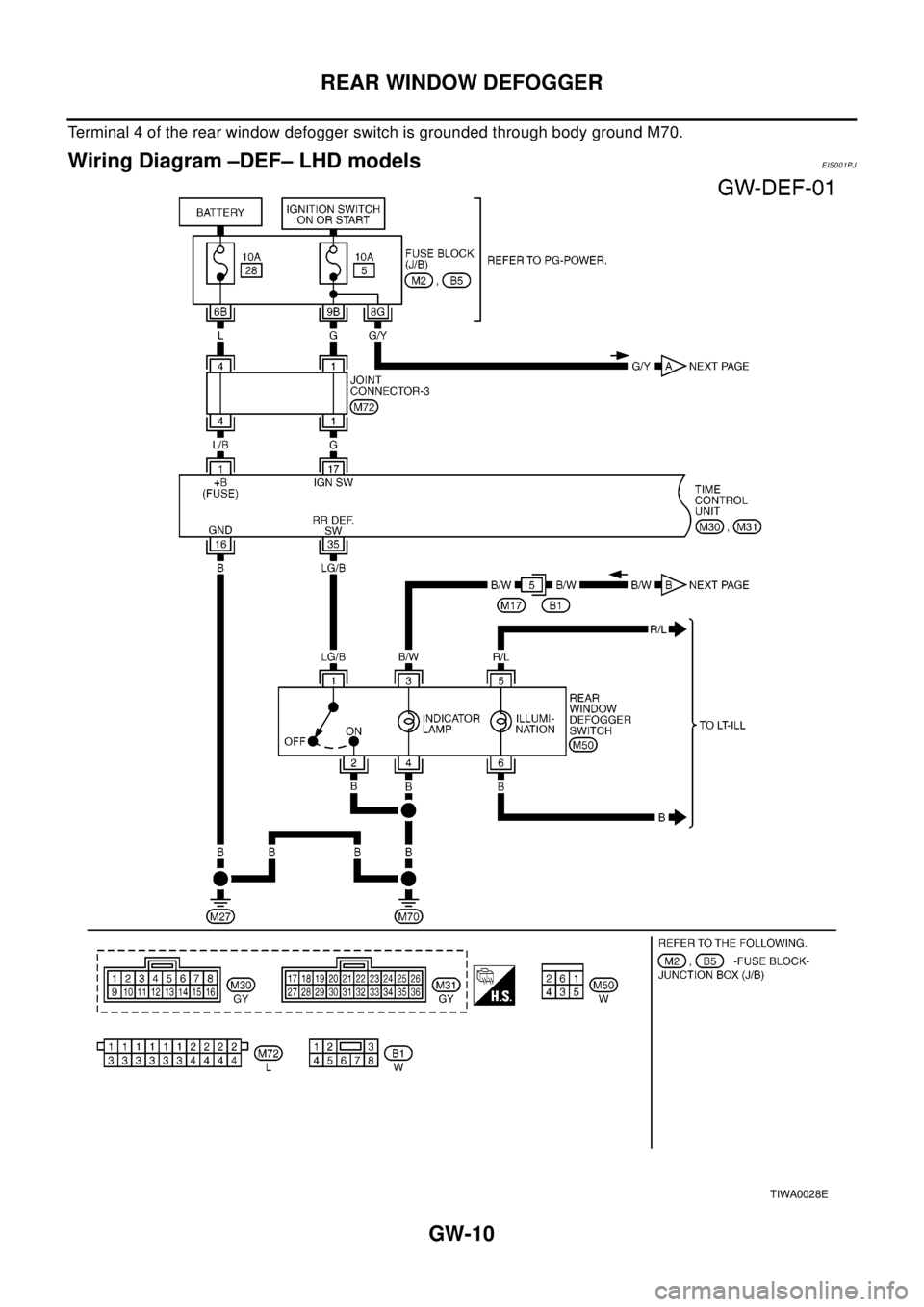

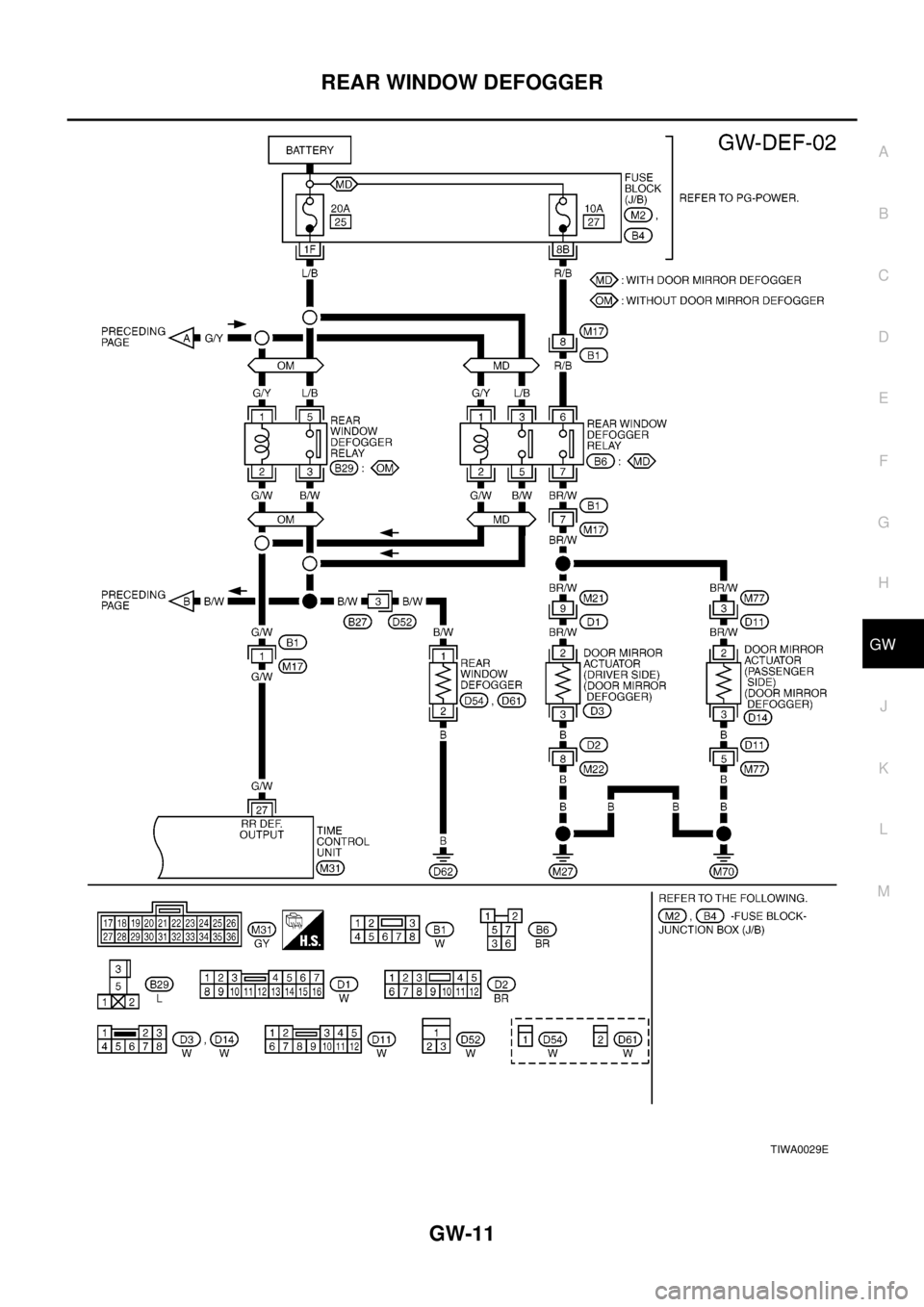

Wiring Diagram –DEF– LHD modelsEIS001PJ
TIWA0028E
Page 2314 of 3066
REAR WINDOW DEFOGGER
GW-11
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0029E
Page 2315 of 3066
GW-12
REAR WINDOW DEFOGGER
Terminals and Reference value for Time Control Unit (LHD models)
EIS001PK
TERMINALWIRE
COLORITEM CONDITION DATA (DC)
1 L/B BAT power supply — Battery voltage
16 B Ground — 0V
17 G IGN power supply — Battery voltage
27 G/WRear window defogger relay control
signalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
35 LG/B Rear window defogger switch signalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
Page 2316 of 3066
REAR WINDOW DEFOGGER
GW-13
C
D
E
F
G
H
J
K
L
MA
B
GW

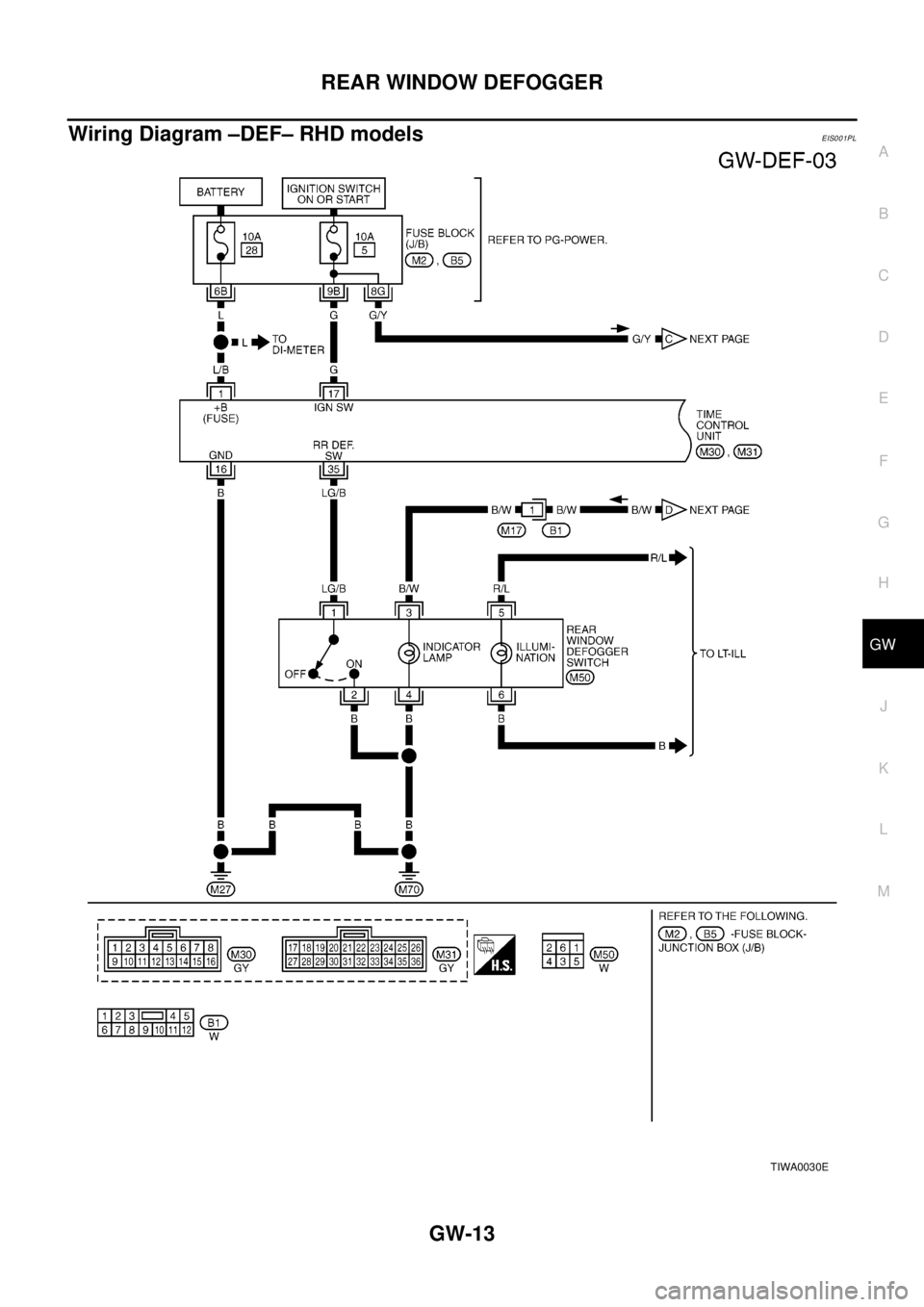

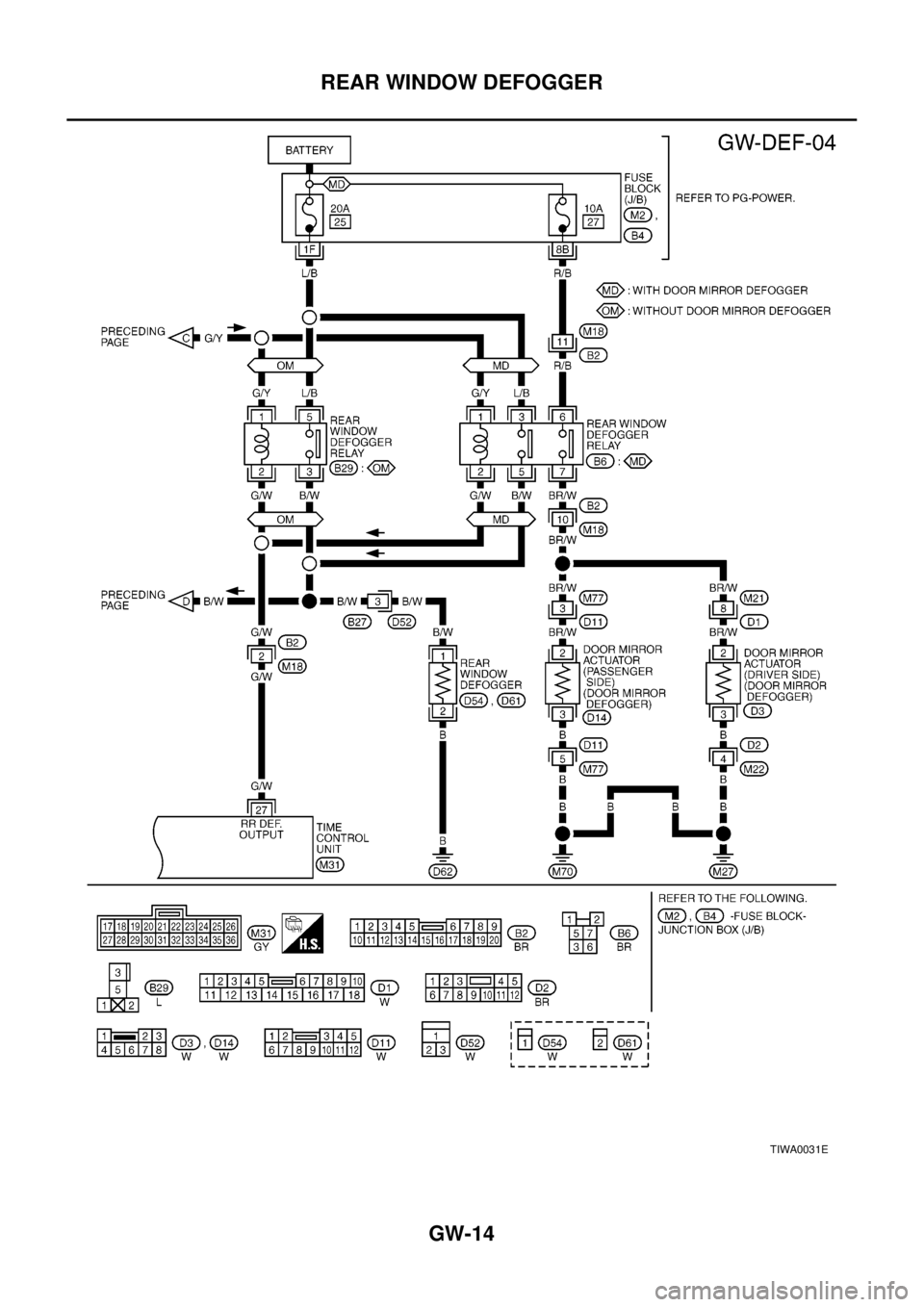

Wiring Diagram –DEF– RHD modelsEIS001PL
TIWA0030E
Page 2317 of 3066
GW-14
REAR WINDOW DEFOGGER
TIWA0031E
Page 2318 of 3066

REAR WINDOW DEFOGGER
GW-15
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminals and Reference value for Time Control Unit (RHD models)EIS001PM
Trouble DiagnosesEIS001PN
DIAGNOSTIC PROCEDURE SUBTITLE (SYMPTOM: REAR WINDOW DEFOGGER DOES NOT
ACTIVATE, OR DOES NOT GO OFF AFTER ACTIVATING.)
1.CHECK FUSE INSPECTION
Check the following.
( ):With door mirror defogger
OK or NG
OK >> GO TO 2
NG >> Replace fuse
2.CHECK POWER SUPPLY AND IGNITION INPUT SIGNAL
Check voltage between time control unit connector M30, M31 terminals 1 and 17 and ground.
OK or NG
OK >> GO TO 3
NG >> Check the following.
lHarness for open or short between time control unit and fuse
TERMINALWIRE
COLORITEM CONDITION DATA (DC)
1 L/B BAT power supply — Battery voltage
16 B Ground — 0V
17 G IGN power supply — Battery voltage
27 G/WRear window defogger relay control
signalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
35 LG/BRear window defogger switch sig-
nalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
Part Terminal No. Ampere Power source Fuse No.
Time control unit1 10A BAT power supply #28
17 10A IGN power supply #5
Rear window defogger
relay1 10A IGN power supply #5
5, (3) 20A BAT power supply #25
Te r m i n a l s
Condition Voltage (V) (+)
(–)
Connector Terminal
M30,M311(L/B)
GroundIgnition switch
OFFBattery voltage
17 (G)Ignition switch
ON or STARTBattery voltage
SIIA1201E
Page 2319 of 3066

GW-16
REAR WINDOW DEFOGGER
3.CHECK CONTROL UNIT GROUND CIRCUIT
Check continuity between time control unit connector M30 terminal
16 and ground.
OK or NG
Yes >>GOTO3.
No >> Repair or replace harness.
4.CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL
1. Turn ignition switch to ON position.
2. Check voltage between time control unit harness connector M31
terminal 27 and ground.
OK or NG
OK >> Check the following.
lHarness for open or short between 10A fuse [No. 10, located in the fuse block (J/B)] and rear
window defogger relay.
lHarness for open or short between rear window defogger relay and time control unit.
lRear window defogger relay.Refer toGW-17, "REAR WINDOW DEFOGGER RELAY".
lRear window defogger filament.Refer toGW-17, "FILAMENT CHECK"andGW-18, "FILA-
MENT REPAIR".
NG >> GO TO 2.
5.CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL
Check continuity between time control unit connector M31 terminal 35 and ground.
OK or NG
OK >> GO TO 3
NG >> Check the following.
lHarness for open or short between time control unit and rear window defogger switch.
lRear window defogger switch.Refer toGW-17, "REAR WINDOW DEFOGGER SWITCH".
Te r m i n a l s
Condition Continuity (+)
(–)
Connector Terminal
M30 16 (B) GroundIgnition switch
OFFShould exist
SIIA1202E
Te r m i n a l s
Condition DATA (DC) (+)
(–)
Connector Terminal
M31 27 (G/W) GroundRear defogger
switch OFFBattery voltage
Rear defogger
switch ON0V
SIIA1198E
Te r m i n a l s
Condition DATA (DC) (+)
(–)
Connector Terminal
M31 35 (LG/B) GroundRear defogger
switch OFFBattery voltage
Rear defogger
switch ON0V
SIIA1200E
Page 2320 of 3066
REAR WINDOW DEFOGGER
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW
Electrical Components InspectionEIS001R1
REAR WINDOW DEFOGGER RELAY
Check continuity between terminals 3 and 5, 6 and 7.
NOTE:
6 and 7:with door mirror defogger.
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
FILAMENT CHECK
1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finder.
2. Attach probe circuit tester (in Volt range) to middle portion of
each filament.
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
No current supply No
SEC202B
Connector Condition Continuity
M50 1 – 2Rear window defogger
switch is pushed.Ye s
Rear window defogger
switch is released.No
SIIA1203E
SEL122R
