![NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-175
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove cylinder head assembly.
lLoosen and remove mounting bolts in the reverse order
showninthefigure.
lLift up the cylinder head assembly NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-175
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove cylinder head assembly.
lLoosen and remove mounting bolts in the reverse order
showninthefigure.
lLift up the cylinder head assembly](/manual-img/5/57402/w960_57402-2144.png)

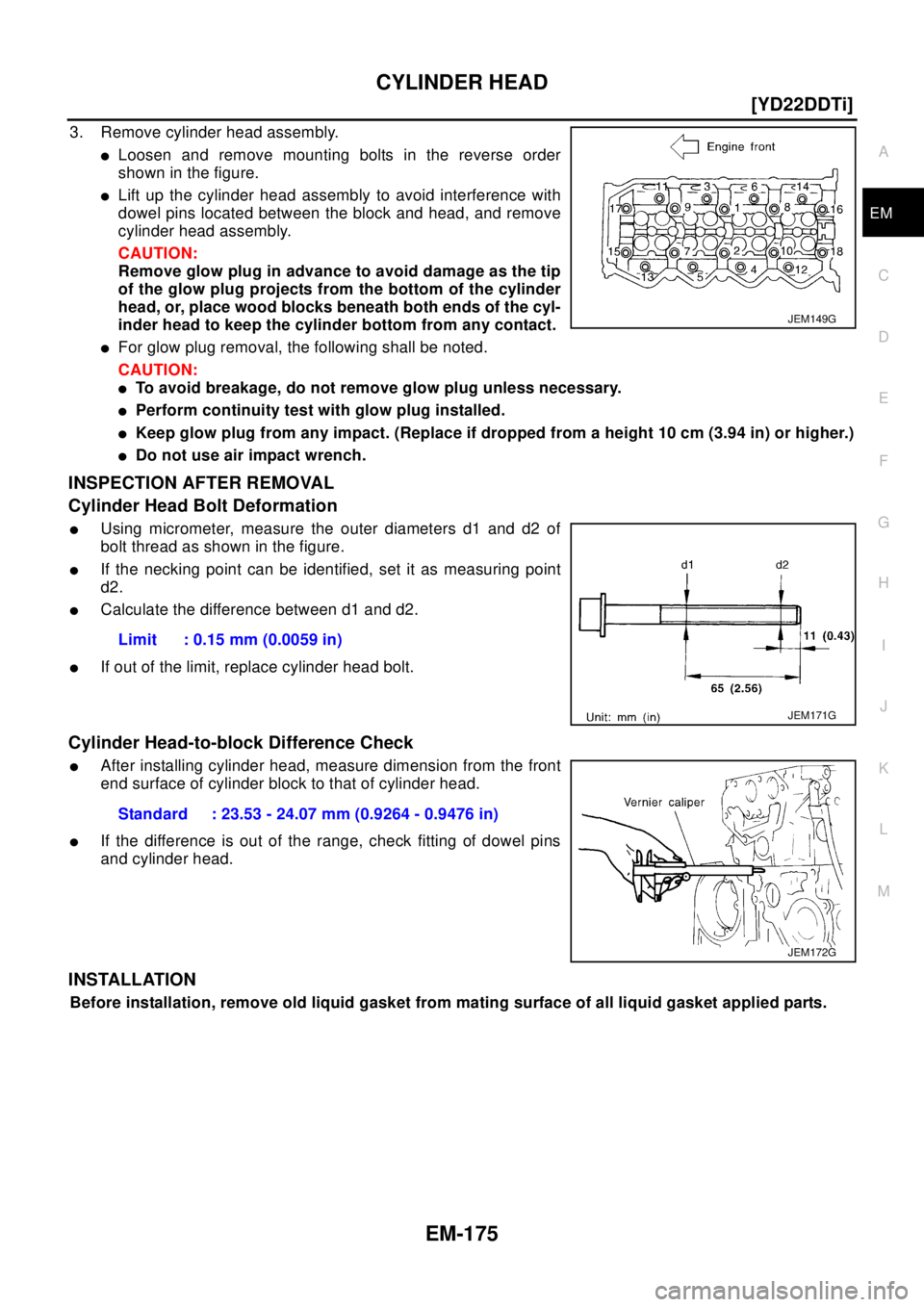

CYLINDER HEAD
EM-175
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove cylinder head assembly.
lLoosen and remove mounting bolts in the reverse order
showninthefigure.
lLift up the cylinder head assembly to avoid interference with
dowel pins located between the block and head, and remove
cylinder head assembly.
CAUTION:
Remove glow plug in advance to avoid damage as the tip
of the glow plug projects from the bottom of the cylinder
head, or, place wood blocks beneath both ends of the cyl-
inder head to keep the cylinder bottom from any contact.
lFor glow plug removal, the following shall be noted.
CAUTION:
lTo avoid breakage, do not remove glow plug unless necessary.
lPerform continuity test with glow plug installed.
lKeep glow plug from any impact. (Replace if dropped from a height 10 cm (3.94 in) or higher.)
lDo not use air impact wrench.
INSPECTION AFTER REMOVAL
Cylinder Head Bolt Deformation
lUsing micrometer, measure the outer diameters d1 and d2 of
bolt thread as shown in the figure.
lIf the necking point can be identified, set it as measuring point
d2.
lCalculate the difference between d1 and d2.
lIf out of the limit, replace cylinder head bolt.
Cylinder Head-to-block Difference Check
lAfter installing cylinder head, measure dimension from the front
end surface of cylinder block to that of cylinder head.
lIf the difference is out of the range, check fitting of dowel pins
and cylinder head.
INSTALLATION
Before installation, remove old liquid gasket from mating surface of all liquid gasket applied parts.
JEM149G
Limit : 0.15 mm (0.0059 in)
JEM171G
Standard : 23.53 - 24.07 mm (0.9264 - 0.9476 in)
JEM172G
Page 2146 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EM-176
[YD22DDTi]
CYLINDER HEAD
1. Install cylinder head gasket.
lCylinder head gasket to be installed is selected by its thick-
ness through the following procedure.
–When replacing gasket alone
NISSAN X-TRAIL 2003 Electronic Repair Manual EM-176
[YD22DDTi]
CYLINDER HEAD
1. Install cylinder head gasket.
lCylinder head gasket to be installed is selected by its thick-
ness through the following procedure.
–When replacing gasket alone](/manual-img/5/57402/w960_57402-2145.png)

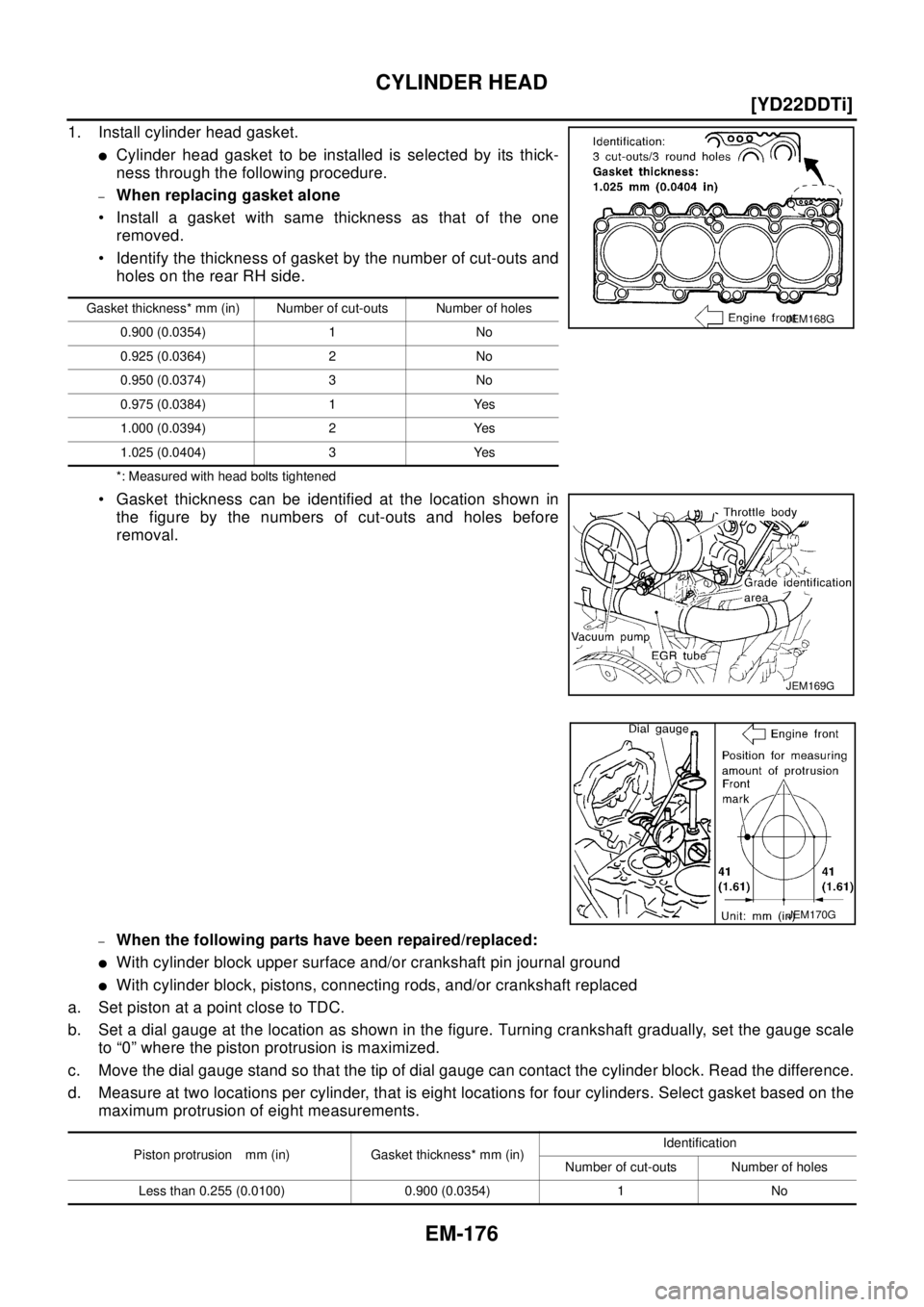

EM-176
[YD22DDTi]
CYLINDER HEAD
1. Install cylinder head gasket.
lCylinder head gasket to be installed is selected by its thick-
ness through the following procedure.
–When replacing gasket alone
• Install a gasket with same thickness as that of the one
removed.
• Identify the thickness of gasket by the number of cut-outs and
holes on the rear RH side.
*: Measured with head bolts tightened
• Gasket thickness can be identified at the location shown in
the figure by the numbers of cut-outs and holes before
removal.
–When the following parts have been repaired/replaced:
lWith cylinder block upper surface and/or crankshaft pin journal ground
lWith cylinder block, pistons, connecting rods, and/or crankshaft replaced
a. Set piston at a point close to TDC.
b. Set a dial gauge at the location as shown in the figure. Turning crankshaft gradually, set the gauge scale
to “0” where the piston protrusion is maximized.
c. Move the dial gauge stand so that the tip of dial gauge can contact the cylinder block. Read the difference.
d. Measure at two locations per cylinder, that is eight locations for four cylinders. Select gasket based on the
maximum protrusion of eight measurements.
Gasket thickness* mm (in) Number of cut-outs Number of holes
0.900 (0.0354) 1 No
0.925 (0.0364) 2 No
0.950 (0.0374) 3 No
0.975 (0.0384) 1 Yes
1.000 (0.0394) 2 Yes
1.025 (0.0404) 3 YesJEM168G
JEM169G
JEM170G
Piston protrusion mm (in) Gasket thickness* mm (in)Identification
Number of cut-outs Number of holes
Less than 0.255 (0.0100) 0.900 (0.0354) 1 No
Page 2147 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-177
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
*: Measured with head bolts tightened
2. Apply a continuous bead of Genuine Liquid Gasket or equivalent
on the surface shown in the figure.
A: NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-177
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
*: Measured with head bolts tightened
2. Apply a continuous bead of Genuine Liquid Gasket or equivalent
on the surface shown in the figure.
A:](/manual-img/5/57402/w960_57402-2146.png)
CYLINDER HEAD
EM-177
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
*: Measured with head bolts tightened
2. Apply a continuous bead of Genuine Liquid Gasket or equivalent
on the surface shown in the figure.
A: Apply bead so that it does not protrude into oil passage. Refer
toEM-103, "
Precautions for Liquid Gasket".
B: Miniimize the overlapping area of the bead, with start and end
areas of bead as shown in the figure.
Apply so that the portion marked * comes at an external loca-
tion but cannot be viewed externally after engine is assembled.
3. Install cylinder head assembly.
lTighten bolts in numerical order as shown in the figure
according to the following procedure:
a. Apply engine oil to bolt threads and seat surfaces.
b. Tighten bolts to 29 to 38 N·m (2.9 to 3.9 kg-m, 21 to 28 ft-lb).
c. Tighten 180°to 185°[target: 180°] (angular tightening).
d. Loosen completely to 0 N·m (0 kg-m, 0 in-lb) in the reverse order
of that shown in the figure.
e. Tighten bolts to 35 to 44 N·m (3.5 to 4.5 kg-m, 26 to 32 ft-lb).
f. Tighten 90°to 95°[target: 90°] (angular tightening)
g. Tighten another 90°to 95°[target: 90°] (angular tightening).
lWhen an angle wrench is not used, paint an alignment
mark on the head of cylinder head bolt and cylinder head
surface before tightening. Check the angle with a protrac-
tor.
4. Install glow plug.
lTo avoid damage, glow plugs should be removed only
when required.
lHandle with care to avoid applying shock. When dropped
from approx. 100 mm (3.94 in) or higher, always replace
with a new one.
lBefore installing, remove carbon depositing on mounting hole of glow plug with a reamer.
5. Install engine coolant temperature sensor and thermal transmitter.
Less than 0.255 - 0.280 (0.0100 - 0.0110) 0.925 (0.0364) 2 No
Less than 0.280 - 0.305 (0.0110 - 0.0120) 0.950 (0.0374) 3 No
Less than 0.305 - 0.330 (0.0120 - 0.0130) 0.975 (0.0384) 1 Yes
Less than 0.330 - 0.355 (0.0130 - 0.0140) 1.000 (0.0394) 2 Yes
More than 0.355 (0.0140) 1.025 (0.0404) 3 Yes
JEM167G
JEM149G
JEM166G
Page 2148 of 3066

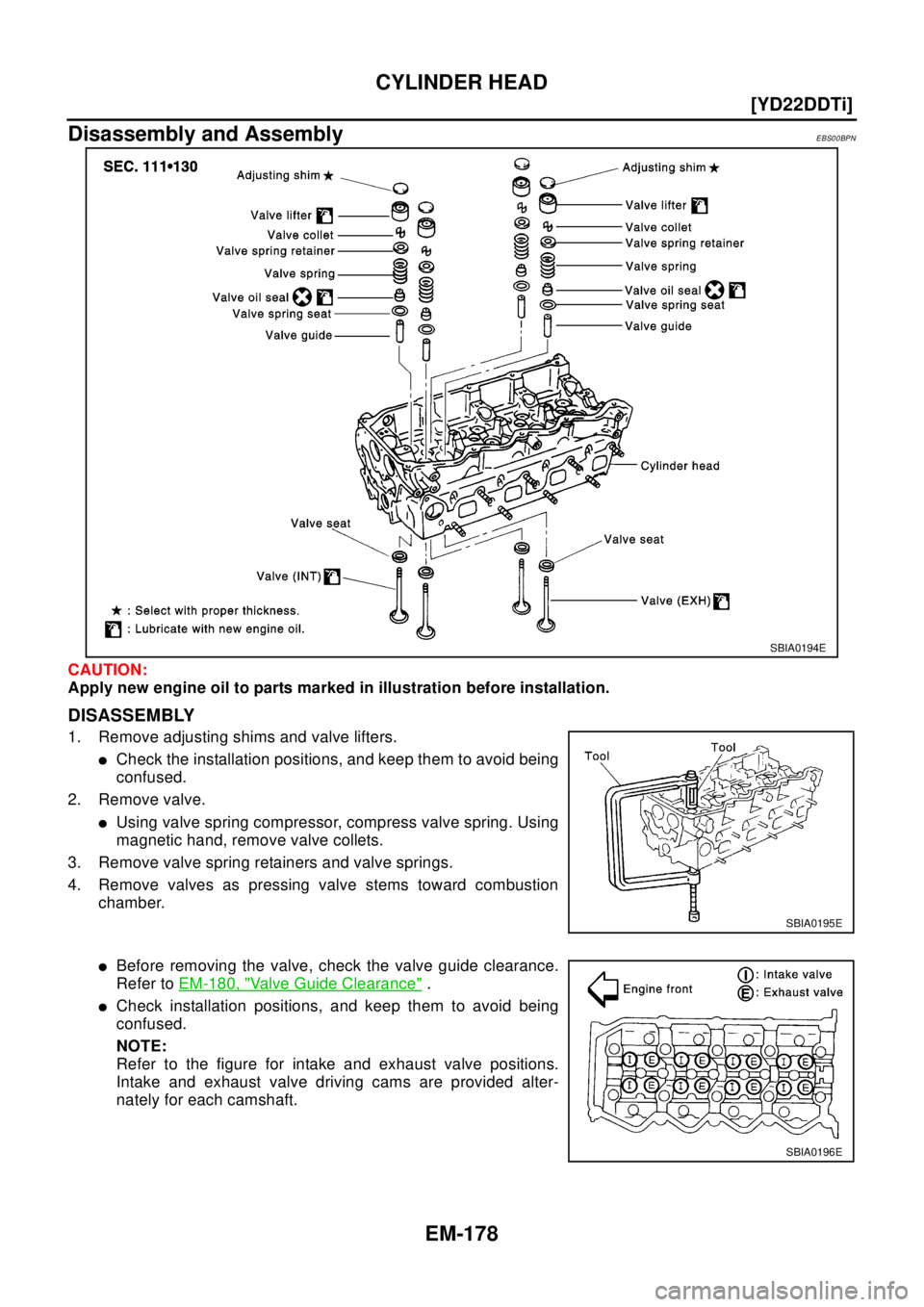

EM-178
[YD22DDTi]
CYLINDER HEAD
Disassembly and Assembly
EBS00BPN
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
DISASSEMBLY
1. Remove adjusting shims and valve lifters.
lCheck the installation positions, and keep them to avoid being
confused.
2. Remove valve.
lUsing valve spring compressor, compress valve spring. Using
magnetic hand, remove valve collets.
3. Remove valve spring retainers and valve springs.
4. Remove valves as pressing valve stems toward combustion
chamber.
lBefore removing the valve, check the valve guide clearance.
Refer toEM-180, "
Valve Guide Clearance".
lCheck installation positions, and keep them to avoid being
confused.
NOTE:
Refertothefigureforintakeandexhaustvalvepositions.
Intake and exhaust valve driving cams are provided alter-
nately for each camshaft.
SBIA0194E
SBIA0195E
SBIA0196E
Page 2149 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-179
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove valve oil seals using valve oil seal puller.
6. Remove valve spring seats.
7. Before removing valve spring seats, perform valve seat NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-179
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove valve oil seals using valve oil seal puller.
6. Remove valve spring seats.
7. Before removing valve spring seats, perform valve seat](/manual-img/5/57402/w960_57402-2148.png)

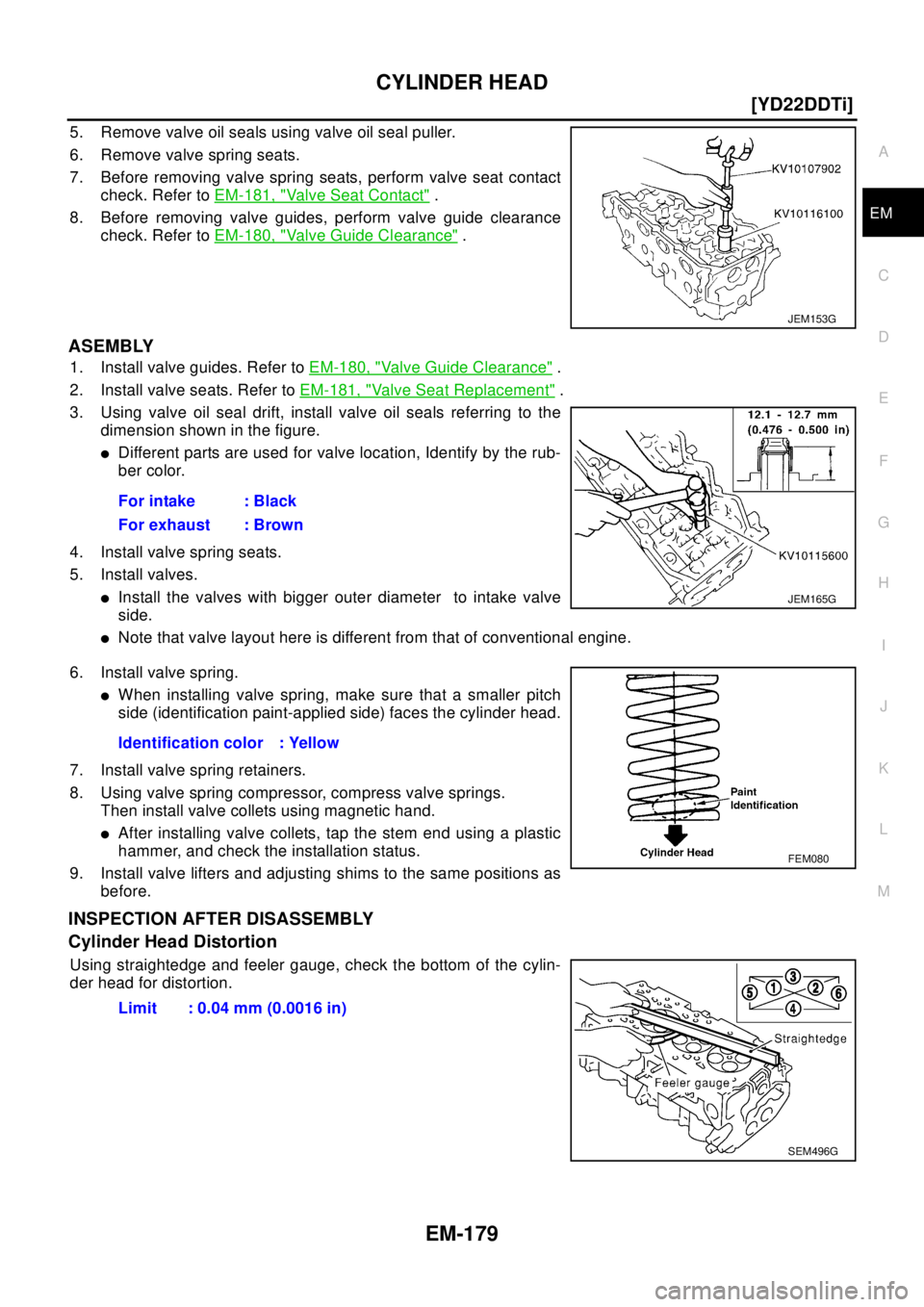

CYLINDER HEAD
EM-179
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove valve oil seals using valve oil seal puller.
6. Remove valve spring seats.
7. Before removing valve spring seats, perform valve seat contact
check. Refer toEM-181, "
Va l v e S e a t C o n ta ct".
8. Before removing valve guides, perform valve guide clearance
check. Refer toEM-180, "
Valve Guide Clearance".
ASEMBLY
1. Install valve guides. Refer toEM-180, "Valve Guide Clearance".
2. Install valve seats. Refer toEM-181, "
Valve Seat Replacement".
3. Using valve oil seal drift, install valve oil seals referring to the
dimension shown in the figure.
lDifferent parts are used for valve location, Identify by the rub-
ber color.
4. Install valve spring seats.
5. Install valves.
lInstall the valves with bigger outer diameter to intake valve
side.
lNote that valve layout here is different from that of conventional engine.
6. Install valve spring.
lWhen installing valve spring, make sure that a smaller pitch
side (identification paint-applied side) faces the cylinder head.
7. Install valve spring retainers.
8. Using valve spring compressor, compress valve springs.
Then install valve collets using magnetic hand.
lAfter installing valve collets, tap the stem end using a plastic
hammer, and check the installation status.
9. Install valve lifters and adjusting shims to the same positions as
before.
INSPECTION AFTER DISASSEMBLY
Cylinder Head Distortion
Using straightedge and feeler gauge, check the bottom of the cylin-
der head for distortion.
JEM153G
For intake : Black
For exhaust : Brown
JEM165G
Identification color : Yellow
FEM080
Limit : 0.04 mm (0.0016 in)
SEM496G
Page 2150 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EM-180
[YD22DDTi]
CYLINDER HEAD
Valve Dimension
Check dimensions of each valve. For dimensions, refer to SDS,EM-
211, "Va l v e".
Whenvalveheadhasbeenworndownto1mm(0.039in)inmargin
thickness, replace NISSAN X-TRAIL 2003 Electronic Repair Manual EM-180
[YD22DDTi]
CYLINDER HEAD
Valve Dimension
Check dimensions of each valve. For dimensions, refer to SDS,EM-
211, "Va l v e".
Whenvalveheadhasbeenworndownto1mm(0.039in)inmargin
thickness, replace](/manual-img/5/57402/w960_57402-2149.png)

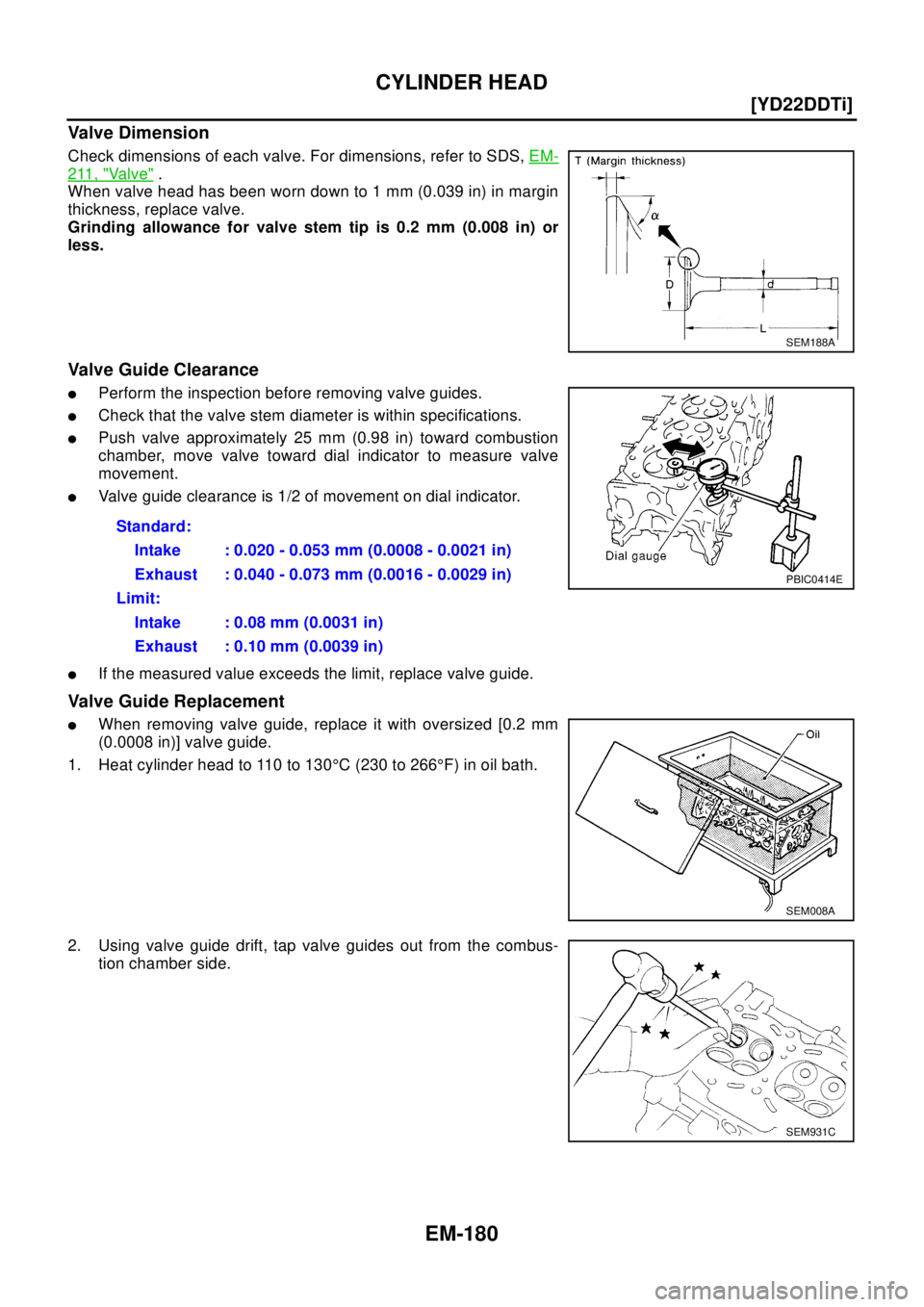

EM-180
[YD22DDTi]
CYLINDER HEAD
Valve Dimension
Check dimensions of each valve. For dimensions, refer to SDS,EM-
211, "Va l v e".
Whenvalveheadhasbeenworndownto1mm(0.039in)inmargin
thickness, replace valve.
Grinding allowance for valve stem tip is 0.2 mm (0.008 in) or
less.

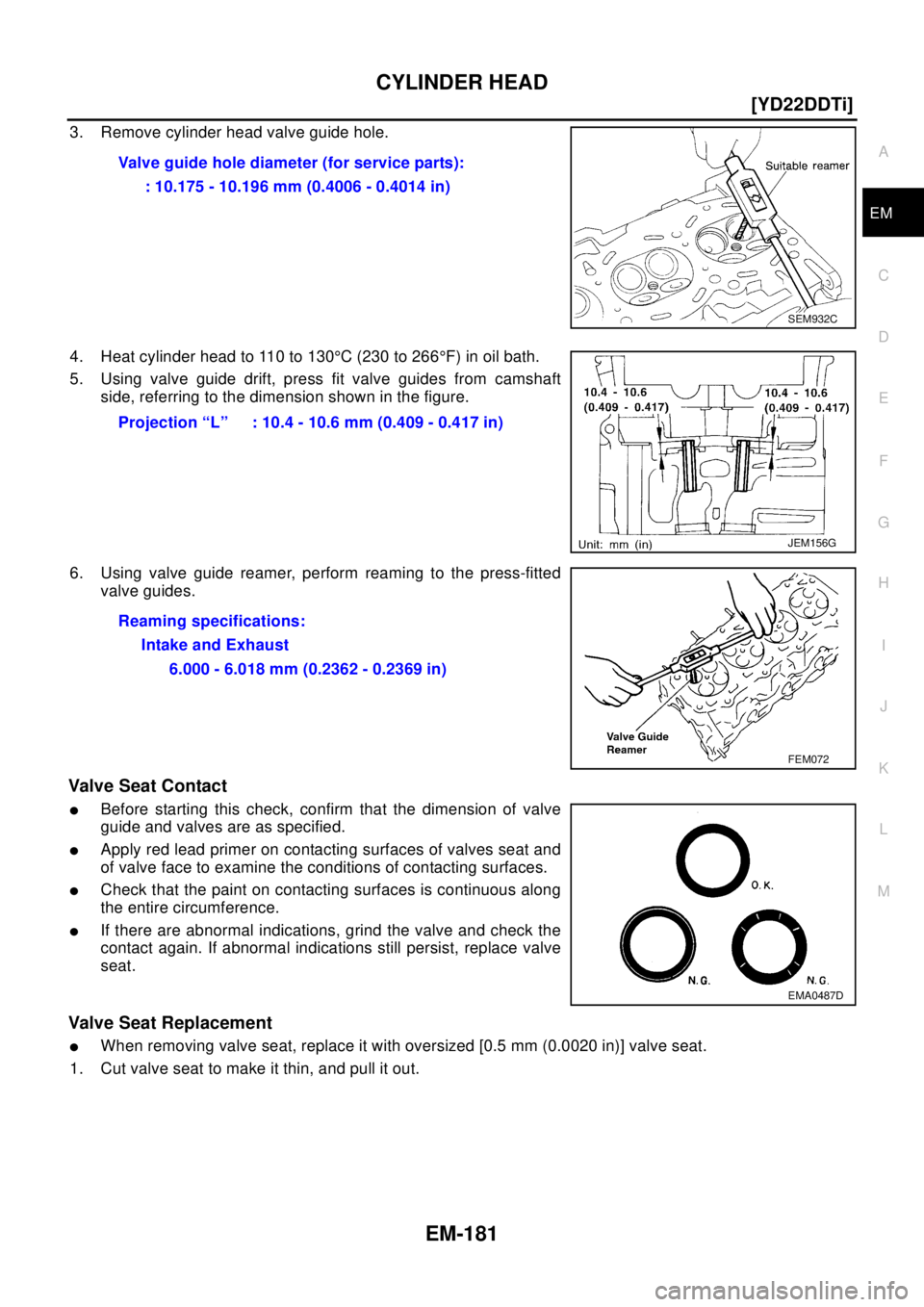

Valve Guide Clearance
lPerform the inspection before removing valve guides.
lCheck that the valve stem diameter is within specifications.
lPush valve approximately 25 mm (0.98 in) toward combustion
chamber, move valve toward dial indicator to measure valve
movement.
lValve guide clearance is 1/2 of movement on dial indicator.
lIf the measured value exceeds the limit, replace valve guide.
Valve Guide Replacement
lWhen removing valve guide, replace it with oversized [0.2 mm
(0.0008 in)] valve guide.
1. Heat cylinder head to 110 to 130°C (230 to 266°F) in oil bath.
2. Using valve guide drift, tap valve guides out from the combus-
tion chamber side.
SEM188A
Standard:
Intake : 0.020 - 0.053 mm (0.0008 - 0.0021 in)
Exhaust : 0.040 - 0.073 mm (0.0016 - 0.0029 in)
Limit:
Intake : 0.08 mm (0.0031 in)
Exhaust : 0.10 mm (0.0039 in)
PBIC0414E
SEM008A
SEM931C
Page 2151 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-181
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove cylinder head valve guide hole.
4. Heat cylinder head to 110 to 130°C (230 to 266°F) in oil bath.
5. Using valve guide drift, pres NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER HEAD
EM-181
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove cylinder head valve guide hole.
4. Heat cylinder head to 110 to 130°C (230 to 266°F) in oil bath.
5. Using valve guide drift, pres](/manual-img/5/57402/w960_57402-2150.png)
CYLINDER HEAD
EM-181
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove cylinder head valve guide hole.
4. Heat cylinder head to 110 to 130°C (230 to 266°F) in oil bath.
5. Using valve guide drift, press fit valve guides from camshaft
side, referring to the dimension shown in the figure.
6. Using valve guide reamer, perform reaming to the press-fitted
valve guides.
Valve Seat Contact
lBefore starting this check, confirm that the dimension of valve
guide and valves are as specified.
lApply red lead primer on contacting surfaces of valves seat and
of valve face to examine the conditions of contacting surfaces.
lCheck that the paint on contacting surfaces is continuous along
the entire circumference.
lIf there are abnormal indications, grind the valve and check the
contact again. If abnormal indications still persist, replace valve
seat.
Valve Seat Replacement
lWhen removing valve seat, replace it with oversized [0.5 mm (0.0020 in)] valve seat.
1. Cut valve seat to make it thin, and pull it out.Valve guide hole diameter (for service parts):
: 10.175 - 10.196 mm (0.4006 - 0.4014 in)
SEM932C
Projection “L” : 10.4 - 10.6 mm (0.409 - 0.417 in)
JEM156G
Reaming specifications:
Intake and Exhaust
6.000 - 6.018 mm (0.2362 - 0.2369 in)
FEM072
EMA0487D
Page 2152 of 3066

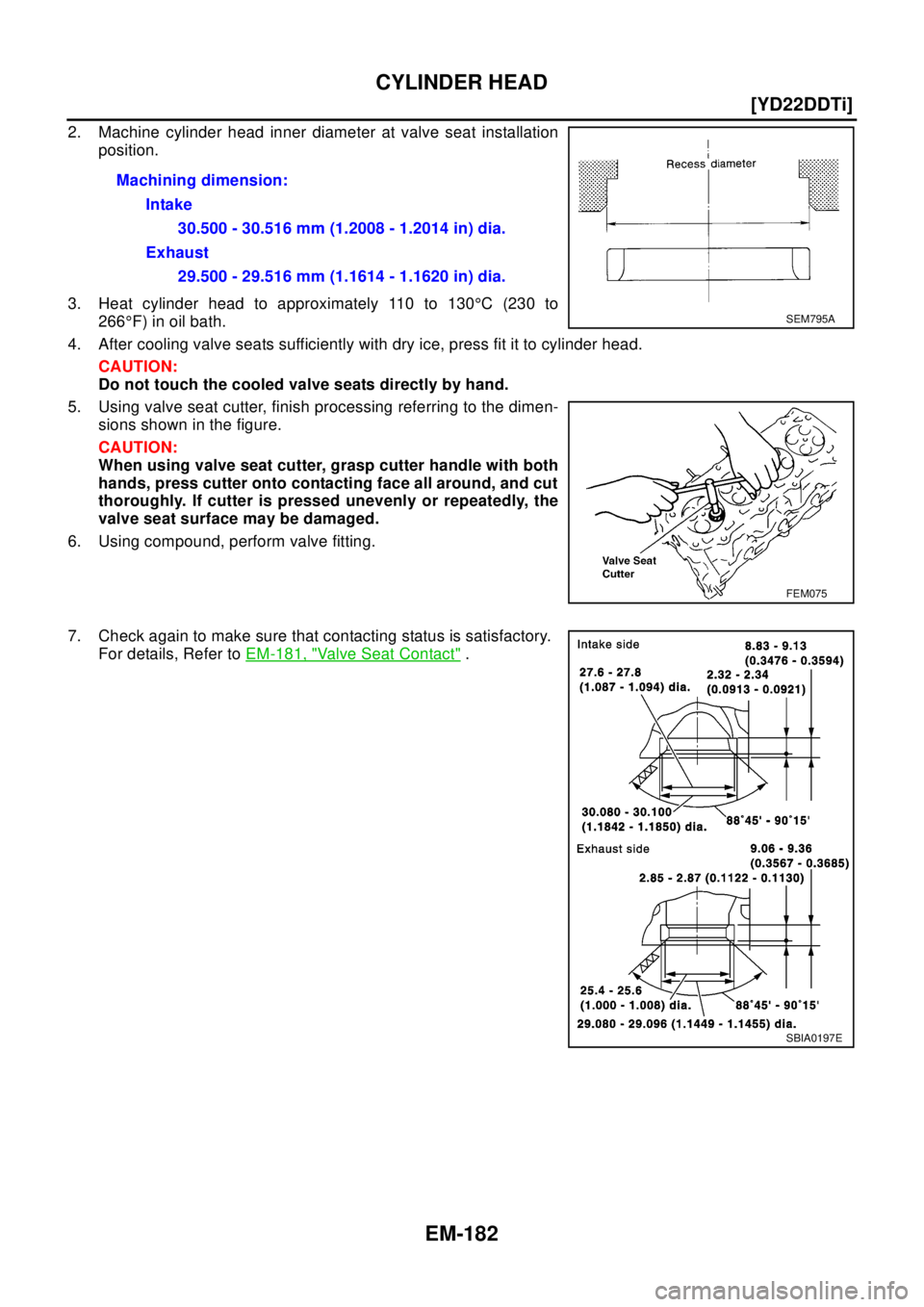

EM-182
[YD22DDTi]
CYLINDER HEAD
2. Machine cylinder head inner diameter at valve seat installation
position.
3. Heat cylinder head to approximately 110 to 130°C(230to
266°F) in oil bath.
4. After cooling valve seats sufficiently with dry ice, press fit it to cylinder head.
CAUTION:
Do not touch the cooled valve seats directly by hand.
5. Using valve seat cutter, finish processing referring to the dimen-
sions shown in the figure.
CAUTION:
When using valve seat cutter, grasp cutter handle with both
hands, press cutter onto contacting face all around, and cut
thoroughly. If cutter is pressed unevenly or repeatedly, the
valve seat surface may be damaged.
6. Using compound, perform valve fitting.
7. Check again to make sure that contacting status is satisfactory.
For details, Refer toEM-181, "
Valve Seat Contact". Machining dimension:
Intake
30.500 - 30.516 mm (1.2008 - 1.2014 in) dia.
Exhaust
29.500 - 29.516 mm (1.1614 - 1.1620 in) dia.
SEM795A
FEM075
SBIA0197E
