HO2S2
EC-591
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.
4. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is-25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Without CONSULT-II
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.
3. Set voltmeter probes between ECM terminal 95 [HO2S2 (B1) signal] and engine ground.
4. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 4, step 5 is not neces-
sary.
5. Keep vehicle at idling for 10 minutes, then check voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in “D”
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
6. If NG, replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in)
onto a hard surface such as a concrete floor; use a new one.
Removal and InstallationEBS00B8V
HEATED OXYGEN SENSOR 2
Refer toEX-2, "EXHAUST SYSTEM".
SEF662Y
PBIB0551E
PBIB0550E
Page 1706 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EC-592
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
IGNITION SIGNAL
PFP:22448
Component DescriptionEBS00B8W
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the NISSAN X-TRAIL 2003 Electronic Repair Manual EC-592
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
IGNITION SIGNAL
PFP:22448
Component DescriptionEBS00B8W
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the](/manual-img/5/57402/w960_57402-1705.png)
EC-592
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
IGNITION SIGNAL
PFP:22448
Component DescriptionEBS00B8W
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns on and off the ignition
coil primary circuit. This on-off operation induces the proper high
voltage in the coil secondary circuit.
ECM Terminals and Reference ValueEBS00B8X
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0509E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
21
22
23
24BR
PU
L/R
GY/RIgnition signal No. 1
Ignition signal No. 2
Ignition signal No. 3
Ignition signal No. 4[Engine is running]
lWarm-up condition
lIdle speed0-0.1V
[Engine is running]
lWarm-up condition
lEngine speed is 2,000 rpm.0-0.2V
PBIB0521E
PBIB0522E
Page 1707 of 3066
IGNITION SIGNAL
EC-593
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

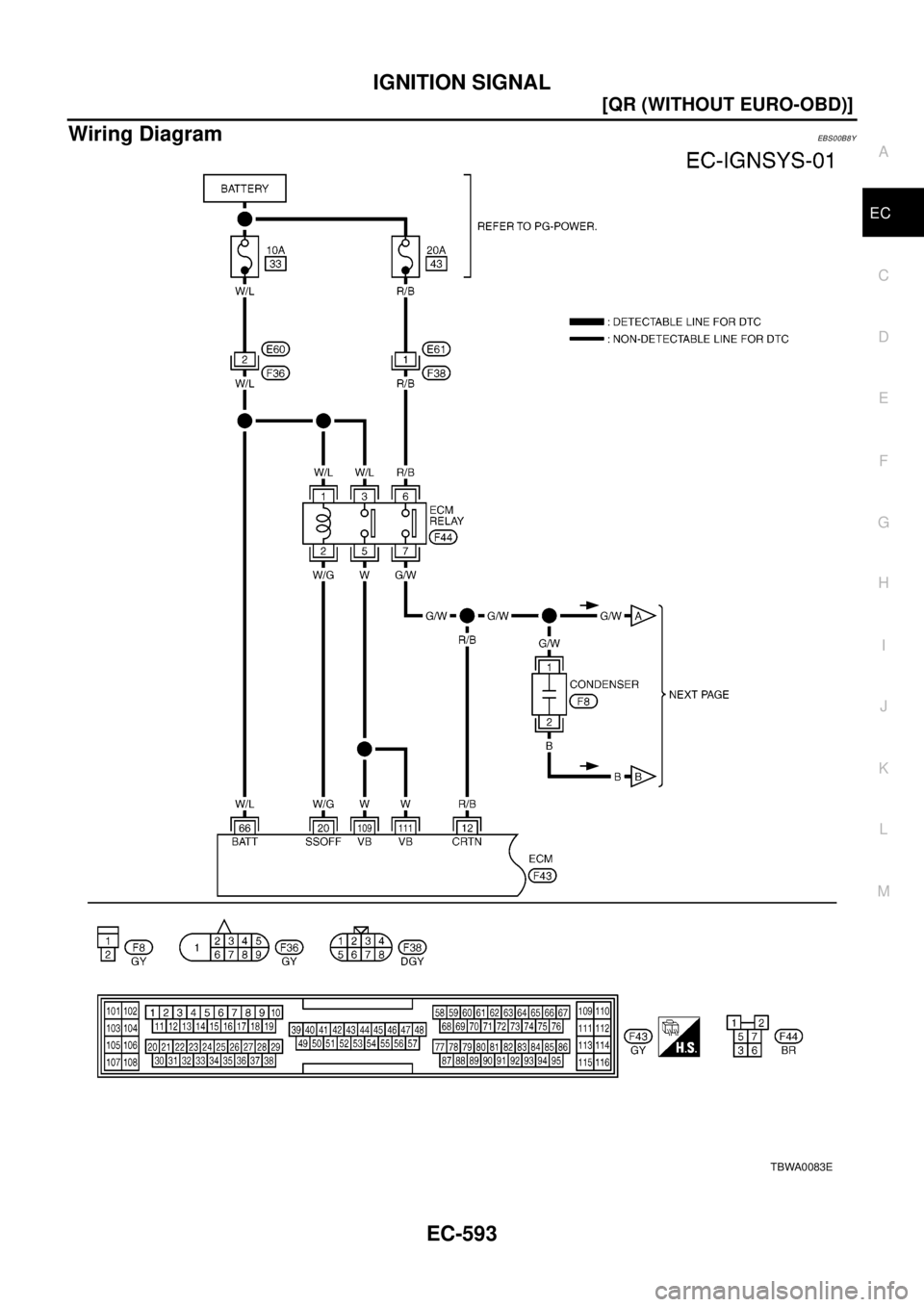

Wiring DiagramEBS00B8Y
TBWA0083E
Page 1708 of 3066
EC-594
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
TBWA0084E

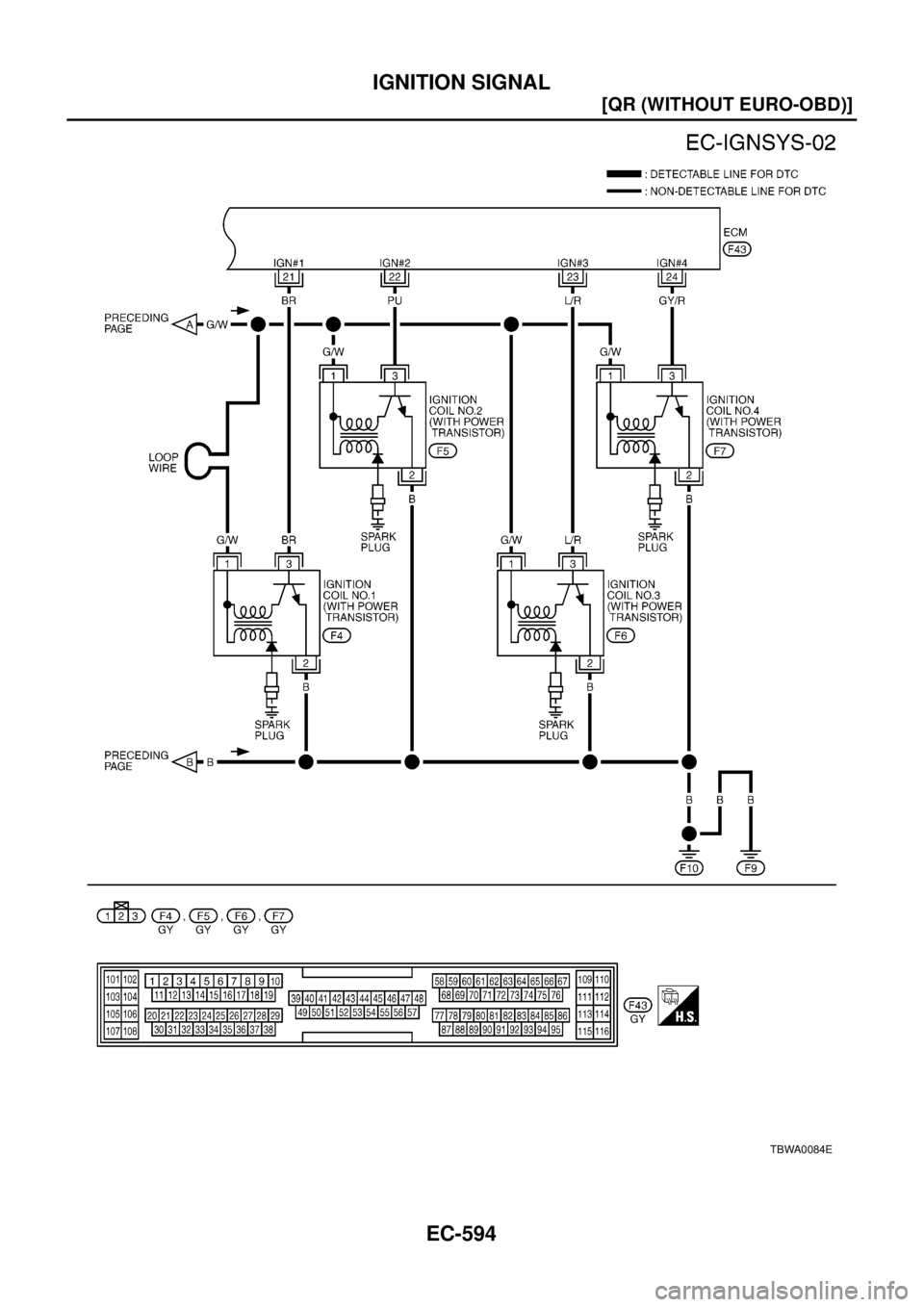

Page 1709 of 3066
IGNITION SIGNAL
EC-595
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B8Z
1.CHECK ENGINE START
Turn ignition switch “OFF”, and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 4.
2.CHECK OVERALL FUNCTION
With CONSULT-II
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.
2. Make sure that all circuits do not produce a momentary engine
speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
3.CHECK OVERALL FUNCTION
Wi t h ou t C O N S U LT-I I
1. Let engine idle.
2. Read the voltage signal between ECM terminals 21, 22, 23, 24
and ground with an oscilloscope.
3. Verify that the oscilloscope screen shows the signal wave as
shown below.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
PBIB0133E
PBIB0579EPBIB0521E
Page 1710 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EC-596
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
4.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminals 109, 111 and ground
with CONSULT-II or te NISSAN X-TRAIL 2003 Electronic Repair Manual EC-596
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
4.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminals 109, 111 and ground
with CONSULT-II or te](/manual-img/5/57402/w960_57402-1709.png)
EC-596
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
4.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminals 109, 111 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> Go toEC-454, "
POWER SUPPLY CIRCUIT FOR ECM"
.
5.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
Check voltage between ECM terminal 12 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 6.
6.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect ECM relay.
4. Check harness continuity between ECM terminal 12 and ECM
relay terminal 7. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
7.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
Check voltage between ECM relay terminal 6 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.Voltage: Battery voltage
PBIB0580E
Voltage: Battery voltage
PBIB0136E
Continuity should exist.
PBIB0493E
Voltage: Battery voltage
PBIB0581E
Page 1711 of 3066
IGNITION SIGNAL
EC-597
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8.DETECT MALFUNCTIONING PART
Check the following.
l20A fuse
lHarness or connectors E61, F38
lHarness for open and short between ECM relay and fuse
>> Repair or replace harness or connectors.
9.CHECK ECM RELAY
Refer toEC-459, "
Component Inspection".
OK or NG
OK >> GO TO 17.
NG >> Replace ECM relay.
10.CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check harness continuity between ECM terminal 12 and con-
denser terminal 1, condenser terminal 2 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
11 .CHECK CONDENSER
Refer toEC-599, "
Component Inspection".
OK or NG
OK >> GO TO 12.
NG >> Replace condenser.Continuity should exist.
PBIB0509E
Page 1712 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual EC-598
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
12.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil NISSAN X-TRAIL 2003 Electronic Repair Manual EC-598
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
12.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil](/manual-img/5/57402/w960_57402-1711.png)
EC-598
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL
12.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch ON.
5. Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13.DETECT MALFUNCTIONING PART
Check the following.
lHarness for open or short between ignition coil and ECM relay
lHarness for open or short between ignition coil and ECM
>> Repair or replace harness or connectors.
14.CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB0509E
Voltage: Battery voltage
SEF107S
Continuity should exist.
