Page 2945 of 3066

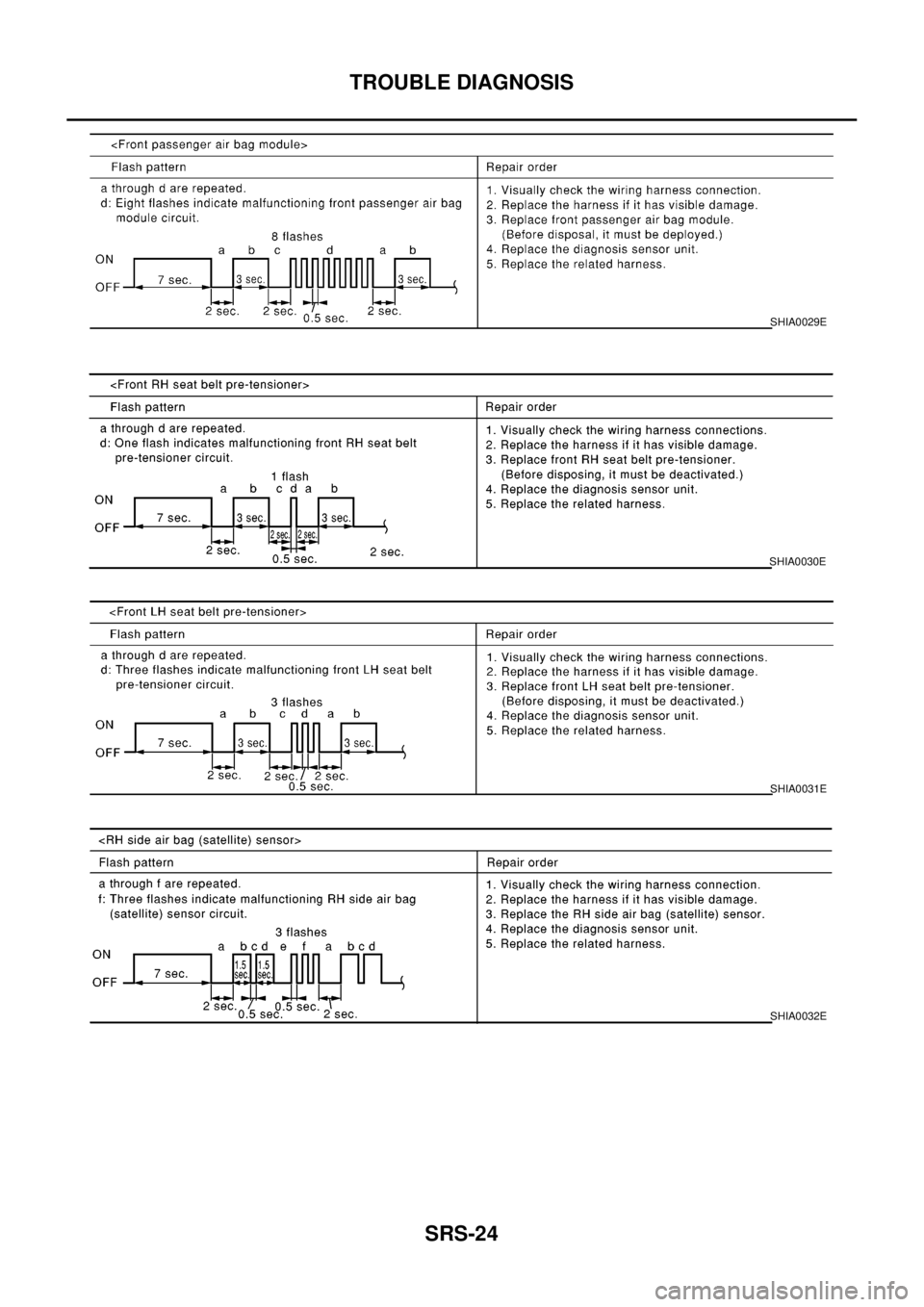

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS SRS-23 C D E F G I J K L MA B SRS 2. After “AIR BAG” warning lamp lights for 7seconds, turn ignition switch “OFF” within 1seconds. 3. Wait more than 3 seconds. 4. Repeat the

Page 2946 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-24 TROUBLE DIAGNOSIS SHIA0029E SHIA0030E SHIA0031E SHIA0032E

Page 2947 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS SRS-25 C D E F G I J K L MA B SRS Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn OffEHS000CU DIAGNOSTIC PROCEDURE 6 1.SEE THE DEPLOYMENT OF AIR BAG MODULE Is air bag mod

Page 2948 of 3066

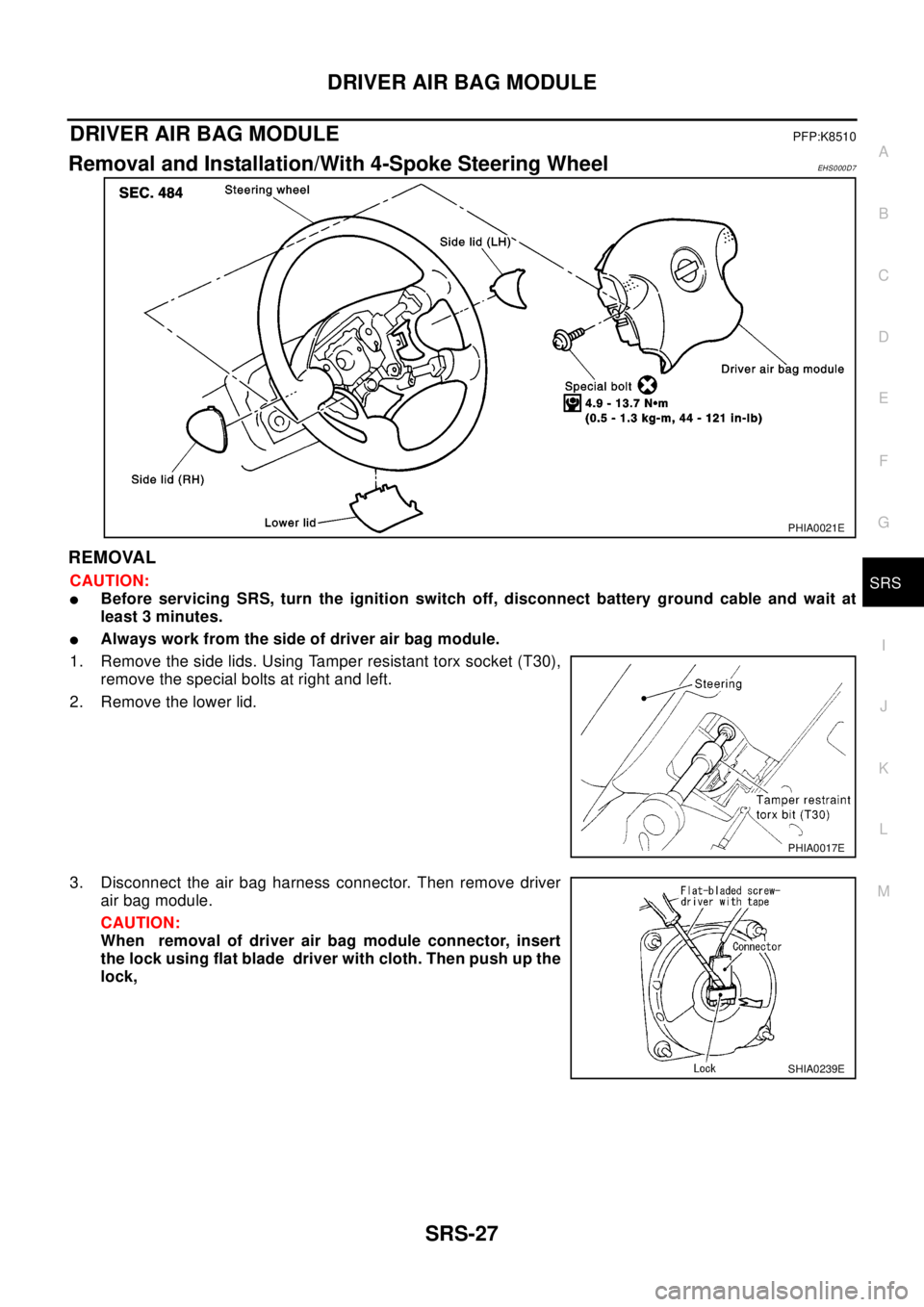

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-26 TROUBLE DIAGNOSIS 3.CHECK AIR BAG FUSE AGAIN Replace “AIR BAG” fuse and turn ignition switch ON. Is “AIR BAG”fuse blown again? Yes >> Repair main harness. No >>INSPECTION END 4.CHECK DI

Page 2949 of 3066

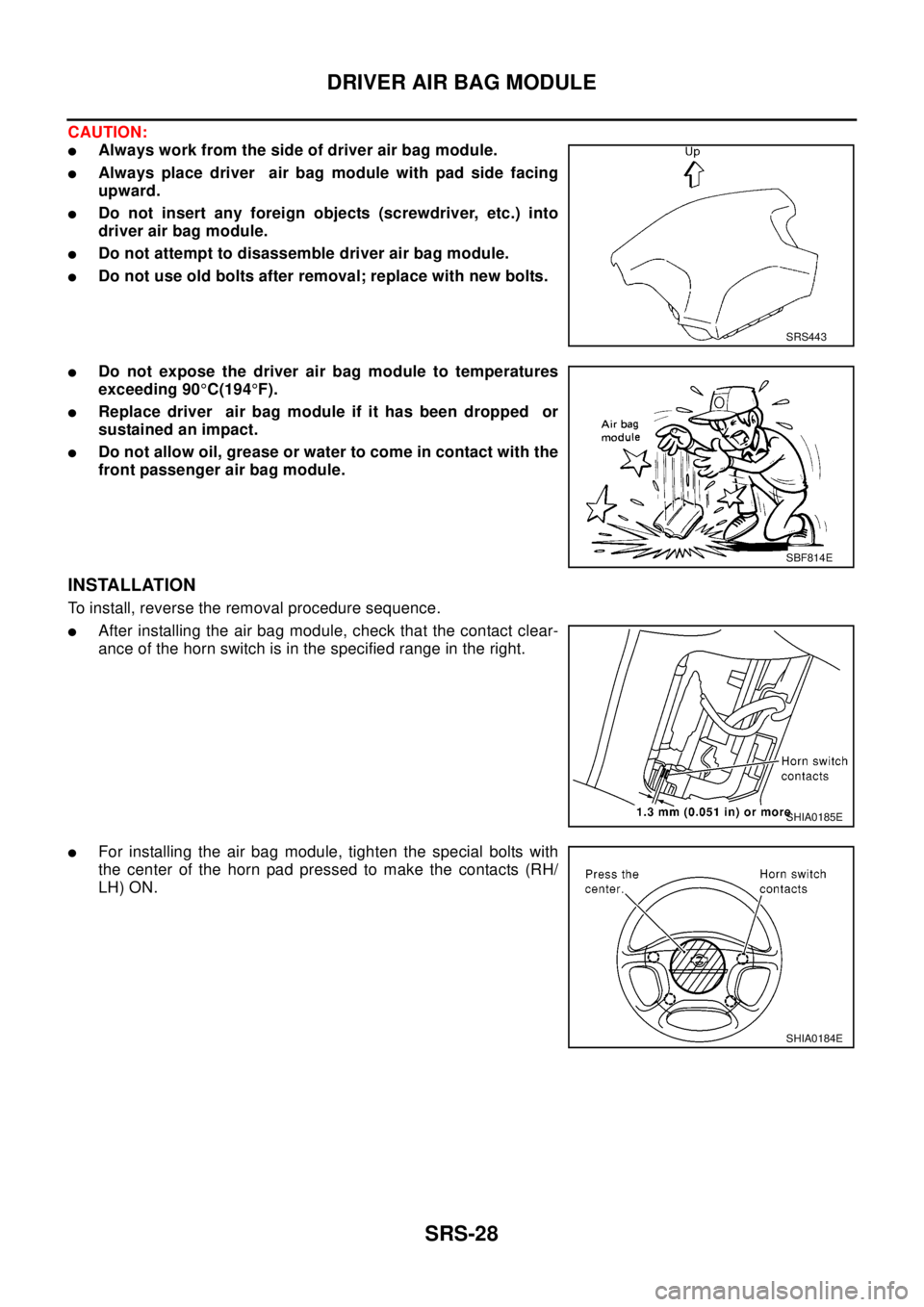

NISSAN X-TRAIL 2003 Electronic Repair Manual DRIVER AIR BAG MODULE SRS-27 C D E F G I J K L MA B SRS DRIVER AIR BAG MODULEPFP:K8510 Removal and Installation/With 4-Spoke Steering WheelEHS0 00 D7 REMOVAL CAUTION: lBefore servicing SRS, turn the i

Page 2950 of 3066

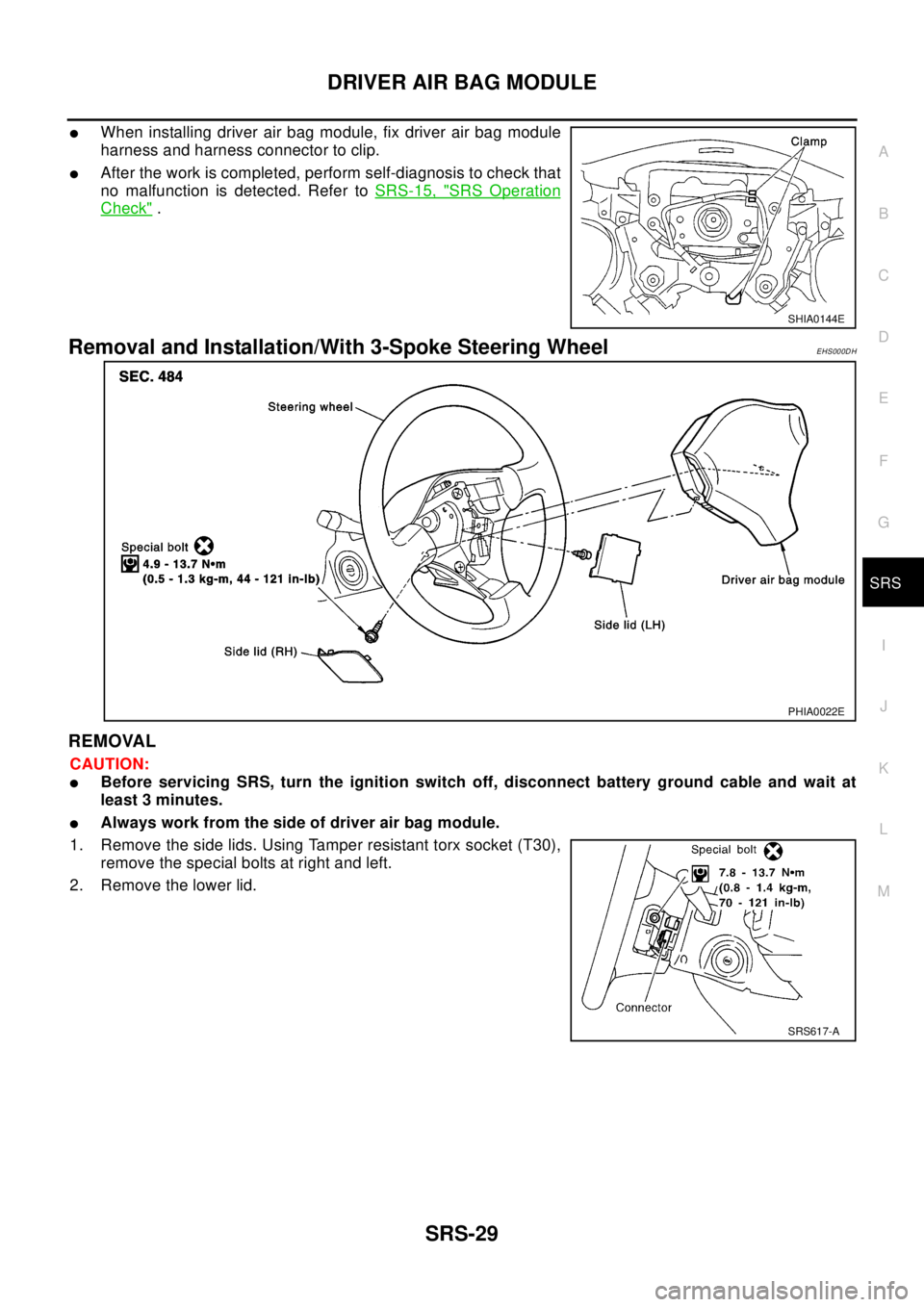

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-28 DRIVER AIR BAG MODULE CAUTION: lAlways work from the side of driver air bag module. lAlways place driver air bag module with pad side facing upward. lDo not insert any foreign objects (screwdri

Page 2951 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DRIVER AIR BAG MODULE SRS-29 C D E F G I J K L MA B SRS lWhen installing driver air bag module, fix driver air bag module harness and harness connector to clip. lAfter the work is completed, perform s

Page 2952 of 3066

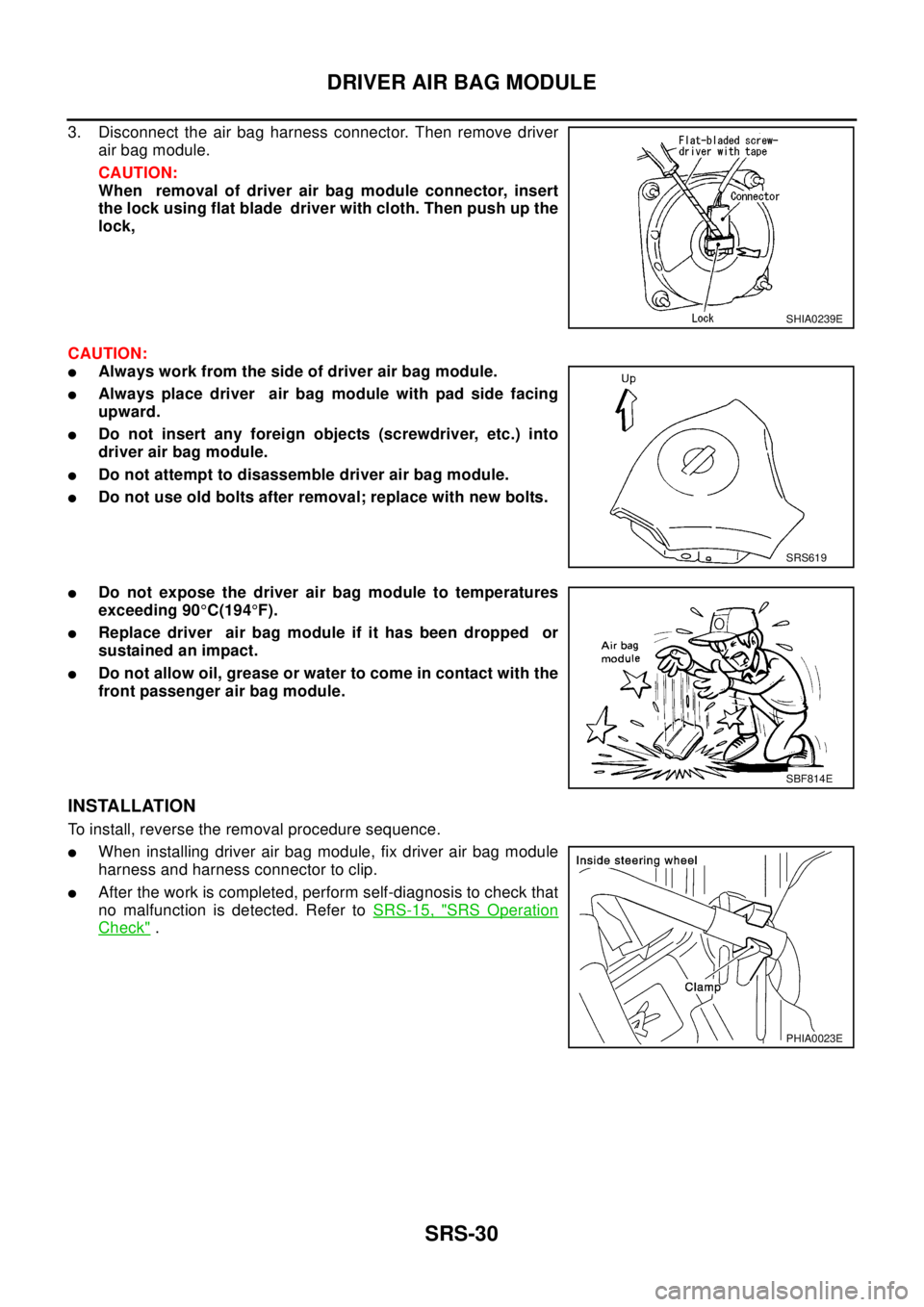

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-30 DRIVER AIR BAG MODULE 3. Disconnect the air bag harness connector. Then remove driver air bag module. CAUTION: When removal of driver air bag module connector, insert the lock using flat blade
