NISSAN X-TRAIL 2003 Electronic Repair Manual EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-23
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
c. Remove exhaust manifold cover upper.
d. Loosen nuts in reverse order of illustration to remove exhaust
manifold and

Page 1994 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-24
[QR20DE]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER
P F P : 1111 0
Removal and InstallationEBS009QV
REMOVAL
WAR NIN G:
To avoid the danger of being scalded, never drain the engine oil whe

Page 1995 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual OIL PAN AND OIL STRAINER
EM-25
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
6. Remove drive belts.
7. Remove A/C compressor with piping connected.
And locate it aside temporarily with ropes or equivalent not to

Page 1996 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-26
[QR20DE]
OIL PAN AND OIL STRAINER
c. Tighten bolts in numerical order as shown.
lNo.10, 11and 18 indicate double tightening of bolts 1,2 and 3.
NOTE:
Refer to the below for locating bolts.
M6´2

Page 1997 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual IGNITION COIL
EM-27
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
EM

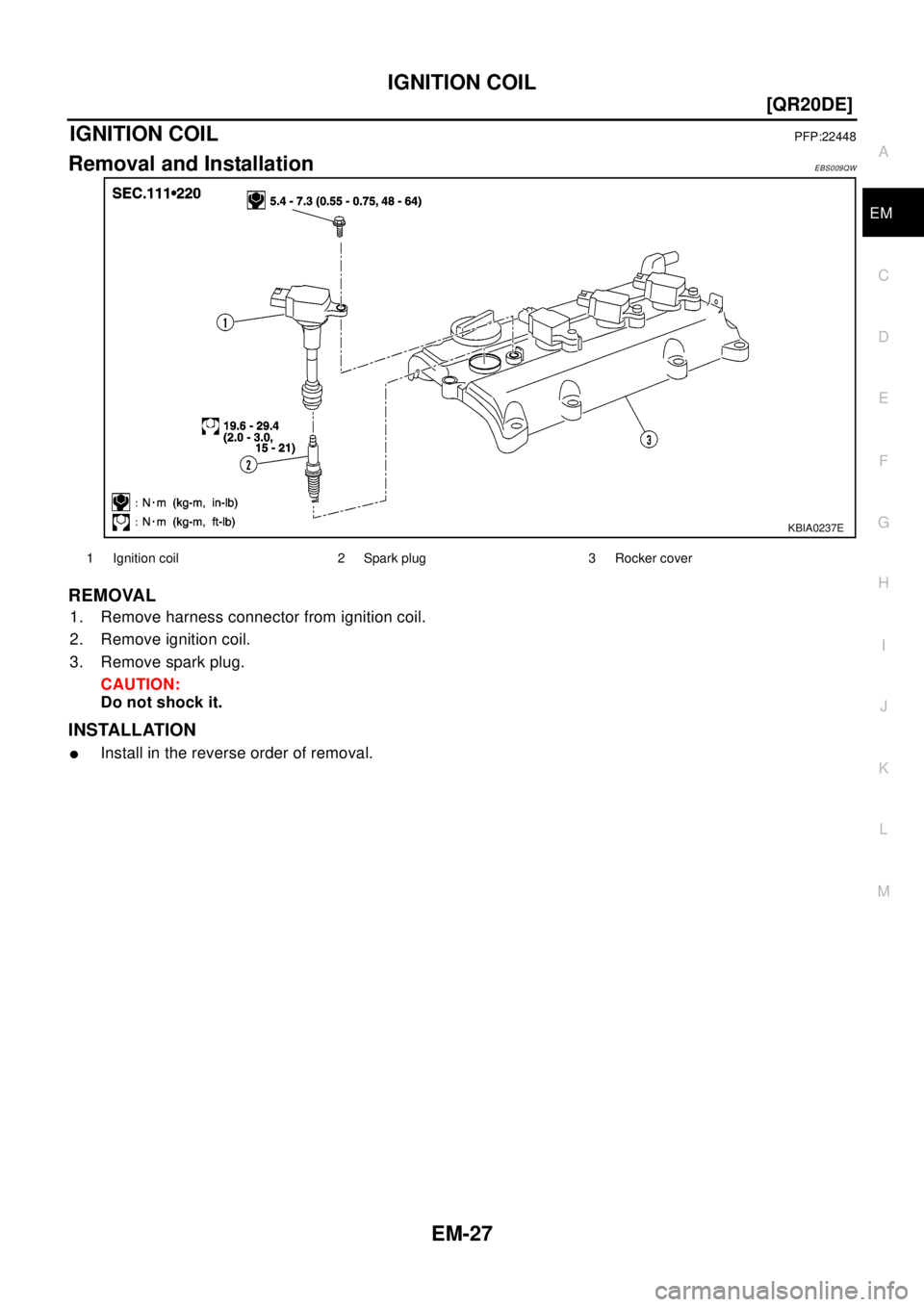

IGNITION COILPFP:22448
Removal and InstallationEBS009QW
REMOVAL
1. Remove harness connector from ignition coil.
2. Remove ignition coil.
3. Remov

Page 1998 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-28
[QR20DE]
SPARK PLUG
SPARK PLUG
PFP:22401
Removal and InstallationEBS009QX
REMOVAL
1. Remove ignition coil. Refer toEM-27, "Removal and Installation".
2. Remove spark plug with suitable spark plu

Page 1999 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual FUEL INJECTOR AND FUEL TUBE
EM-29
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
EM

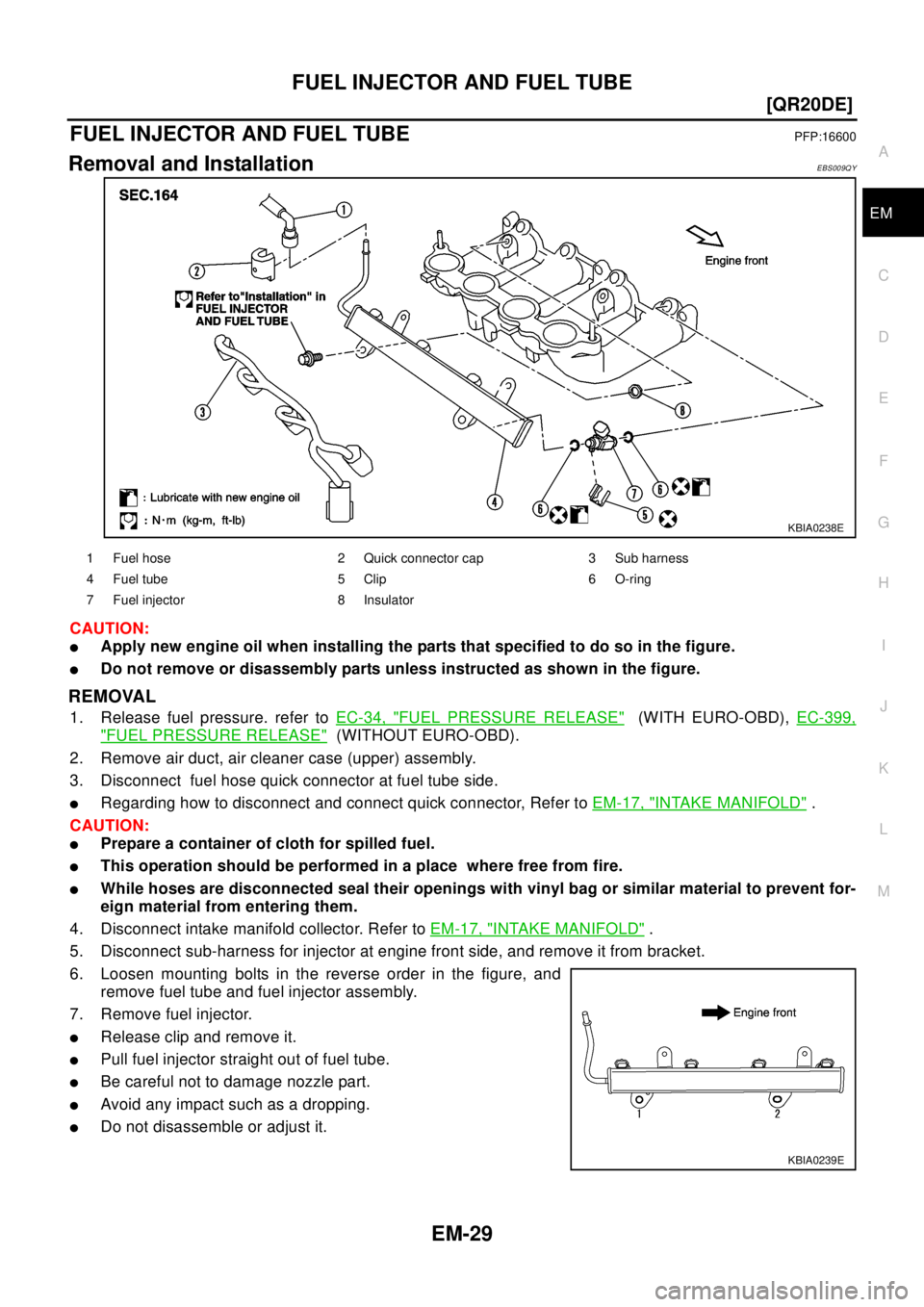

FUEL INJECTOR AND FUEL TUBEPFP:16600
Removal and InstallationEBS009QY
CAUTION:
lApply new engine oil when installing the parts that

Page 2000 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-30
[QR20DE]
FUEL INJECTOR AND FUEL TUBE
INSTALLATION
1. Install O-rings to fuel injector paying attention to the items below.
lLubricate O-rings by smearing new engine oil.
lBe careful not to scrat

EM-30
[QR20DE]
FUEL INJECTOR AND FUEL TUBE
INSTALLATION
1. Install O-rings to fuel injector paying attention to the items below.
lLubricate O-rings by smearing new engine oil.
lBe careful not to scratch it with a tool or fingernails during installation. Also be careful not to twist
or stretch O-ring. If O-ring was stretched while it is attached, do no insert it into fuel tube immedi-
atly.
2. Install fuel injector to fuel tube with the following procedure.
lInsert clip into clip mounting groove on fuel injector.
lInsert clip so that projection A of fuel injector matches notch A of
the clip.
lDo not reuse clip. Replace it with a new one.
lBe careful to keep clip from interfering with O-ring. If interfer-
ence occurs, replace O-ring.
3. Insert fuel injector into fuel tube with clip attached.
lInsertitwhilematchingittotheaxialcenter.
lInsert fuel injector so that projection B of fuel injector matches
notch B of the clip.
lMake sure that fuel tube flange is securely fixed in flange fixing
groove on clip.
lMake sure that installation is complete by checking that fuel
injector does not rotate or come off.
4. Install fuel tube assembly with the following procedure.
a. Insert the tip of each fuel injector into intake manifold.
b. Tighten mounting bolts in two steps in the numerical order
shown in the figure.
5. Install intake manifold collector. Refer toEM-17, "
INTAKE MANI-
FOLD".
6. Connect fuel hose. Refer toEM-17, "
INTAKE MANIFOLD".
7. Install all removed parts in the reverse order of removal.
INSPECTION AFTER INSTALLATION
lCheck connections for fuel leakage.
1. Start the engine, and run it for a few minutes with engine at idle.
2. Stop the engine, and check for fuel leakage both visually and by odor of gasoline.
NOTE:
Use mirrors for checking on invisible points.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
KBIA0240E
1st step: 9.3 - 10.8 N·m (0.95 - 1.1 kg-m, 0.7 - 0.8 ft-lb)
2nd step: 20.6 - 26.5 N·m (2.1 - 2.7 kg-m, 16 - 19 ft-lb)
KBIA0239E
