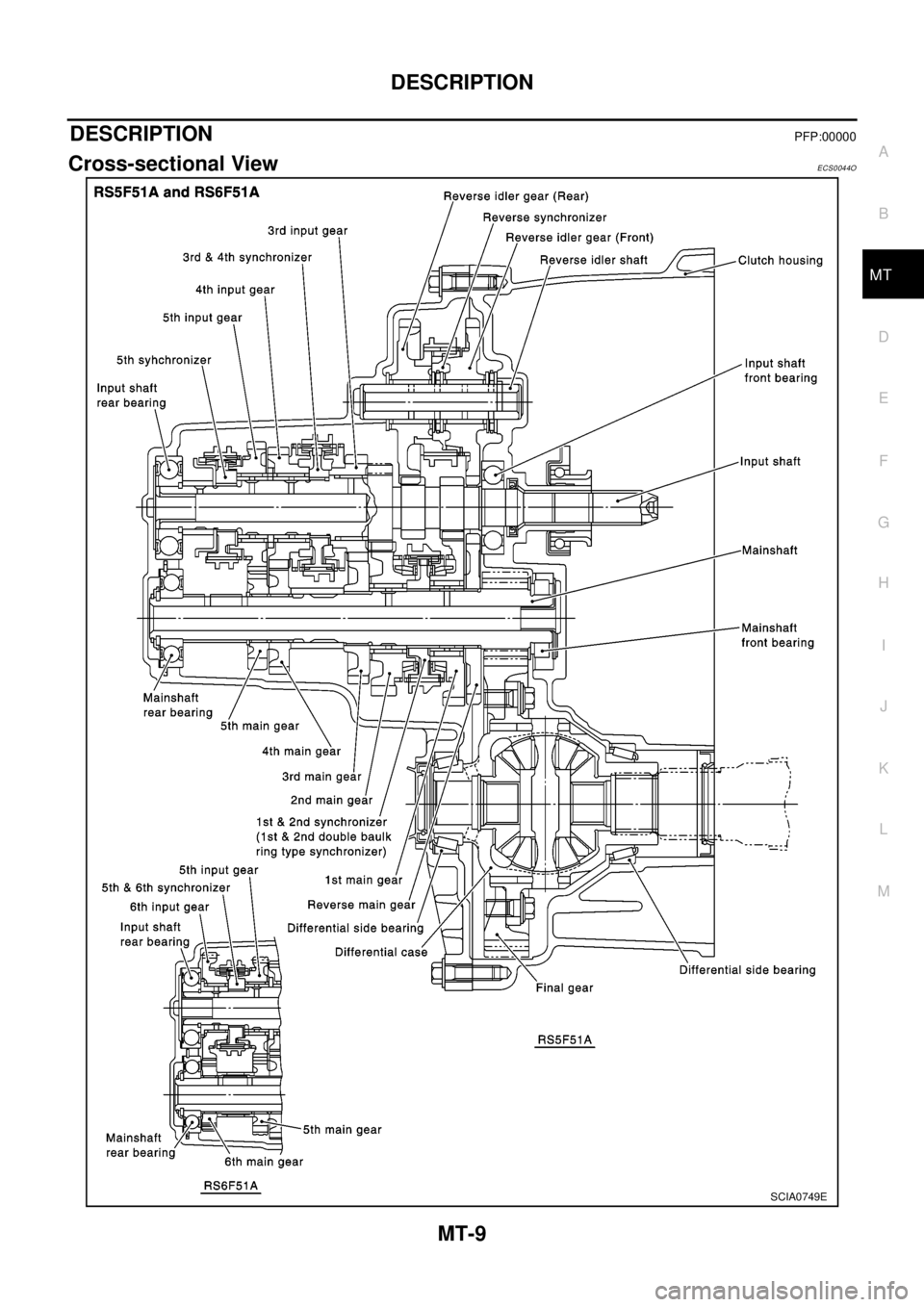

NISSAN X-TRAIL 2003 Electronic Repair Manual DESCRIPTION MT-9 D E F G H I J K L MA B MT DESCRIPTIONPFP:00000 Cross-sectional ViewECS0044O SCIA0749E

Page 2546 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-10 DESCRIPTION DOUBLE-CONE SYNCHRONIZER Double-cone synchronizer is adopted for 1st and 2nd gears to reduce operating force of the shift lever. REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING

Page 2547 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual M/T OIL MT-11 D E F G H I J K L MA B MT M/T OILPFP:KLD20 Changing M/T OilECS001WQ DRAINING 1. Start the engine and let it run to warm up the transaxle. 2. Stop the engine. Remove drain plug and drain

Page 2548 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-12 SIDE OIL SEAL SIDE OIL SEAL PFP:32113 Removal and InstallationECS001WS REMOVAL lClutch housing side oil seal used on 4WD vehicles is attached to the transfer. Be sure to replace it when transfer

Page 2549 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POSITION SWITCH MT-13 D E F G H I J K L MA B MT POSITION SWITCHPFP:32005 CheckingECS001WT BACK-UP LAMP SWITCH lCheck continuity. PARK/NEUTRAL POSITION SWITCH lCheck continuity. Gear position Continuit

Page 2550 of 3066

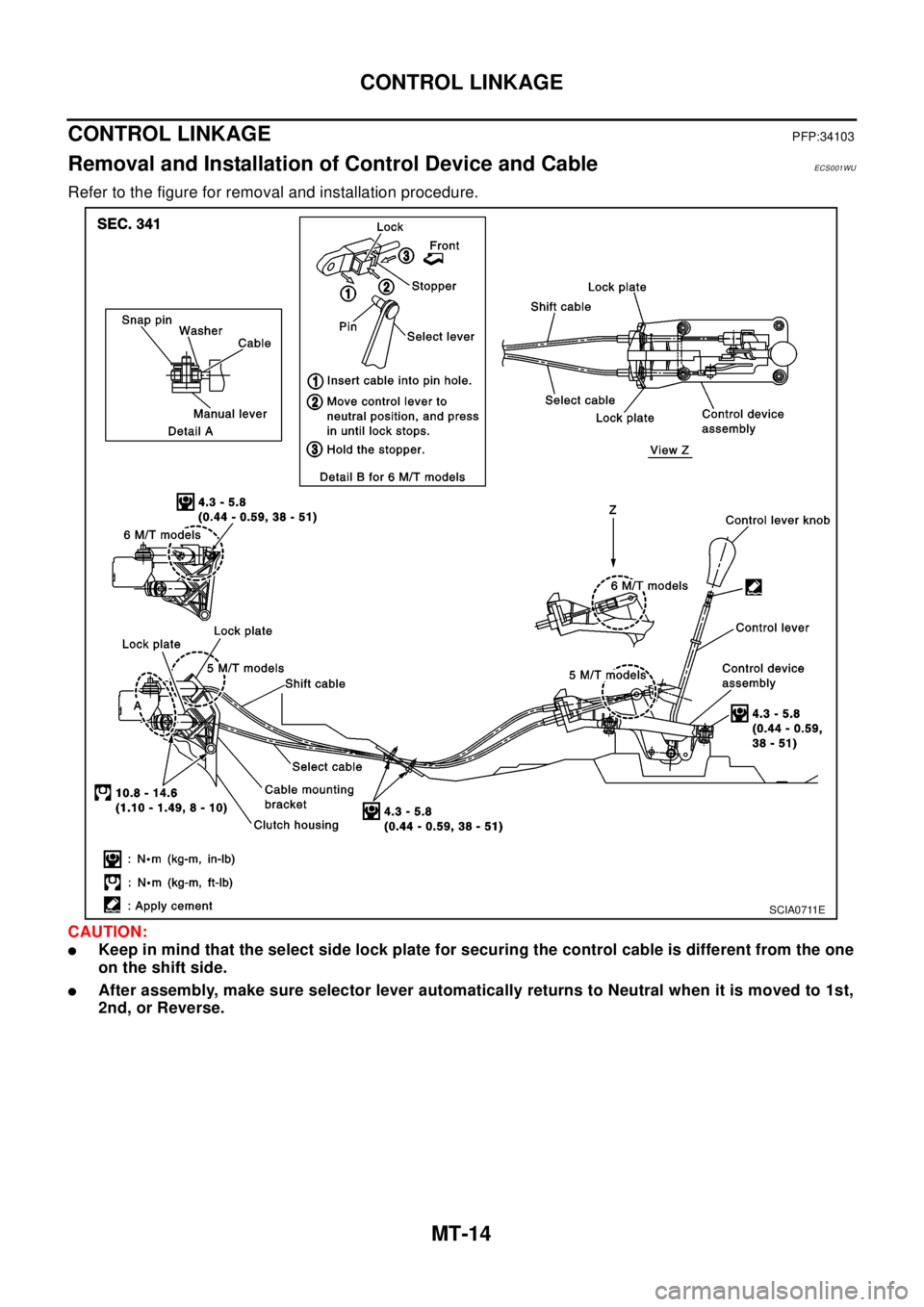

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-14 CONTROL LINKAGE CONTROL LINKAGE PFP:34103 Removal and Installation of Control Device and CableECS001WU Refer to the figure for removal and installation procedure. CAUTION: lKeep in mind that the

Page 2551 of 3066

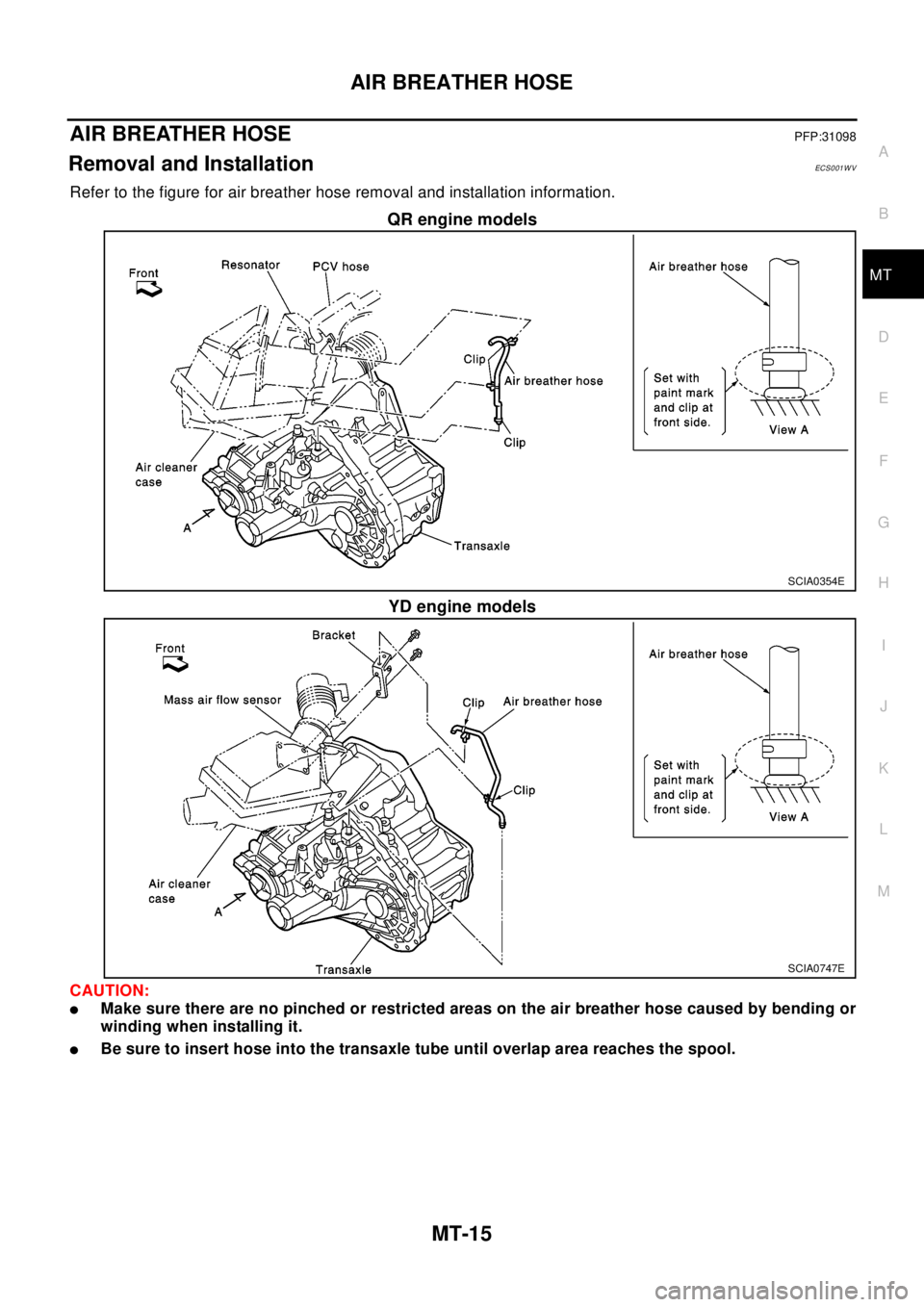

NISSAN X-TRAIL 2003 Electronic Repair Manual AIR BREATHER HOSE MT-15 D E F G H I J K L MA B MT AIR BREATHER HOSEPFP:31098 Removal and InstallationECS0 01 W V Refer to the figure for air breather hose removal and installation information. QR engi

Page 2552 of 3066

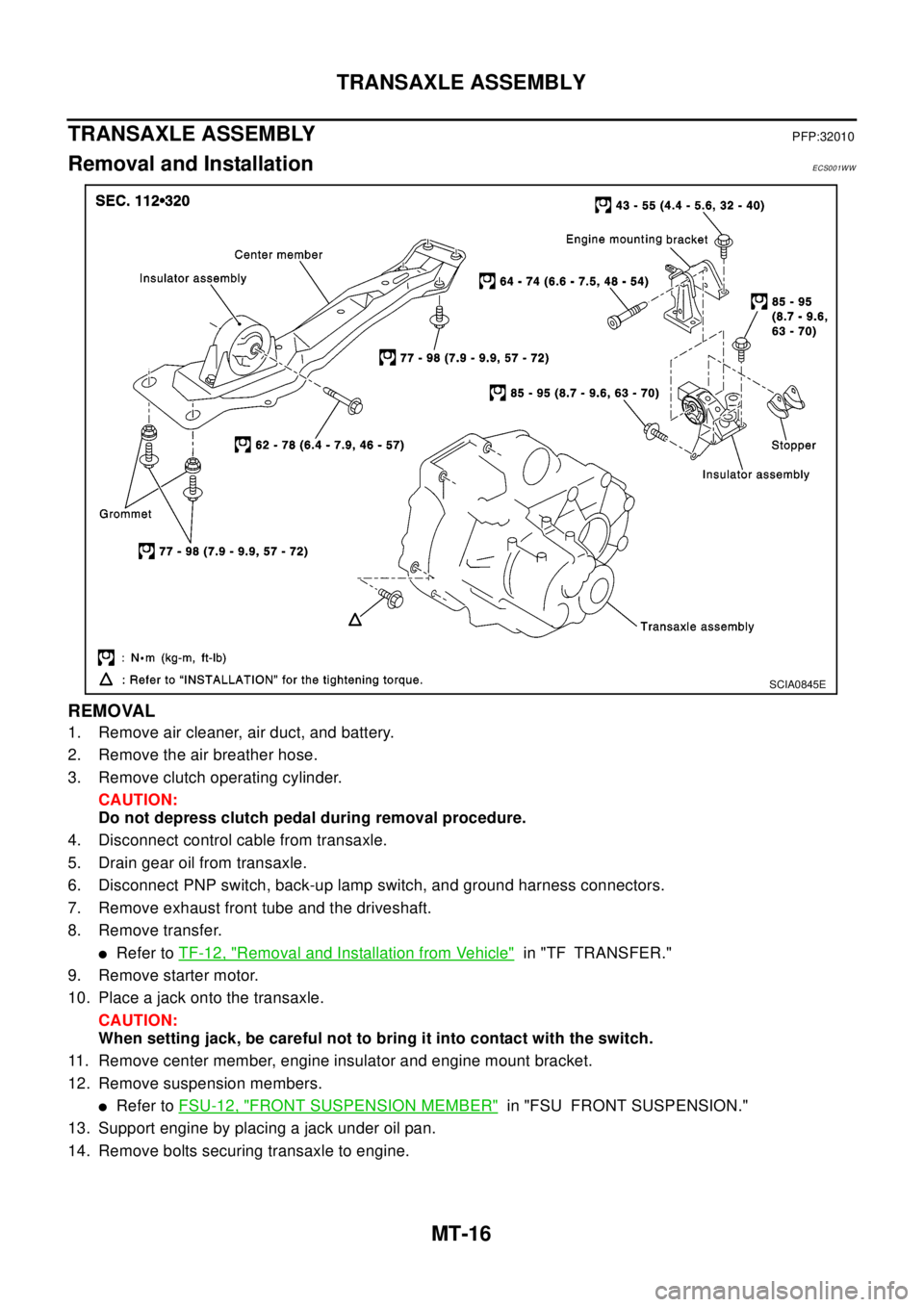

NISSAN X-TRAIL 2003 Electronic Repair Manual MT-16 TRANSAXLE ASSEMBLY TRANSAXLE ASSEMBLY PFP:32010 Removal and InstallationECS001WW REMOVAL 1. Remove air cleaner, air duct, and battery. 2. Remove the air breather hose. 3. Remove clutch operating
