Page 2705 of 3066
HARNESS
PG-29
C
D
E
F
G
H
I
J
L
MA
B
PG
HARNESSPFP:00011
Harness LayoutEKS0032I
HOW TO READ HARNESS LAYOUTS
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
lMain Harness
lEngine Room Harness (Engine Compartment)
lEngine Control Harness
lBody Harness
lBody No.2 Harness
lRoom Lamp Harness
lDoor Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

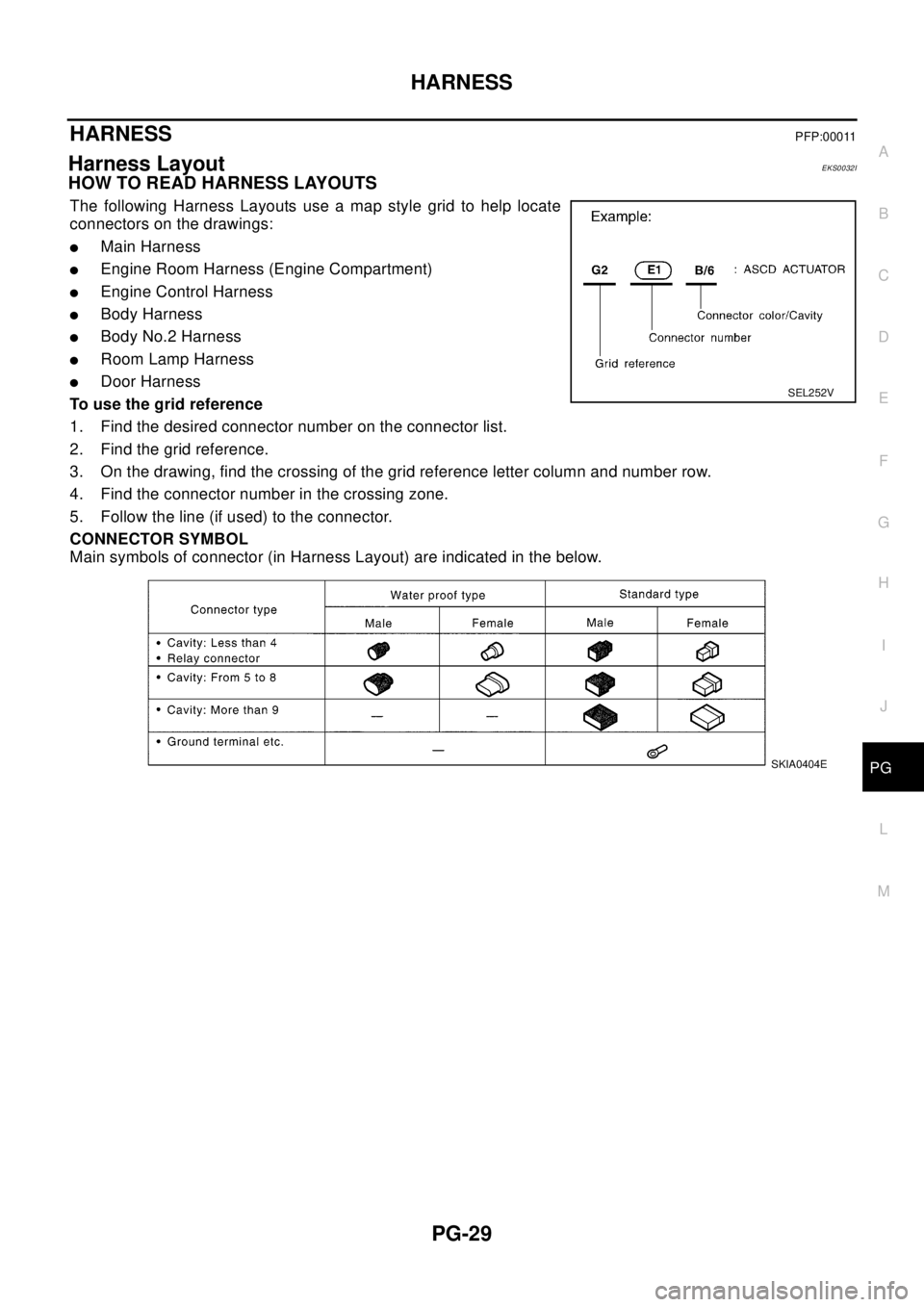

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.SEL252V
SKIA0404E
Page 2706 of 3066
PG-30
HARNESS

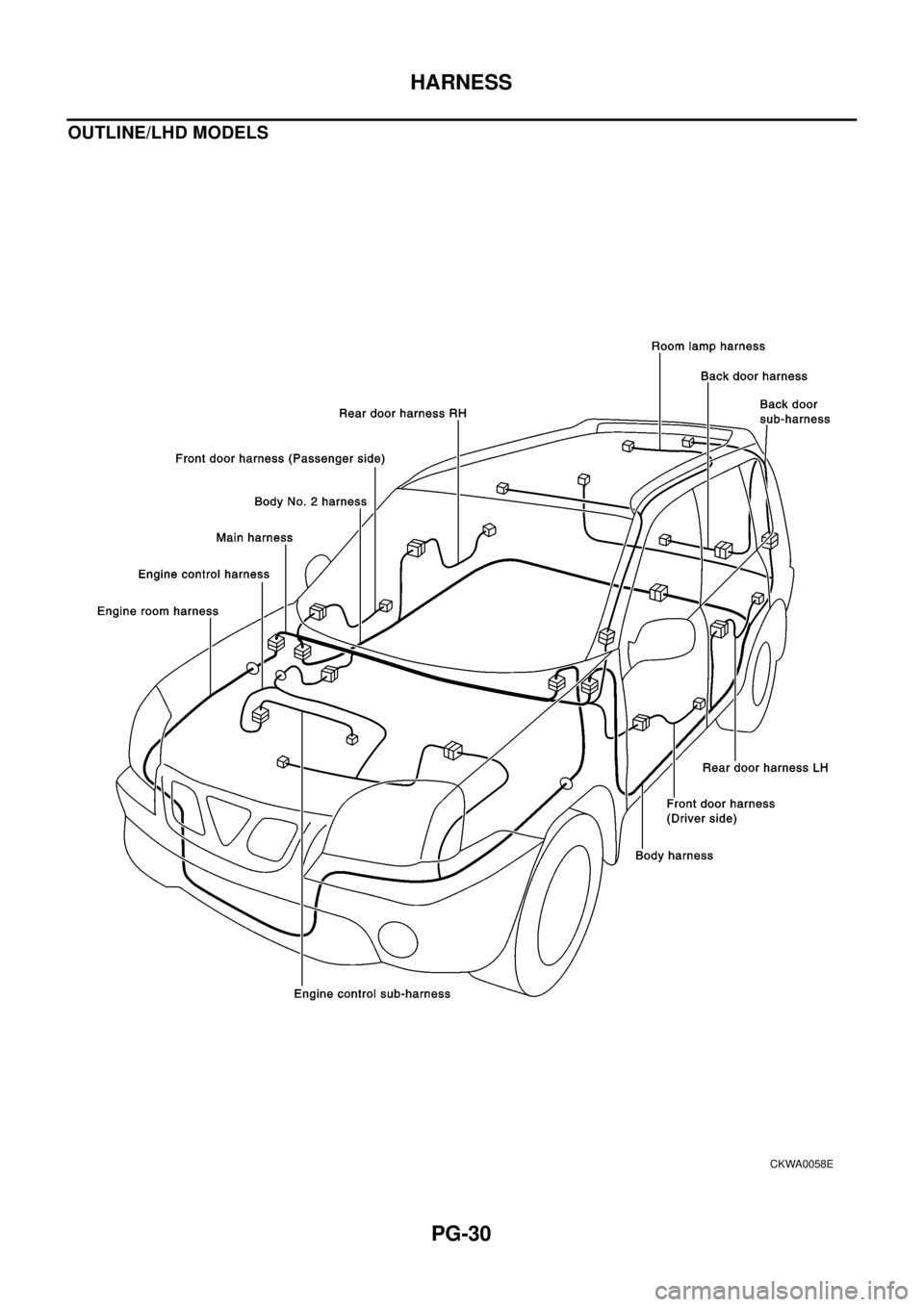

OUTLINE/LHD MODELS
CKWA0058E
Page 2707 of 3066
HARNESS
PG-31
C
D
E
F
G
H
I
J
L
MA
B
PG

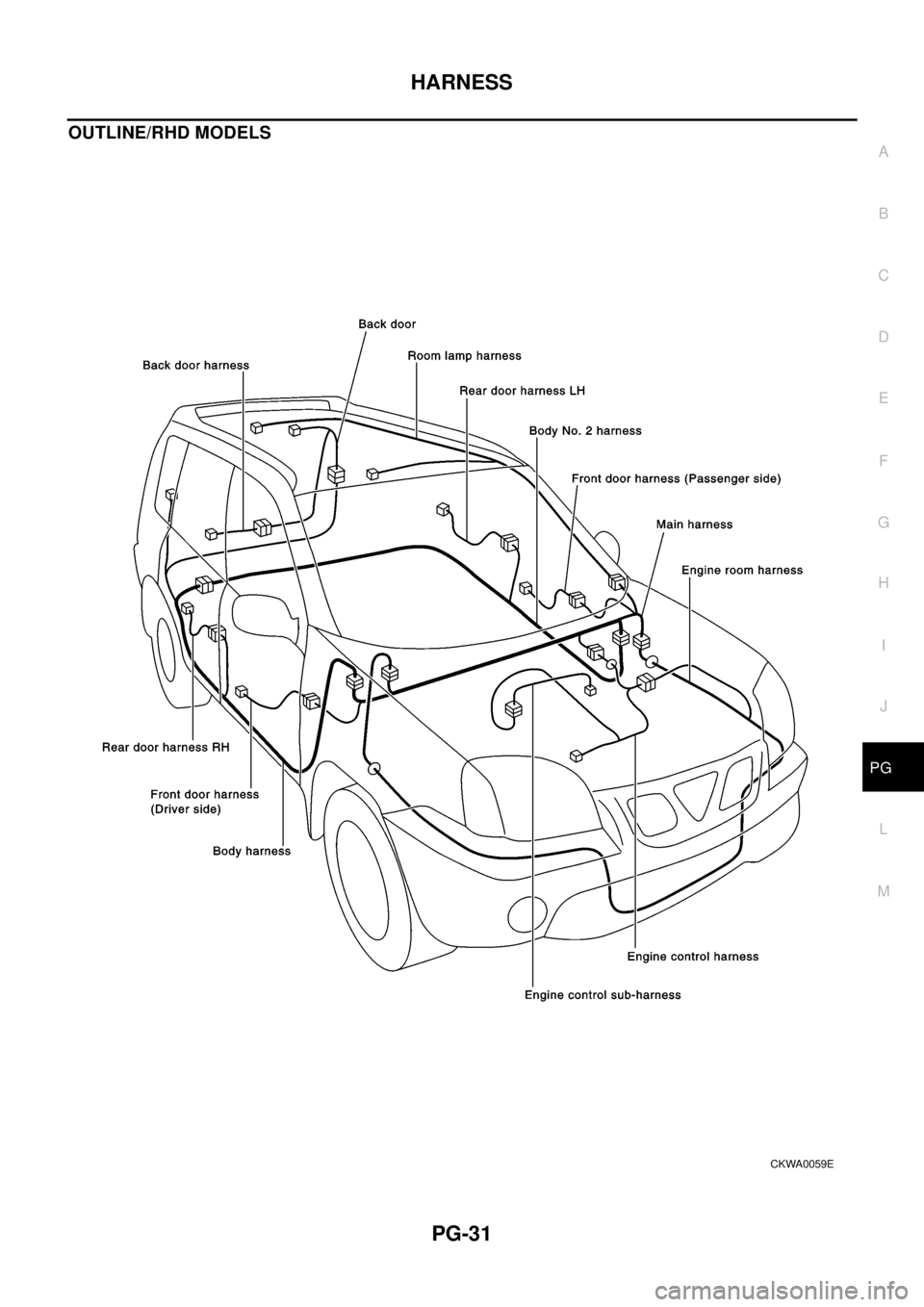

OUTLINE/RHD MODELS
CKWA0059E
Page 2708 of 3066
PG-32
HARNESS

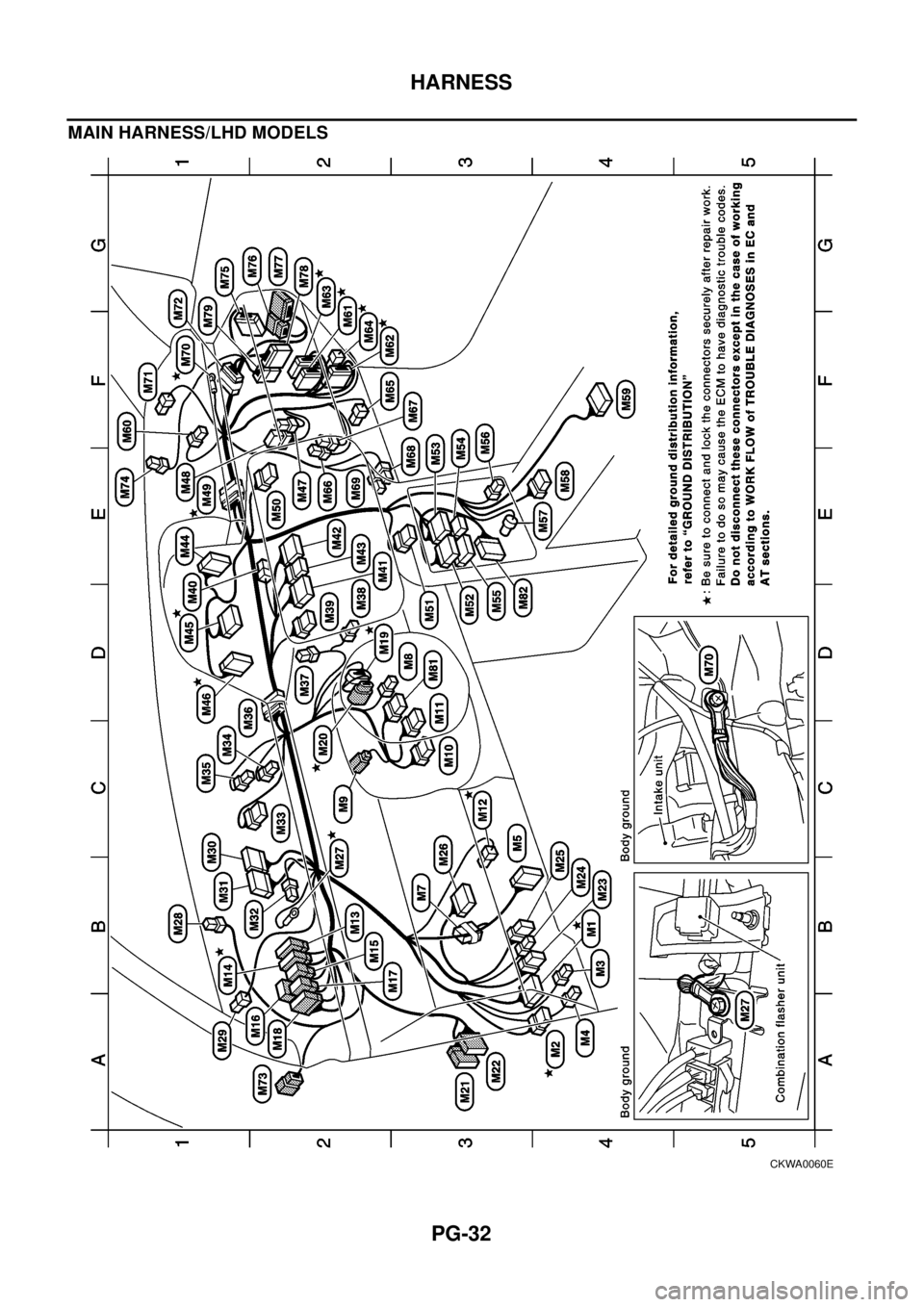

MAIN HARNESS/LHD MODELS
CKWA0060E
Page 2709 of 3066
HARNESS
PG-33
C
D
E
F
G
H
I
J
L
MA
B
PG
CKWA0061E
Page 2710 of 3066
PG-34
HARNESS

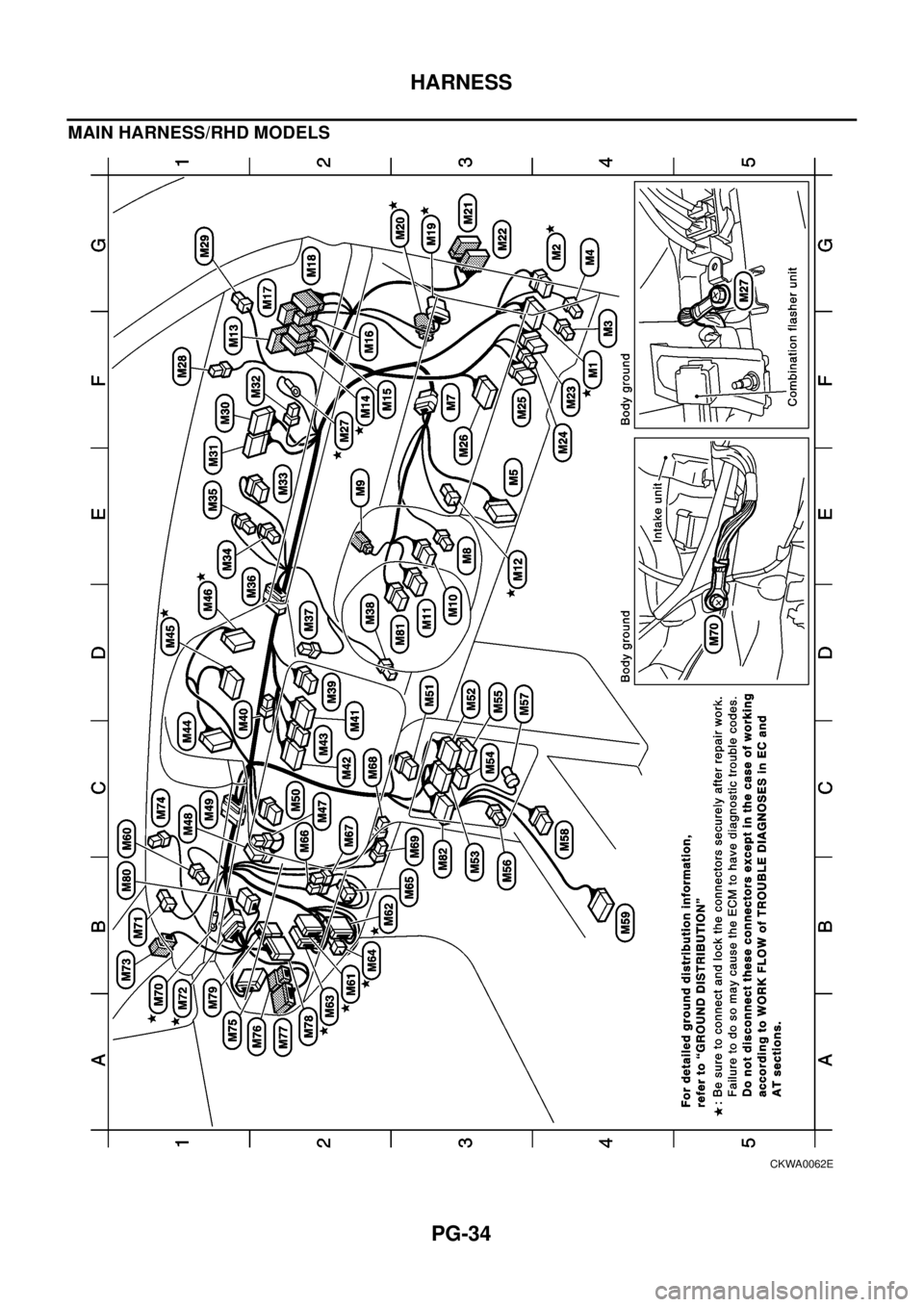

MAIN HARNESS/RHD MODELS
CKWA0062E
Page 2711 of 3066
HARNESS
PG-35
C
D
E
F
G
H
I
J
L
MA
B
PG
CKWA0063E
Page 2712 of 3066
PG-36
HARNESS

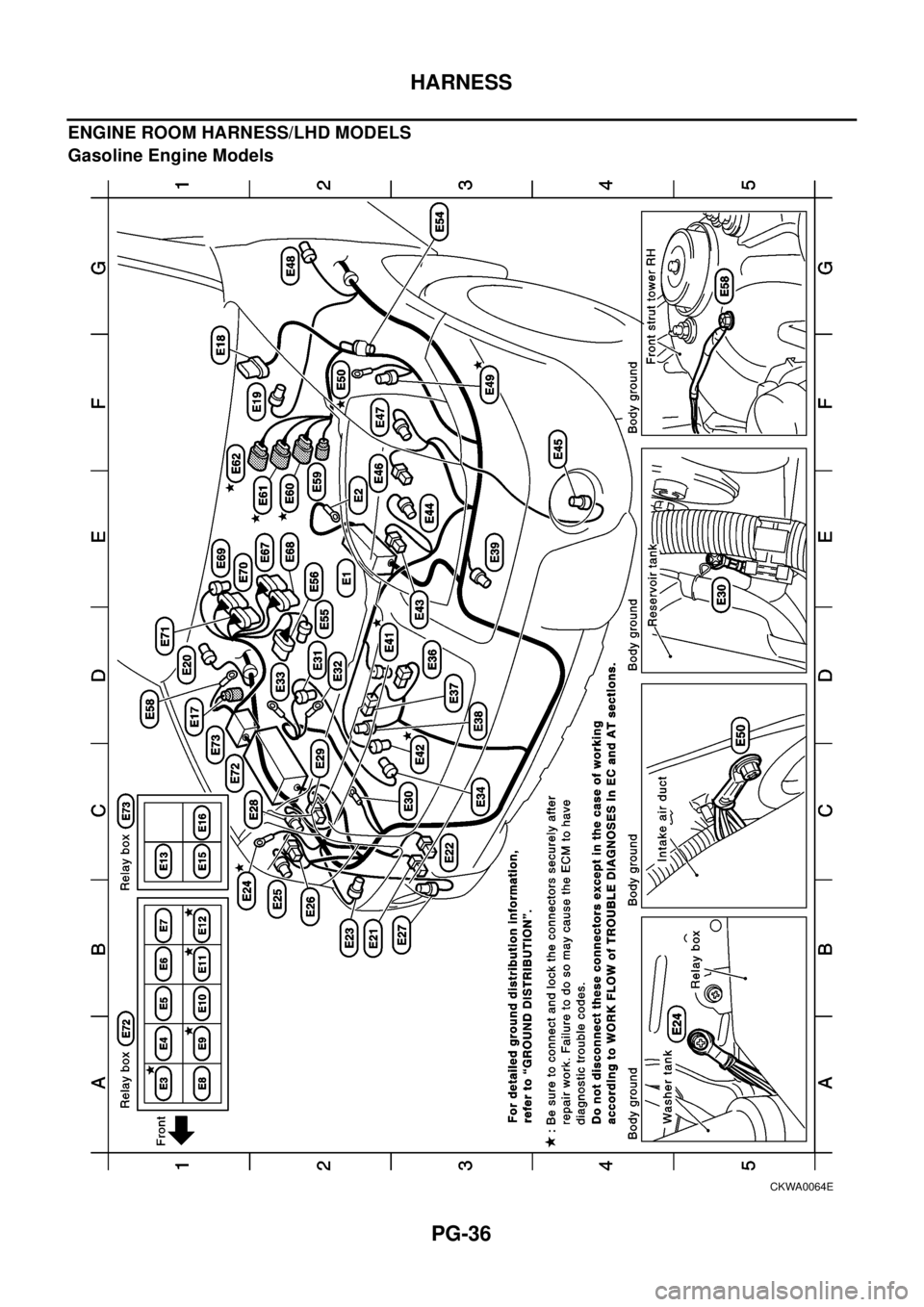

ENGINE ROOM HARNESS/LHD MODELS
Gasoline Engine Models
CKWA0064E
