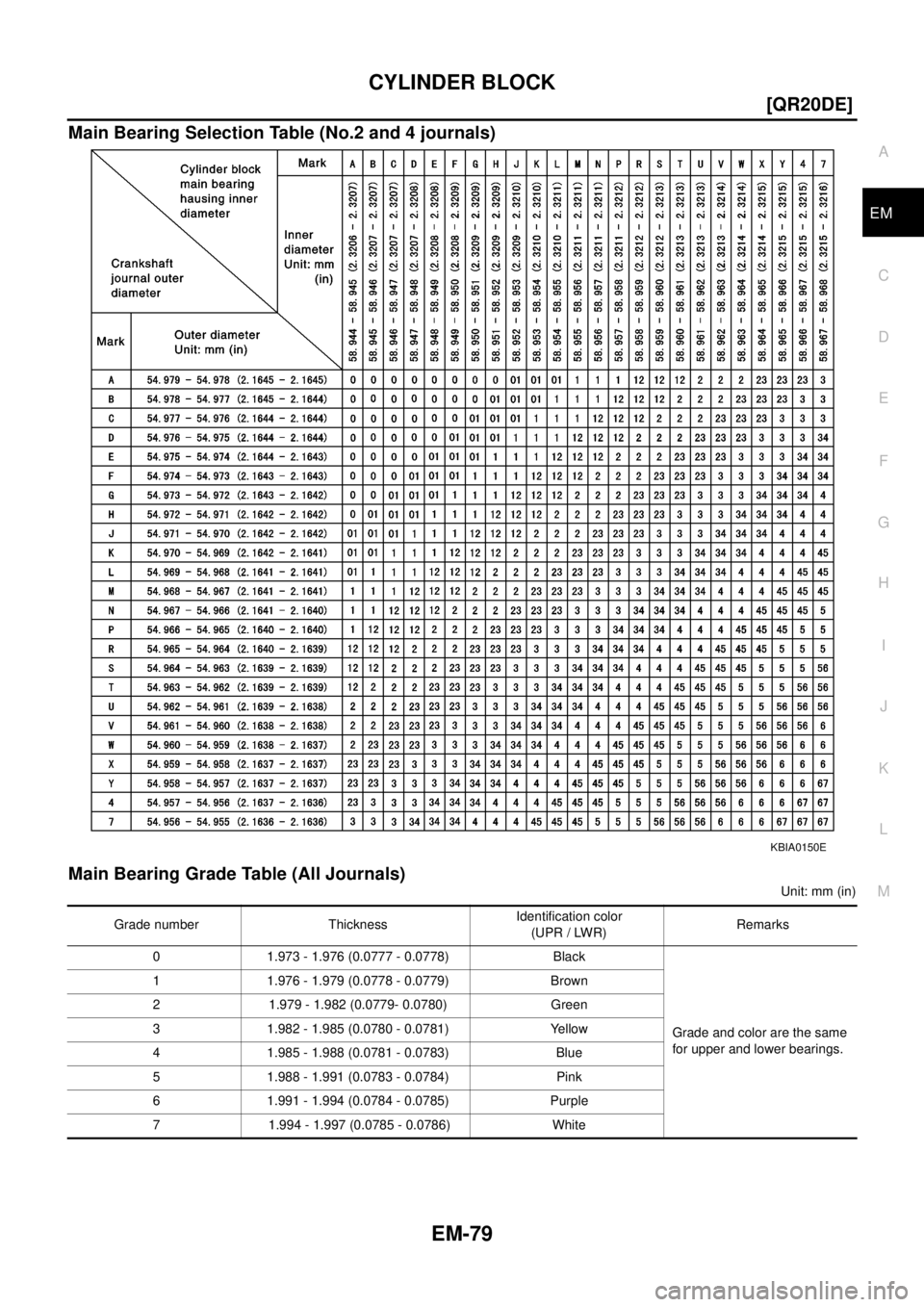

NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER BLOCK EM-79 [QR20DE] C D E F G H I J K L MA EM Main Bearing Selection Table (No.2 and 4 journals) Main Bearing Grade Table (All Journals) Unit: mm (in) KBIA0150E Grade number ThicknessIdentif

Page 2050 of 3066

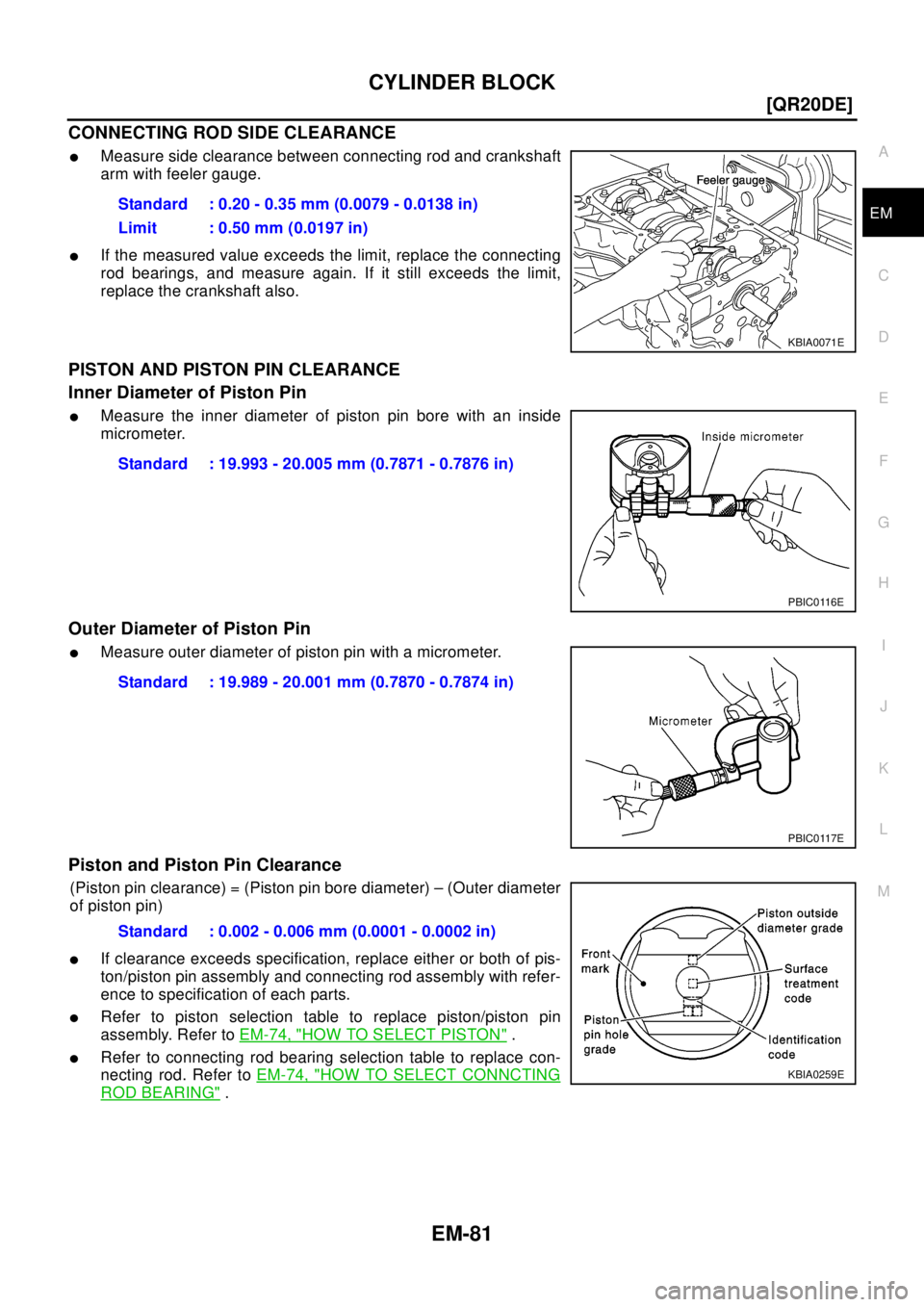

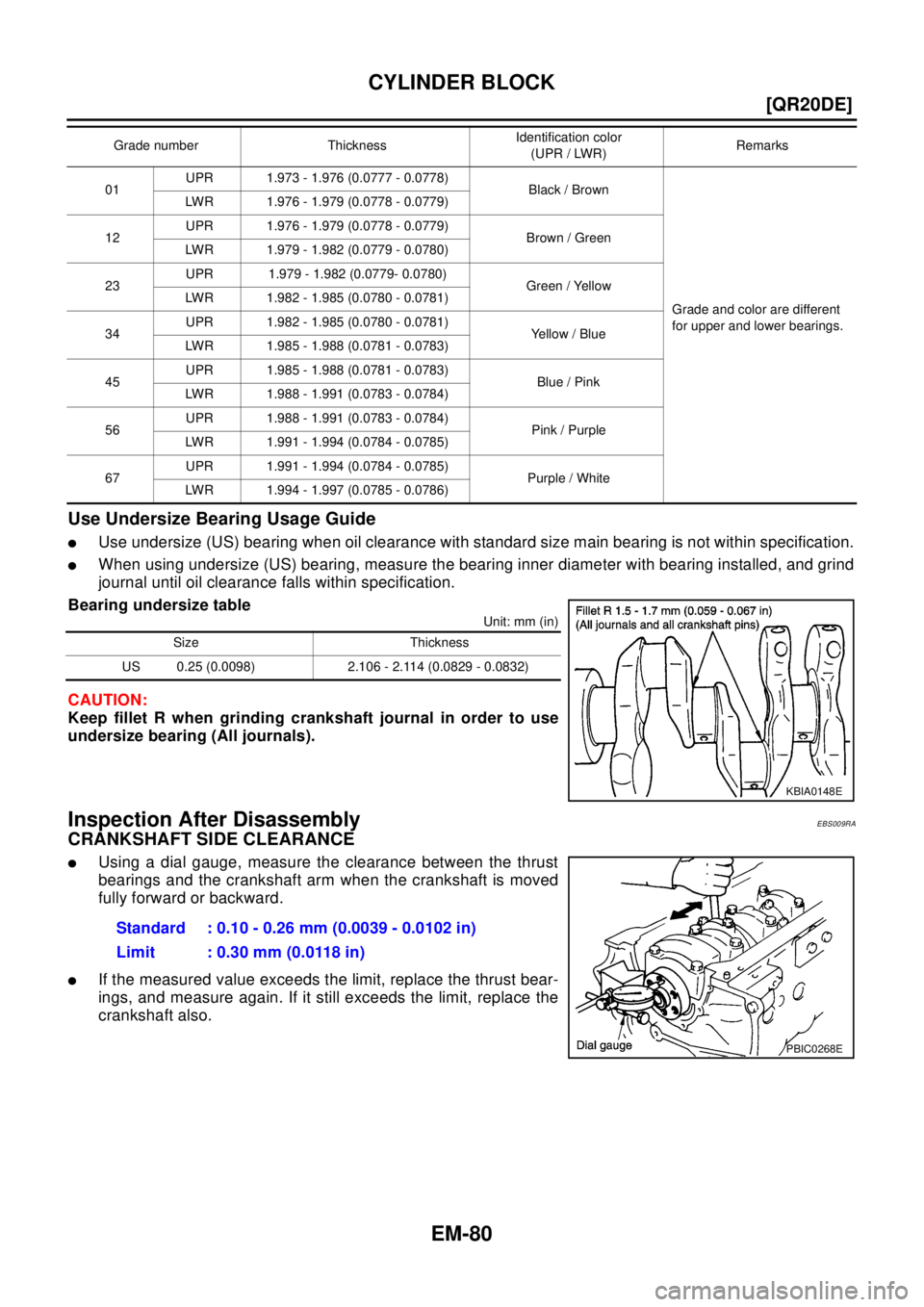

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-80 [QR20DE] CYLINDER BLOCK Use Undersize Bearing Usage Guide lUse undersize (US) bearing when oil clearance with standard size main bearing is not within specification. lWhen using undersize (US) b

Page 2051 of 3066

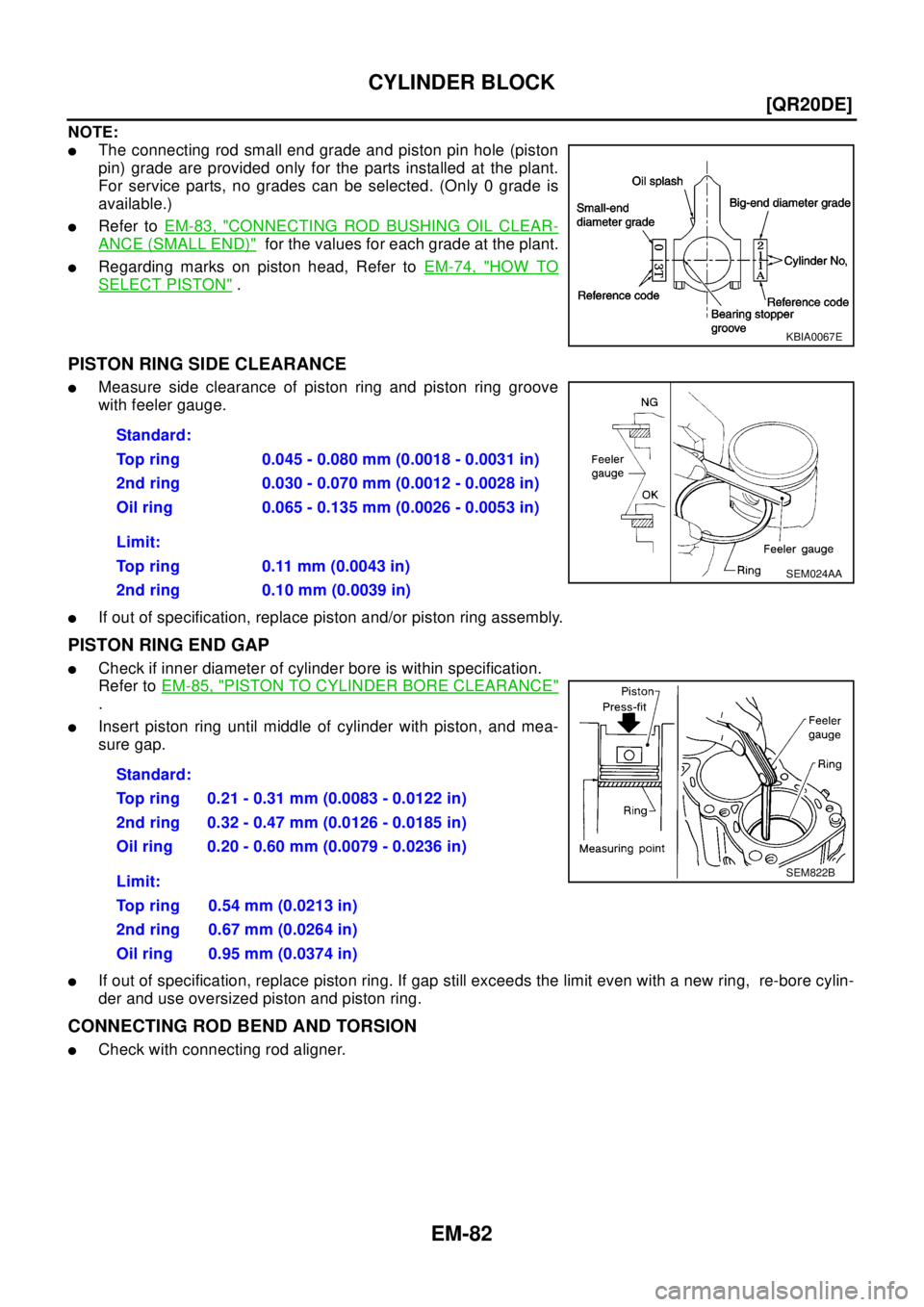

NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER BLOCK EM-81 [QR20DE] C D E F G H I J K L MA EM CONNECTING ROD SIDE CLEARANCE lMeasure side clearance between connecting rod and crankshaft arm with feeler gauge. lIf the measured value exceed

Page 2052 of 3066

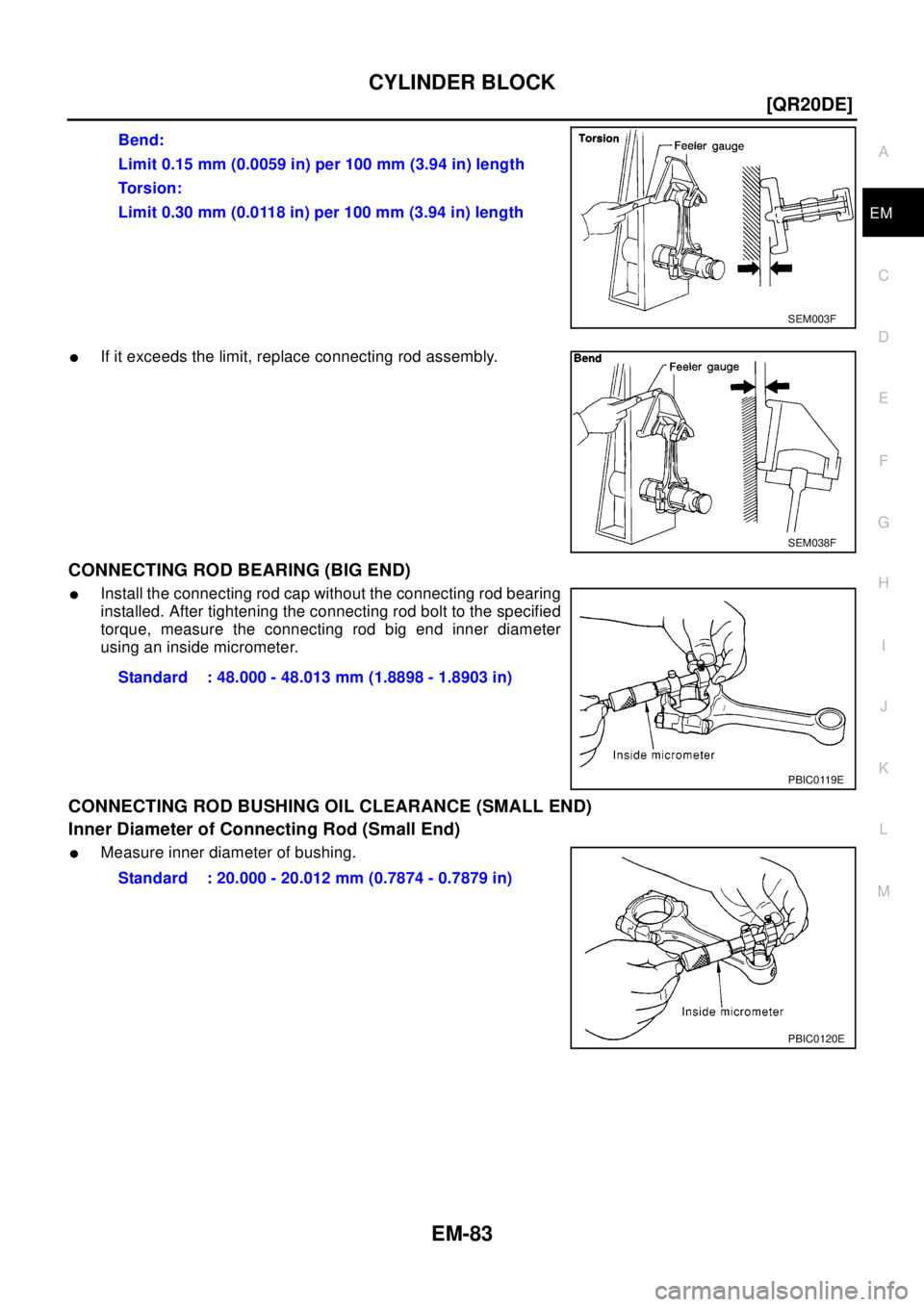

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-82 [QR20DE] CYLINDER BLOCK NOTE: lThe connecting rod small end grade and piston pin hole (piston pin) grade are provided only for the parts installed at the plant. For service parts, no grades can

Page 2053 of 3066

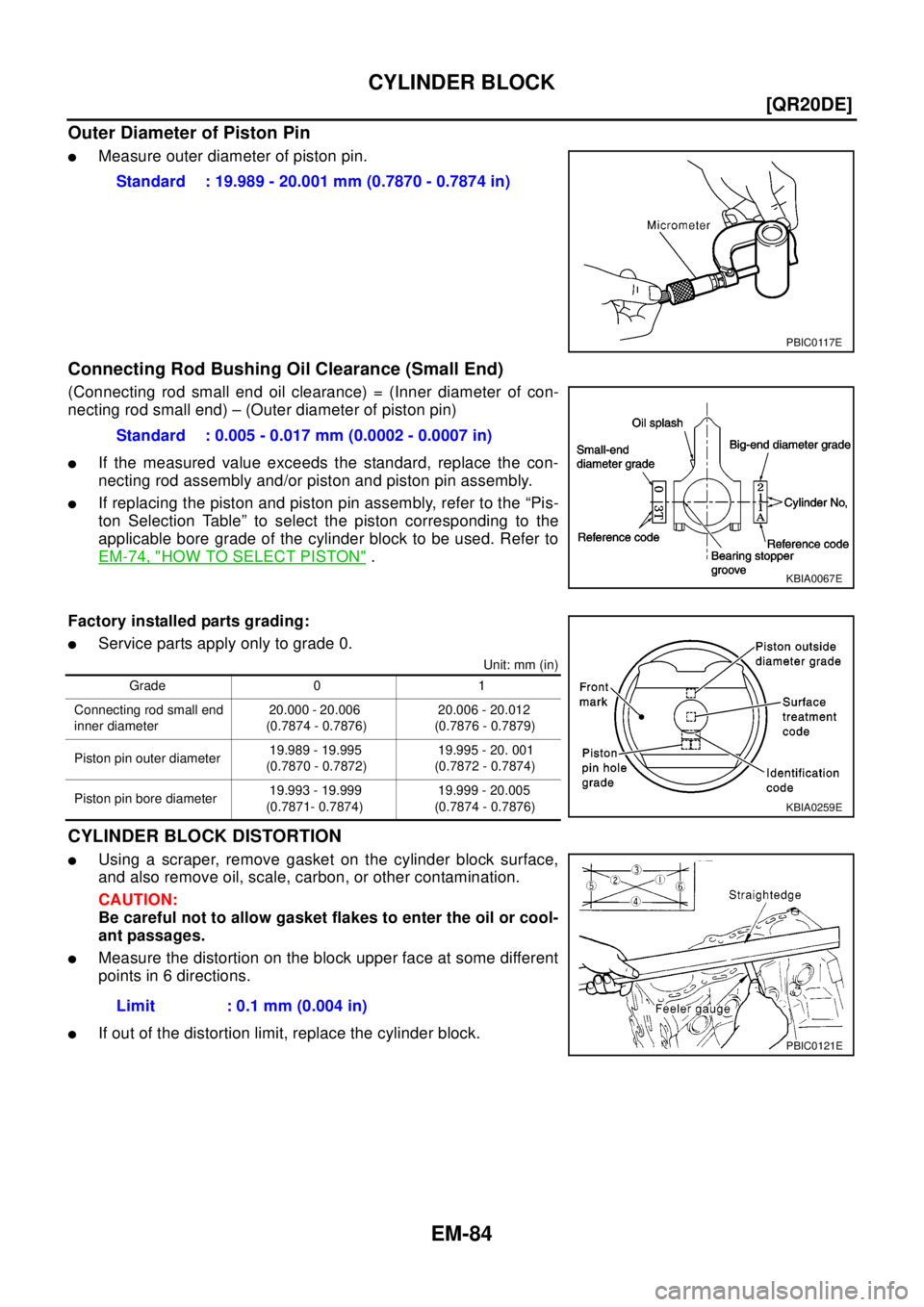

NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER BLOCK EM-83 [QR20DE] C D E F G H I J K L MA EM lIf it exceeds the limit, replace connecting rod assembly. CONNECTING ROD BEARING (BIG END) lInstall the connecting rod cap without the connecti

Page 2054 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-84 [QR20DE] CYLINDER BLOCK Outer Diameter of Piston Pin lMeasure outer diameter of piston pin. Connecting Rod Bushing Oil Clearance (Small End) (Connecting rod small end oil clearance) = (Inner dia

Page 2055 of 3066

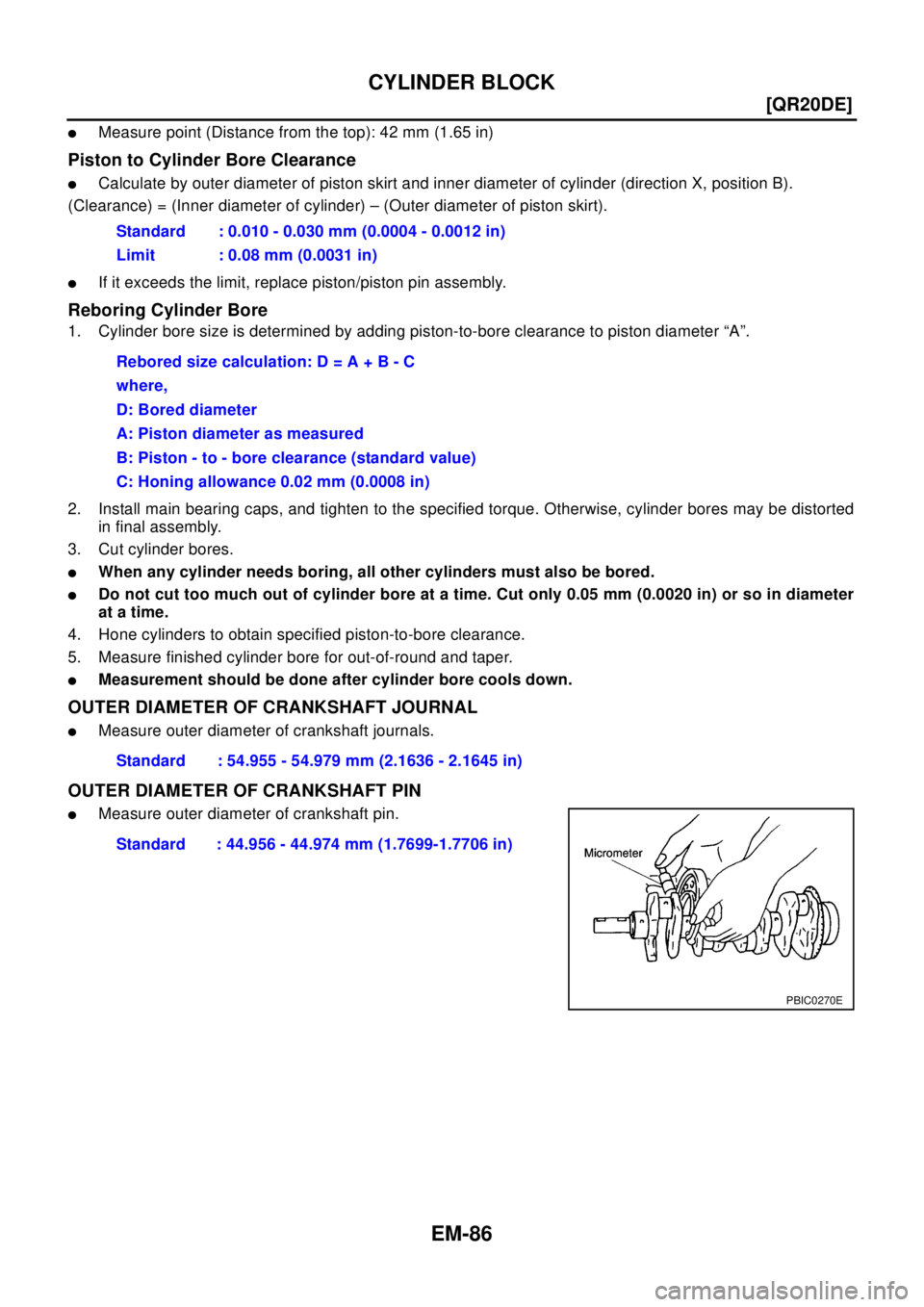

NISSAN X-TRAIL 2003 Electronic Repair Manual CYLINDER BLOCK EM-85 [QR20DE] C D E F G H I J K L MA EM INNER DIAMETER OF MAIN BEARING HOUSING lInstall the main bearing caps with the main bearings removed, and tighten the mounting bolts to the spec

Page 2056 of 3066

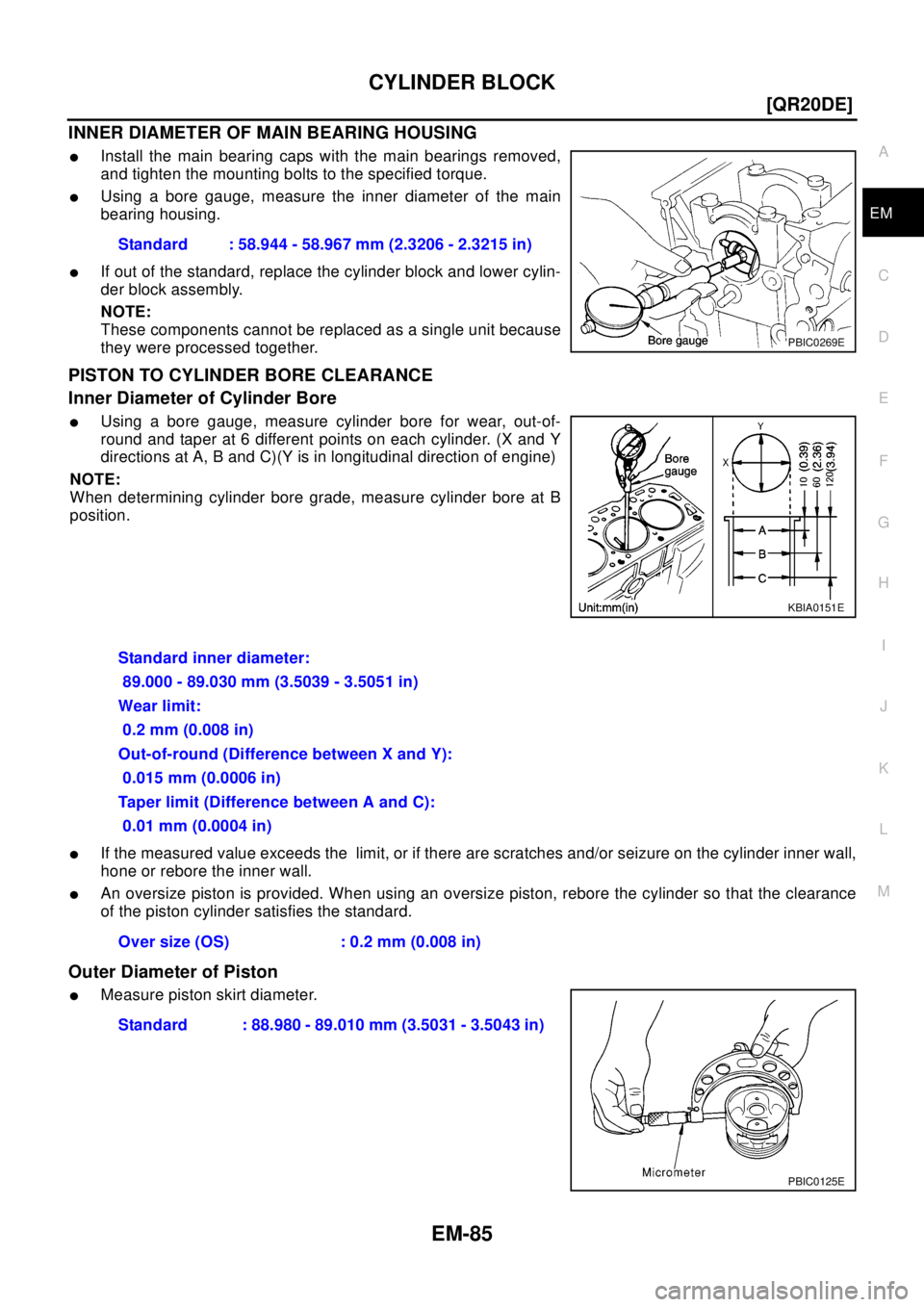

NISSAN X-TRAIL 2003 Electronic Repair Manual EM-86 [QR20DE] CYLINDER BLOCK lMeasure point (Distance from the top): 42 mm (1.65 in) Piston to Cylinder Bore Clearance lCalculate by outer diameter of piston skirt and inner diameter of cylinder (dir
