Page 1601 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0121 APP SENSOR EC-487 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00BGW 1.RETIGHTEN GROUND SCREWS 1. Turn ignition switch “OFF”. 2. Loosen and retighten engine g

Page 1602 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-488 [QR (WITHOUT EURO-OBD)] DTC P0121 APP SENSOR 4.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch “OFF”. 2. Check harness continuity between APP sensor terminal 1, 3

Page 1603 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0121 APP SENSOR EC-489 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 10.CHECK INTERMITTENT INCIDENT Refer toEC-453, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT". >>INSPECTION END Component

Page 1604 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-490 [QR (WITHOUT EURO-OBD)] DTC P0134 HO2S1 DTC P0134 HO2S1 PFP:22690 Component DescriptionEBS00BGZ The heated oxygen sensor 1 is placed into the front tube. It detects the amount of oxygen in the

Page 1605 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0134 HO2S1 EC-491 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC On Board Diagnosis LogicEBS00BH2 Under the condition in which the heated oxygen sensor 1 signal is not input, the ECM circuits

Page 1606 of 3066

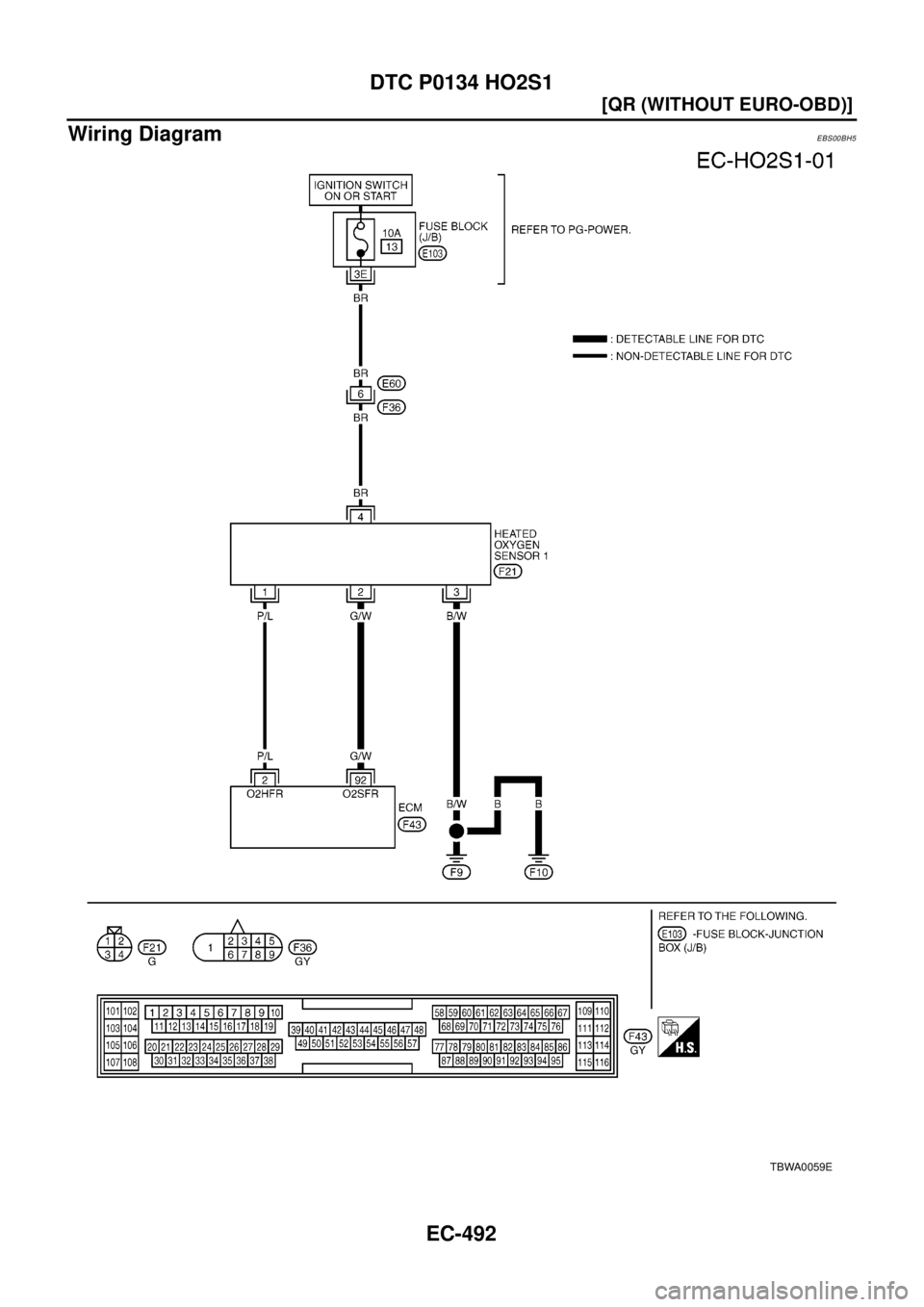

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-492 [QR (WITHOUT EURO-OBD)] DTC P0134 HO2S1 Wiring Diagram EBS00BH5 TBWA0059E

Page 1607 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0134 HO2S1 EC-493 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00BH6 1.INSPECTION START 1. Turn ignition switch “OFF”. 2. Loosen and retighten engine ground screws

Page 1608 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-494 [QR (WITHOUT EURO-OBD)] DTC P0134 HO2S1 5.CHECK INTERMITTENT INCIDENT Refer toEC-453, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT". >>INSPECTION END Component InspectionEBS00BH7 HEATED OXYGEN
