Page 521 of 3066
REPAIR FOR COMPONENT PARTS
AT-515
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

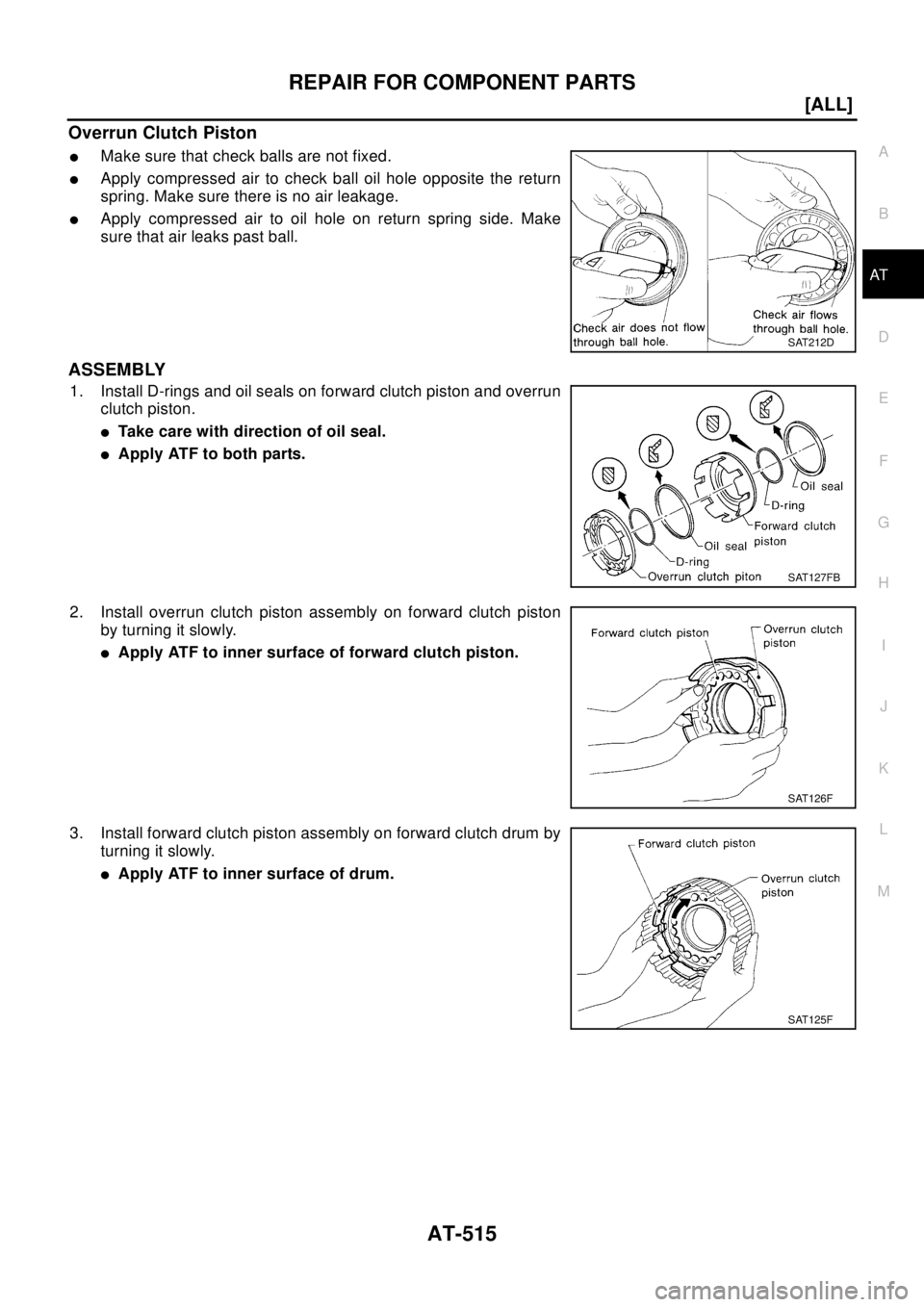

OverrunClutchPiston
lMake sure that check balls are not fixed.
lApply compressed air to check ball oil hole opposite the return
spring. Make sure there is no air leakage.
lApply compressed air to oil hole on return spring side. Make
sure that air leaks past ball.
ASSEMBLY
1. Install D-rings and oil seals on forward clutch piston and overrun
clutch piston.
lTake care with direction of oil seal.
lApply ATF to both parts.
2. Install overrun clutch piston assembly on forward clutch piston
by turning it slowly.
lApply ATF to inner surface of forward clutch piston.
3. Install forward clutch piston assembly on forward clutch drum by
turning it slowly.
lApply ATF to inner surface of drum.
SAT212D
SAT127FB
SAT126F
SAT125F
Page 522 of 3066
AT-516
[ALL]
REPAIR FOR COMPONENT PARTS

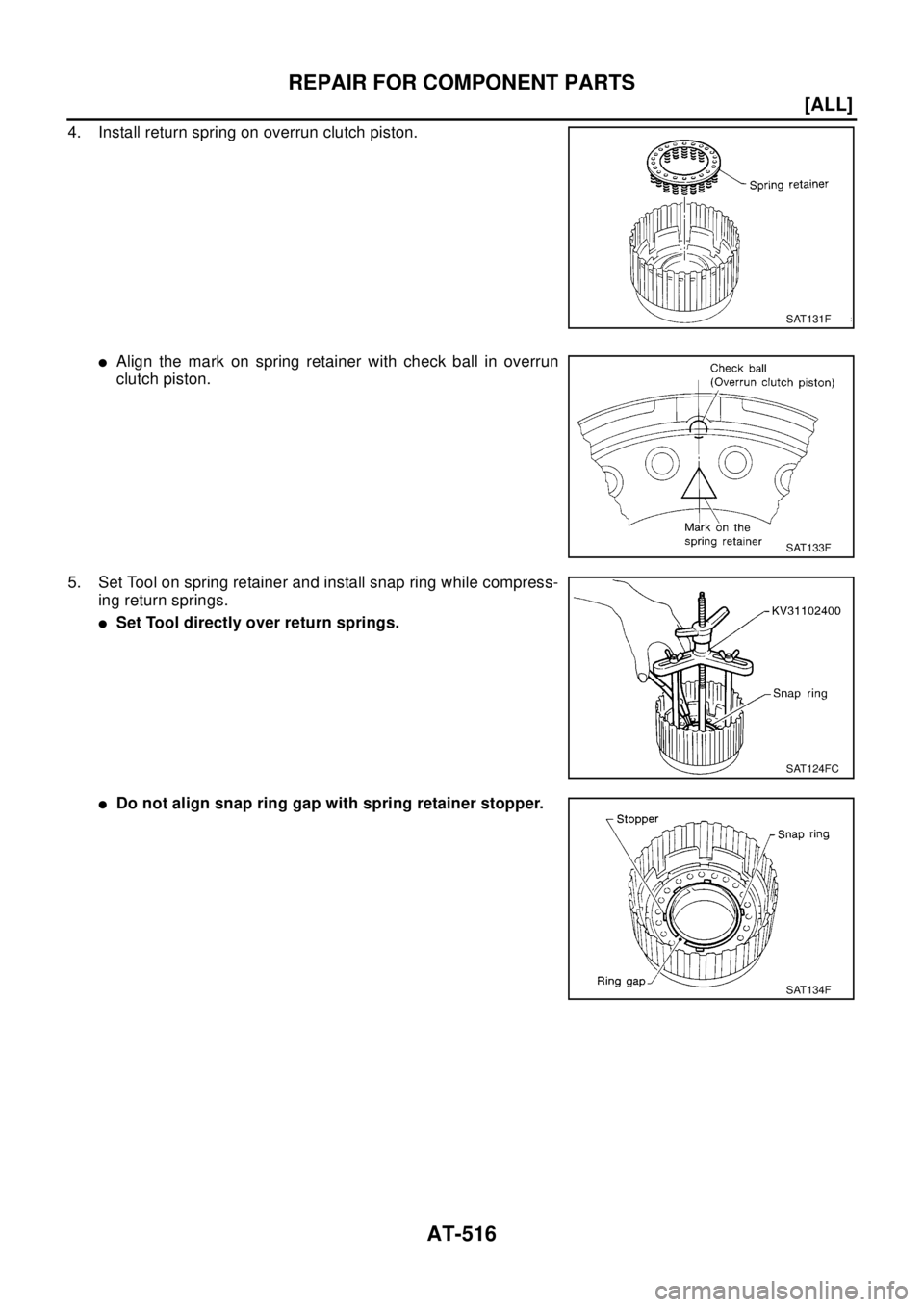

4. Install return spring on overrun clutch piston.
lAlign the mark on spring retainer with check ball in overrun
clutch piston.
5. Set Tool on spring retainer and install snap ring while compress-
ing return springs.
lSet Tool directly over return springs.
lDo not align snap ring gap with spring retainer stopper.
SAT131F
SAT133F
SAT124FC
SAT134F
Page 523 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-517
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
6. Install drive plates, driven plates, retaining plate and dish plate
for overrun clutch.
lTake care with order of plates.
7. Install NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-517
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
6. Install drive plates, driven plates, retaining plate and dish plate
for overrun clutch.
lTake care with order of plates.
7. Install](/manual-img/5/57402/w960_57402-522.png)
REPAIR FOR COMPONENT PARTS
AT-517
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

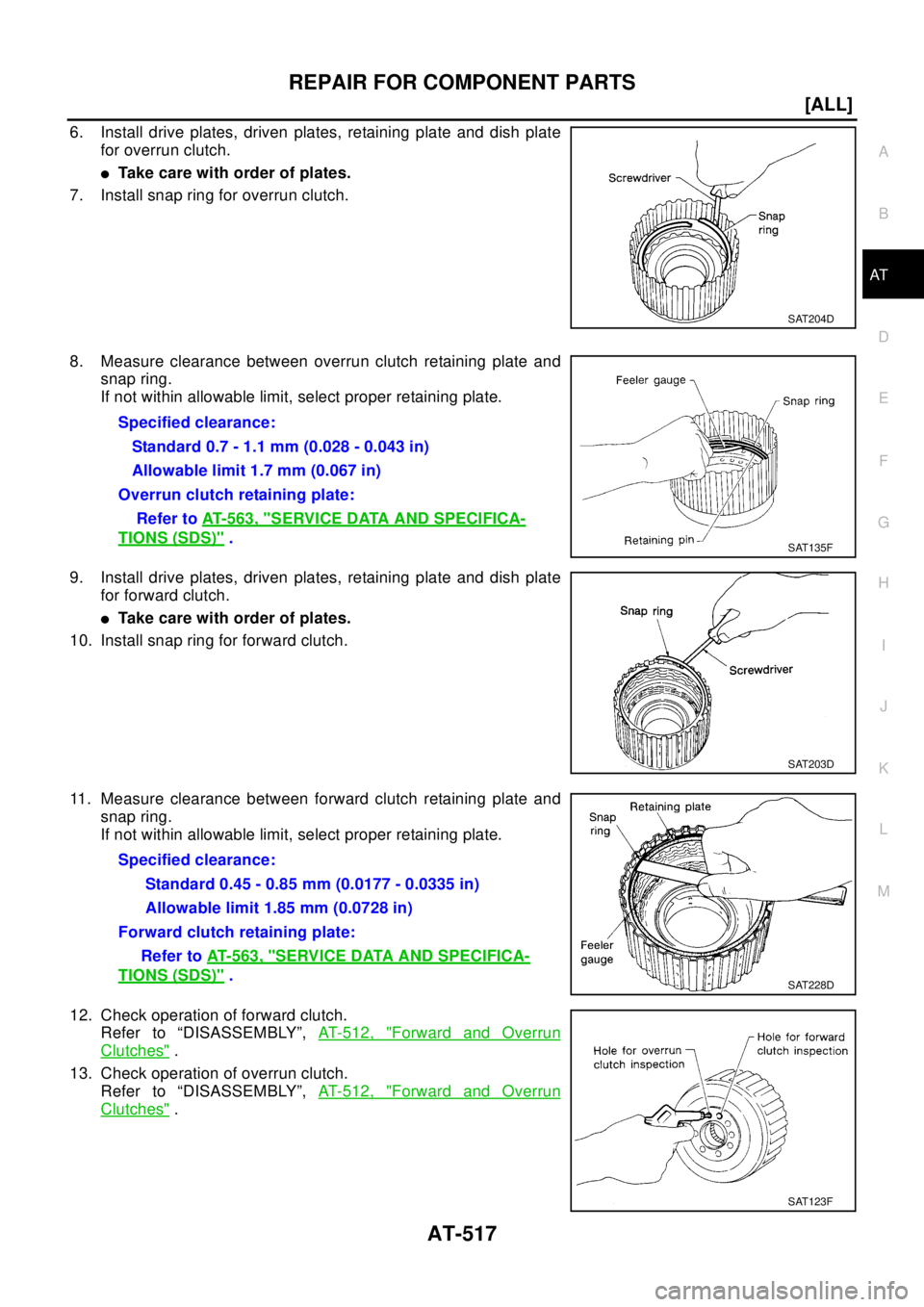

6. Install drive plates, driven plates, retaining plate and dish plate
for overrun clutch.
lTake care with order of plates.
7. Install snap ring for overrun clutch.
8. Measure clearance between overrun clutch retaining plate and
snap ring.
If not within allowable limit, select proper retaining plate.
9. Install drive plates, driven plates, retaining plate and dish plate
for forward clutch.
lTake care with order of plates.
10. Install snap ring for forward clutch.
11. Measure clearance between forward clutch retaining plate and
snap ring.
If not within allowable limit, select proper retaining plate.
12. Check operation of forward clutch.
Refer to “DISASSEMBLY”,AT-512, "
Forward and Overrun
Clutches".
13. Check operation of overrun clutch.
Refer to “DISASSEMBLY”,AT-512, "
Forward and Overrun
Clutches".
SAT204D
Specified clearance:
Standard 0.7 - 1.1 mm (0.028 - 0.043 in)
Allowable limit 1.7 mm (0.067 in)
Overrun clutch retaining plate:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".SAT135F
SAT203D
Specified clearance:
Standard 0.45 - 0.85 mm (0.0177 - 0.0335 in)
Allowable limit 1.85 mm (0.0728 in)
Forward clutch retaining plate:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".SAT228D
SAT123F
Page 524 of 3066
AT-518
[ALL]
REPAIR FOR COMPONENT PARTS
Low & Reverse Brake
ECS004M8
COMPONENTS
DISASSEMBLY
1. Check operation of low & reverse brake.
a. Apply compressed air to oil hole of transmission case.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
lD-ring might be damaged.
lFluid might be leaking past piston check ball.
2. In order to remove piston, apply compressed air to oil hole of
retainer while holding piston.
lApply air gradually and allow piston to come out evenly.
3. Remove D-rings from piston.
SCIA0806E
SAT147F
SAT149F
SAT150F
Page 525 of 3066
REPAIR FOR COMPONENT PARTS
AT-519
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

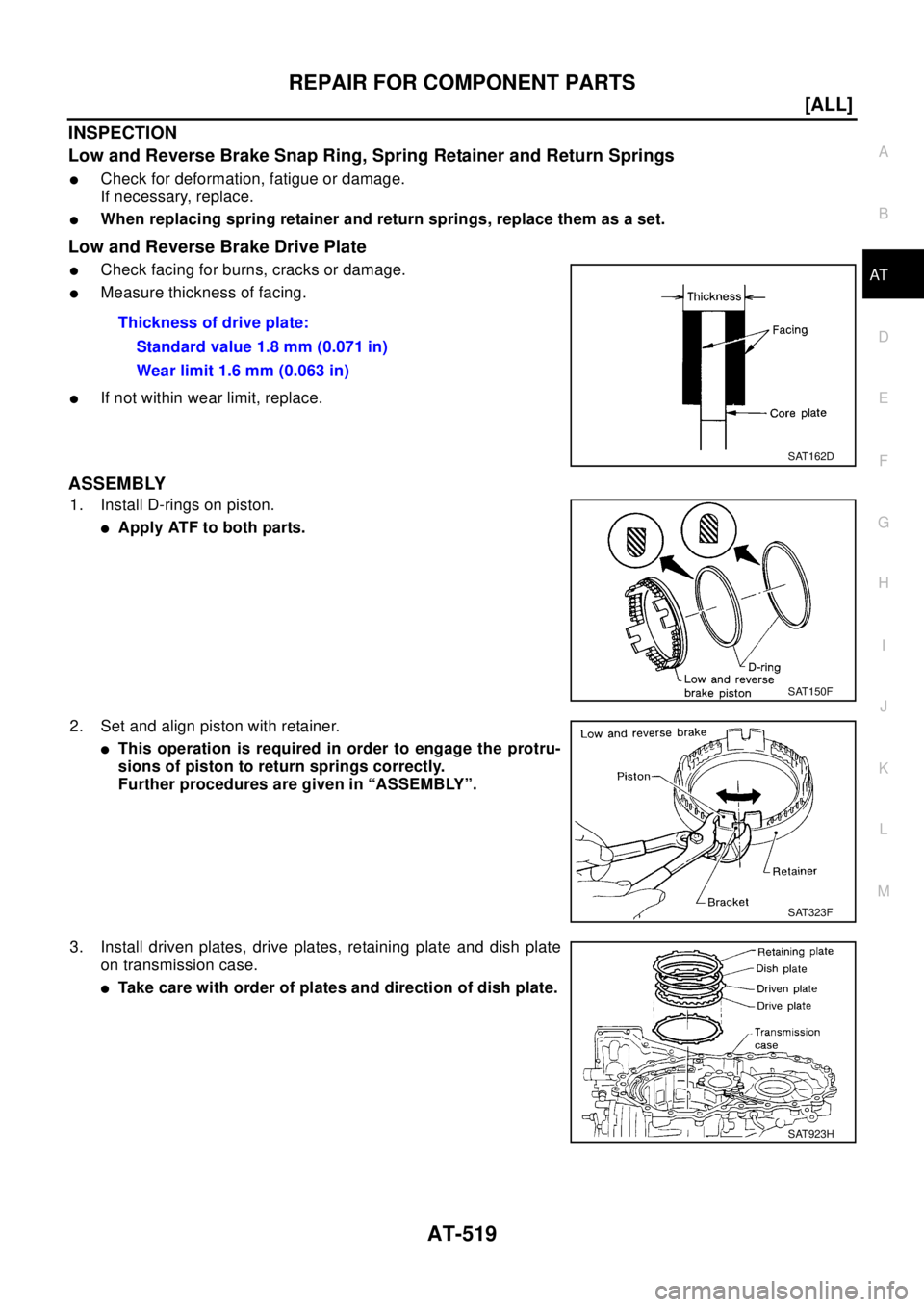

INSPECTION
Low and Reverse Brake Snap Ring, Spring Retainer and Return Springs
lCheck for deformation, fatigue or damage.
If necessary, replace.
lWhen replacing spring retainer and return springs, replace them as a set.
Low and Reverse Brake Drive Plate
lCheck facing for burns, cracks or damage.
lMeasure thickness of facing.
lIf not within wear limit, replace.
ASSEMBLY
1. Install D-rings on piston.
lApply ATF to both parts.
2. Set and align piston with retainer.
lThis operation is required in order to engage the protru-
sions of piston to return springs correctly.
Further procedures are given in “ASSEMBLY”.
3. Install driven plates, drive plates, retaining plate and dish plate
on transmission case.
lTake care with order of plates and direction of dish plate. Thickness of drive plate:
Standard value 1.8 mm (0.071 in)
Wear limit 1.6 mm (0.063 in)
SAT162D
SAT150F
SAT323F
SAT923H
Page 526 of 3066
AT-520
[ALL]
REPAIR FOR COMPONENT PARTS

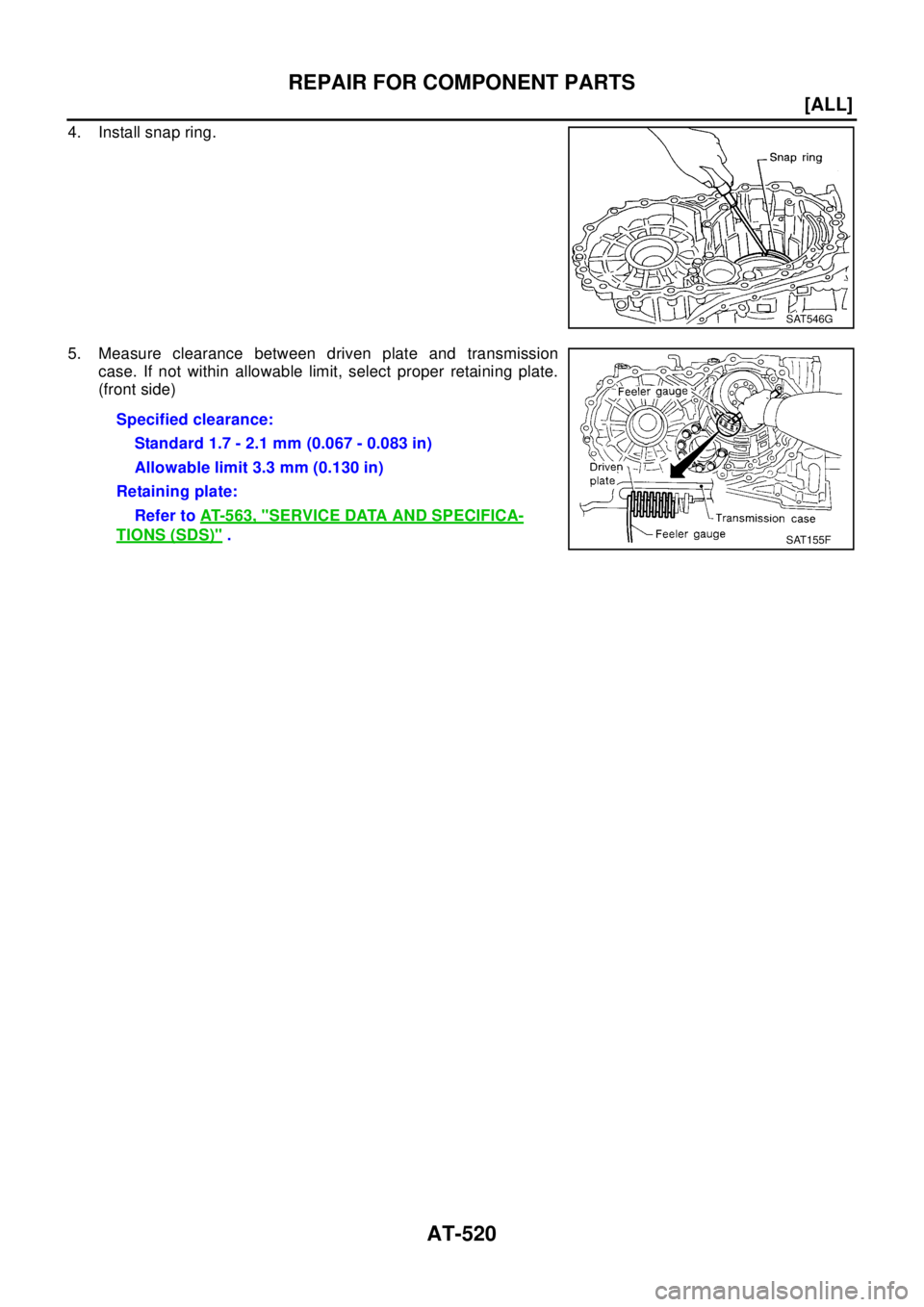

4. Install snap ring.
5. Measure clearance between driven plate and transmission
case. If not within allowable limit, select proper retaining plate.
(front side)
SAT546G
Specified clearance:
Standard 1.7 - 2.1 mm (0.067 - 0.083 in)
Allowable limit 3.3 mm (0.130 in)
Retaining plate:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".SAT155F
Page 527 of 3066
REPAIR FOR COMPONENT PARTS
AT-521
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

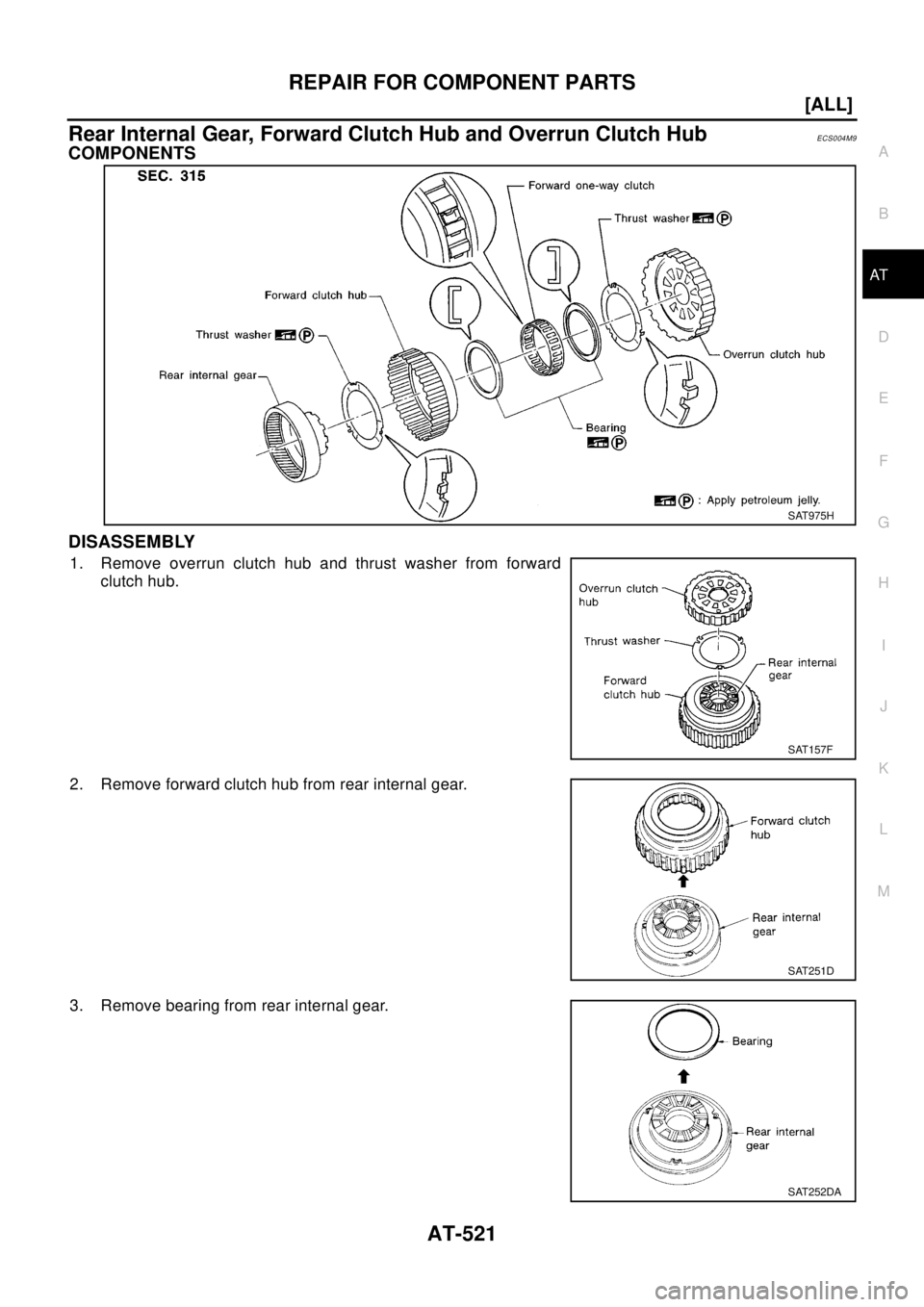

Rear Internal Gear, Forward Clutch Hub and Overrun Clutch HubECS004M9
COMPONENTS
DISASSEMBLY
1. Remove overrun clutch hub and thrust washer from forward
clutch hub.
2. Remove forward clutch hub from rear internal gear.
3. Remove bearing from rear internal gear.
SAT975H
SAT157F
SAT251D
SAT252DA
Page 528 of 3066
AT-522
[ALL]
REPAIR FOR COMPONENT PARTS

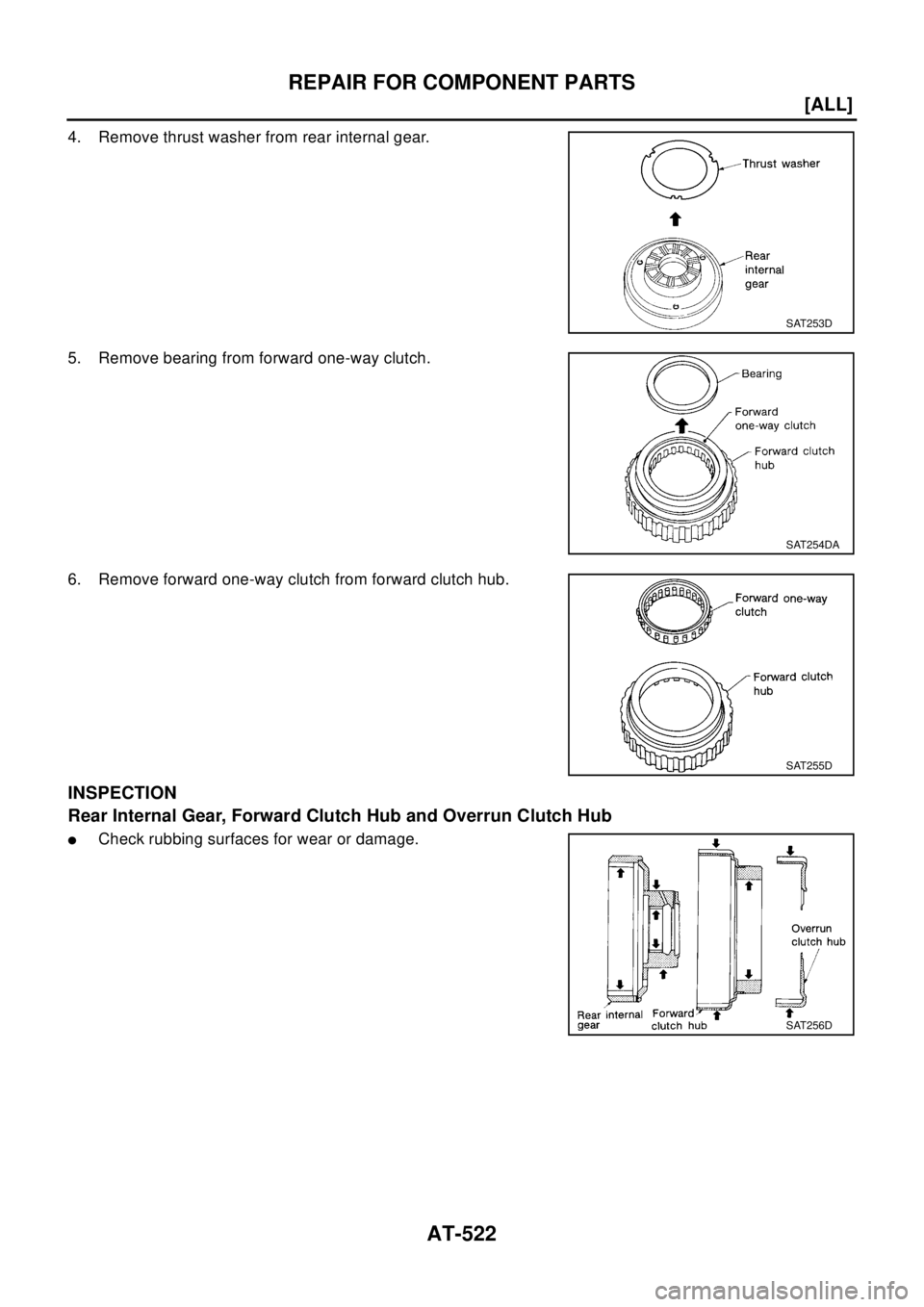

4. Remove thrust washer from rear internal gear.
5. Remove bearing from forward one-way clutch.
6. Remove forward one-way clutch from forward clutch hub.
INSPECTION
Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub
lCheck rubbing surfaces for wear or damage.
SAT253D
SAT254DA
SAT255D
SAT256D
