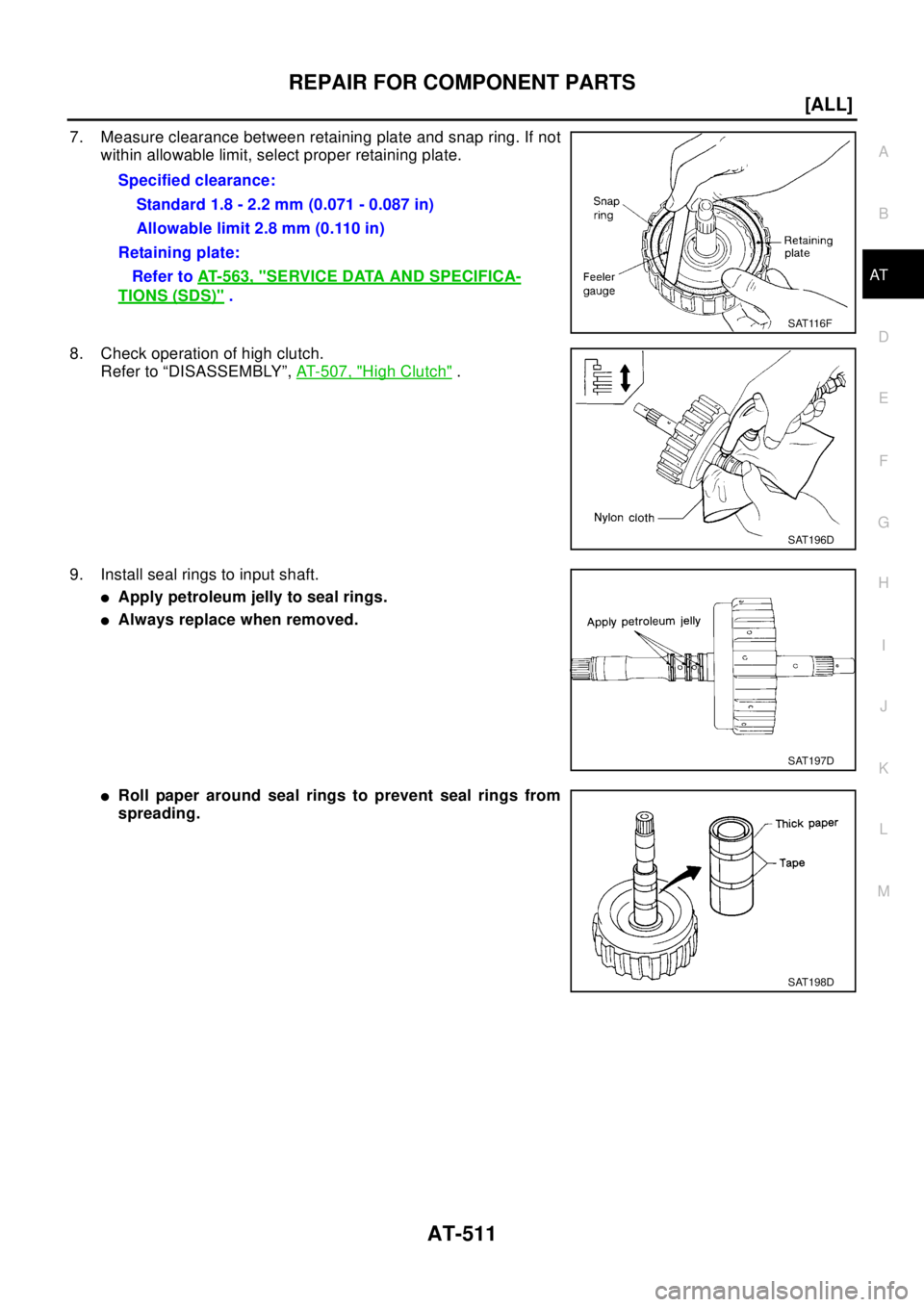

7. Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate.
8. Check operation of reverse clutch.
Refer to “DISASSEMBLY”,AT-504, "
Reverse Clutch".
High ClutchECS004M6
COMPONENTS
DISASSEMBLY

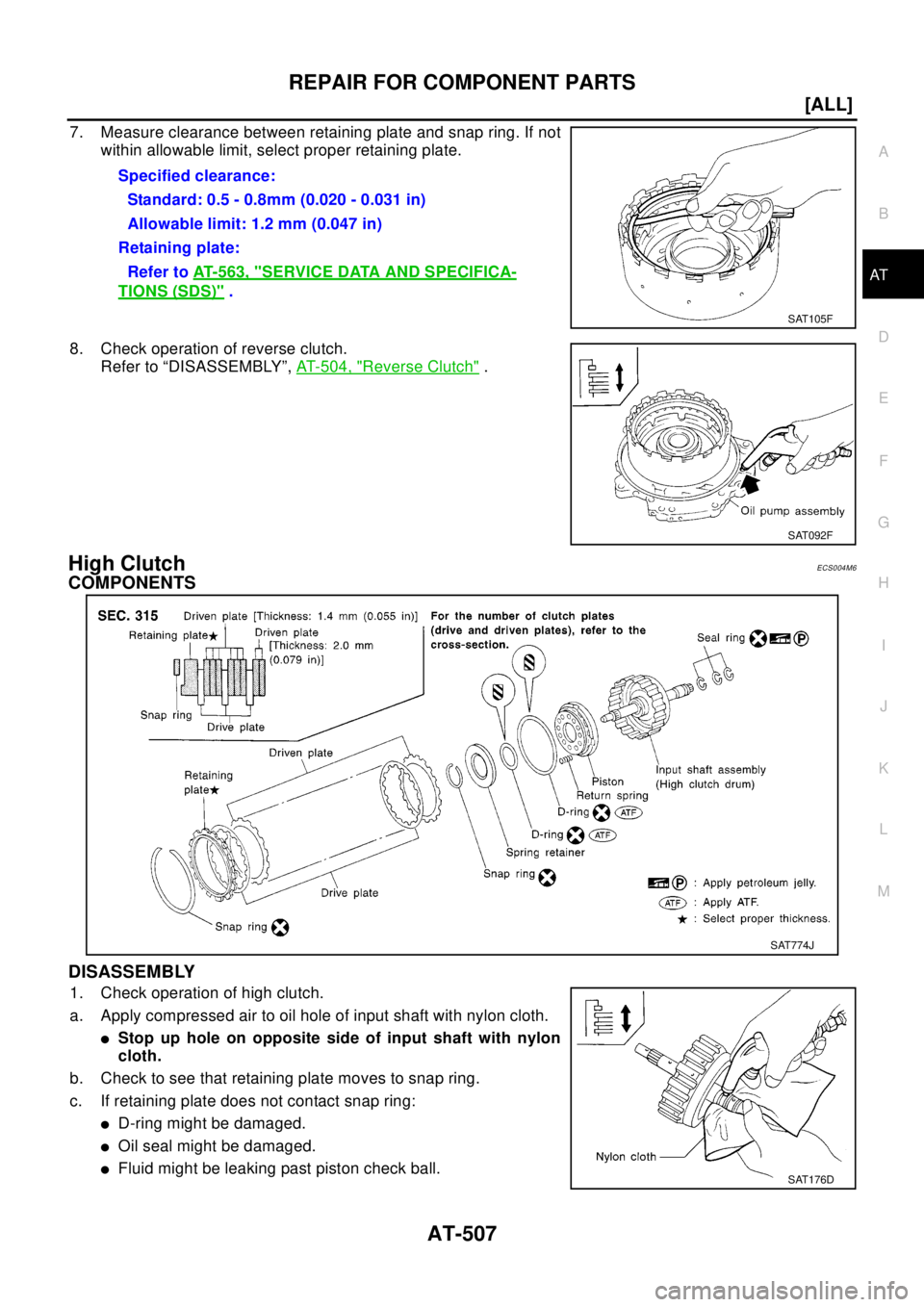

1. Check operation of high clutch.
a. Apply compressed air to oil hole of input shaft with nylon cloth.
lStop up hole on opposite side of input shaft with nylon
cloth.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
lD-ring might be damaged.
lOil seal might be damaged.
lFluid might be leaking past piston check ball. Specified clearance:
Standard: 0.5 - 0.8mm (0.020 - 0.031 in)
Allowable limit: 1.2 mm (0.047 in)
Retaining plate:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".
SAT105F
SAT092F
SAT774J
SAT176D
Page 514 of 3066
AT-508
[ALL]
REPAIR FOR COMPONENT PARTS

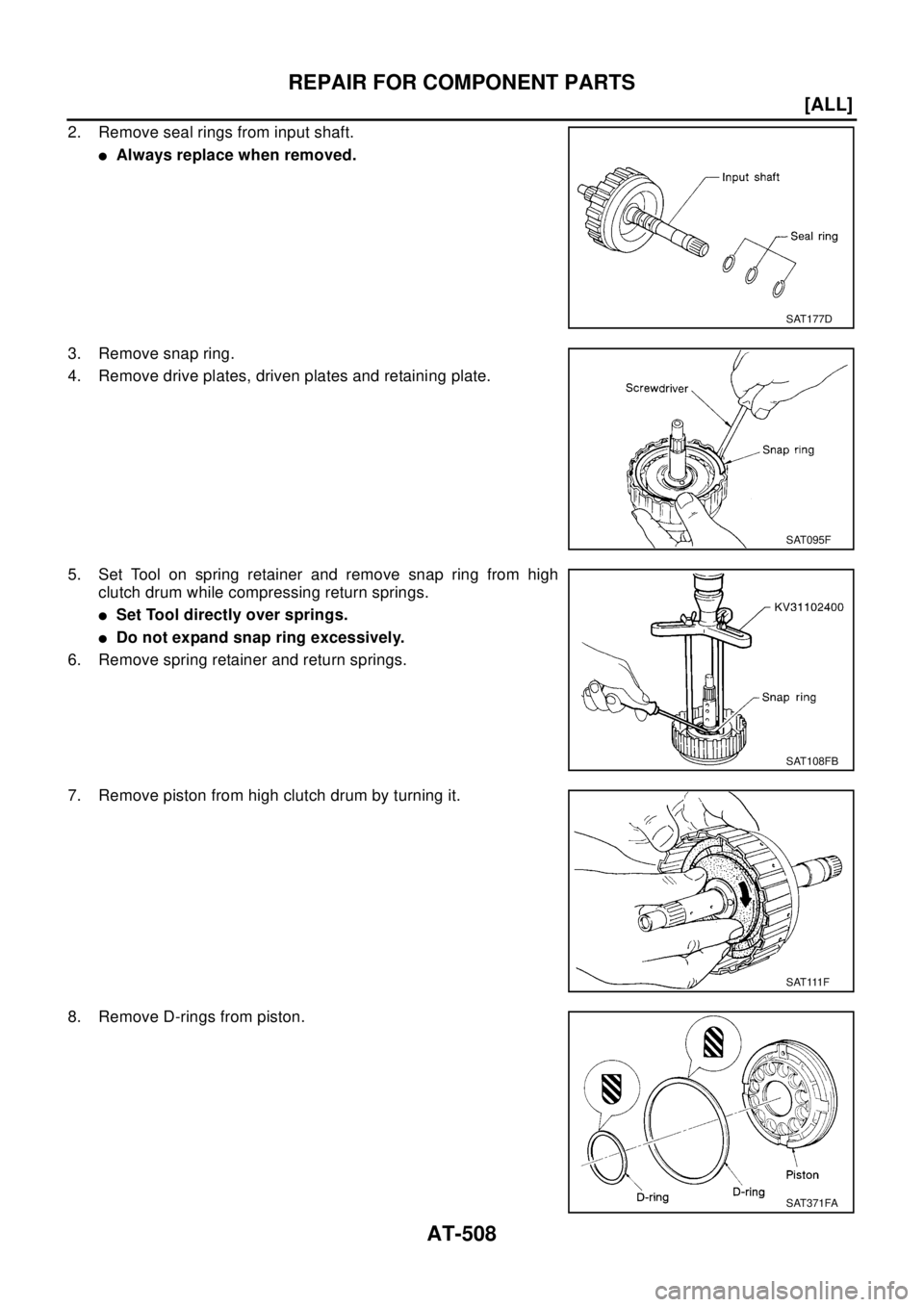

2. Remove seal rings from input shaft.
lAlways replace when removed.
3. Remove snap ring.
4. Remove drive plates, driven plates and retaining plate.
5. Set Tool on spring retainer and remove snap ring from high
clutch drum while compressing return springs.
lSet Tool directly over springs.
lDo not expand snap ring excessively.
6. Remove spring retainer and return springs.
7. Remove piston from high clutch drum by turning it.
8. Remove D-rings from piston.
SAT177D
SAT095F
SAT108FB
S AT 111 F
SAT371FA
Page 515 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-509
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
INSPECTION
High Clutch Snap Ring, Spring Retainer and Return Springs
lCheck for deformation, fatigue or damage.
If necessary, replace. NISSAN X-TRAIL 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-509
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
INSPECTION
High Clutch Snap Ring, Spring Retainer and Return Springs
lCheck for deformation, fatigue or damage.
If necessary, replace.](/manual-img/5/57402/w960_57402-514.png)
REPAIR FOR COMPONENT PARTS
AT-509
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
INSPECTION
High Clutch Snap Ring, Spring Retainer and Return Springs
lCheck for deformation, fatigue or damage.
If necessary, replace.
lWhen replacing spring retainer and return springs, replace them as a set.

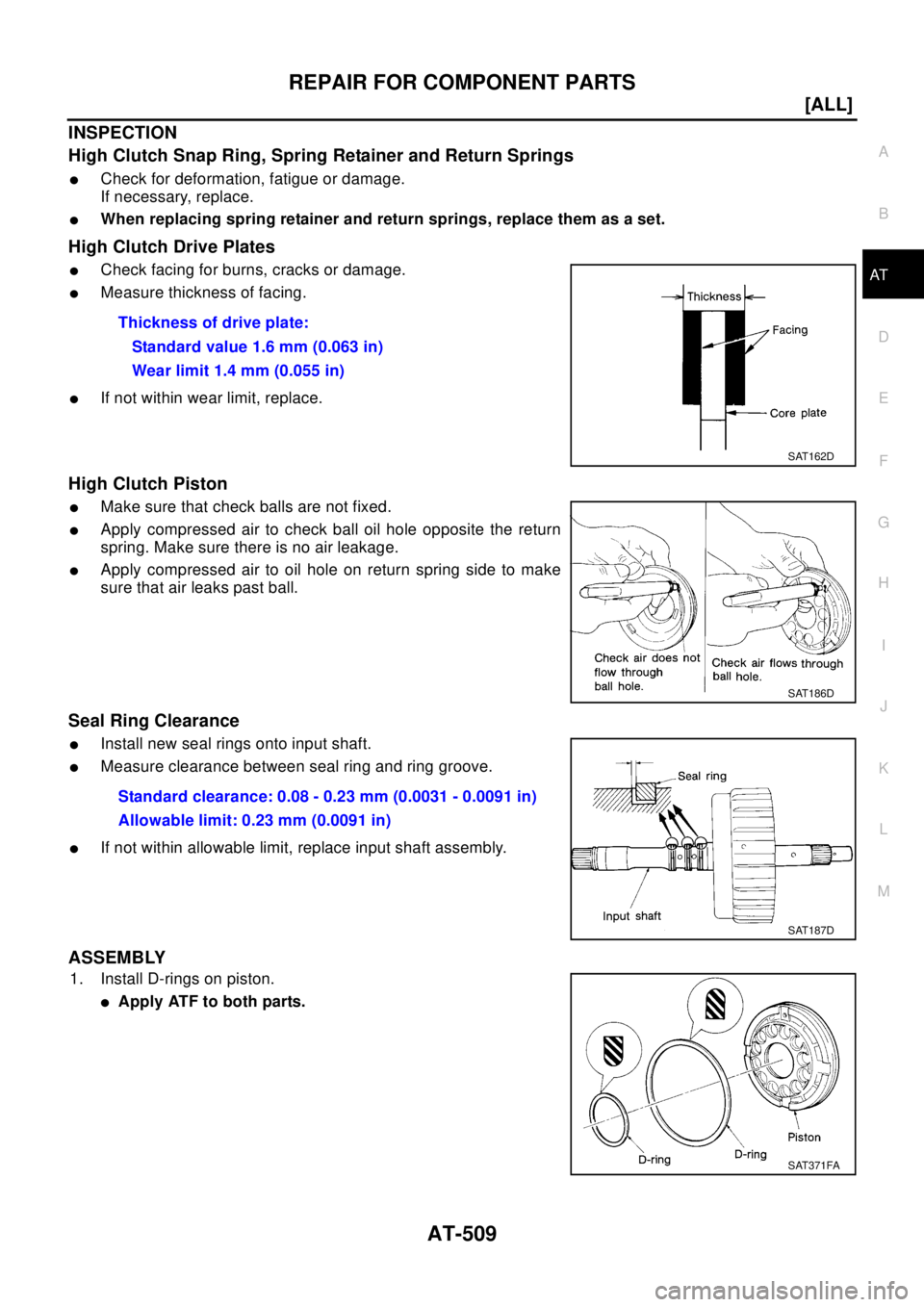

High Clutch Drive Plates
lCheck facing for burns, cracks or damage.
lMeasure thickness of facing.
lIf not within wear limit, replace.
High Clutch Piston
lMake sure that check balls are not fixed.
lApply compressed air to check ball oil hole opposite the return
spring. Make sure there is no air leakage.
lApplycompressedairtooilholeonreturnspringsidetomake
sure that air leaks past ball.
Seal Ring Clearance
lInstall new seal rings onto input shaft.
lMeasure clearance between seal ring and ring groove.
lIf not within allowable limit, replace input shaft assembly.
ASSEMBLY
1. Install D-rings on piston.
lApply ATF to both parts. Thickness of drive plate:
Standard value 1.6 mm (0.063 in)
Wear limit 1.4 mm (0.055 in)
SAT162D
SAT186D
Standard clearance: 0.08 - 0.23 mm (0.0031 - 0.0091 in)
Allowable limit: 0.23 mm (0.0091 in)
SAT187D
SAT371FA
Page 516 of 3066
AT-510
[ALL]
REPAIR FOR COMPONENT PARTS

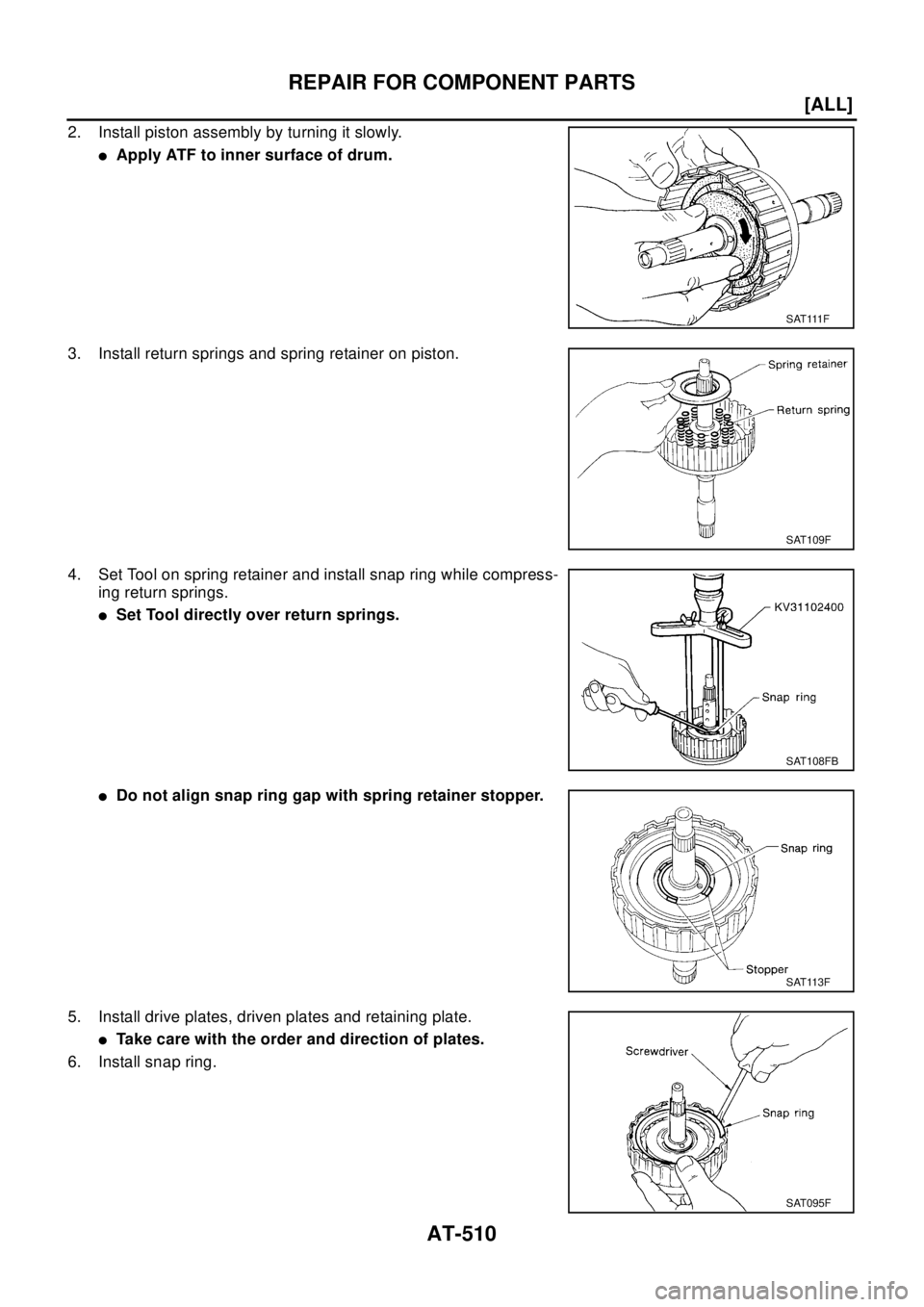

2. Install piston assembly by turning it slowly.
lApply ATF to inner surface of drum.
3. Install return springs and spring retainer on piston.
4. Set Tool on spring retainer and install snap ring while compress-
ing return springs.
lSet Tool directly over return springs.
lDo not align snap ring gap with spring retainer stopper.
5. Install drive plates, driven plates and retaining plate.
lTake care with the order and direction of plates.
6. Install snap ring.
S AT 111 F
SAT109F
SAT108FB
SAT113F
SAT095F
Page 517 of 3066
REPAIR FOR COMPONENT PARTS
AT-511
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
7. Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate.
8. Check operation of high clutch.
Refer to “DISASSEMBLY”,AT-507, "
High Clutch".
9. Install seal rings to input shaft.
lApply petroleum jelly to seal rings.
lAlways replace when removed.
lRoll paper around seal rings to prevent seal rings from
spreading. Specified clearance:
Standard 1.8 - 2.2 mm (0.071 - 0.087 in)
Allowable limit 2.8 mm (0.110 in)
Retaining plate:
Refer toAT-563, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)".
SAT116F
SAT196D
SAT197D
SAT198D
Page 518 of 3066
AT-512
[ALL]
REPAIR FOR COMPONENT PARTS
Forward and Overrun Clutches
ECS004M7
COMPONENTS
DISASSEMBLY
1. Check operation of forward clutch and overrun clutch.
a. Install bearing retainer on forward clutch drum.
b. Apply compressed air to oil hole of forward clutch drum.
c. Check to see that retaining plate moves to snap ring.
d. If retaining plate does not contact snap ring:
lD-ring might be damaged.
lOil seal might be damaged.
lFluid might be leaking past piston check ball.
2. Remove snap ring for forward clutch.
3. Remove drive plates, driven plates, retaining plate and dish
plate for forward clutch.
SAT962I
SAT123F
SAT203D
Page 519 of 3066
REPAIR FOR COMPONENT PARTS
AT-513
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. Remove snap ring for overrun clutch.
5. Remove drive plates, driven plates, retaining plate and dish
plate for overrun clutch.

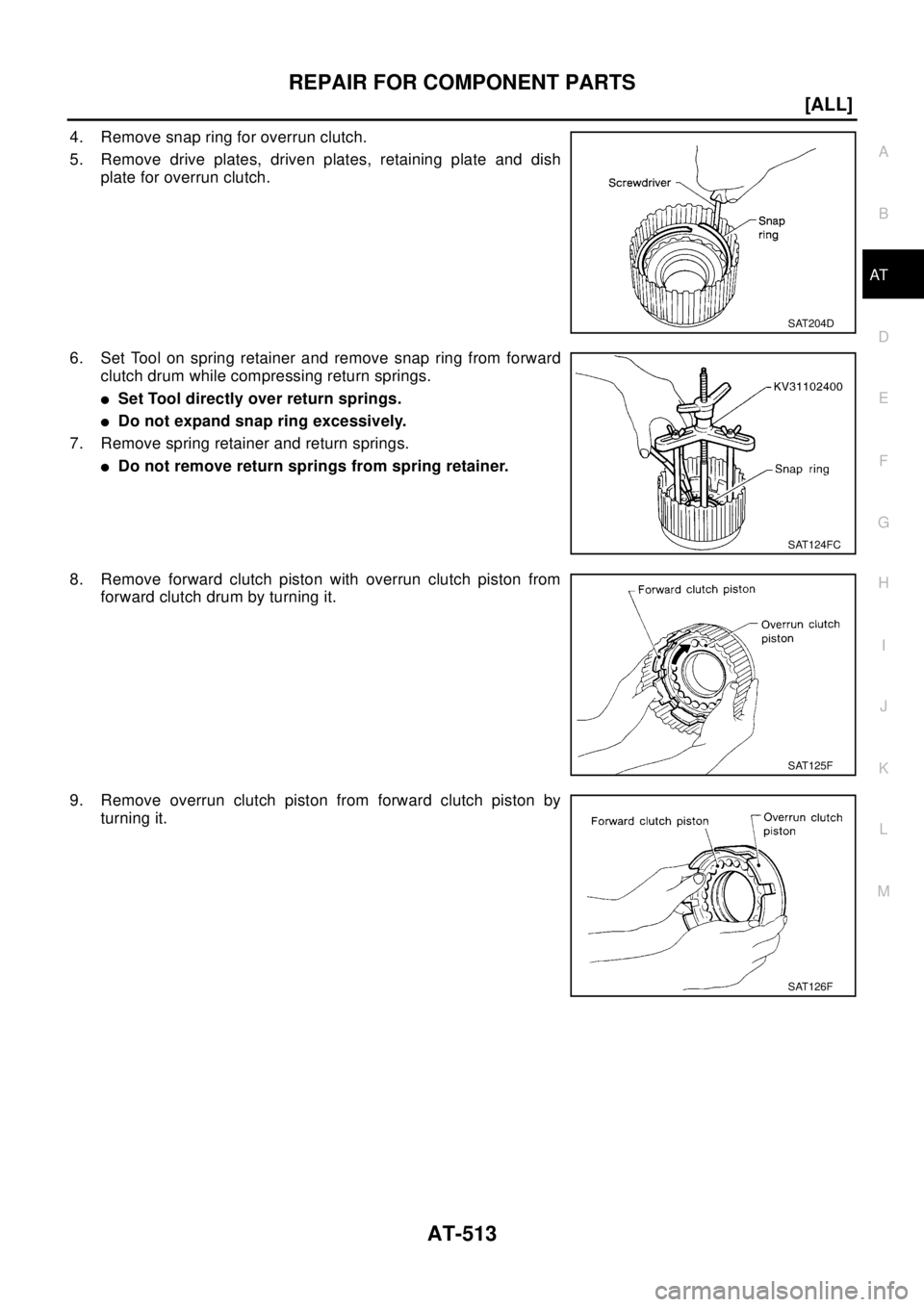

6. Set Tool on spring retainer and remove snap ring from forward
clutch drum while compressing return springs.
lSet Tool directly over return springs.
lDo not expand snap ring excessively.
7. Remove spring retainer and return springs.
lDo not remove return springs from spring retainer.
8. Remove forward clutch piston with overrun clutch piston from
forwardclutchdrumbyturningit.
9. Remove overrun clutch piston from forward clutch piston by
turning it.
SAT204D
SAT124FC
SAT125F
SAT126F
Page 520 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual AT-514
[ALL]
REPAIR FOR COMPONENT PARTS
10. Remove D-rings and oil seals from forward clutch piston and
overrun clutch piston.
INSPECTION
Snap Rings, Spring Retainer and Return Springs
lCheck for defo NISSAN X-TRAIL 2003 Electronic Repair Manual AT-514
[ALL]
REPAIR FOR COMPONENT PARTS
10. Remove D-rings and oil seals from forward clutch piston and
overrun clutch piston.
INSPECTION
Snap Rings, Spring Retainer and Return Springs
lCheck for defo](/manual-img/5/57402/w960_57402-519.png)
AT-514
[ALL]
REPAIR FOR COMPONENT PARTS
10. Remove D-rings and oil seals from forward clutch piston and
overrun clutch piston.
INSPECTION
Snap Rings, Spring Retainer and Return Springs
lCheck for deformation, fatigue or damage.
lReplace if necessary.
lWhen replacing spring retainer and return springs, replace them as a set.

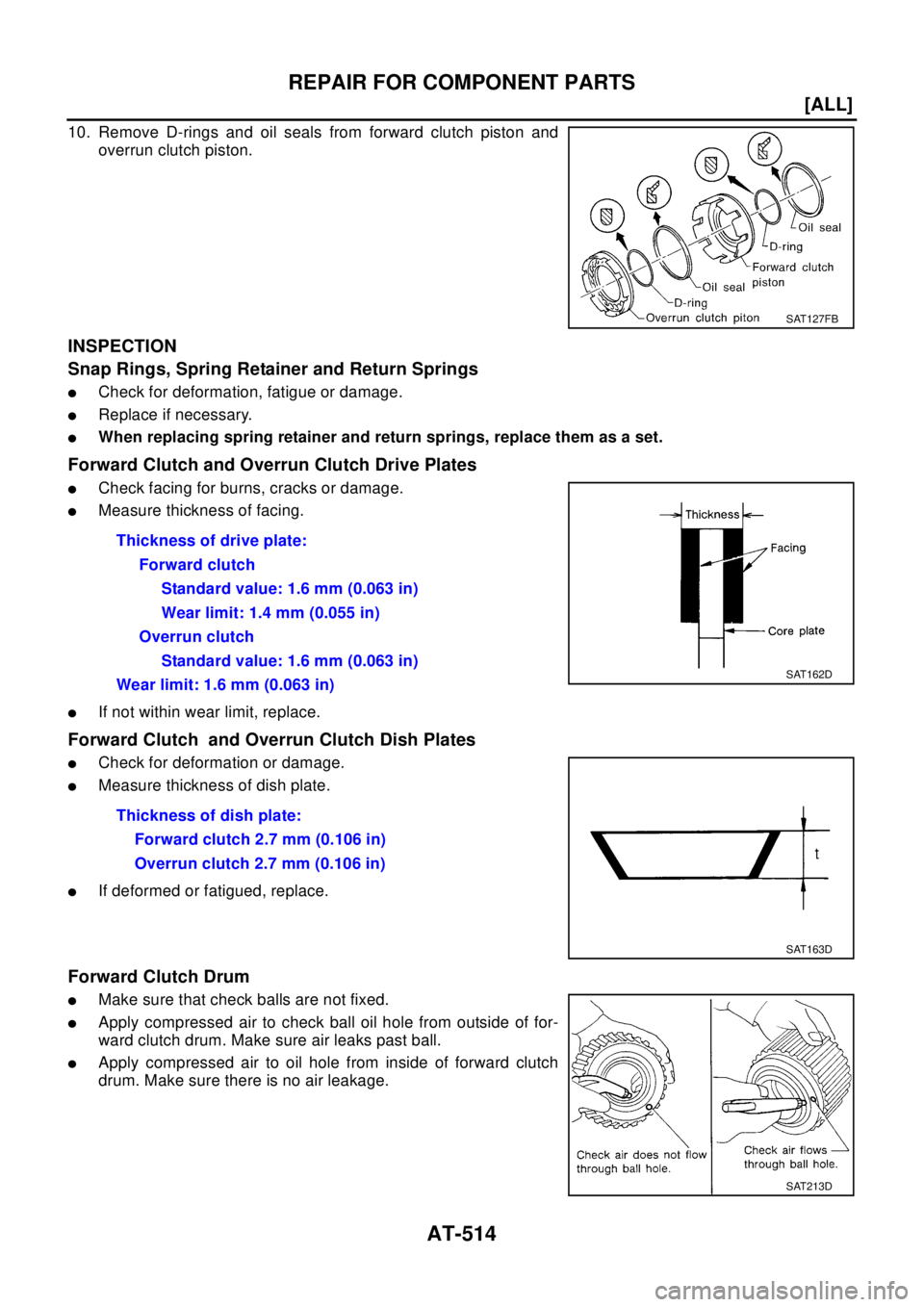

Forward Clutch and Overrun Clutch Drive Plates
lCheck facing for burns, cracks or damage.
lMeasure thickness of facing.
lIf not within wear limit, replace.
ForwardClutch andOverrunClutchDishPlates
lCheck for deformation or damage.
lMeasure thickness of dish plate.
lIf deformed or fatigued, replace.
Forward Clutch Drum
lMake sure that check balls are not fixed.
lApply compressed air to check ball oil hole from outside of for-
ward clutch drum. Make sure air leaks past ball.
lApply compressed air to oil hole from inside of forward clutch
drum. Make sure there is no air leakage.
SAT127FB
Thickness of drive plate:
Forward clutch
Standard value: 1.6 mm (0.063 in)
Wear limit: 1.4 mm (0.055 in)
Overrun clutch
Standard value: 1.6 mm (0.063 in)
Wear limit: 1.6 mm (0.063 in)
SAT162D
Thickness of dish plate:
Forward clutch 2.7 mm (0.106 in)
Overrun clutch 2.7 mm (0.106 in)
SAT163D
SAT213D
