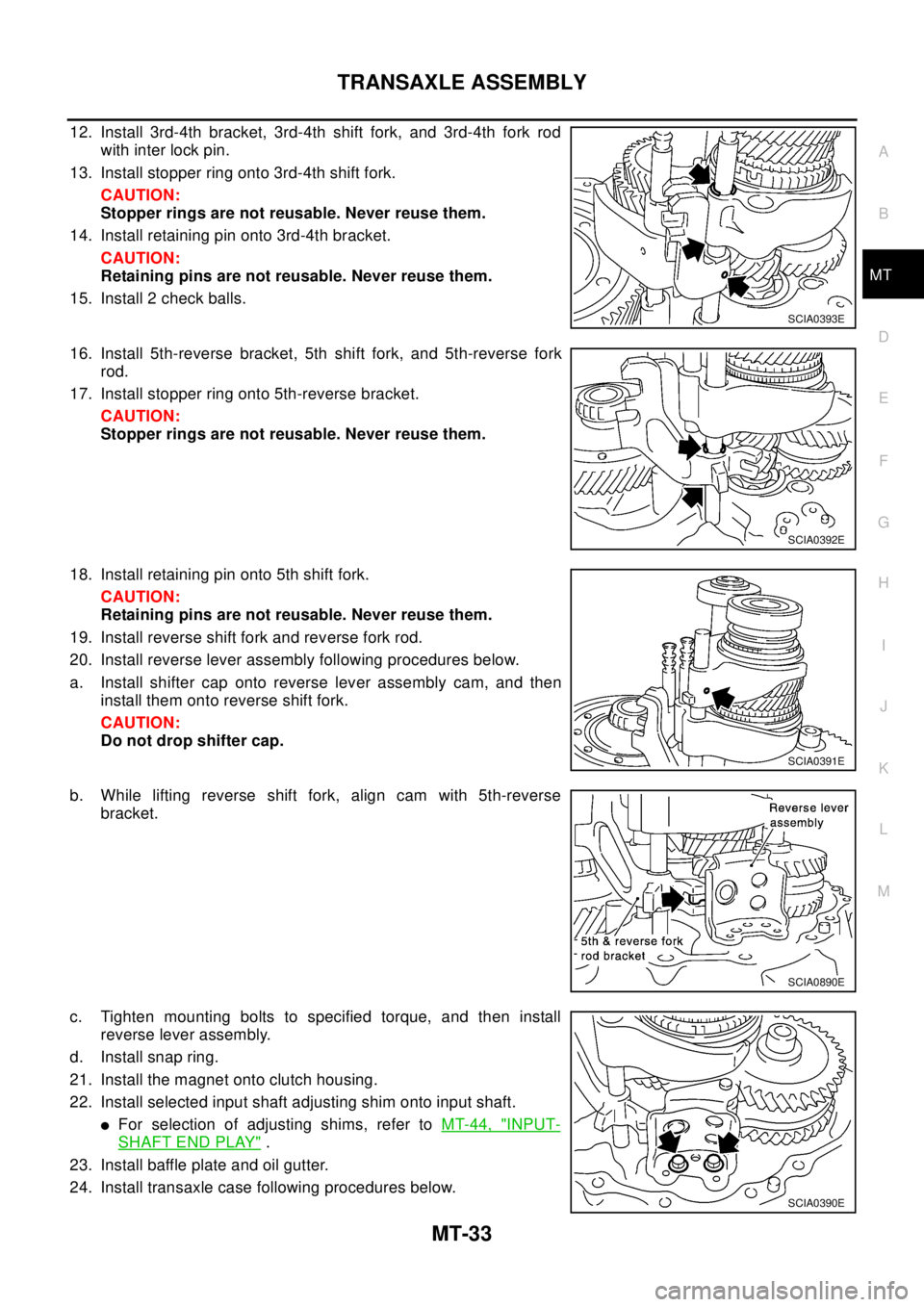

12. Install 3rd-4th bracket, 3rd-4th shift fork, and 3rd-4th fork rod
with inter lock pin.
13. Install stopper ring onto 3rd-4th shift fork.
CAUTION:
Stopper rings are not reusable. Never reuse them.
14. Install retaining pin onto 3rd-4th bracket.
CAUTION:
Retaining pins are not reusable. Never reuse them.
15. Install 2 check balls.
16. Install 5th-reverse bracket, 5th shift fork, and 5th-reverse fork
rod.
17. Install stopper ring onto 5th-reverse bracket.
CAUTION:
Stopper rings are not reusable. Never reuse them.
18. Install retaining pin onto 5th shift fork.
CAUTION:
Retaining pins are not reusable. Never reuse them.
19. Install reverse shift fork and reverse fork rod.
20. Install reverse lever assembly following procedures below.
a. Install shifter cap onto reverse lever assembly cam, and then
install them onto reverse shift fork.
CAUTION:
Do not drop shifter cap.
b. While lifting reverse shift fork, align cam with 5th-reverse
bracket.
c. Tighten mounting bolts to specified torque, and then install
reverse lever assembly.
d. Install snap ring.
21. Install the magnet onto clutch housing.
22. Install selected input shaft adjusting shim onto input shaft.
lFor selection of adjusting shims, refer toMT-44, "INPUT-
SHAFT END PLAY".
23. Install baffle plate and oil gutter.
24. Install transaxle case following procedures below.
SCIA0393E
SCIA0392E
SCIA0391E
SCIA0890E
SCIA0390E
Page 2570 of 3066

MT-34
TRANSAXLE ASSEMBLY
a. Install selected mainshaft rear bearing adjusting shim into transaxle case.
lFor selection of adjusting shims, refer toMT-46, "MAINSHAFT END PLAY".
b. Temporarily install snap ring of mainshaft rear bearing into transaxle case.
CAUTION:
Do not reuse the snap ring.

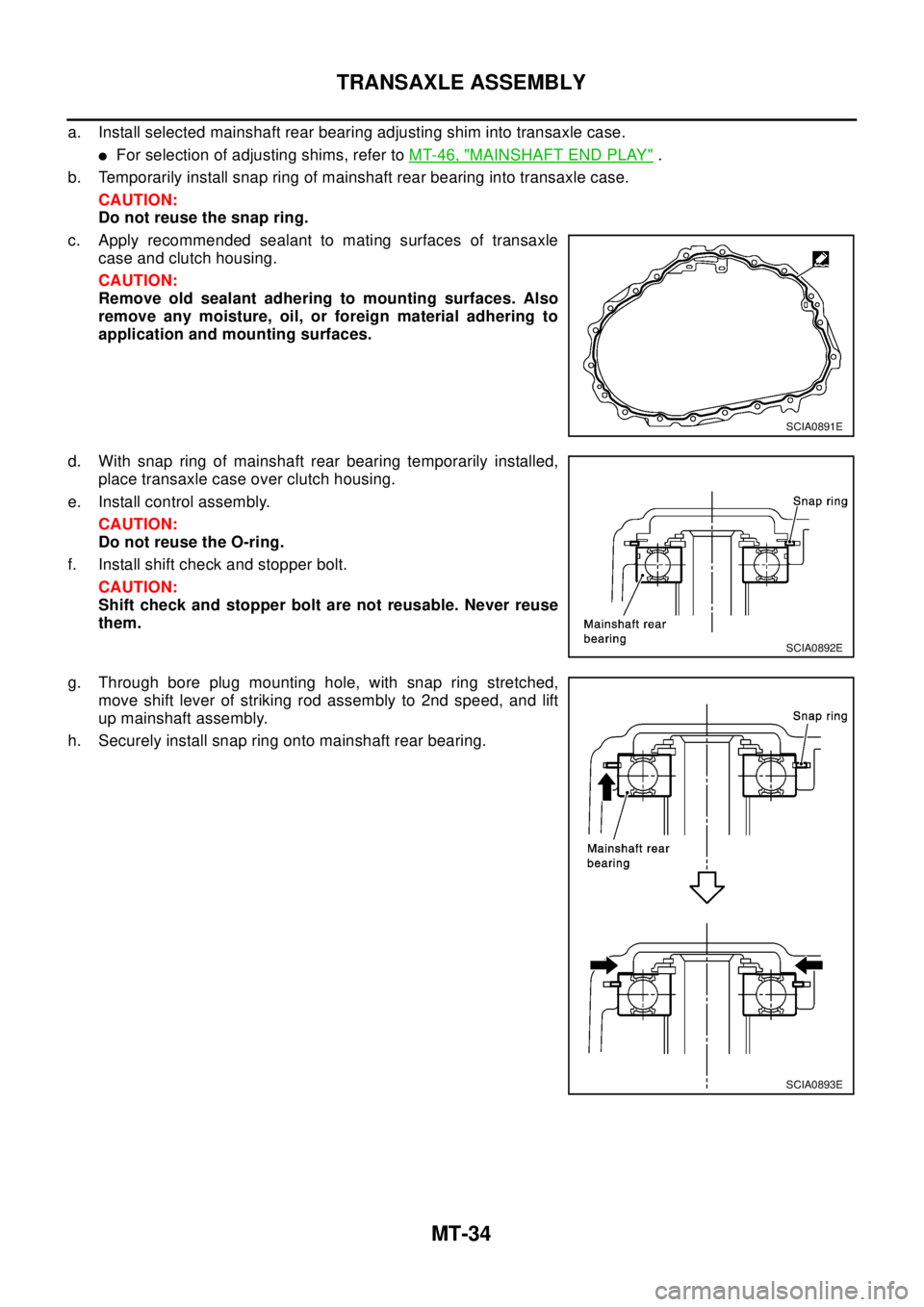

c. Apply recommended sealant to mating surfaces of transaxle
case and clutch housing.
CAUTION:
Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
d. With snap ring of mainshaft rear bearing temporarily installed,
place transaxle case over clutch housing.
e. Install control assembly.
CAUTION:
Do not reuse the O-ring.
f. Install shift check and stopper bolt.
CAUTION:
Shift check and stopper bolt are not reusable. Never reuse
them.
g. Through bore plug mounting hole, with snap ring stretched,
move shift lever of striking rod assembly to 2nd speed, and lift
up mainshaft assembly.
h. Securely install snap ring onto mainshaft rear bearing.
SCIA0891E
SCIA0892E
SCIA0893E
Page 2571 of 3066
TRANSAXLE ASSEMBLY
MT-35
D
E
F
G
H
I
J
K
L
MA
B
MT
i. Tighten mounting bolts.
CAUTION:
Always replace bolts B as they are self-sealing bolts.
25. Using a drift, install bore plug.
CAUTION:
Bore plugs are not reusable. Never reuse them.
26. Install 1 shift check sleeve, 3 check balls, 3 check springs, and 3
check ball plugs.
CAUTION:
Check ball plugs are not reusable. Never reuse them.
27. Apply recommended sealant to threads of neutral switch and
reverse lamp switch. Then install them into transaxle case.
28. Install gaskets onto drain plug and filler plug, and then install
them into transaxle case.
CAUTION:
lGaskets are not reusable. Never reuse them.
lAfter oil is filled, tighten filler plug to specified torque.
Disassembly and Assembly (RS6F51A)ECS004PY
DISASSEMBLY
1. Remove drain plug and filler plug.Bolt A:
: 50.0 - 53.9 N·m (5.1 - 5.4 kg-m, 37 - 39 ft-lb)
Bolt B:
: 63.0 - 66.9 N·m (6.5 - 6.8 kg-m, 47 - 49 ft-lb)
SCIA0996E
SCIA0894E
SCIA0396E
SCIA0895E
Page 2572 of 3066
MT-36
TRANSAXLE ASSEMBLY
2. Remove park/neutral position switch and back-up lamp switch.
3. After removing shift check and stopper bolt, remove control
assembly.
4. Remove check plugs (4 pieces), check springs (4 pieces), check
balls (4 pieces) and shift check sleeve (2 pieces).
5. Remove transaxle case fixing bolts.
6. Remove bore plug.
CAUTION:
Be careful not to damage transaxle case.
7. While spreading the snap ring of mainshaft rear bearing located
at bore plug hole, remove transaxle case.
8. Remove oil gutter, baffle plate.
9. Remove snap ring, mainshaft rear bearing adjusting shim and
input shaft rear bearing adjusting shim from transaxle case.
10. Remove differential side bearing outer race (transaxle case
side) and then adjusting shim.
11. Remove differential oil seal.
12. Remove magnet from clutch housing.
SCIA0389E
SCIA0959E
SCIA0983E
SCIA0897E
SCIA0397E
Page 2573 of 3066
TRANSAXLE ASSEMBLY
MT-37
D
E
F
G
H
I
J
K
L
MA
B
MT

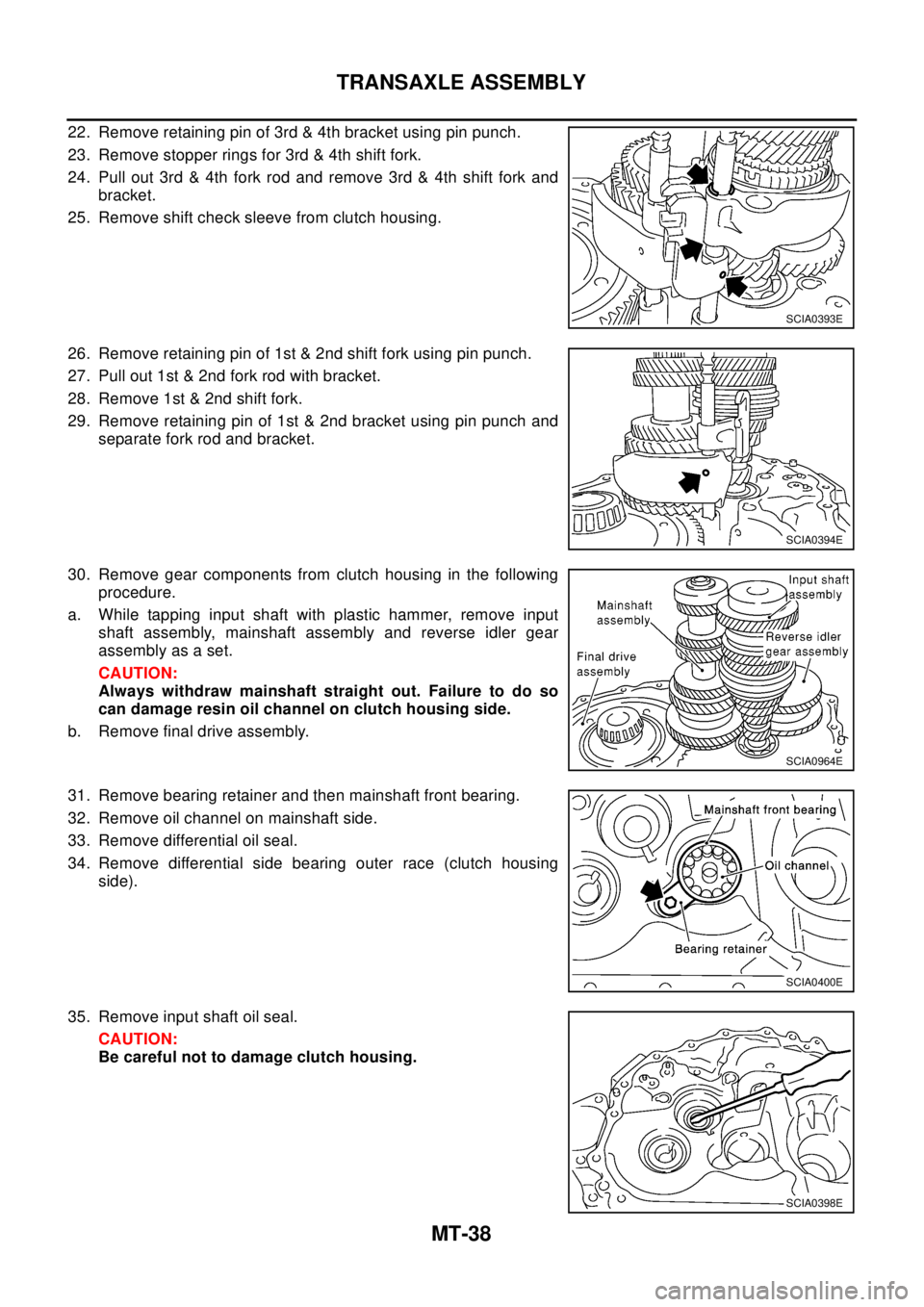

13. With shift lever in 5th position, remove bracket bolts from
reverse lever assembly. Lift reverse lever assembly to remove.
CAUTION:
Be careful not to lose shifter cap.
14. Pull out reverse fork rod then remove reverse shift fork.
15. Remove retaining pin of reverse bracket.
16. Pull out reverse lever and reverse bracket fork rod.
17. Remove check ball (2 pieces) and inter lock pin.
18. Shift 3rd & 4th fork rod to 3rd position. Remove retaining pin of
5th & 6th shift fork using pin punch.
19. Remove stopper rings for 5th & 6th bracket.
20. Pull out 5th & 6th fork rod and remove 5th & 6th shift fork and
5th & 6th bracket.
21. Remove check balls (2 pieces) and inter lock pin.
SCIA0960E
SCIA0961E
SCIA0962E
SCIA0963E
Page 2574 of 3066

MT-38
TRANSAXLE ASSEMBLY
22. Remove retaining pin of 3rd & 4th bracket using pin punch.
23. Remove stopper rings for 3rd & 4th shift fork.
24. Pull out 3rd & 4th fork rod and remove 3rd & 4th shift fork and
bracket.
25. Remove shift check sleeve from clutch housing.
26. Remove retaining pin of 1st & 2nd shift fork using pin punch.
27. Pull out 1st & 2nd fork rod with bracket.
28. Remove 1st & 2nd shift fork.
29. Remove retaining pin of 1st & 2nd bracket using pin punch and
separate fork rod and bracket.
30. Remove gear components from clutch housing in the following
procedure.
a. While tapping input shaft with plastic hammer, remove input
shaft assembly, mainshaft assembly and reverse idler gear
assembly as a set.
CAUTION:
Always withdraw mainshaft straight out. Failure to do so
can damage resin oil channel on clutch housing side.
b. Remove final drive assembly.
31. Remove bearing retainer and then mainshaft front bearing.
32. Remove oil channel on mainshaft side.
33. Remove differential oil seal.
34. Remove differential side bearing outer race (clutch housing
side).
35. Remove input shaft oil seal.
CAUTION:
Be careful not to damage clutch housing.
SCIA0393E
SCIA0394E
SCIA0964E
SCIA0400E
SCIA0398E
Page 2575 of 3066
TRANSAXLE ASSEMBLY
MT-39
D
E
F
G
H
I
J
K
L
MA
B
MT
ASSEMBLY
1. Using a drift, install input shaft oil seal.
CAUTION:
Oil seals are not reusable. Never reuse them.
2. Using a drift, install differential oil seal.
CAUTION:
Oil seals are not reusable. Never reuse them.
3. Install oil channel on mainshaft side.
CAUTION:
Be careful with orientation of installation.
4. Using a drift, install mainshaft front bearing.
SCIA0399E
SCIA0887E
SCIA0986E
SCIA0401E
Page 2576 of 3066
MT-40
TRANSAXLE ASSEMBLY
5. Install bearing retainer.
6. Install differential side bearing outer race.
7. Install final drive assembly into clutch housing.
8. Install input shaft assembly, mainshaft assembly, and reverse
idler gear assembly into clutch housing.
CAUTION:
Be sure not to damage input shaft oil seal.
9. Install 1st-2nd fork rod bracket onto 1st-2nd fork rod, and then
install retaining pin.
CAUTION:
Retaining pins are not reusable. Never reuse them.
SCIA0400E
SCIA0987E
SCIA0888E
SCIA0964E
SCIA0889E
