NISSAN X-TRAIL 2003 Electronic Repair Manual HYDRAULIC LINE
PS-33
C
D
E
F
H
I
J
K
L
MA
B
PS
HYDRAULIC LINEPFP:49721
Removal and InstallationEGS0004O

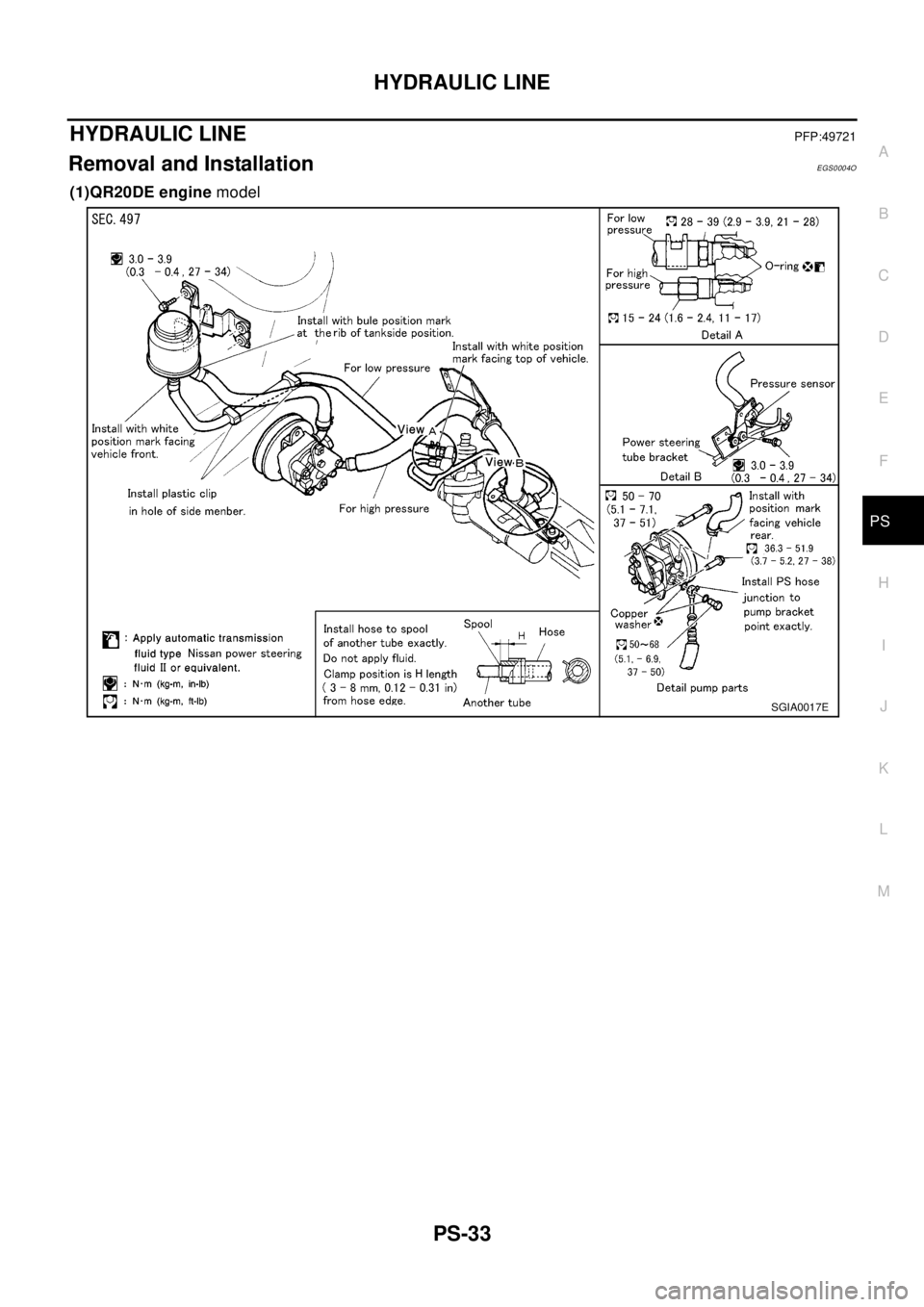

(1)QR20DE enginemodel
SGIA0017E

Page 2794 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PS-34
HYDRAULIC LINE

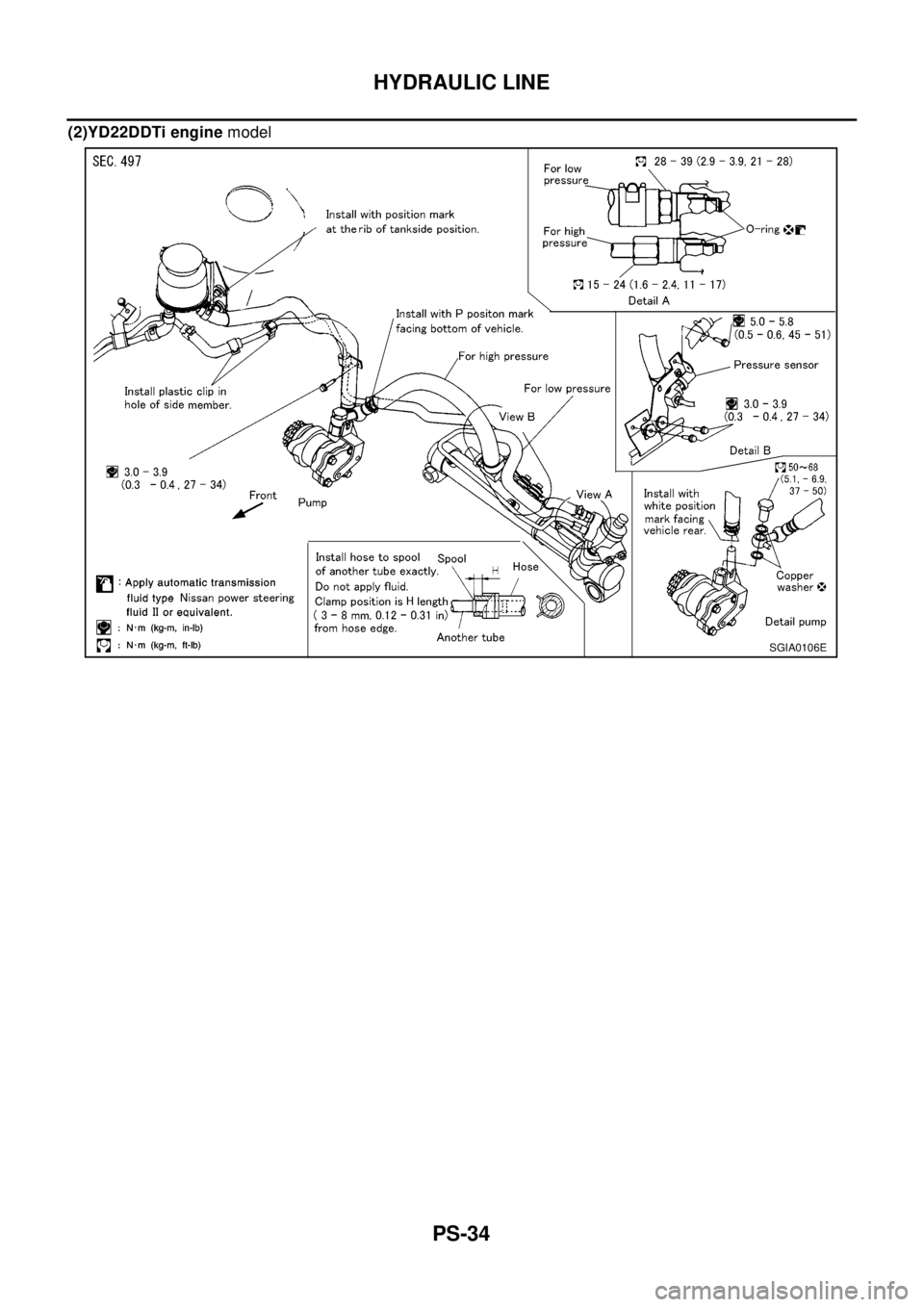

(2)YD22DDTi enginemodel
SGIA0106E

Page 2795 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PS-35
C
D
E
F
H
I
J
K
L
MA
B
PS
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
WheelEGS0004P
Steering AngleEGS0004Q
Steering ColumnEGS0004R
Steering LinkageEGS000

Page 2796 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PS-36
SERVICE DATA AND SPECIFICATIONS (SDS)
Steering Gear
EGS0004T
Oil PumpEGS0004U
Steering FluidEGS0004V
Steering gear model PR24AD
Rack neutral position, dimen-
sion (L)66.5 mm (2.618 in)
Retainer

Page 2797 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-1
REAR AXLE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RAX
REAR AXLE
PRECAUTIONS .......................................................... 2
Caution ...............................

RAX-1
REAR AXLE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RAX
REAR AXLE
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
Precautions for Brake System .................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 4
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Troubleshooting Chart ..................................... 5
WHEEL HUB (4WD) ................................................... 6
On-Vehicle Inspection .............................................. 6
REAR WHEEL BEARING ..................................... 6
Removal and Installation .......................................... 6
REMOVAL ............................................................. 6INSTALLATION ..................................................... 7
Disassembly and Assembly ...................................... 7
DISASSEMBLY ..................................................... 7
INSPECTION AFTER DISASSEMBLY .................. 8
ASSEMBLY ........................................................... 8
REAR DRIVE SHAFT ................................................. 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSPECTION AFTER REMOVAL ......................... 9
INSTALLATION ..................................................... 9
Disassembly and Assembly .................................... 10
DISASSEMBLY ................................................... 10
INSPECTION AFTER DISASSEMBLY ................ 11
ASSEMBLY ......................................................... 12
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 15
Wheel Bearing ........................................................ 15
Drive Shaft .............................................................. 15

Page 2798 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS00060
Observe the following precautions when disassembling and servicing drive shaft.
lPerform work in a location which is as dust-free and dirt-free

Page 2799 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PREPARATION
RAX-3
C
E
F
G
H
I
J
K
L
MA
B
RAX
PREPARATIONPFP:00002
Special Service ToolsEDS00061
To o l n a m e
Tool numberDescription
Sliding hammer
ST36230000Removing wheel hubs
Attachment
KV40104100

Page 2800 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-4
PREPARATION

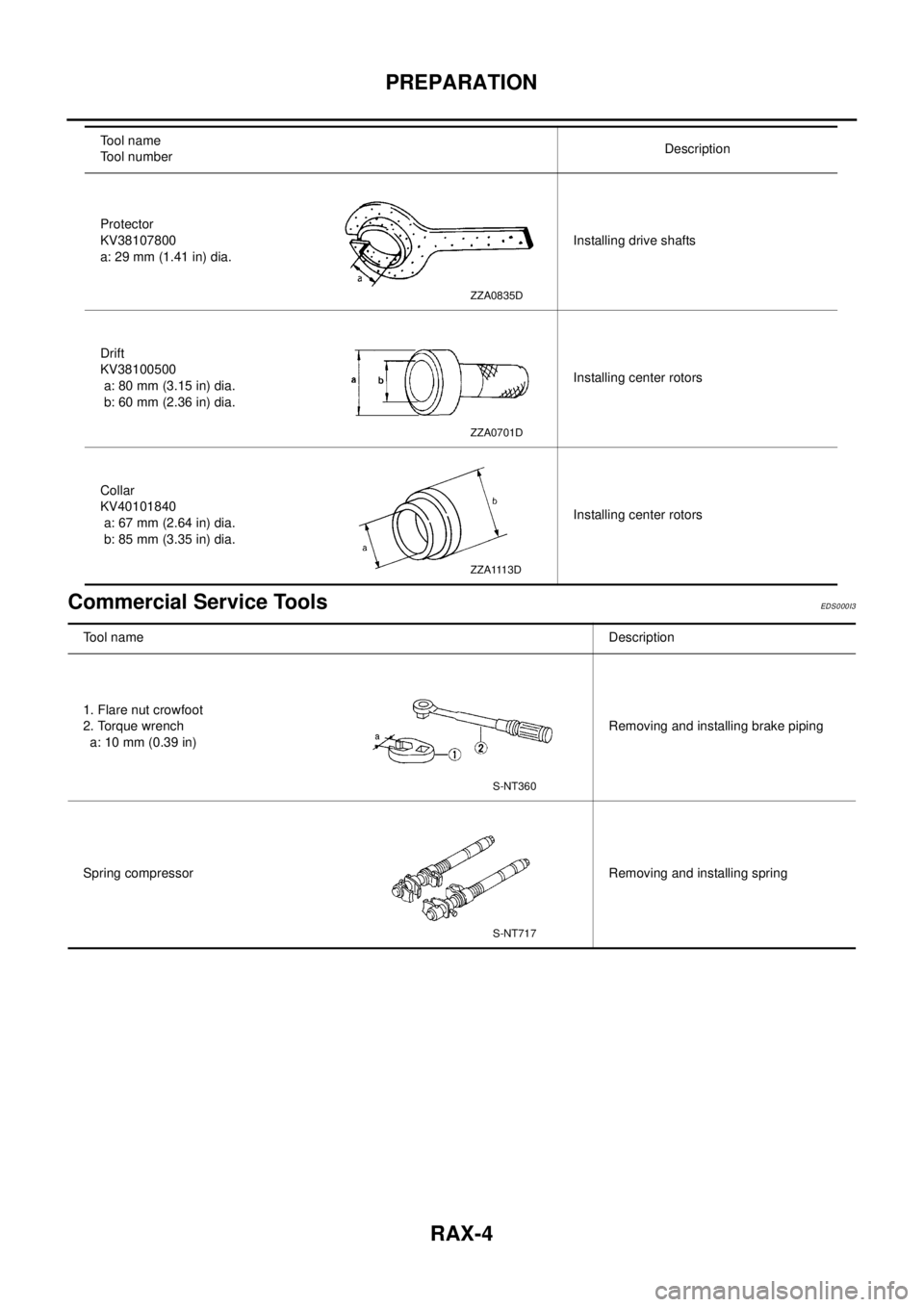

Commercial Service Tools
EDS0 00 I3
Protector
KV38107800
a: 29 mm (1.41 in) dia.Installing drive shafts
Drift
KV38100500
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.Installing cen
