DTC P1147 HO2S2PFP:226A0
Component DescriptionEBS00BC5
The heated oxygen sensor 2, after three way catalyst, monitors the
oxygen l

Page 1418 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-304
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2
DTC Confirmation Procedure
EBS00BC9
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
l"COMPLETED" will appear on CONSULT-II screen when all tests "COND1

Page 1419 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P1147 HO2S2
EC-305
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
lIf "COMPLETED" already appears at "COND2" on CONSULT-II screen before "Procedure for
COND2" is conducted, it is unnecessary to co

DTC P1147 HO2S2
EC-305
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
lIf "COMPLETED" already appears at "COND2" on CONSULT-II screen before "Procedure for
COND2" is conducted, it is unnecessary to conduct step 1 in "Procedure for COND2".
Procedure for COND2
1. While driving, release accelerator pedal completed with "OD"
OFF (A/T models only) from the above condition [step 8] until
"INCOMPLETE" at "COND2" on CONSULT-II screen has turned
to "COMPLETED" (It will take approximately 4 seconds.)
NOTE:
If "COMPLETE" already appears at "COND3" on CONSULT-
II screen before "Procedure for COND3" is conducted, it is
unnecessary to conduct step 1 in "Procedure for COND3".
Procedure for COND3
1. Stop vehicle and let it idle until "INCOMPLETE" of "COND3" on
CONSULT-II screen has turned to "COMPLETED". (It will take a
maximum of approximately 6 minutes.)
2. Make sure that "OK" is displayed after touching "SELF-DIAG
RESULTS".
If "NG" is displayed, refer toEC-307, "
Diagnostic Procedure".
Overall Function CheckEBS00BCA
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st
trip DTC might not be confirmed.
WITH GST
1. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle with engine running.
3. Set voltmeter probes between ECM terminal 95 [HO2S2 (B1) signal] and engine ground.
4. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage can be confirmed in step 4, step 5 is not nec-
essary.
5. Keep vehicle idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in “D”
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be above 0.68V at least once during this
procedure.
6. If NG, go toEC-307, "
Diagnostic Procedure".
PBIB0558E
SEC778C
PBIB0550E

Page 1420 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-306
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2

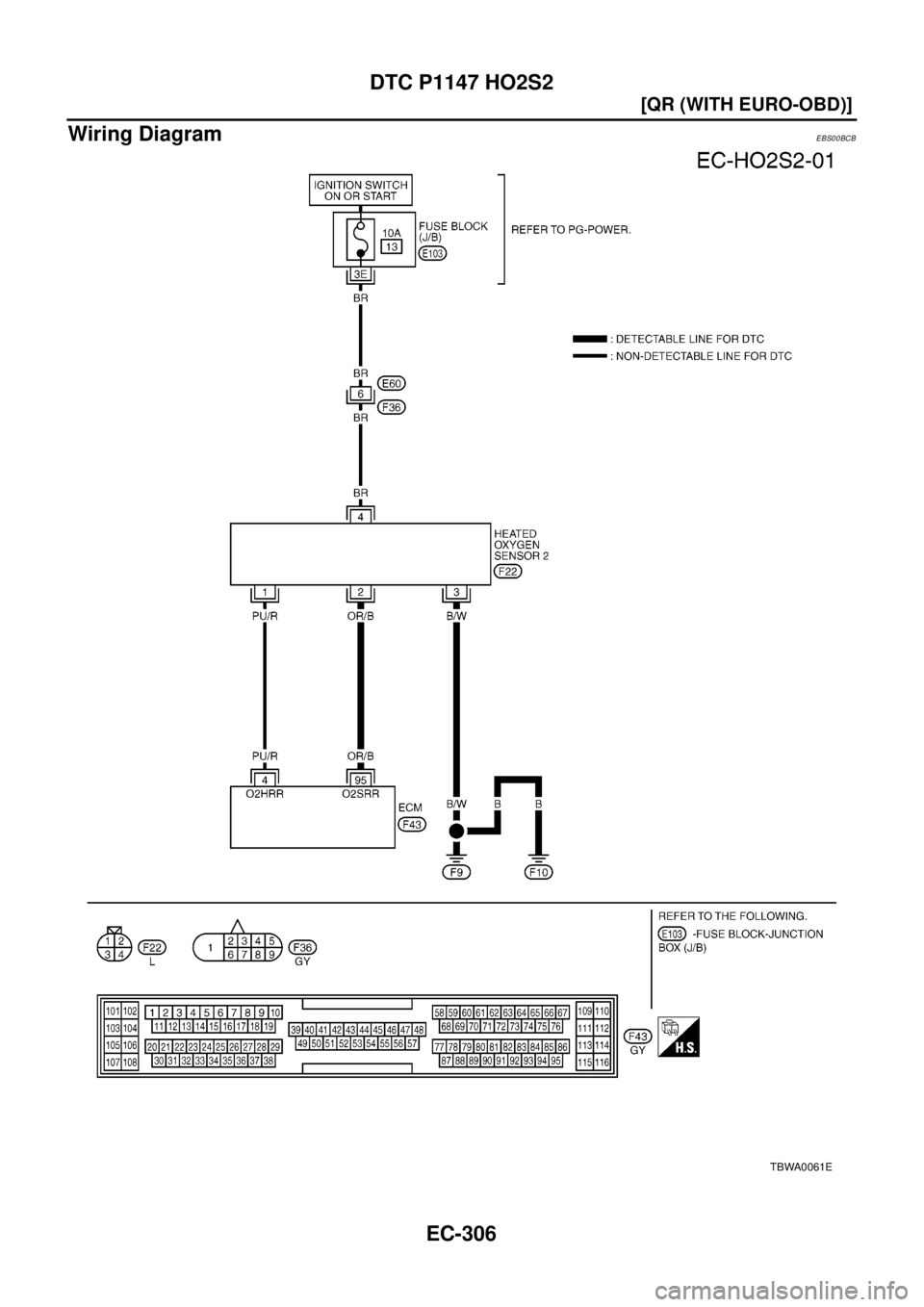

Wiring Diagram
EBS00BCB
TBWA0061E

Page 1421 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P1147 HO2S2
EC-307
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00BCC
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground sc

Page 1422 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-308
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2
3.CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Check harness

Page 1423 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P1147 HO2S2
EC-309
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.
4. Chec

Page 1424 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-310
[QR (WITH EURO-OBD)]
DTC P1212 ESP/TCS/ABS COMMUNICATION LINE
DTC P1212 ESP/TCS/ABS COMMUNICATION LINE
PFP:47850
DescriptionEBS00D0F
NOTE:
If DTC P1212 is displayed with DTC U1000, first perfor
