CAN CAMMUNICATION LINE
AT-443
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN CAMMUNICATION LINEPFP:31940
DescriptionECS004UJ
CAN (Control Area Network) is a serial communication line for real time application. It is an on-vehicle multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tonic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
*: This terminal is connected to the ECM.
On Board Diagnosis LogicECS004UK
** : A/T COMM LINE means CAN communication line.
Self-Diagnosis Code Confirmation ProcedureECS0 04 UL
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Wait at least 6 seconds or start engine and wait for at least 6
seconds.
WITHOUT CONSULT-II
1. Turn ignition switch “ON”.
2. Wait at least 6 seconds or start engine and wait at least 6 sec-
onds.
3. Perform self-diagnosis.
Refer to SELF-DIAGNOSTIC PROCEDURE (NO TOOLS),
AT-273, "
Diagnostic Procedure Without CONSULT-II".
Te r m i -
nal No.Wire color Item ConditionJudgement
standard
(Approx.)
5 B/W CAN (H) — — —
6L/RCAN(L) — — —
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T COMM LINE**
The ECM-AT communication line is open
or shorted.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lLine pressure solenoid valve
: 11th judgement flicker
SAT014K
SAT599J
Page 450 of 3066
AT-444
[ALL]
CAN CAMMUNICATION LINE

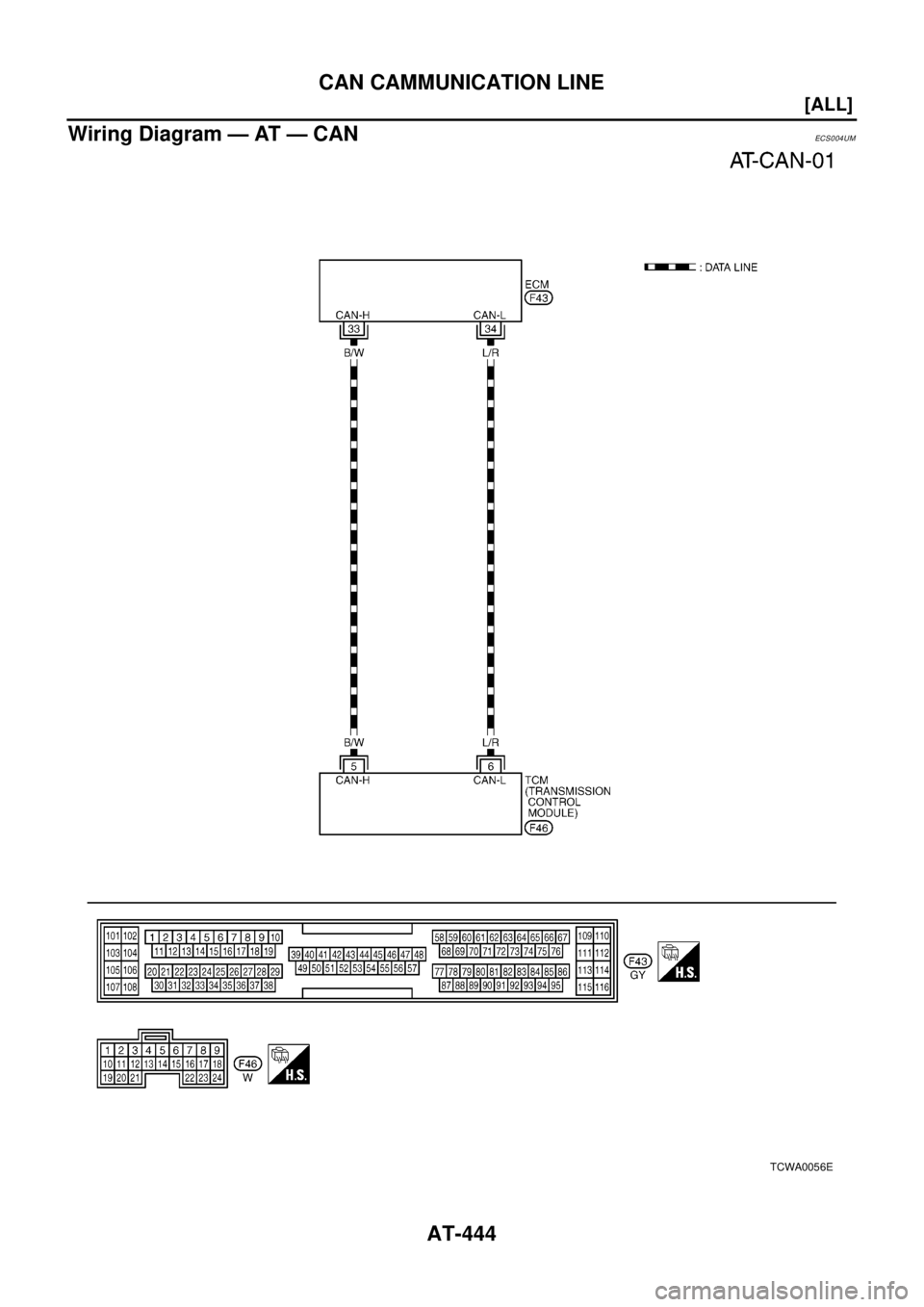

Wiring Diagram — AT — CAN
ECS0 04 UM
TCWA0056E
Page 451 of 3066
CAN CAMMUNICATION LINE
AT-445
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004UN
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. The "CON COMM CIRCUIT" is detected.
Ye s o r N o ?
Yes >> Print out CONSULT-II screen, GO TO 2.
NG >> INSPECTION END
2.CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "CAN COMM SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
>> Print out CONSULT-II screen, go toLAN-5, "
CAN SYSTEM (FOR A/T MODELS)"
CAN Communication Signals
PCIA0061E
Normal conditions Abnormal conditions (examples)
CAN COMM : OK CAN COMM : OK
CANCIRC1:OK CANCIRC1:UNKWN
CANCIRC2:OK CANCIRC2:UNKWN
CANCIRC3:OK CANCIRC3:UNKWN
CANCIRC4:OK CANCIRC4:UNKWN
CANCIRC5:UNKWN CANCIRC5:UNKWN
Page 452 of 3066
AT-446
[ALL]
A/T SHIFT LOCK SYSTEM
A/T SHIFT LOCK SYSTEM
PFP:34950
DescriptionECS00405
lThe mechanical key interlock mechanism also operates as a shift lock:
With the key switch turned to ON, the selector lever cannot be shifted from “P” (parking) to any other posi-
tion unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” to any other position.
The key cannot be removed unless the selector lever is placed in “P”.
lThe shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.

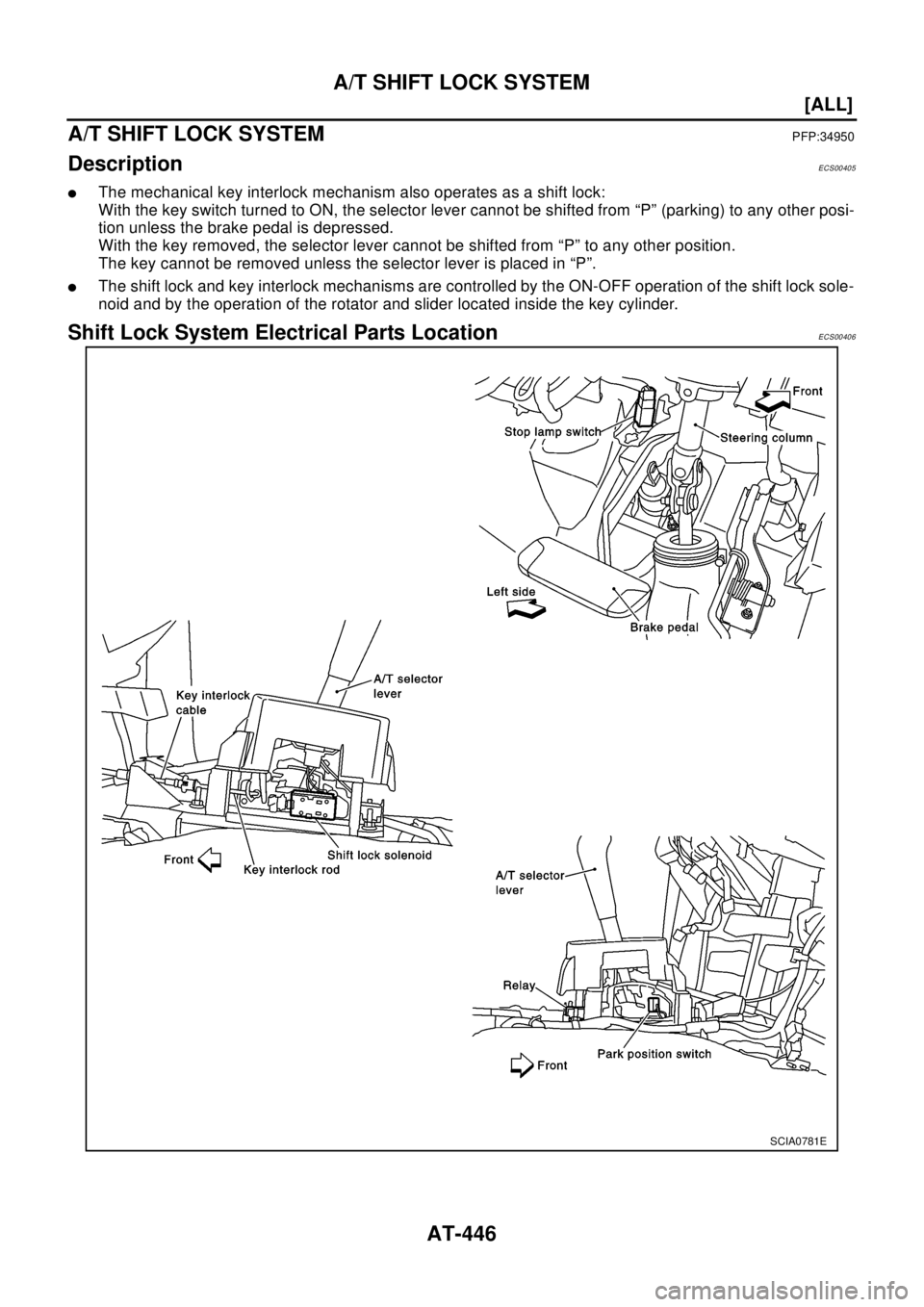

Shift Lock System Electrical Parts LocationECS00406
SCIA0781E
Page 453 of 3066
A/T SHIFT LOCK SYSTEM
AT-447
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

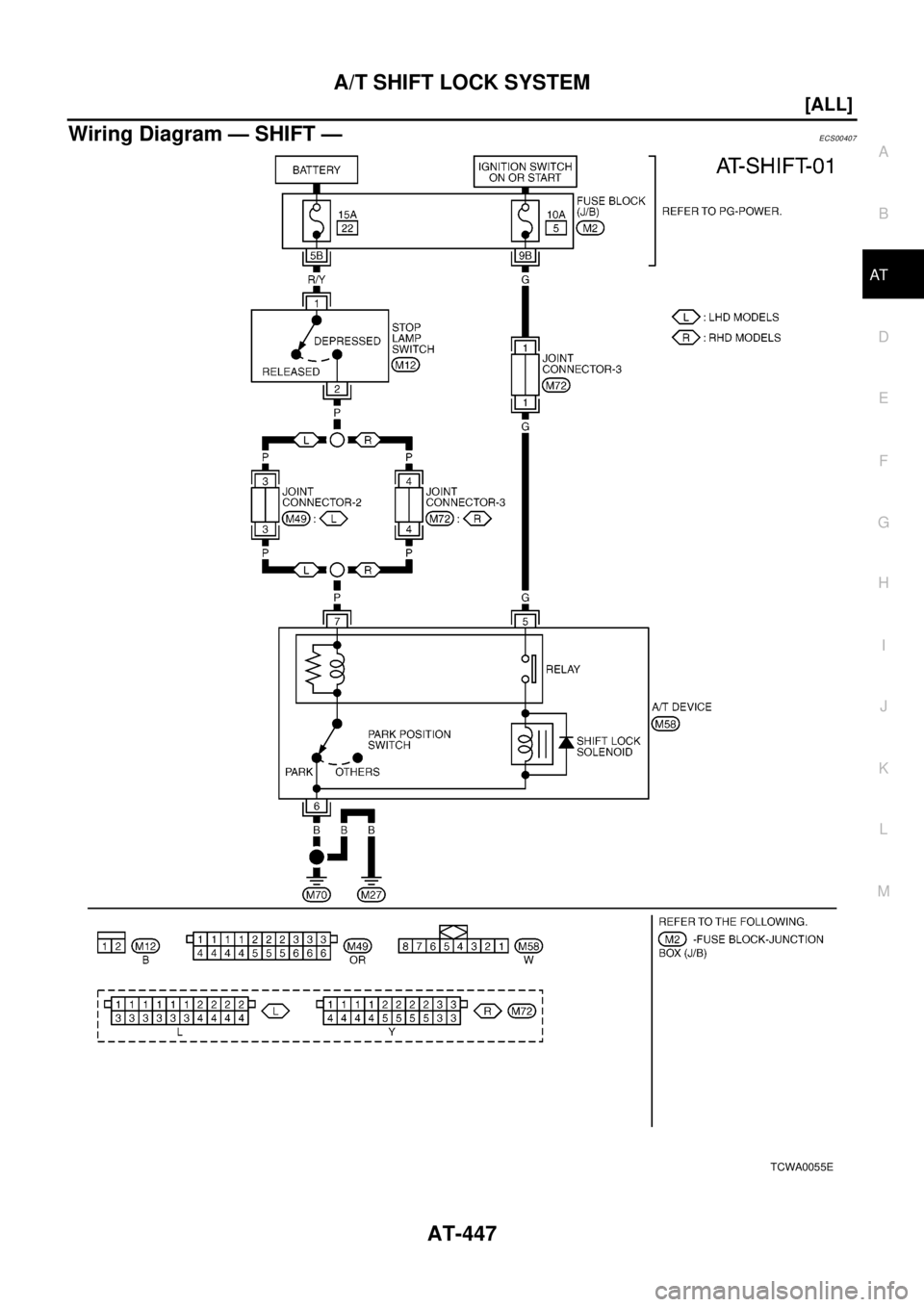

Wiring Diagram — SHIFT —ECS00407
TCWA0055E
Page 454 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual AT-448
[ALL]
A/T SHIFT LOCK SYSTEM
Diagnostic Procedure
ECS00408
SYMPTOM 1:
lSelector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.
lSelector lever can b NISSAN X-TRAIL 2003 Electronic Repair Manual AT-448
[ALL]
A/T SHIFT LOCK SYSTEM
Diagnostic Procedure
ECS00408
SYMPTOM 1:
lSelector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.
lSelector lever can b](/manual-img/5/57402/w960_57402-453.png)
AT-448
[ALL]
A/T SHIFT LOCK SYSTEM
Diagnostic Procedure
ECS00408
SYMPTOM 1:
lSelector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.
lSelector lever can be moved from “P” position with key in ON position and brake pedal released.
lSelector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to “P” position. It can be removed when
selector lever is set to any position except “P”.
1.CHECKKEYINTERLOCKCABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2
NG >> Repair key interlock cable. Refer toAT - 4 5 2 , "
KEY INTERLOCK CABLE".
2.CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.
OK or NG
OK >> GO TO 3
NG >> Check selector lever. Refer toAT - 4 5 6 , "
Park/Neutral Position (PNP) Switch Adjustment".
3.CHECK POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between stop lamp switch harness terminal 1 and ground.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
1. Harness for short or open between battery and stop
lamp switch harness terminal 1
2. Fuse
3. Ignition switch (Refer toPG-2, "
POWER SUPPLY
ROUTING".) Voltage : Battery voltageSCIA0782E
Page 455 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual A/T SHIFT LOCK SYSTEM
AT-449
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK INPUT SIGNAL (A/T DEVICE)
Turn ignition switch to “ON” position.
(Do not start engine.)
lCheck voltage between A/T device harne NISSAN X-TRAIL 2003 Electronic Repair Manual A/T SHIFT LOCK SYSTEM
AT-449
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK INPUT SIGNAL (A/T DEVICE)
Turn ignition switch to “ON” position.
(Do not start engine.)
lCheck voltage between A/T device harne](/manual-img/5/57402/w960_57402-454.png)
A/T SHIFT LOCK SYSTEM
AT-449
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK INPUT SIGNAL (A/T DEVICE)
Turn ignition switch to “ON” position.
(Do not start engine.)
lCheck voltage between A/T device harness terminal 7 and ground.
OK or NG
OK >> GO TO 5
NG >> Check the following items:
1. Harness for short and open between battery and stop
lamp switch harness connector 1.
2. Harness for short or open between stop lamp switch harness connector 2 and A/T device har-
ness connector 7.
3. Fuse
4. Stop lamp switch (Refer toAT- 4 5 0 , "
A/T DEVICE CHECK".)
5.CHECK GROUND CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness terminal 6 and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Voltage:
Brake pedal depressd:
Battery voltage
Brake pedal released:
0V
SCIA0783E
Continuity should exist.
SCIA0784E
Page 456 of 3066
AT-450
[ALL]
A/T SHIFT LOCK SYSTEM
6.CHECK RELAY CIRCUIT
1. Turn ignition switch to ON.
Check voltage between terminal 7 - 6 and 5 - 6.
OK or NG
OK >> GO TO 7
NG >> Replace A/T device.
7.CHECKPARKPOSITIONSWITCH
Refer toAT-450, "
A/T DEVICE CHECK".
OK or NG
OK >> GO TO 8
NG >> Replace A/T device.
8.CHECK SHIFT LOCK SOLENOID
Refer toAT-450, "
A/T DEVICE CHECK".
OK or NG
OK >> GO TO 9
NG >> Replace A/T device.
9.SHIFT LOCK OPERATION
1. Reconnect shift lock harness connector.
2. Turn ignition switch from “OFF” to “ON” position. (Do not start engine.)
3. Recheck shift lock operation.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform A/T device input/output signal inspection test.
2. If NG, recheck harness connector connection.
A/T DEVICE CHECK
1. Shift Lock Solenoid
lCheck operation sound.
When ignition switch is turned to “ON” position and selector lever is set in “P” position.
SCIA0785E
Brake pedal Operation sound
Depressed Yes
Released No
